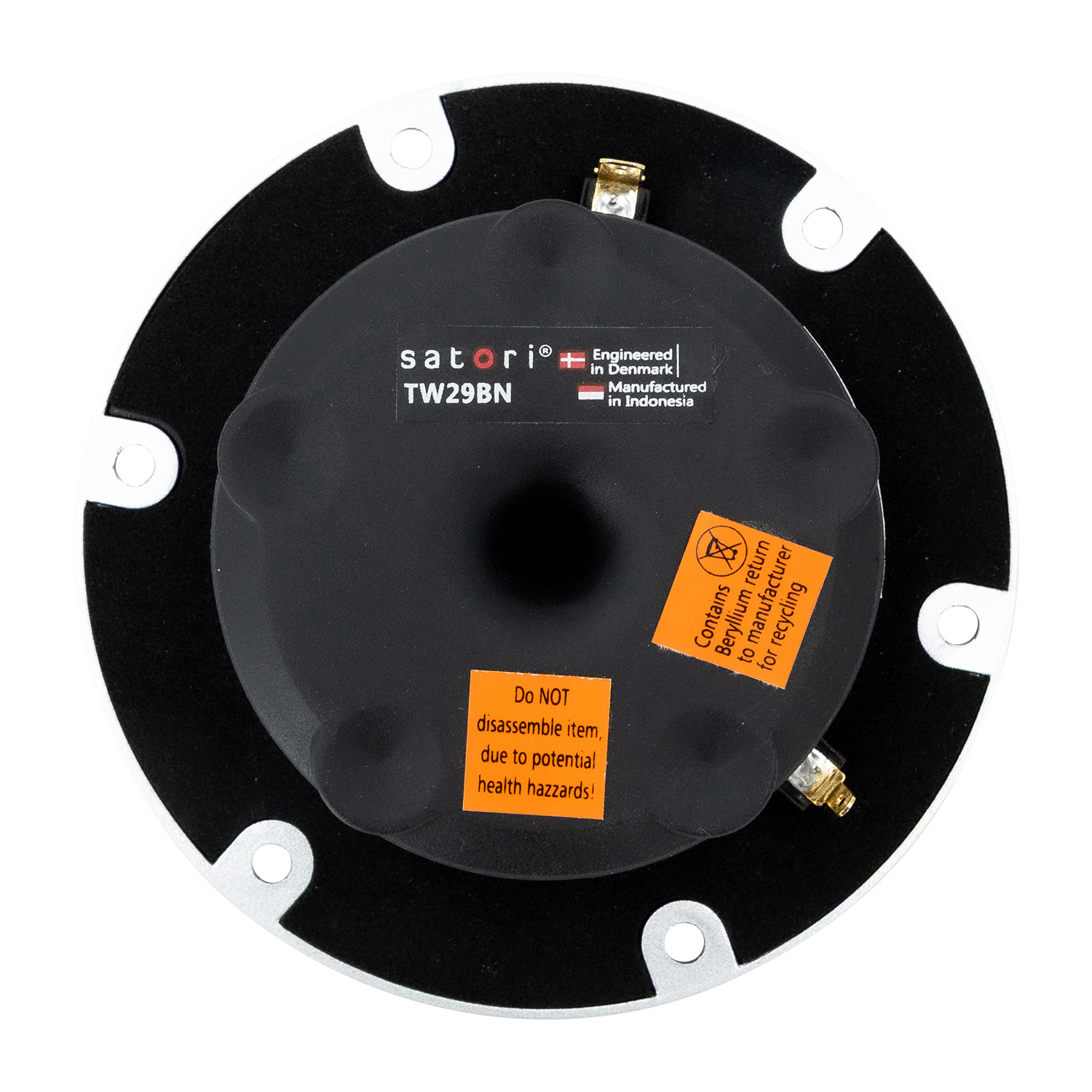

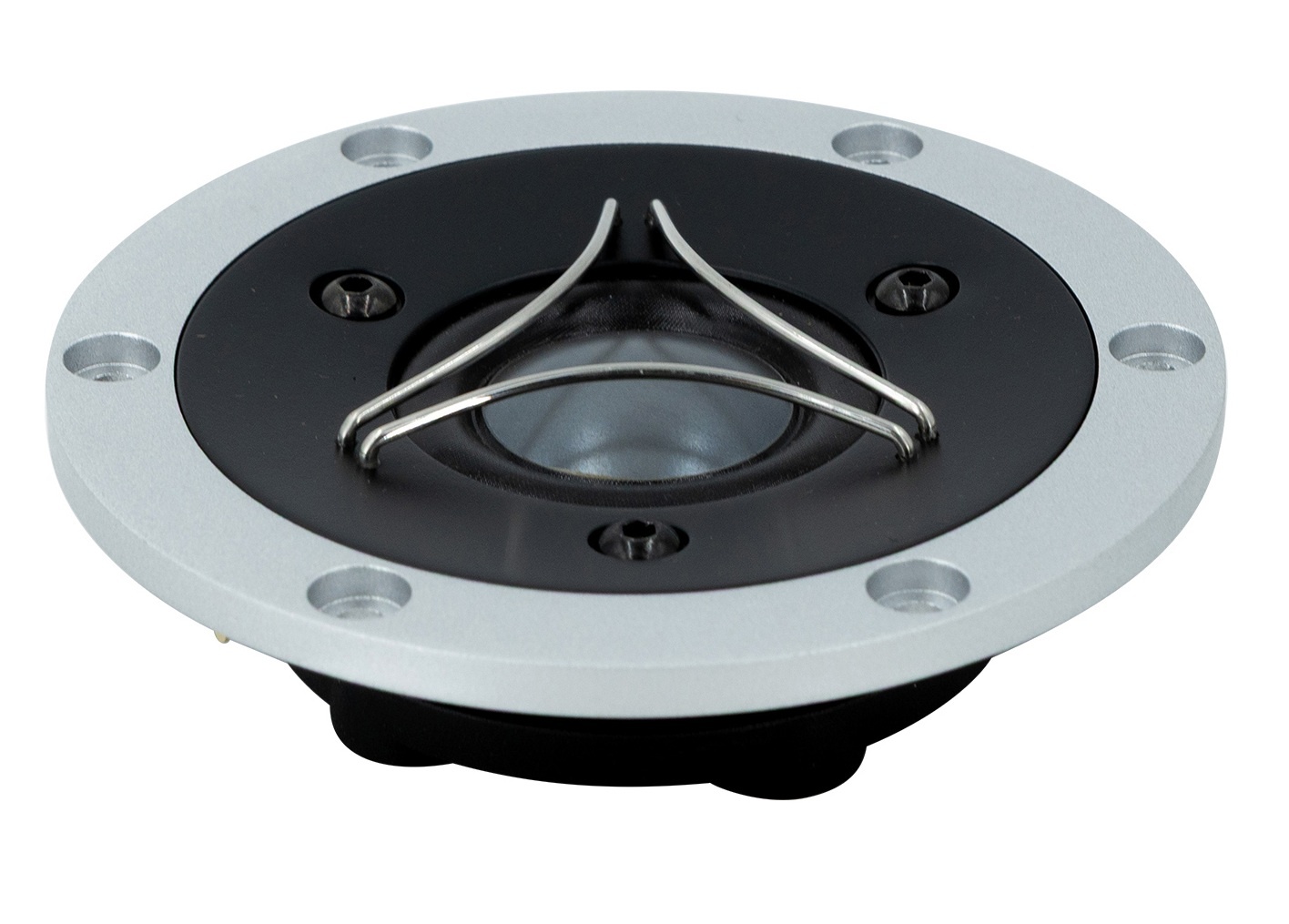

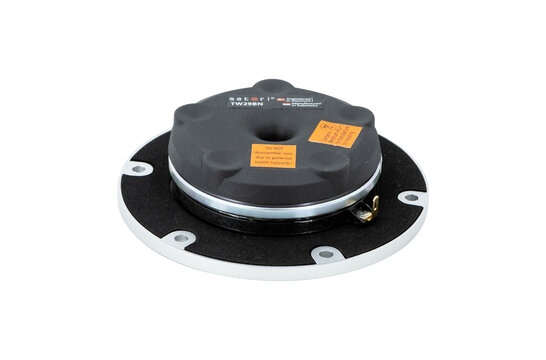

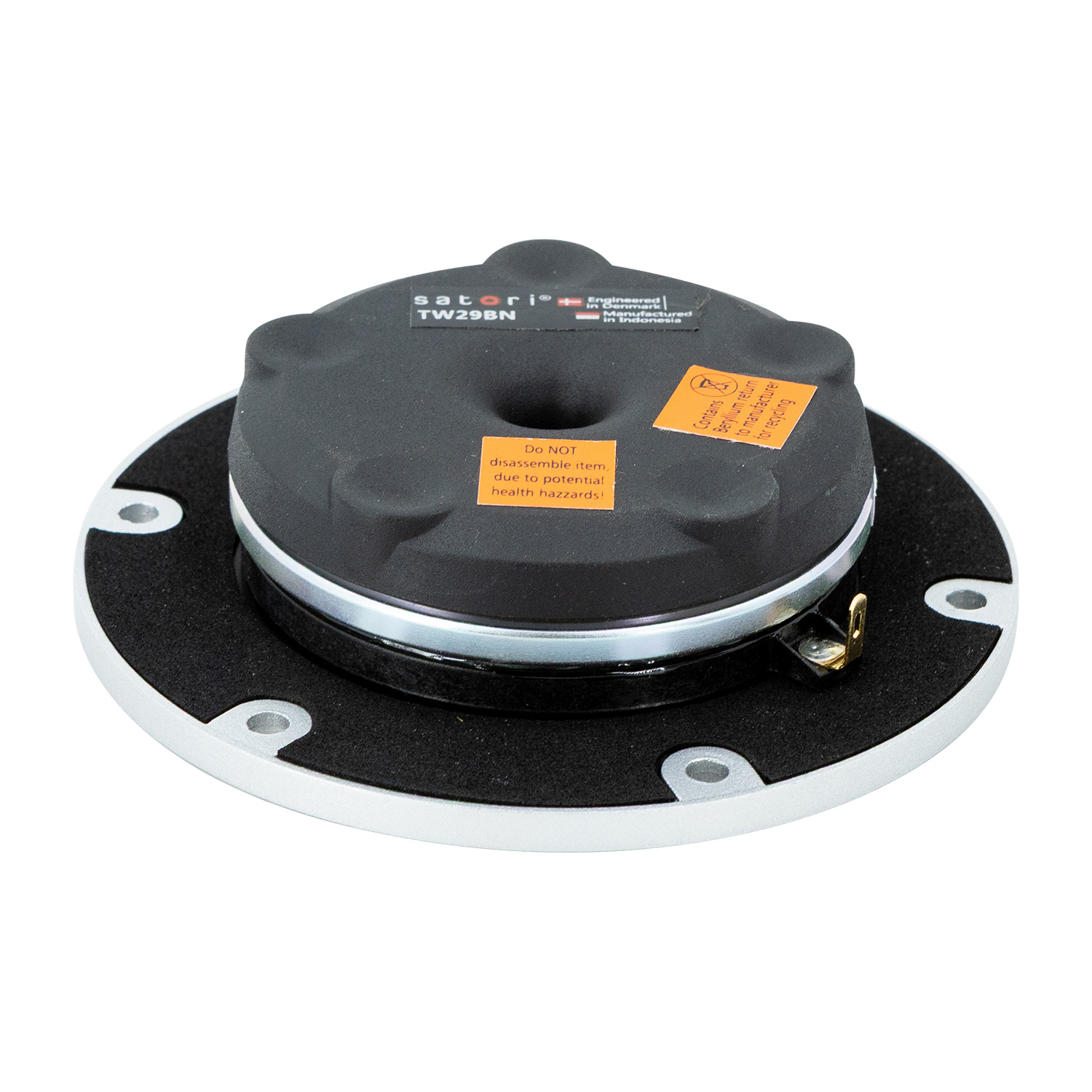

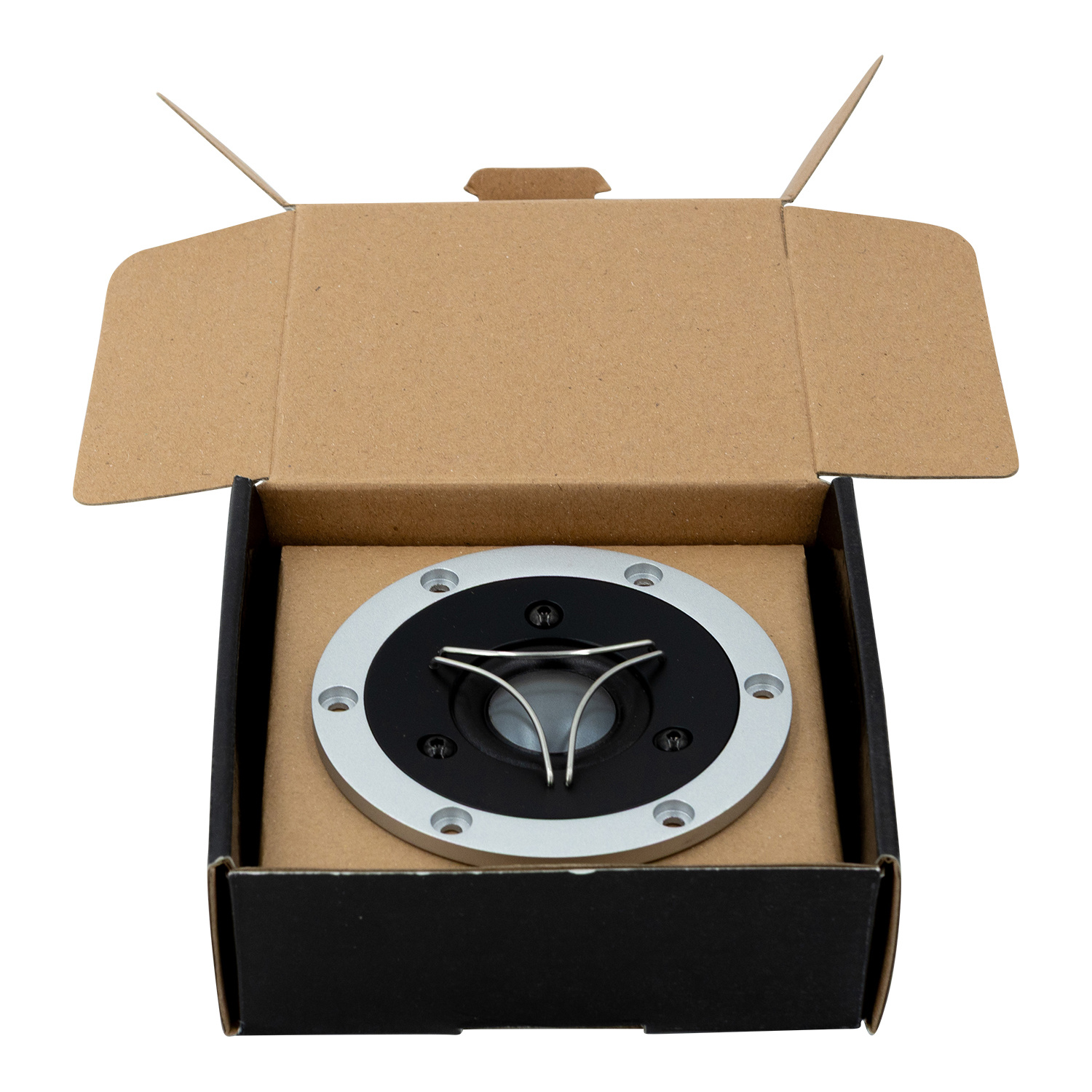

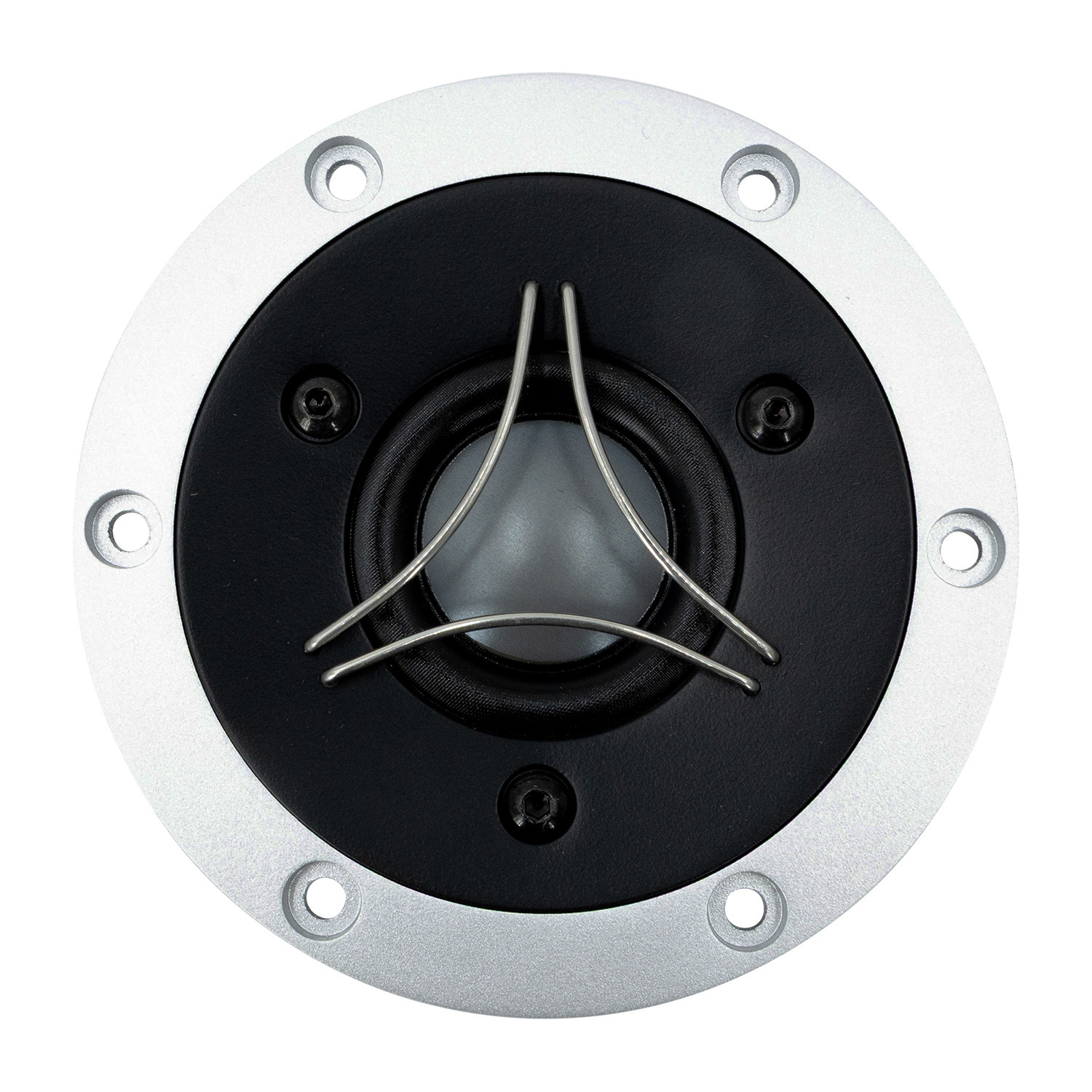

        Satori TW29BN Dome Tweeter

        SB Acoustics Satori TW29BN Dome Tweeter

        €409,95

        2 In stock

        Add to cart

        SB Acoustics Satori TW29BN Dome Tweeter

        4 reviews
        5 from 5
        4 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all SB Acoustics tweeters
        1⅛" | 4 Ω & 8 Ω
        Satori TW29BN Dome Tweeter
        Satori TW29BN Dome Tweeter
        Satori TW29BN Dome Tweeter
        Satori TW29BN Dome Tweeter
        Satori TW29BN Dome Tweeter
        Satori TW29BN Dome Tweeter
        € 338,80€ 409,95 2 In stock
        • -5% Purchase 4 for only € 389,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Satori TW29BN Dome Tweeter
        Satori TW29BN Dome Tweeter
        Satori TW29BN Dome Tweeter
        Satori TW29BN Dome Tweeter
        Satori TW29BN Dome Tweeter
        Satori TW29BN Dome Tweeter

        Product description SB Acoustics Satori TW29BN Dome Tweeter

        Highlights

        • Beryllium dome for non-resonant high frequency extension
        • Two part aluminum faceplate with integrated mechanical decoupling
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • High saturation neodymium motor system with T-shaped pole piece for lower distortion
        • Non-reflective cast aluminum chamber with optimized damping for improved dynamics
        • Shallow flow optimized magnet structure for optimum coupling to rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency for extended range



        Product details

        SB Acoustics Satori TW29BN Beryllium Dome Tweeter



        The new Satori Beryllium dome tweeter has arrived!  Beryllium is known for its open and spatial sound, often described as holographic.  The self-damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters.  All dome materials have a different tonal and spatial presentation.  Beryllium has a real positive difference, providing an experience unlike all other dome materials.



        Specifications: BL Product (BL): 3.1 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.46 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

        Show more

        Specifications

        Article number
        TW29BN
        EAN
        0696277268832
        Tweeter Type
        Dome
        Tweeter Series
        Satori
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        95 dB
        Resonant Frequency (Fs)
        725 Hz
        DC Resistance (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        2.1
        Electromagnetic Q (Qes)
        0.6
        Total Q (Qts)
        0.46

        Show more

        Reviews

        4 reviews
        Review this product
        5 of 5
        Very good and precise high frequency response. Near field 3way monitor system.
        By Salvatore on 17 March 2024
        5 of 5
        I was not sure if the Beryllium would be worth the investment. But I am amazed by the sound quality and pleased with my choice!!
        By Martijn on 12 July 2023
