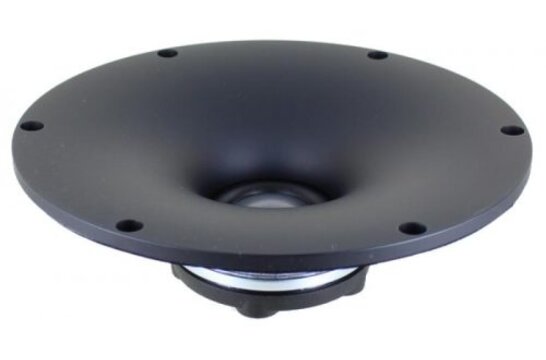

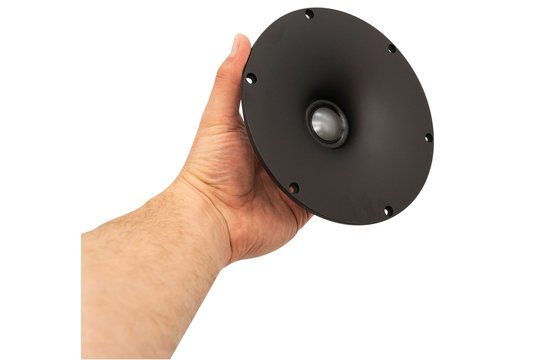

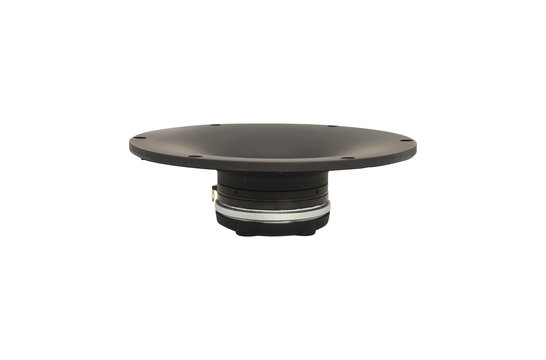

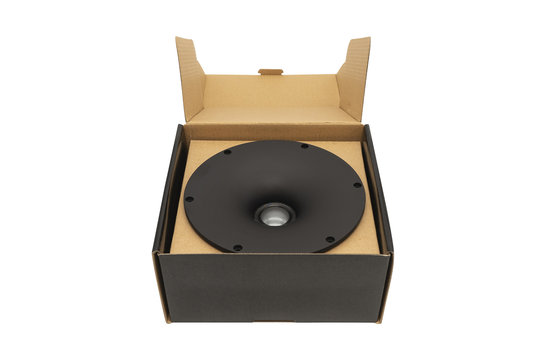

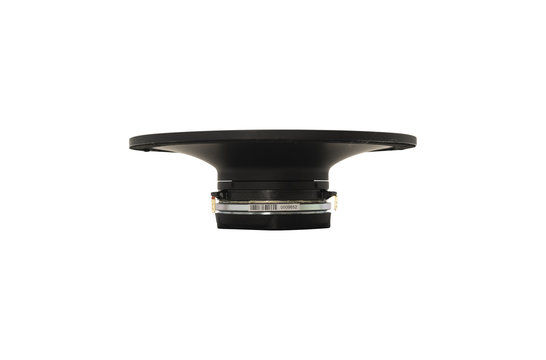

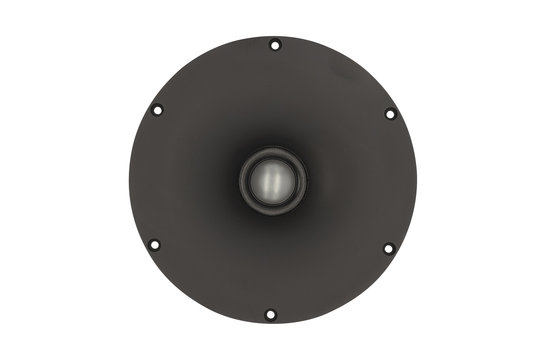

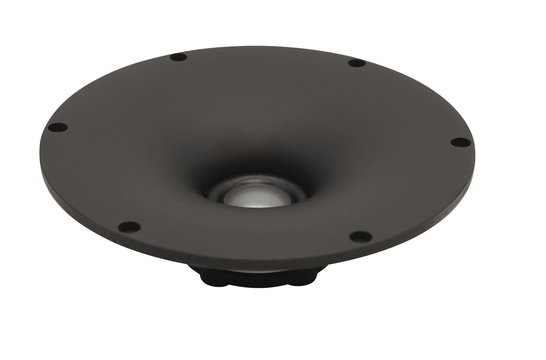

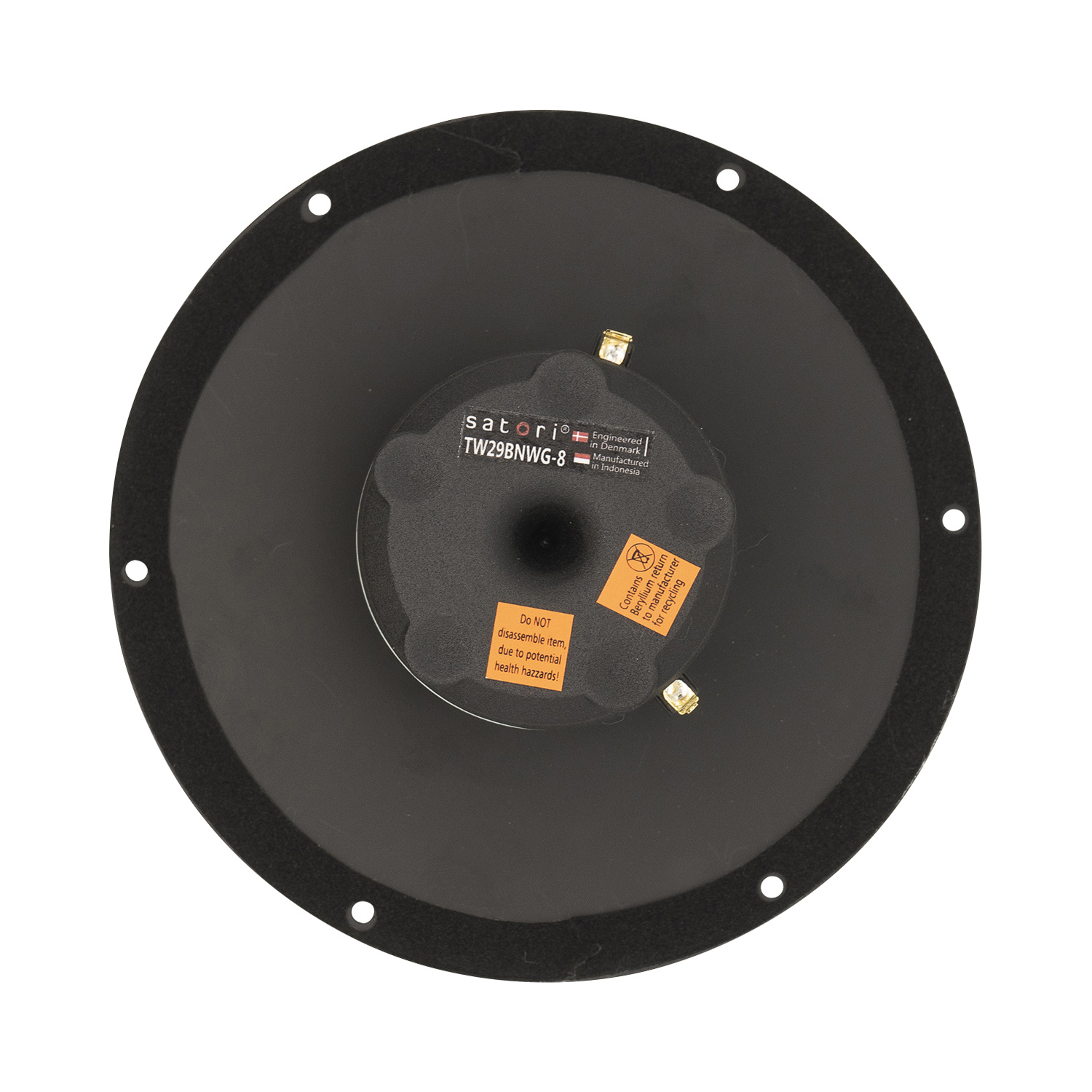

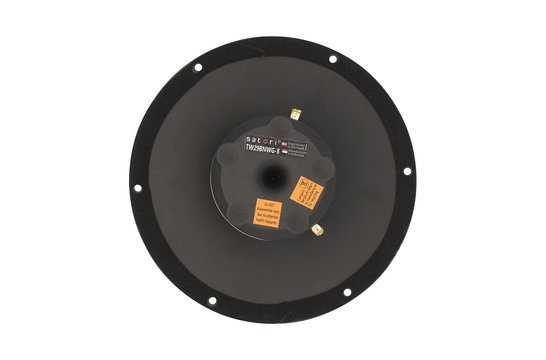

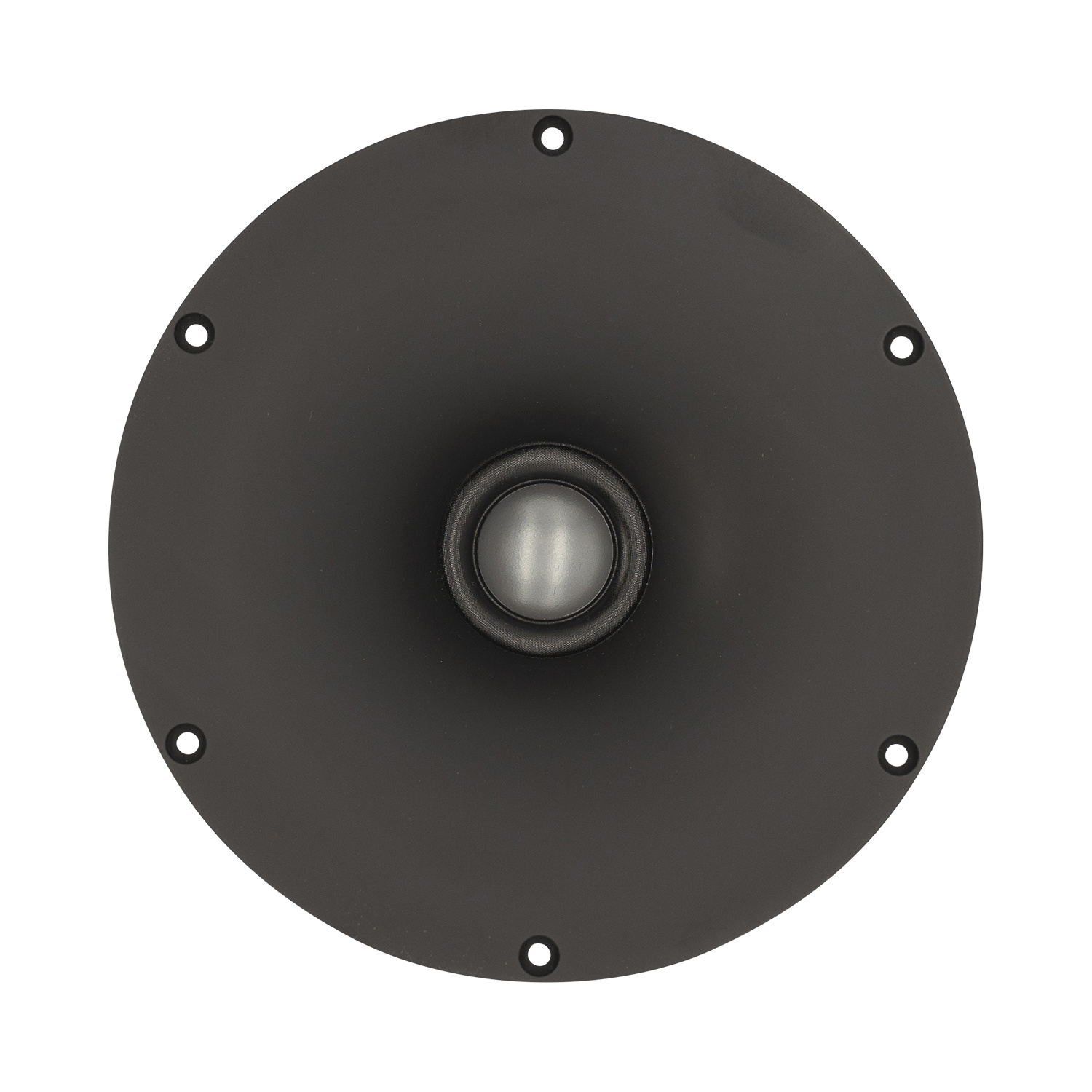

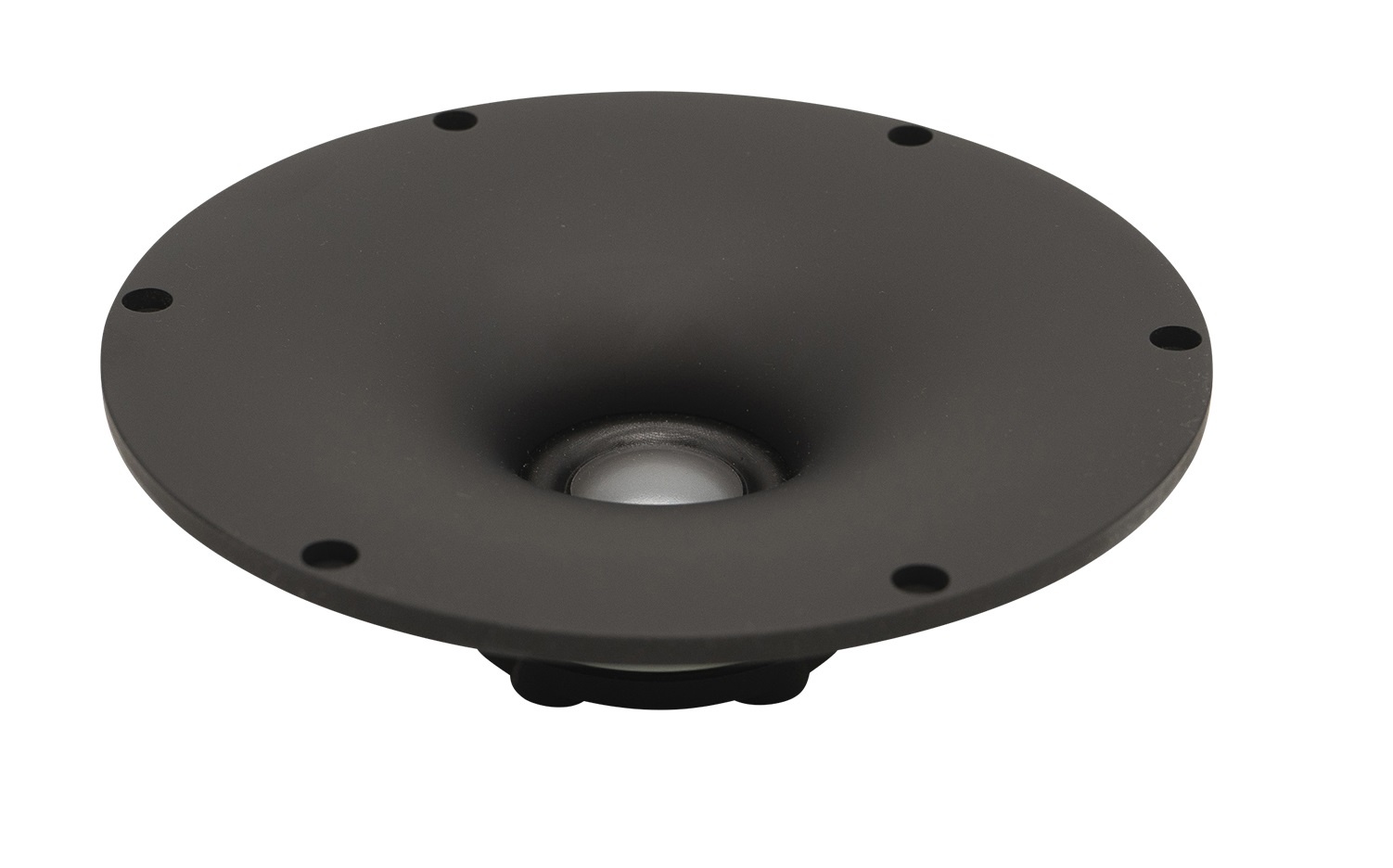

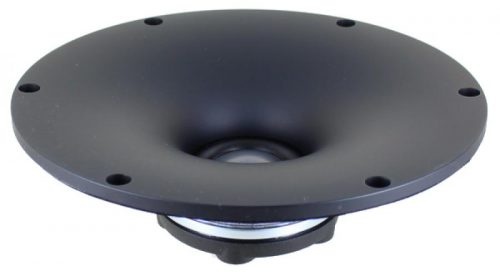

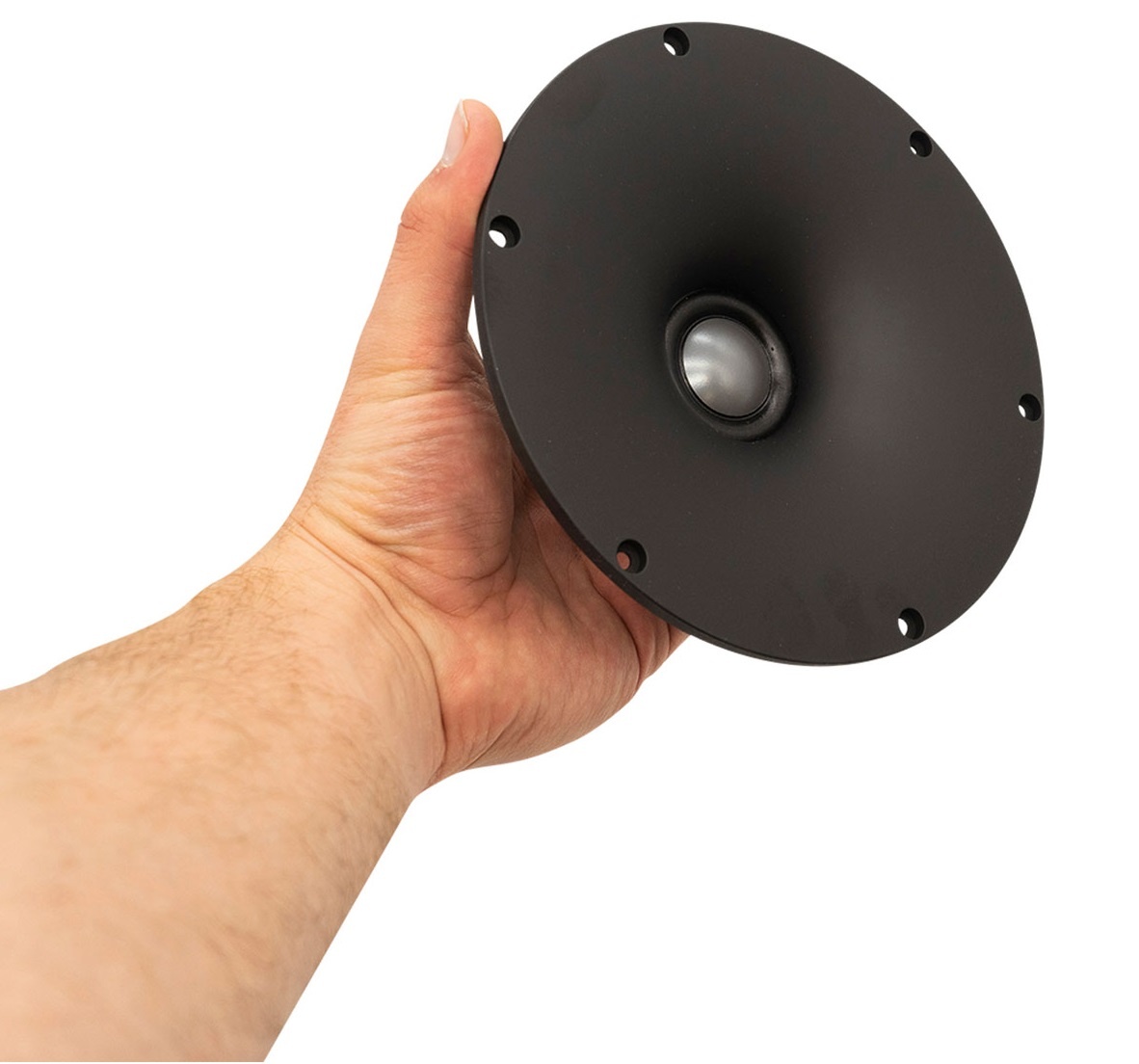

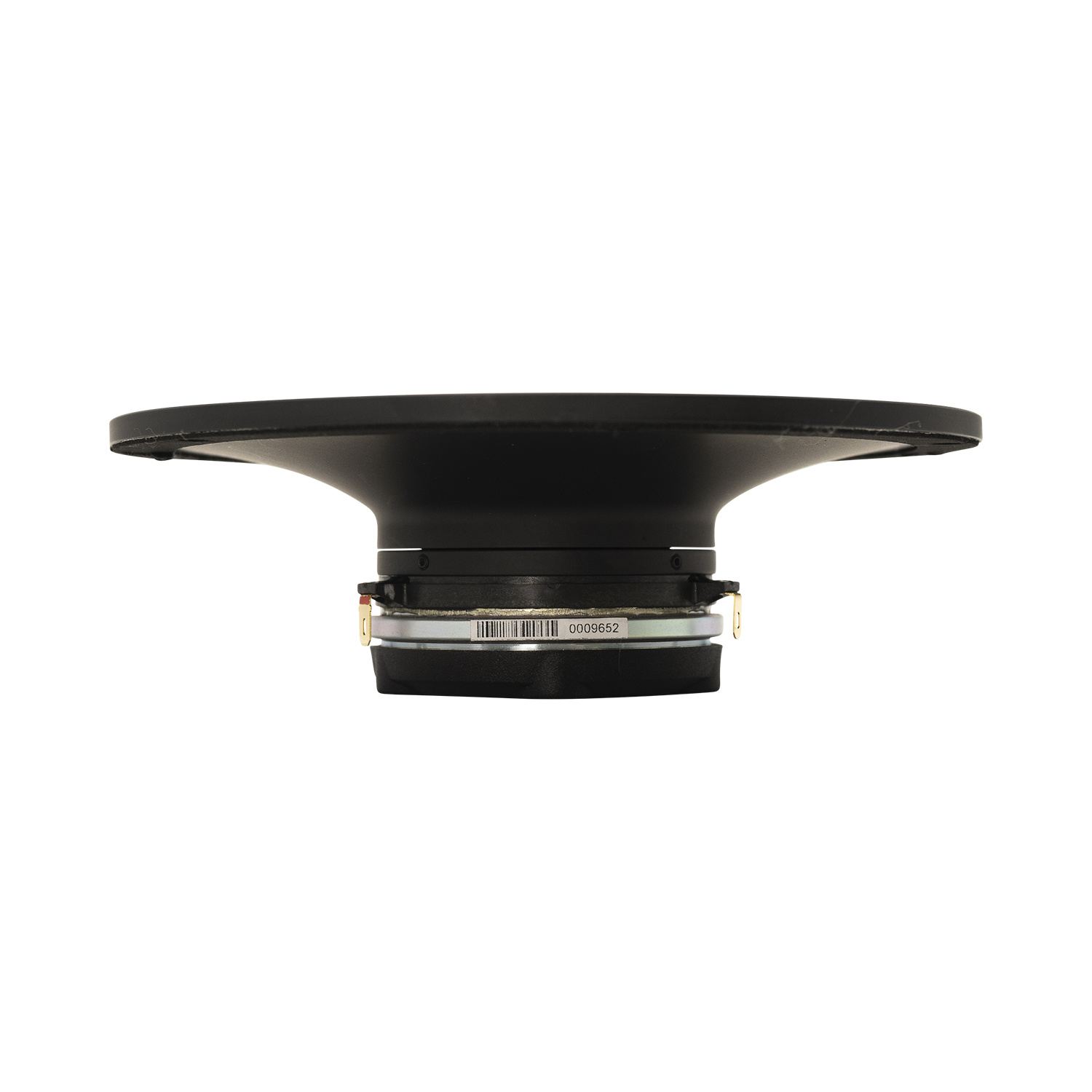

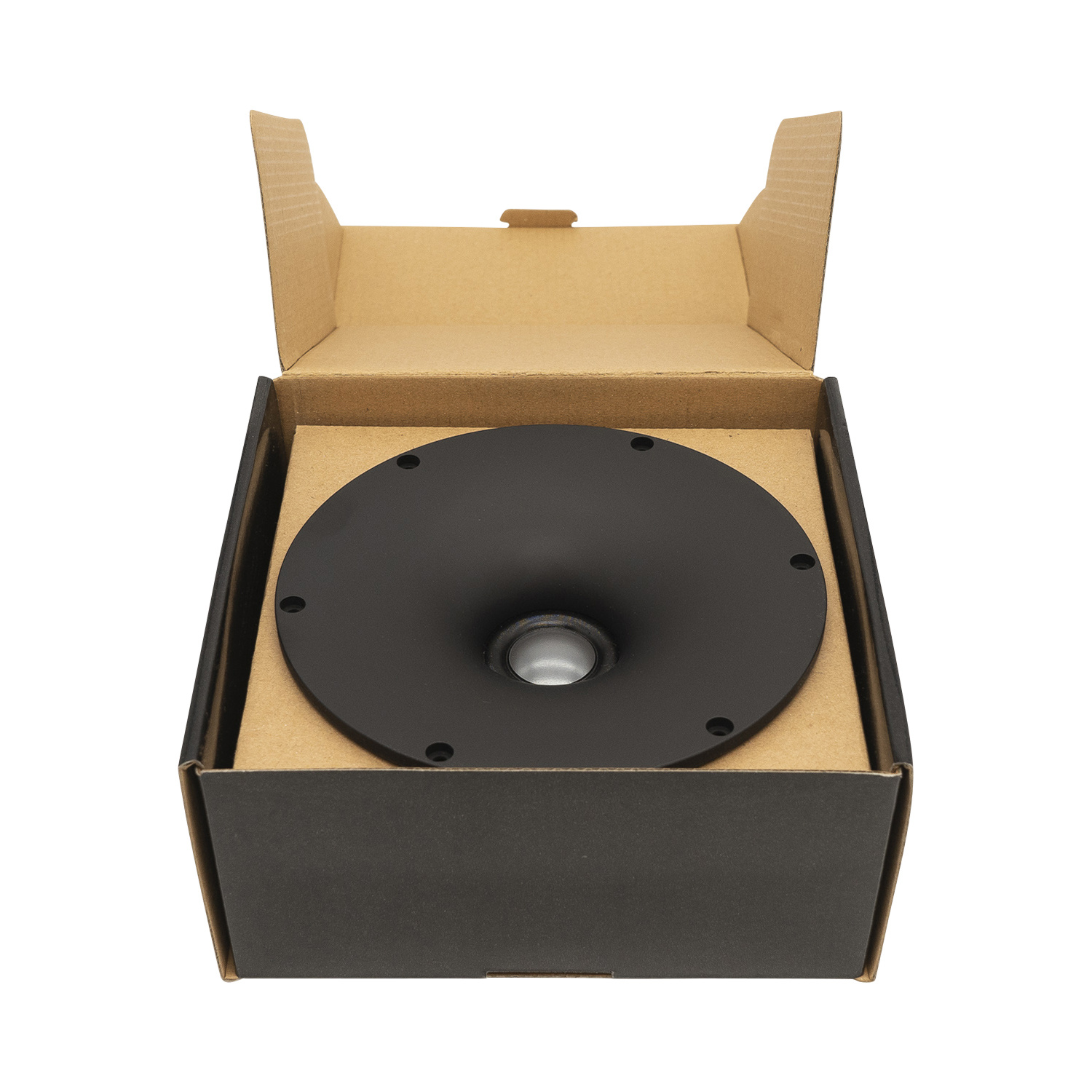

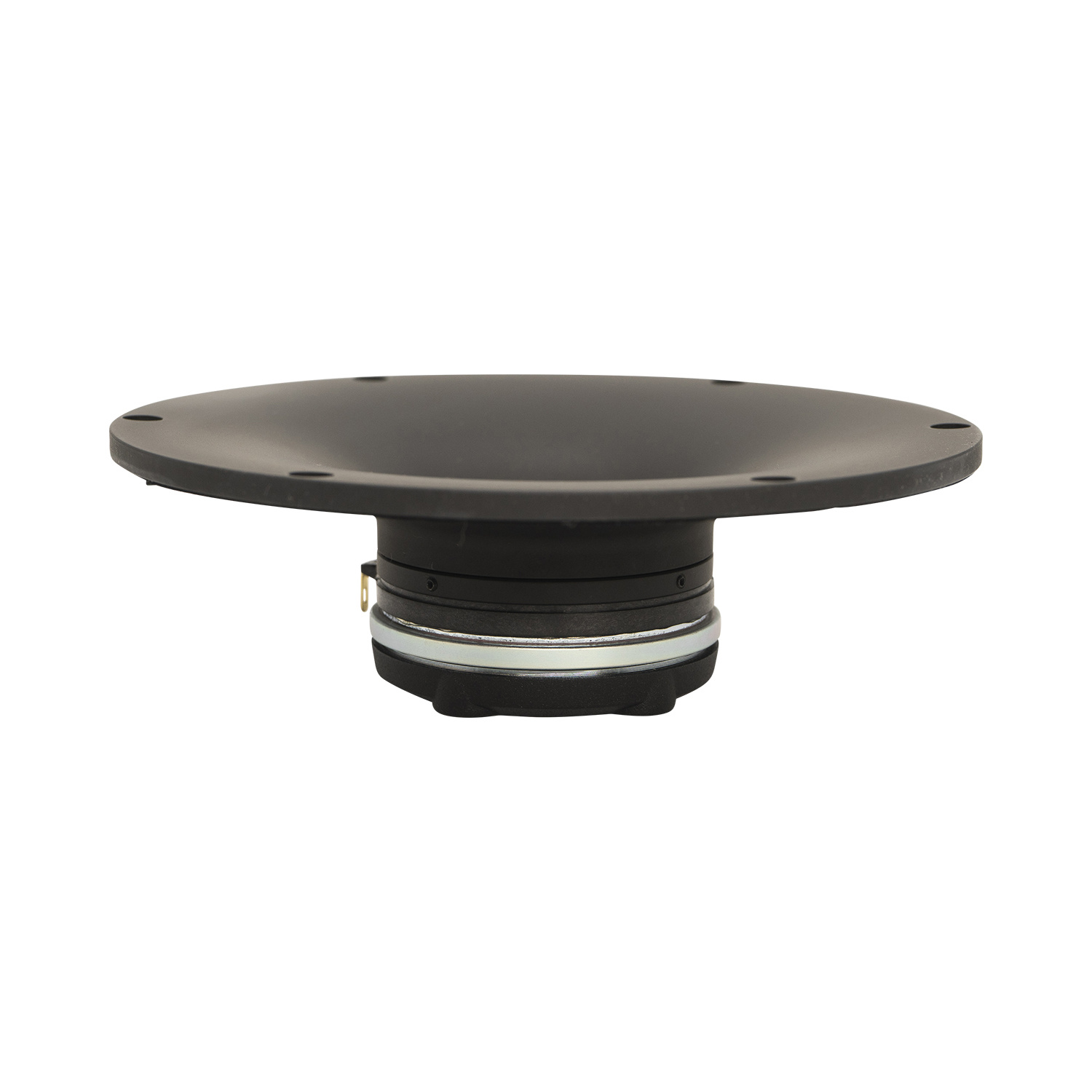

        Satori TW29BNWG-8 Dome Tweeter

        SB Acoustics Satori TW29BNWG-8 Dome Tweeter

        €499,95

        8 In stock

        Add to cart

        SB Acoustics Satori TW29BNWG-8 Dome Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all SB Acoustics tweeters
        1⅛" | 8 Ω
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        € 413,18€ 499,95 8 In stock
        • -5% Purchase 4 for only € 474,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter
        Satori TW29BNWG-8 Dome Tweeter

        Product description SB Acoustics Satori TW29BNWG-8 Dome Tweeter

        Highlights

        • Beryllium dome for non-resonant high-frequency extension
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • High saturation neodymium motor system with T-shaped pole piece for lower distortion
        • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
        • Shallow flow optimized magnet structure for optimum coupling to the rear chamber
        • CCAW voice coil for low moving mass
        • Long-life silver lead wires
        • Low resonance frequency for extended range
        • Solid aluminium waveguide
        • Controlled directivity
        • Adapter ring for bolt-less mounting to driver



        Product details

        SB Acoustics Satori TW29BNWG-8 Beryllium Dome Tweeter with Waveguide



        Beryllium is known for its open and spatial sound, often described as holographic. The self damping properties of Beryllium allow for an extended response without a huge spike in the response at higher frequencies seen in most metal dome tweeters. All dome materials have a different tonal and spatial presentation. Beryllium has a real positive difference, providing a experience unlike all other dome materials.

        Show more

        Specifications

        Article number
        TW29BNWG-8
        EAN
        8785256843671
        Tweeter Type
        Dome tweeter
        Tweeter Series
        Satori
        Cone / Dome Diameter
        19 mm | 3/4"
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Resonant Frequency (Fs)
        705 Hz
        DC Resistance (Re)
        6.2 Ohms
        Voice Coil Inductance (Le)
        0.04 mH
        Mechanical Q (Qms)
        1.75
        Electromagnetic Q (Qes)
        0.80
        Total Q (Qts)
        0.55

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        -
        By Iikka on 1 September 2024
