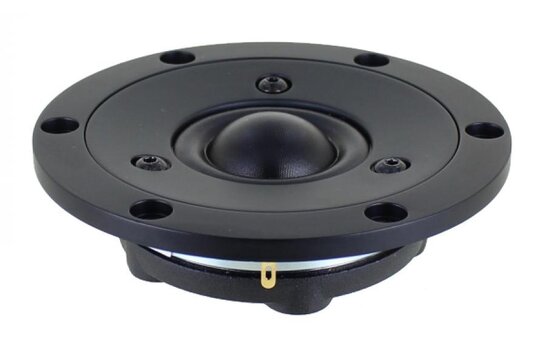

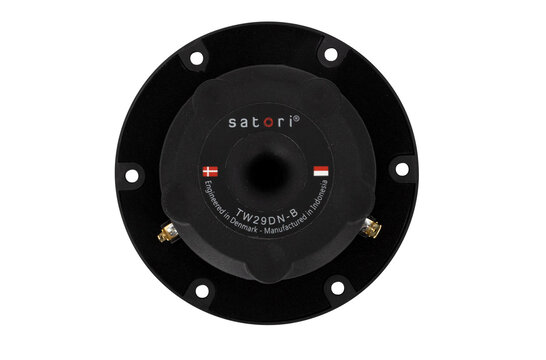

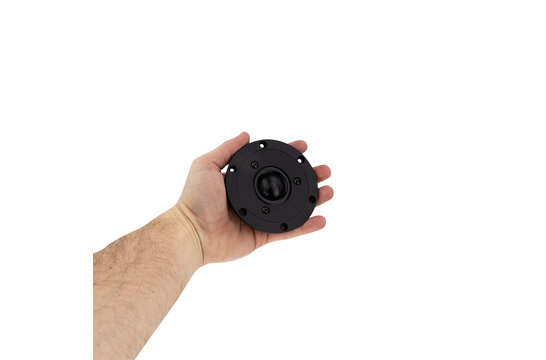

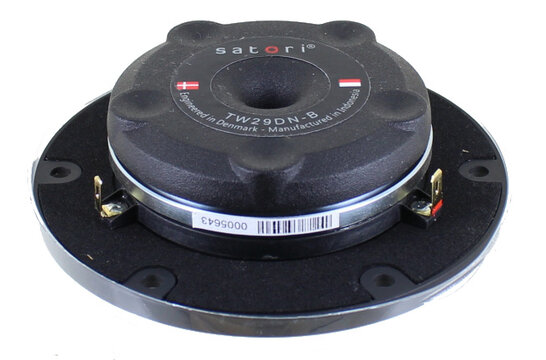

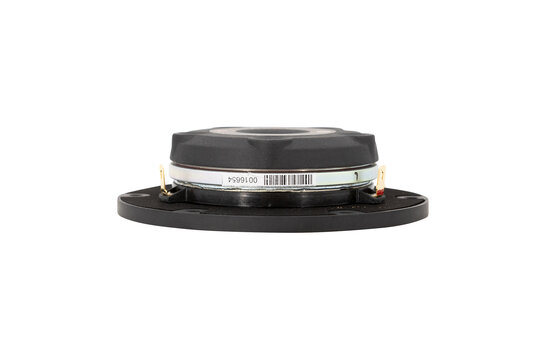

        Satori TW29DN-B Dome Tweeter Black 4 Ohm

        SB Acoustics Satori TW29DN-B Dome Tweeter Black 4 Ohm

        €154,95

        8 In stock

        Add to cart

        SB Acoustics Satori TW29DN-B Dome Tweeter Black 4 Ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all SB Acoustics tweeters
        1⅛" | 4 Ω
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        € 128,06€ 154,95 8 In stock
        • -5% Purchase 4 for only € 147,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm
        Satori TW29DN-B Dome Tweeter Black 4 Ohm

        Pros and cons

        According to our specialists
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift

        Product description SB Acoustics Satori TW29DN-B Dome Tweeter

        The SB Acoustics TW29DN-B is a 29mm high-performance tweeter that delivers crystal-clear sound with superb detail and dynamics. It is part of the Satori line and highly regarded in the speakerbuilding world.



        Highlights

        • Non-resonant diaphragm design for minimum high frequency break-up
        • Two part aluminium black faceplate with integrated mechanical decoupling
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • High saturation neodymium motor system with T-shaped pole piece for lower distortion
        • Non-reflective cast aluminium chamber with optimized damping for improved dynamics
        • Shallow flow optimized magnet structure for optimum coupling to rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency for extended range



        Product details

        SB Acoustics Satori TW29DN-B Dome Tweeter Black 4 Ohm

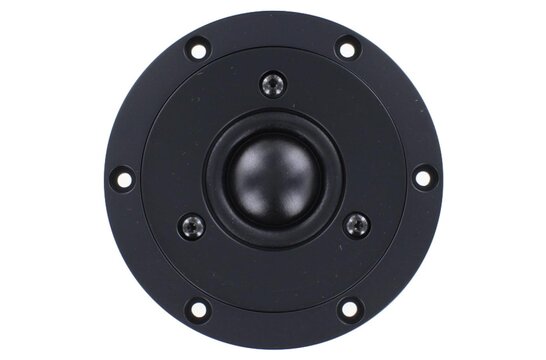

        The SB Acoustics Satori TW29DN-B has a woven fabric dome and a black front plate. The special features of this model include a large surround dome for increased acoustic output, dual balanced compression chamber for improved dynamics, dual copper caps for absolute minimum voice coil inductance and minimum phase shift, and a two-part aluminum faceplate with integrated mechanical decoupling.



        Its soft-dome tweeter with wide surround produces a smooth, natural sound that is free of harshness or distortion. The high-saturation neodymium motor system provides excellent power handling and dynamic range, while the dual balanced compression chambers ensure that the tweeter delivers accurate sound reproduction even at high volumes.



        The TW29DN-B is also very well-suited for home audio applications. Its low resonant frequency of 650 Hz allows it to reproduce even the lowest frequencies with clarity and accuracy. And its high sensitivity of 93 dB means that it can be driven by even the most modest amplifiers.

        Show more

        Specifications

        Article number
        TW29DN-B
        EAN
        8785256848089
        Tweeter Type
        Dome
        Cone / Dome Diameter
        29 mm
        Power Handling (max)
        80 Watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        96 dB
        Resonant Frequency (Fs)
        650 Hz
        DC Resistance (Re)
        3.0 Ohm
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        1.66
        Electromagnetic Q (Qes)
        0.57
        Total Q (Qts)
        0.43
        Overall Outside Diameter
        103,8 mm
        Depth
        29.3 mm
        Recommended cut frequency
        200 Hz to 30 kHz

        Show more
