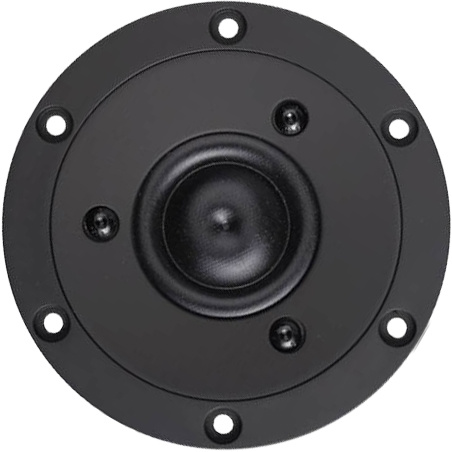

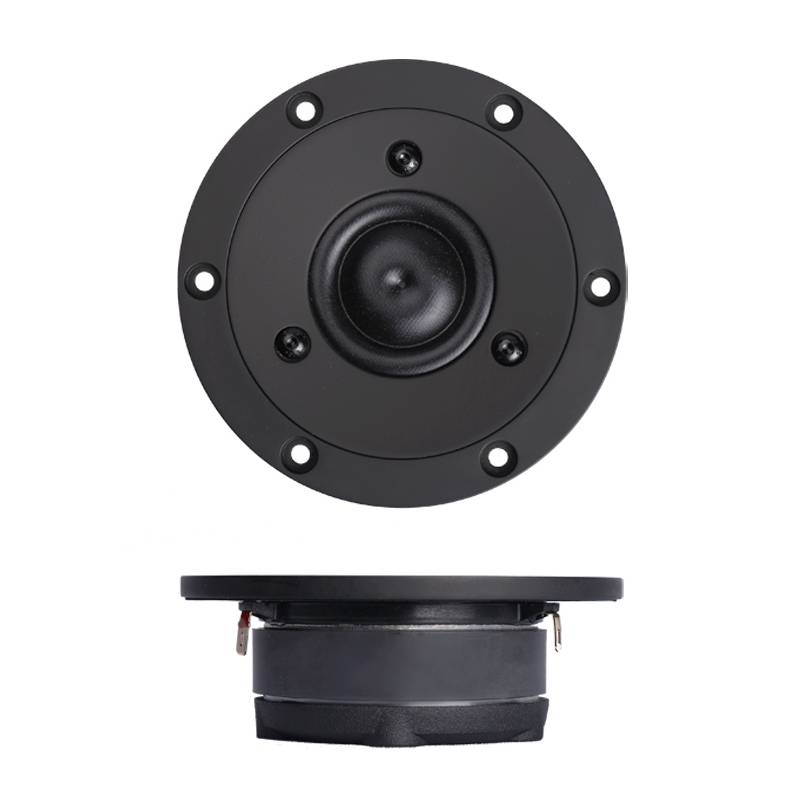

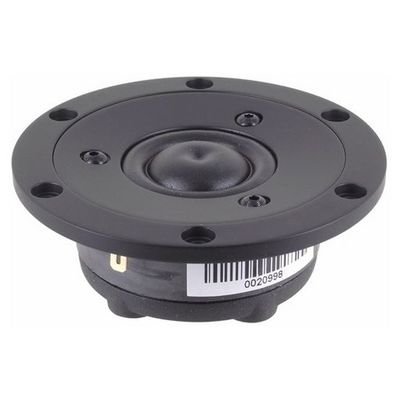

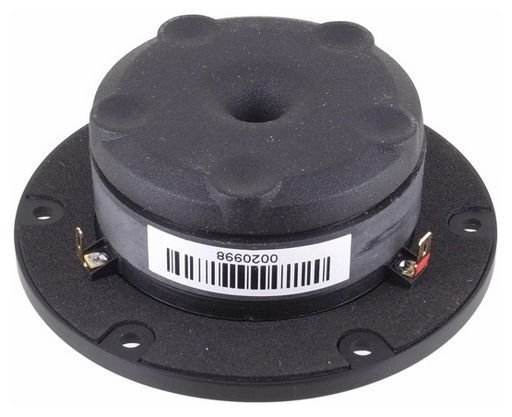

        Satori TW29R-B Ring Dome Tweeter

        SB Acoustics Satori TW29R-B Ring Dome Tweeter

        €151,95

        6 In stock6 expected on 26-12-2024

        Add to cart

        SB Acoustics Satori TW29R-B Ring Dome Tweeter

        3 reviews
        5 from 5
        3 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SB Acoustics
        Show all SB Acoustics tweeters
        1⅛" | 4 Ω
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        € 125,58€ 151,95 6 In stock6 expected on 26-12-2024
        • -5% Purchase 4 for only € 144,35 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter
        Satori TW29R-B Ring Dome Tweeter

        Product description SB Acoustics Satori TW29R-B Ring Dome Tweeter

        Highlights

        • Non-resonant diaphragm design for minimum high frequency break-up
        • Two part aluminum faceplate with integrated mechanical decoupling
        • Dual balanced compression chambers for improved dynamics
        • Dual copper caps for absolute minimum voice coil inductance and minimum phase shift
        • Saturation controlled motor system with T-shaped pole piece for lower distortion
        • Non-reflective cast alumimum chamber with optimized damping for improved dynamics
        • Flow optimized vented pole piece for optimum coupling to rear chamber
        • CCAW voice coil for low moving mass
        • Long life silver lead wires
        • Low resonance frequency for extended range



        Product details

        SB Acoustics Satori TW29R-B Ring Dome Tweeter

        The TW29R is a premium ring dome tweeter offered by SB Acoustics.  This tweeter has many advanced technology features that culminate in very detailed and low distortion output.  This tweeter is a perfect choice in any high end system.



        Specifications: BL Product (BL): 2.0 Tm • Diaphragm Mass Inc. Airload (Mms): 0.45 g • Maximum Linear Excursion (Xmax): 0.25 mm • Surface Area of Cone (Sd): 9.6 cm2

        Show more

        Specifications

        Article number
        TW29R-B
        EAN
        0696277269686
        Tweeter Type
        Dome
        Tweeter Series
        Satori Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        80 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        95 dB
        Frequency Response
        1.8 - 30kHz
        Resonant Frequency (Fs)
        600 Hz
        DC Resistance (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        2.0
        Electromagnetic Q (Qes)
        1.22
        Total Q (Qts)
        0.76

        Show more

        Reviews

        3 reviews
        Review this product
        5 of 5
        Der TW92R paßt wunderbar zum MW6,5. Die TW29R ersetzen die TW29B-B. Letztere sind zwar unheimlich geradeaus, rollen aber nicht so smooth runter zu den Mitteltieftönern. Und der Metallklang ist auch weg.
        By Rainer P. on 3 March 2020
        5 of 5
        Great tweeter, loving it.
        By Kevin G. on 17 July 2019
