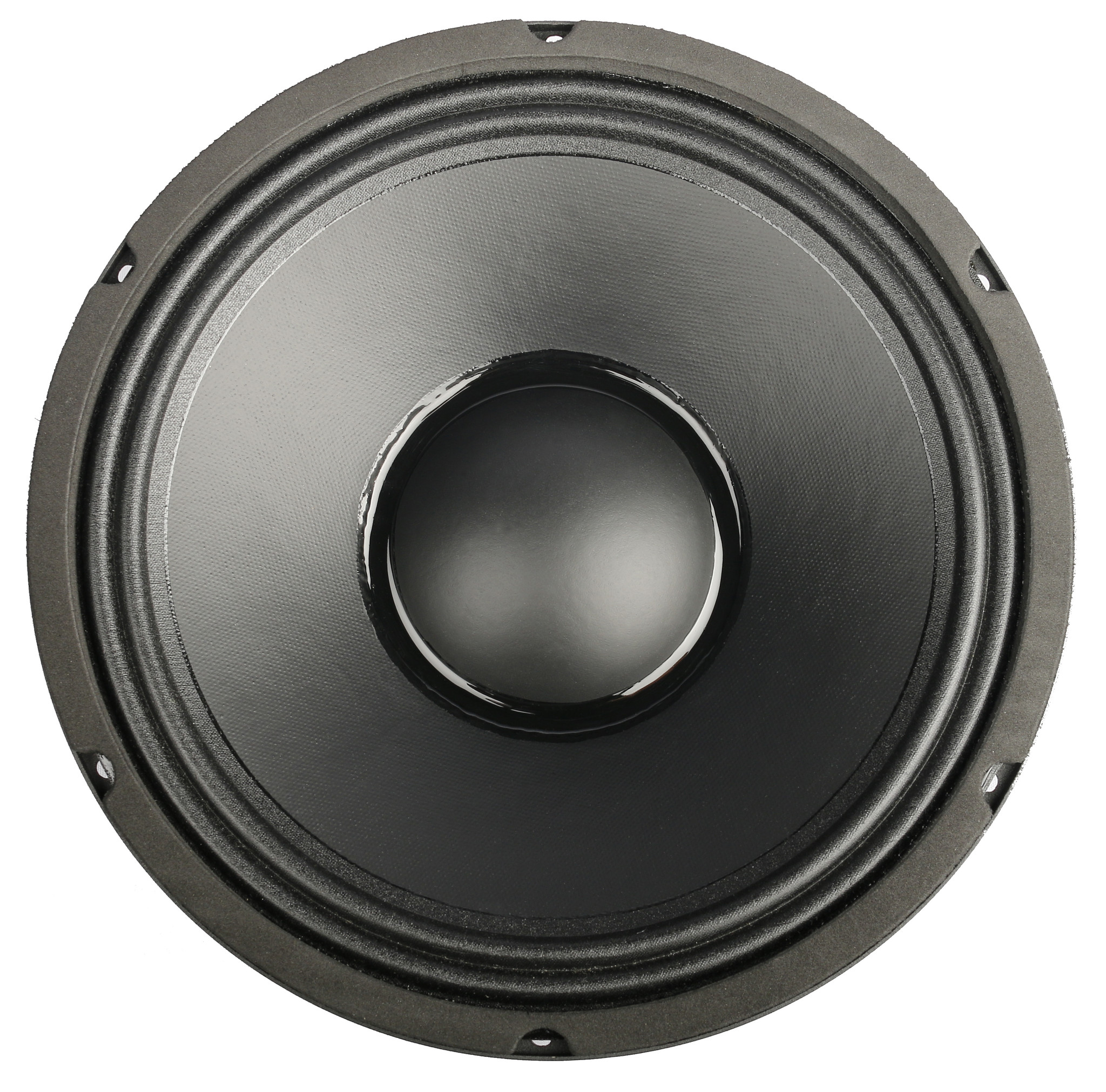

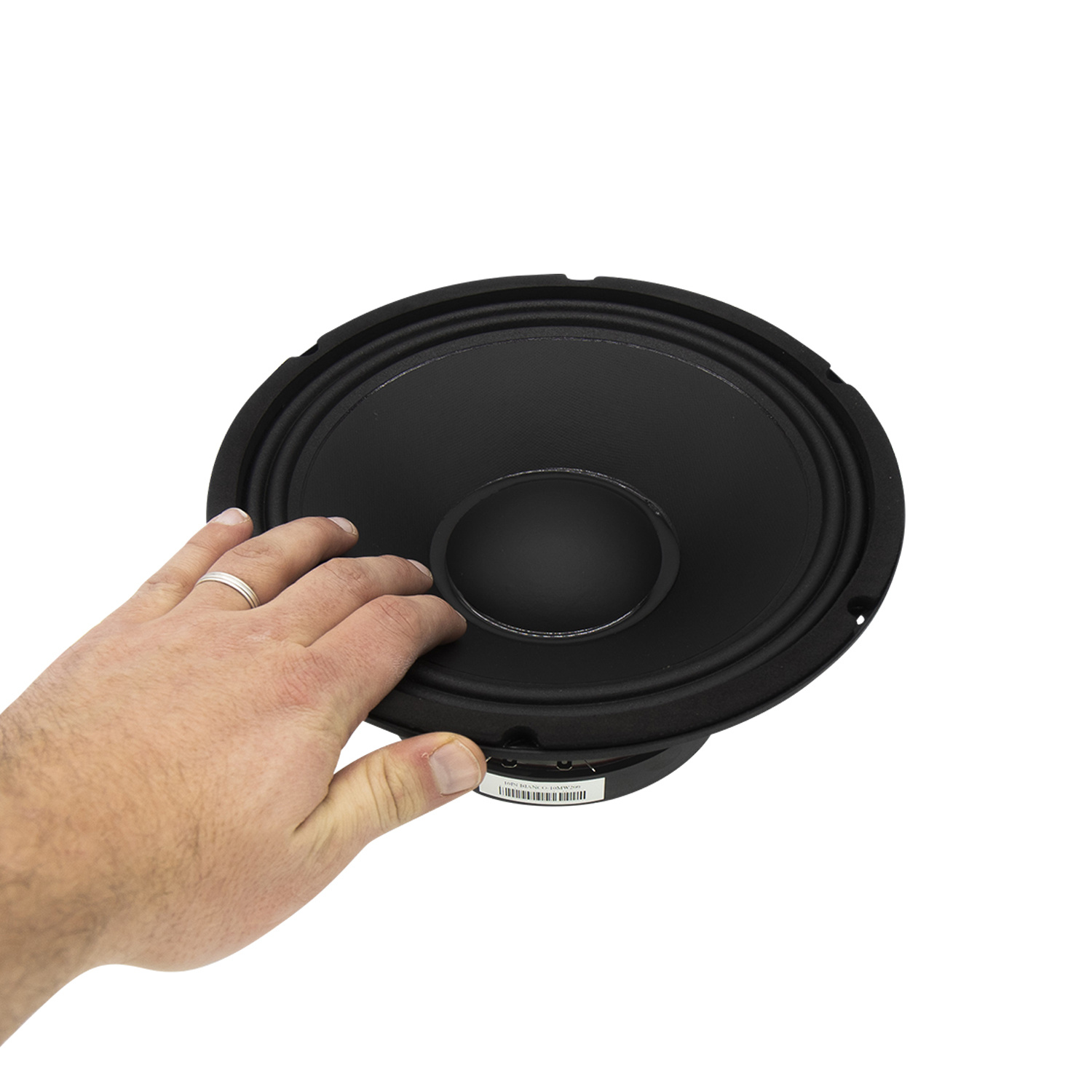

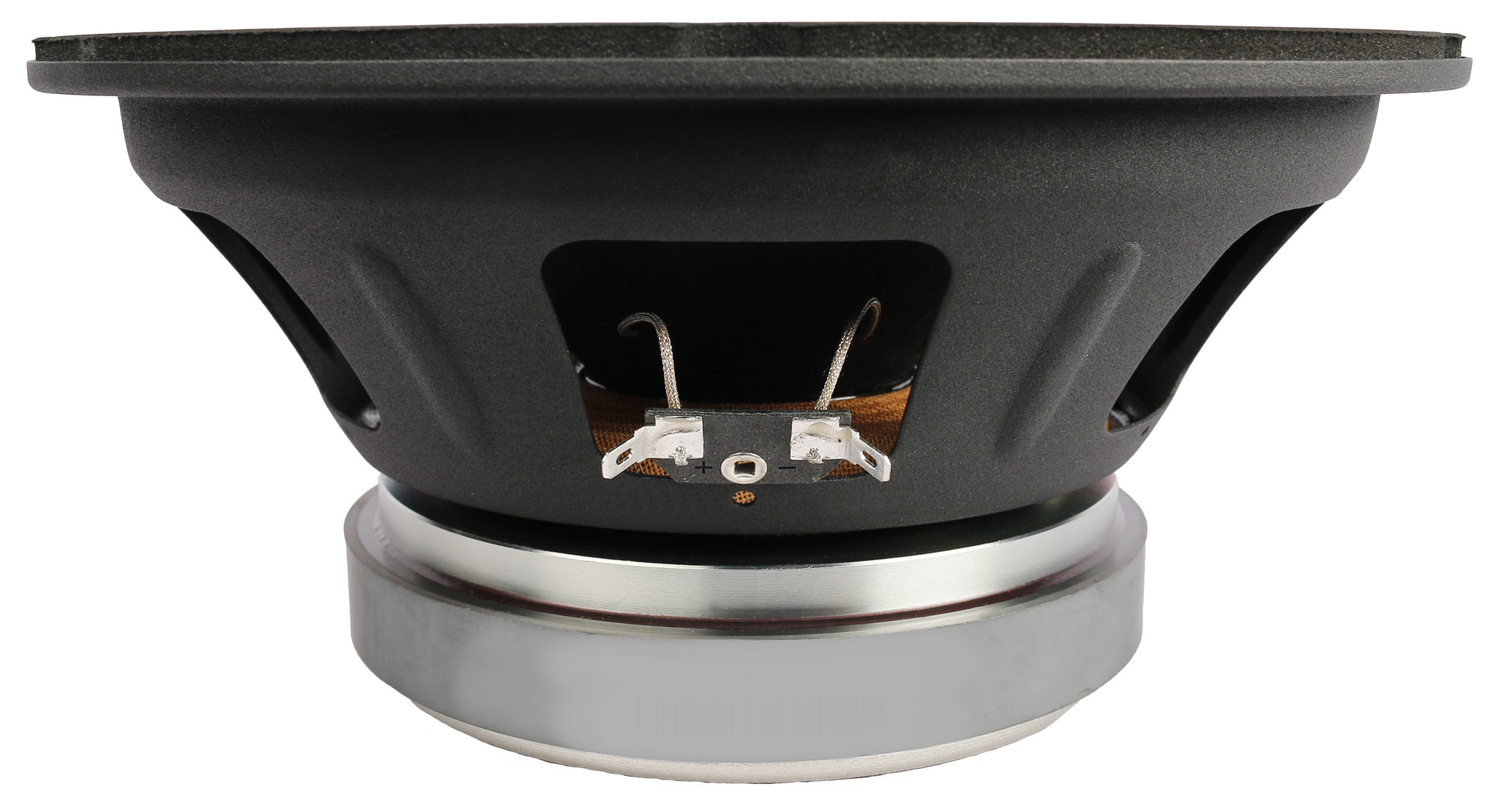

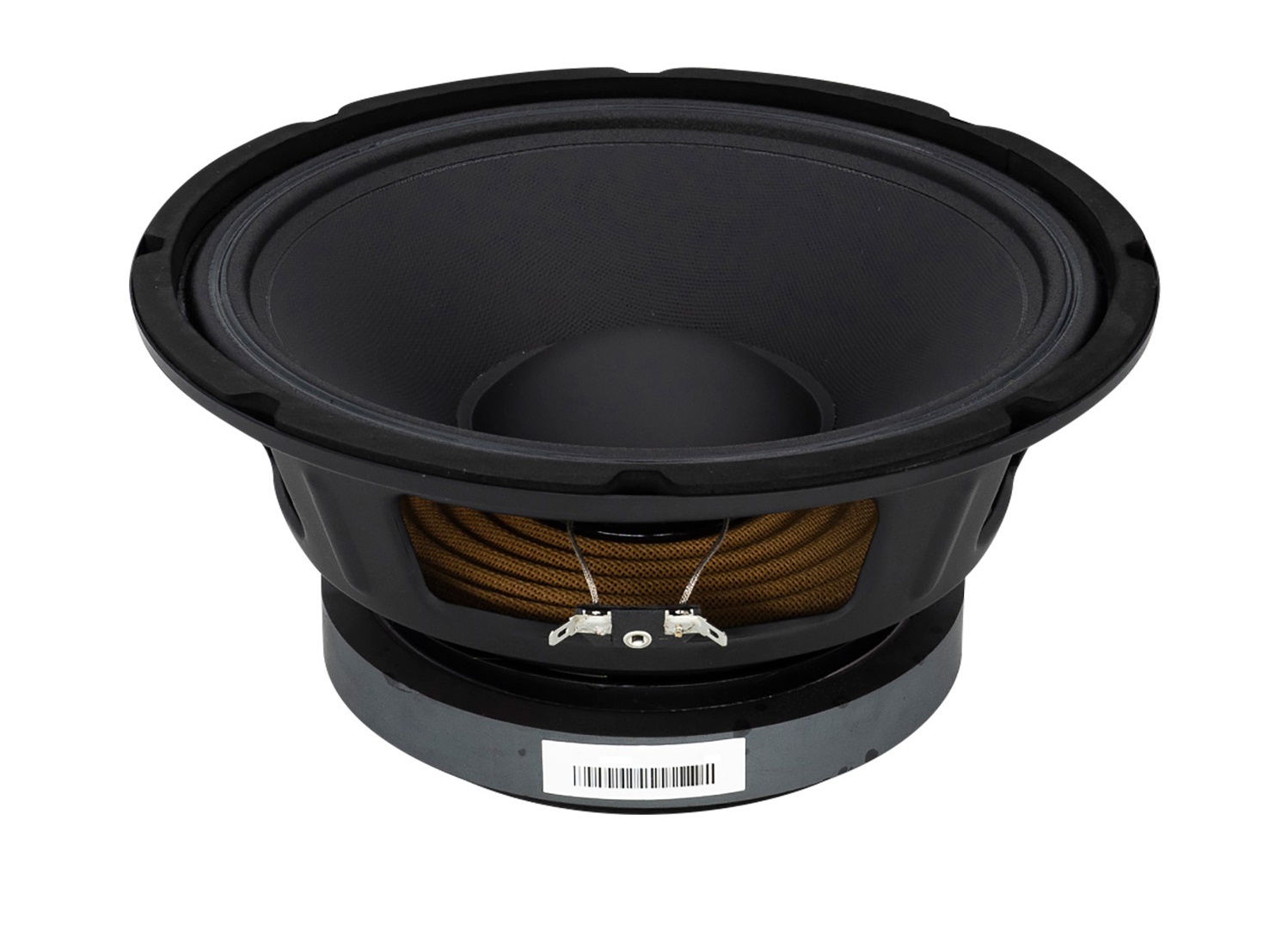

- Article number
- BIANCO-10MW200
- EAN
- 8785256846269
- Woofer Series
- SB Audience Bianco series
- Woofer Type
- Mid-range
- Nominal Diameter
- 10”
- Power Handling (RMS)
- 250W
- Power Handling (max)
- 500 W
- Impedance (Z)
- 8 Ohm
- Sensitivity (SPL at 1m / 2.83V)
- 98 dB
- Frequency Response
- 56 - 7100 Hz
- Voice Coil Diameter
- 60.5 mm (2.4 in)
- DC Resistance (Re)
- 5.7 Ohm
- Voice Coil Inductance (Le)
- 0.6 mH
- Resonant Frequency (Fs)
- 56 Hz
- Mechanical Q (Qms)
- 2.28
- Electromagnetic Q (Qes)
- 0.43
- Total Q (Qts)
- 0.36
- Diaphragm Mass Inc. Airload (Mms)
- 38 gr
- Mechanical Compliance of Suspension (Cms)
- 0.22 mm/N
- Surface Area of Cone (Sd)
- 366.4cm²
- BL Product (BL)
- 13 Tm
- Compliance Equivalent Volume (Vas)
- 41liters
- Maximum Linear Excursion (Xmax)
- 6.7 mm
- Driver's Mechanical Losses (Rms)
- 0.22 mm/N
- Basket / Frame Material
- Stamped steel
- Magnet Material
- Ferrite
- Overall Outside Diameter
- 257 mm (10.11 in)
- Baffle Cutout Diameter
- 230 mm (9.05 in)
- Bolt Circle Diameter
- 245 mm (9.65 in)
