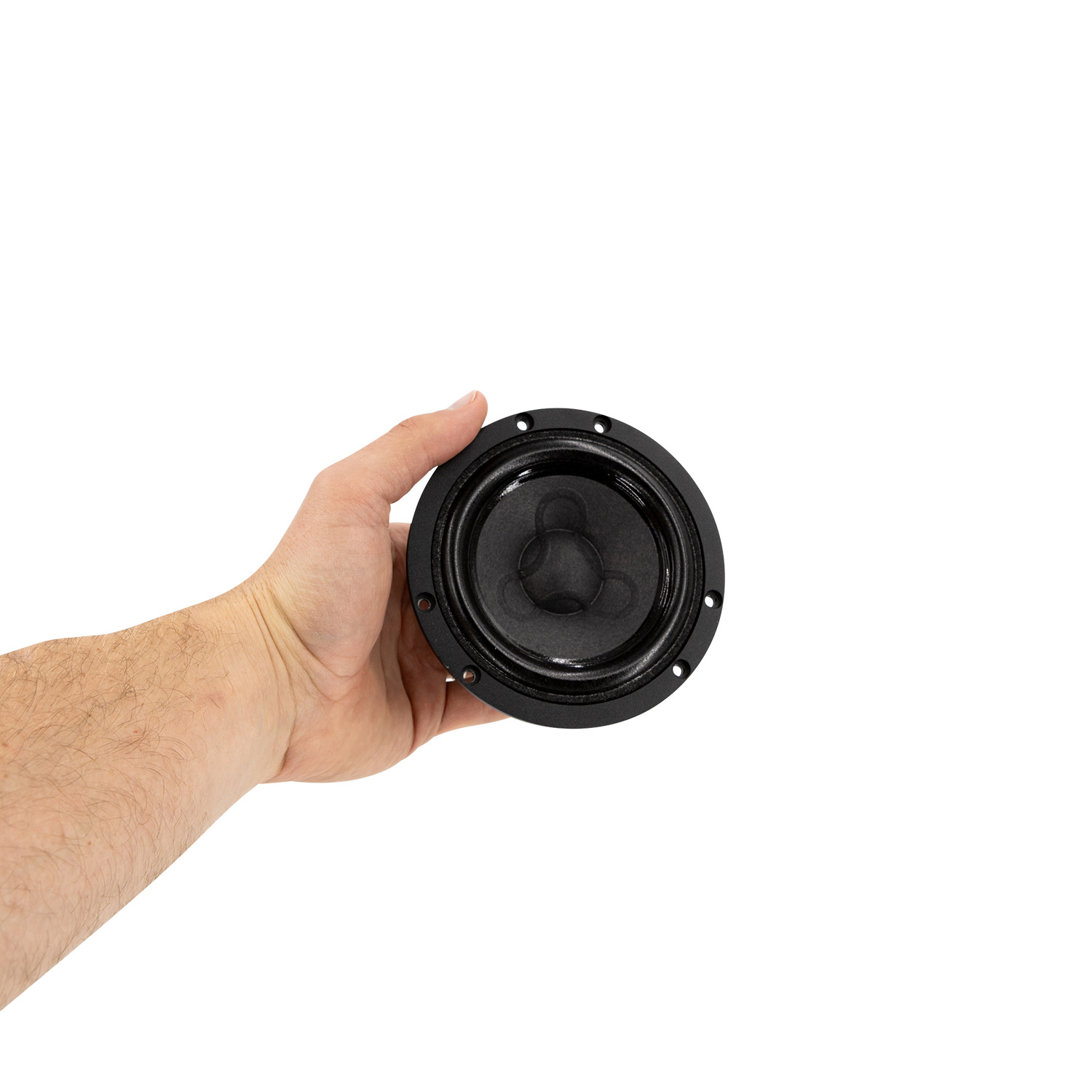

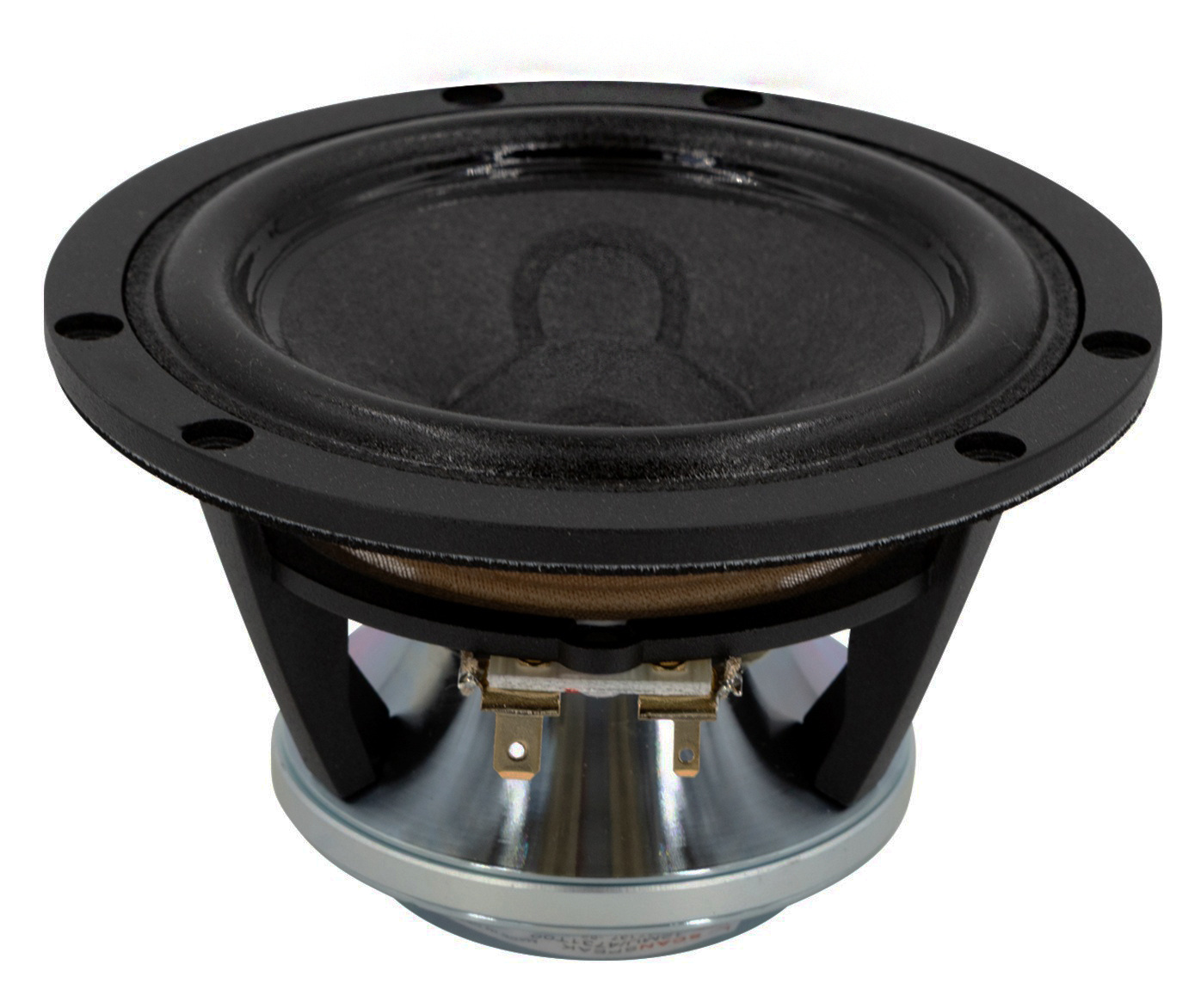

        Illuminator 12MU/4731T00 4" Woofer

        Scan-Speak Illuminator 12MU/4731T00 4" Woofer

        €314,95

        5 In stock7 expected on 25-11-2024

        Add to cart

        Scan-Speak Illuminator 12MU/4731T00 4" Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Scan-Speak woofers
        4" | 4 Ω
        Illuminator 12MU/4731T00 4" Woofer
        Illuminator 12MU/4731T00 4" Woofer
        Illuminator 12MU/4731T00 4" Woofer
        Illuminator 12MU/4731T00 4" Woofer
        Illuminator 12MU/4731T00 4" Woofer
        Illuminator 12MU/4731T00 4" Woofer
        € 260,29€ 314,95 5 In stock7 expected on 25-11-2024
        • -5% Purchase 4 for only € 299,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Illuminator 12MU/4731T00 4" Woofer
        Illuminator 12MU/4731T00 4" Woofer
        Illuminator 12MU/4731T00 4" Woofer
        Illuminator 12MU/4731T00 4" Woofer
        Illuminator 12MU/4731T00 4" Woofer
        Illuminator 12MU/4731T00 4" Woofer

        Product description Scan-Speak Illuminator 12MU/4731T00 Bass-midwoofer

        Highlights

        • Neodymium magnet
        • Under hung motor system

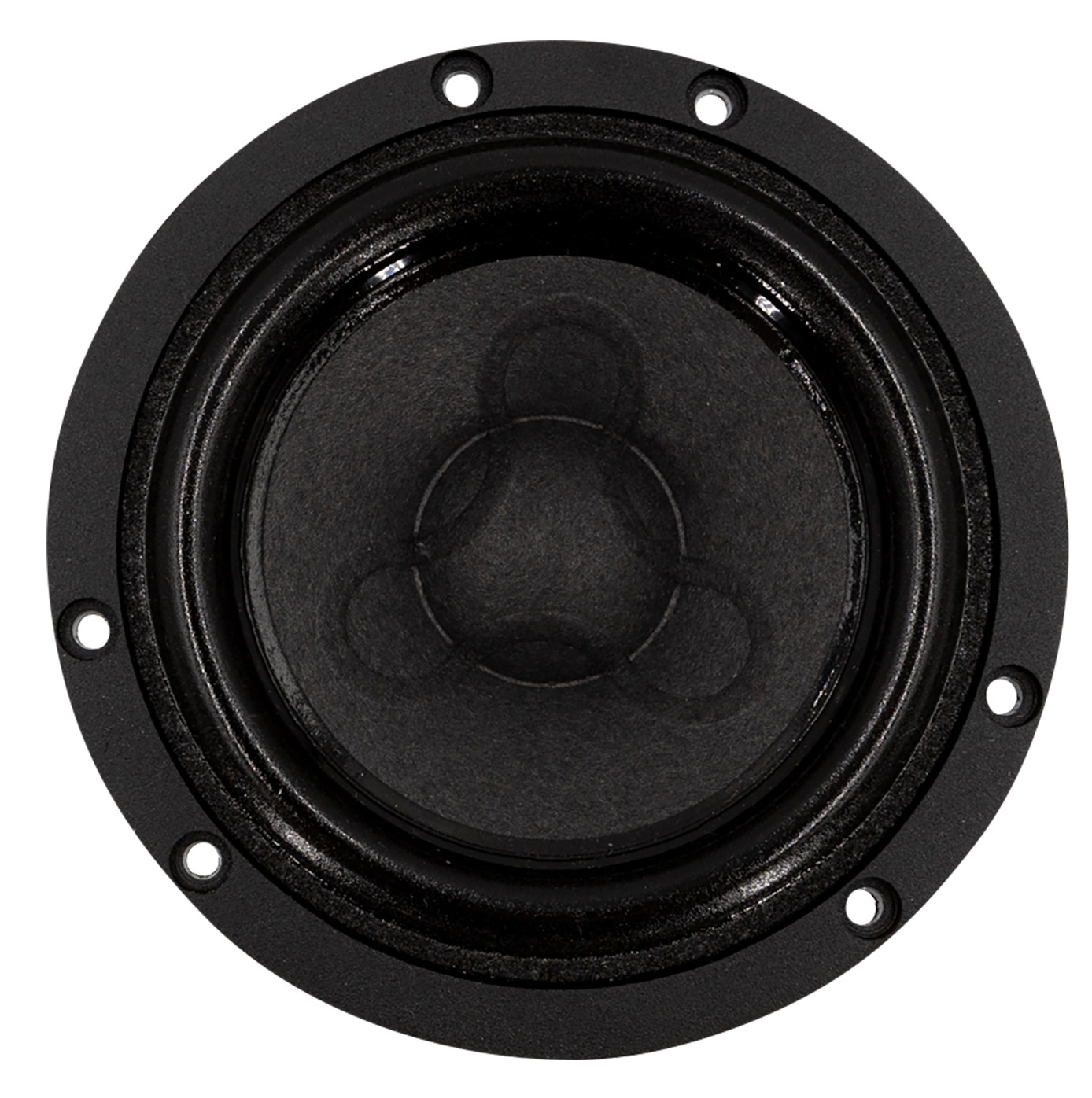

        • One piece cone and dust cap, full cone technology
        • Very Wide Frequency Response 100-10KHz
        • Patented Symmetrical Drive (SD-3)
        • Low-loss Linear Suspension
        • Foam surround
        • High Output 90dB @ 2,83V



        Product details

        Scan-Speak Illuminator 12MU/4731T00 4" Woofer

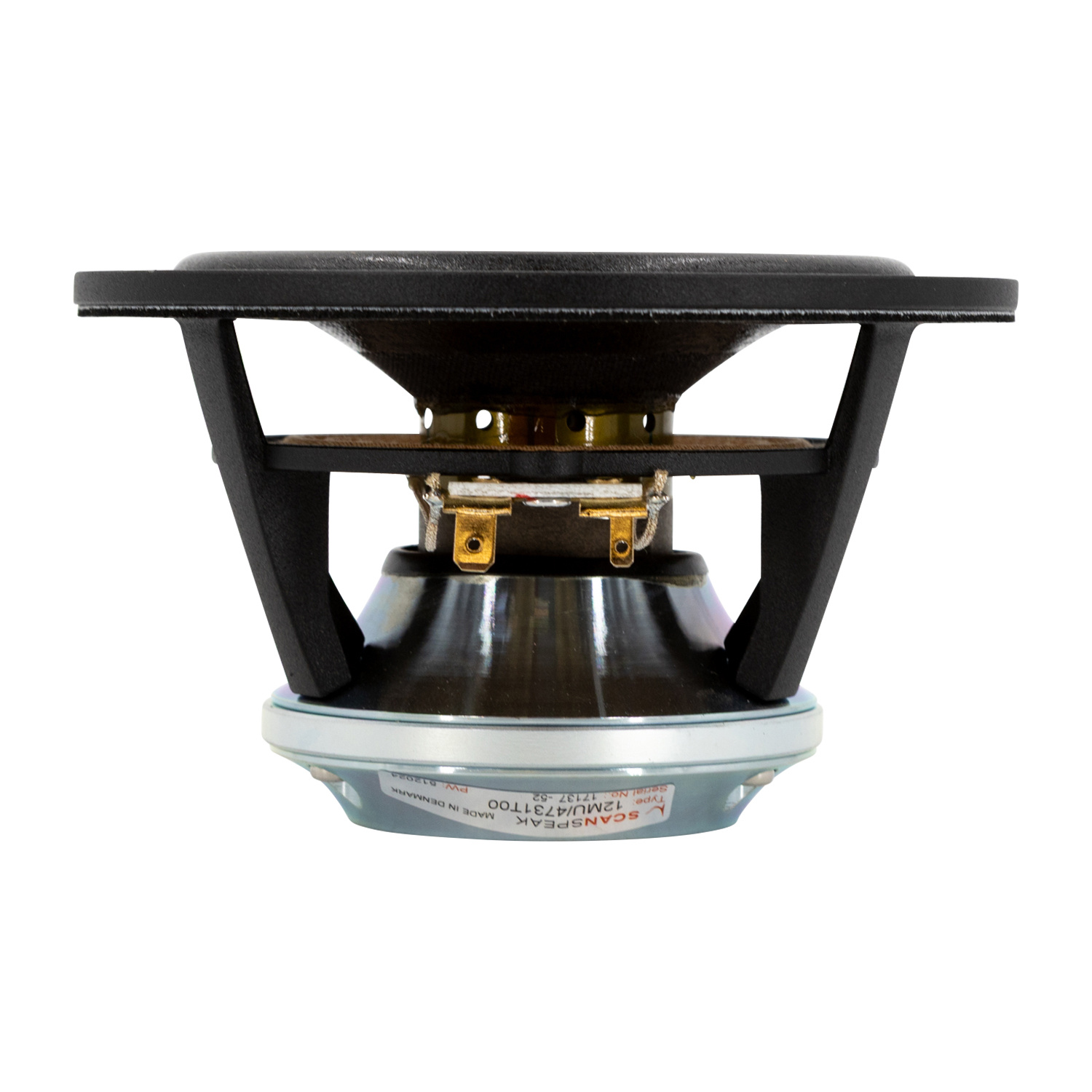

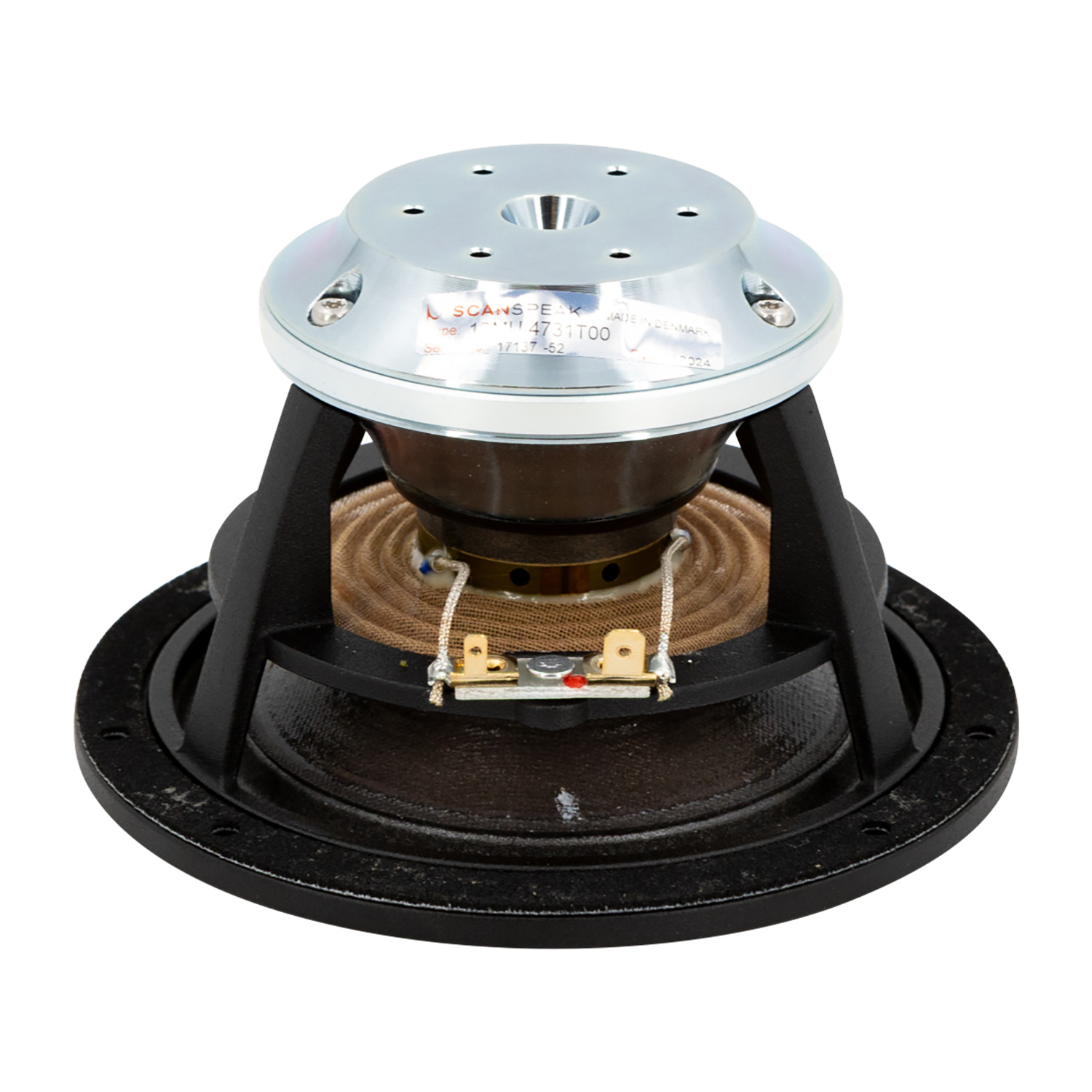

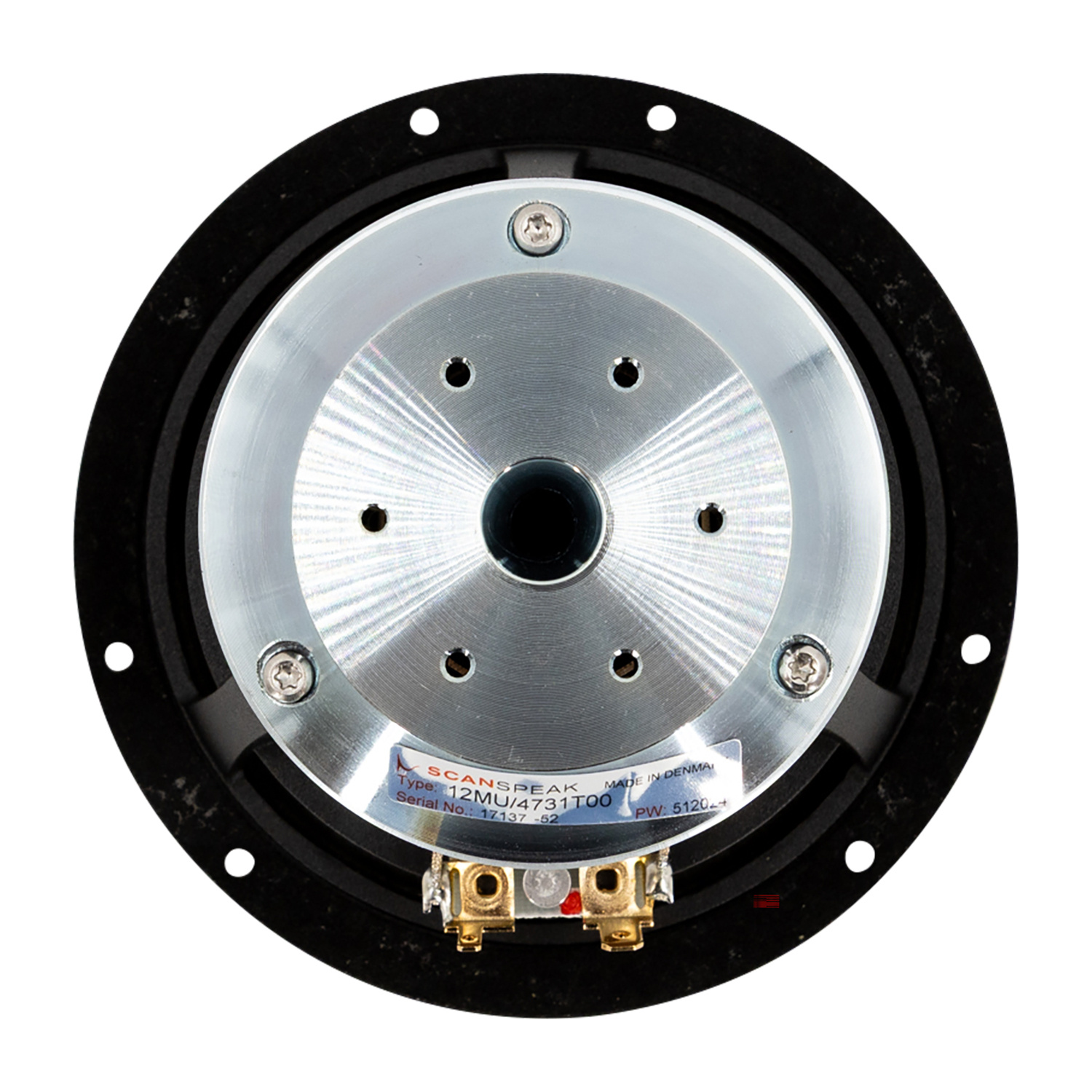

        The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.



        The under-hung voice coil is precision wound with CCAW ribbon wire on a titanium bobbin for a low loss yet high power handling design. The vented pole piece has contoured openings to eliminate any hint of turbulence noise. The uniquely shaped top plate and open air frame ensure there is virtually no dynamic compression caused by restriction of the diaphragm back wave.

        Show more

        Specifications

        Article number
        12MU/4731T00
        EAN
        0696277268375
        Woofer Series
        Scan-Speak Illuminator series
        Woofer Type
        Midwoofer
        Nominal Diameter
        4"
        Power Handling (RMS)
        80 Watts
        Power Handling (max)
        150 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        90 dB
        Voice Coil Diameter
        1.25"
        DC Resistance (Re)
        3.1 ohms
        Voice Coil Inductance (Le)
        0.11 mH
        Resonant Frequency (Fs)
        64 Hz
        Mechanical Q (Qms)
        3.64
        Electromagnetic Q (Qes)
        0.26
        Total Q (Qts)
        0.24
        Diaphragm Mass Inc. Airload (Mms)
        5.4g
        Mechanical Compliance of Suspension (Cms)
        1.15 mm/N
        Surface Area of Cone (Sd)
        58 cm2
        BL Product (BL)
        5.1 Tm
        Compliance Equivalent Volume (Vas)
        0.19 ft.³
        Maximum Linear Excursion (Xmax)
        3.5 mm

        Show more
