        Revelator 15M/8631G00 Mid-range Woofer

        Scan-Speak Revelator 15M/8631G00 Mid-range Woofer

        €199,95

        4 In stock

        Scan-Speak Revelator 15M/8631G00 Mid-range Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        € 165,25€ 199,95 4 In stock
        • -5% Purchase 4 for only € 189,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Pros and cons

        According to our specialists
        • Excellent midrange reproduction

        Product description Scan-Speak Revelator 15M/8631G00 Mid-range Woofer

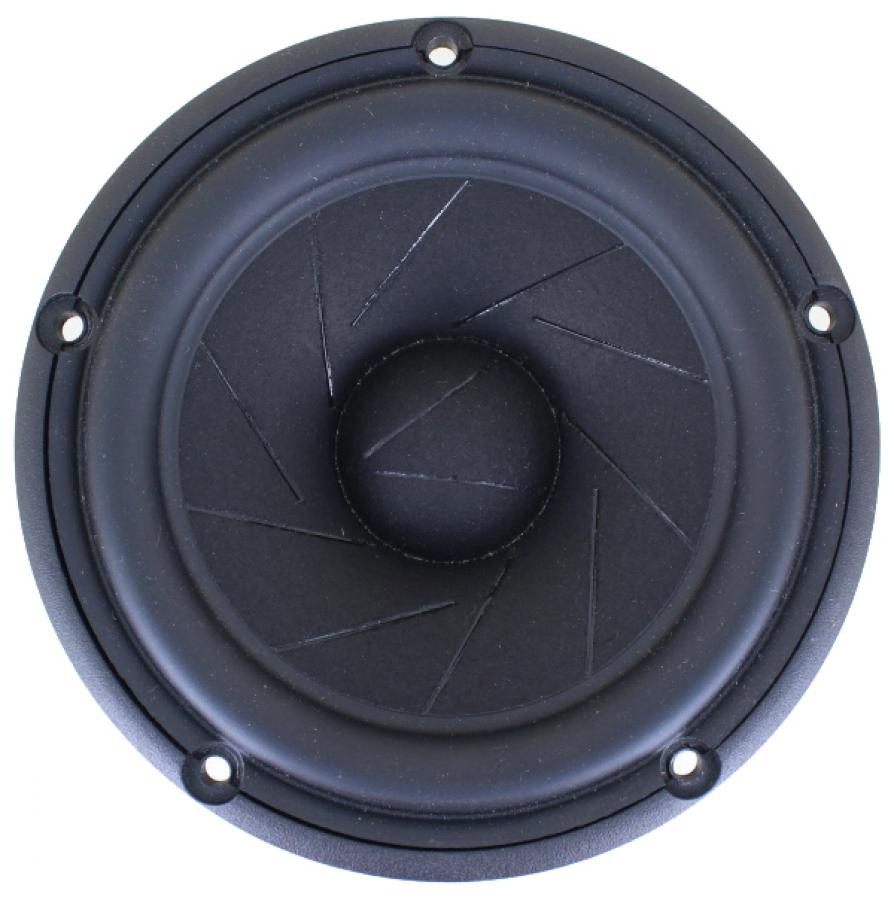

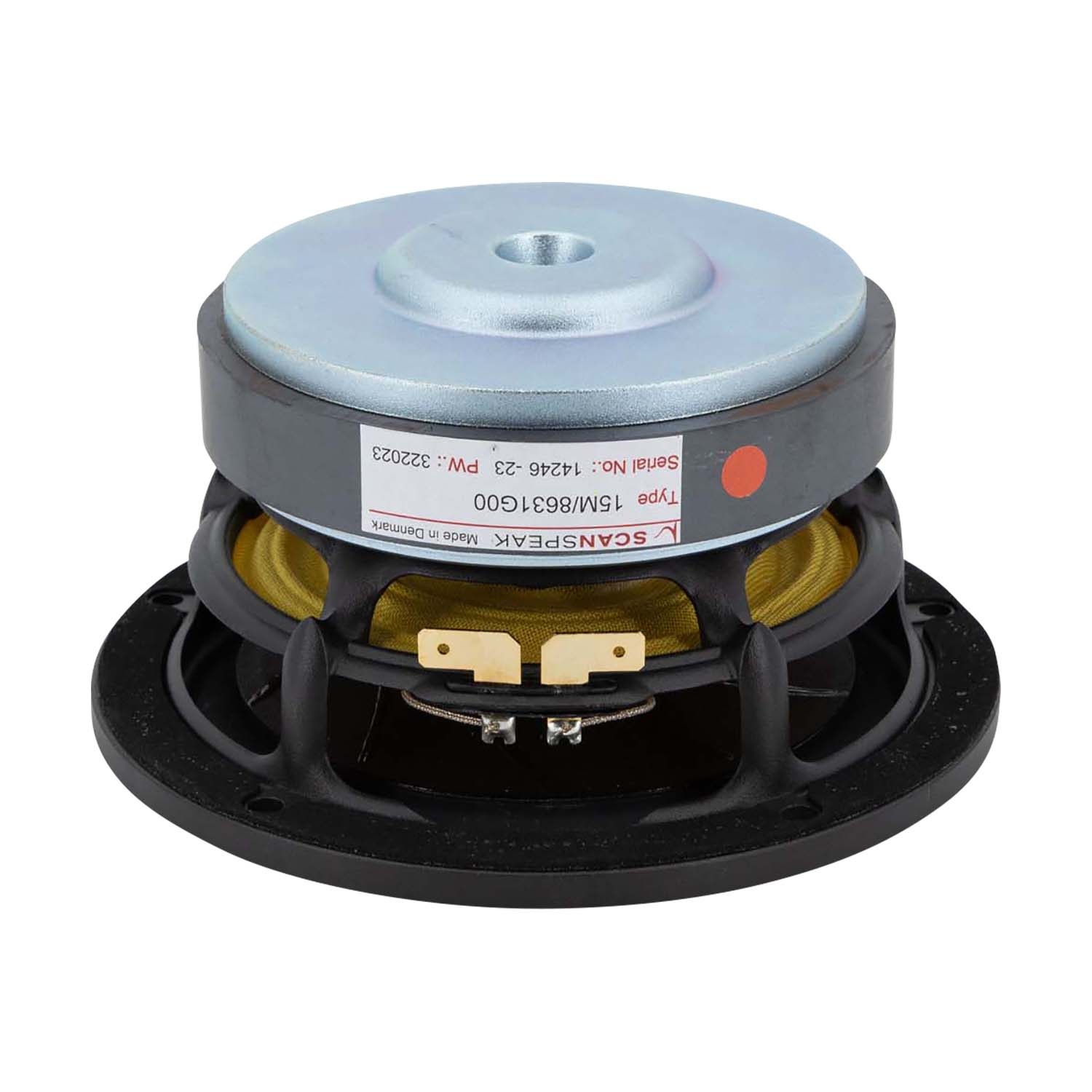

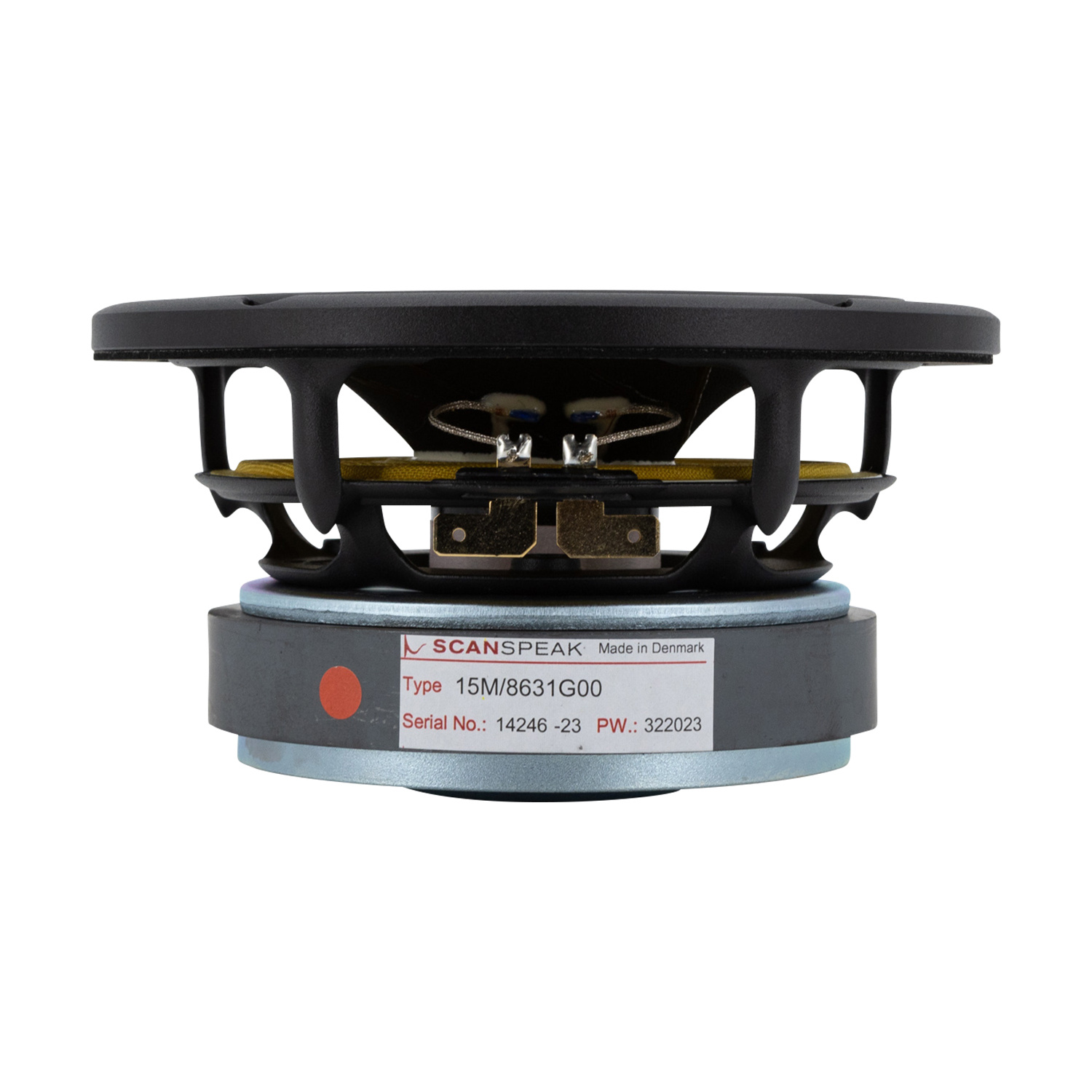

        The Scan-Speak Revelator 15M/8631G00 is a 5.5-inch midrange driver that is known for its clarity and overall smooth frequency response. It features a sliced paper cone technology that dramatically reduces break-up modes in the diaphragm. In combination with the Scan-Speak low loss linear suspension and the patented symmetrical Drive SD-1 motor system, this driver represents a breakthrough in midrange clarity.



        Highlights

        • Clarity and overall smooth frequency response
        • Ability to handle high levels of power
        • Well-suited for a variety of applications
        • Smooth and natural sound reproduction



        Product details

        Scan-Speak Revelator 15M/8631G00 Mid-range Woofer



        The Scan-Speak Revelator 15M/8631G00 is a high-quality midrange driver that is well-suited for a variety of applications, including home theater, studio monitors, and high-end audio systems. It is known for its smooth and natural sound reproduction, as well as its ability to handle high levels of power.

        Show more

        Specifications

        Article number
        15M/8631G00
        EAN
        8785256848539
        Woofer Series
        Scan-Speak Revelator series
        Woofer Type
        Mid-Woofer
        Nominal Diameter
        5.5 "
        Power Handling (RMS)
        50 Watt
        Power Handling (max)
        110 Watt
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        87 dB
        Frequency Response
        50-7000 Hz
        Voice Coil Diameter
        38 mm
        DC Resistance (Re)
        6.9 Ω
        Voice Coil Inductance (Le)
        0.22 mH
        Resonant Frequency (Fs)
        42 Hz
        Electromagnetic Q (Qes)
        0.37
        Total Q (Qts)
        0.35
        Diaphragm Mass Inc. Airload (Mms)
        10.9 g
        Mechanical Compliance of Suspension (Cms)
        1.28 mm/N
        Surface Area of Cone (Sd)
        95 cm²
        BL Product (BL)
        6.8 Tm
        Compliance Equivalent Volume (Vas)
        16.2 Litres
        Maximum Linear Excursion (Xmax)
        8 mm
        Driver's Mechanical Losses (Rms)
        0.5 kg/s
        Basket / Frame Material
        Aluminum
        Magnet Material
        Ferrite
        Overall Outside Diameter
        148.2 mm
        Overall Depth
        78.5 mm
        Baffle Cutout Diameter
        125 mm
        # Mounting Holes
        5
        Mounting Hole Diameter
        5.3 mm
        Vented Volume
        12 Litres

        Show more
