        Revelator 18W/4531G00 Mid-range Woofer

        Scan-Speak Revelator 18W/4531G00 Mid-range Woofer

        €214,95

        10+ In stock

        Add to cart

        Scan-Speak Revelator 18W/4531G00 Mid-range Woofer

        1 reviews
        4 from 5
        1 reviews
        5 stars
        0%
        4 stars
        100%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Scan-Speak woofers
        7" | 4 Ω
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        € 177,64€ 214,95 10+ In stock
        • -5% Purchase 4 for only € 204,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer
        Revelator 18W/4531G00 Mid-range Woofer

        Product description Scan-Speak Revelator 18W/4531G00 Mid-range Woofer

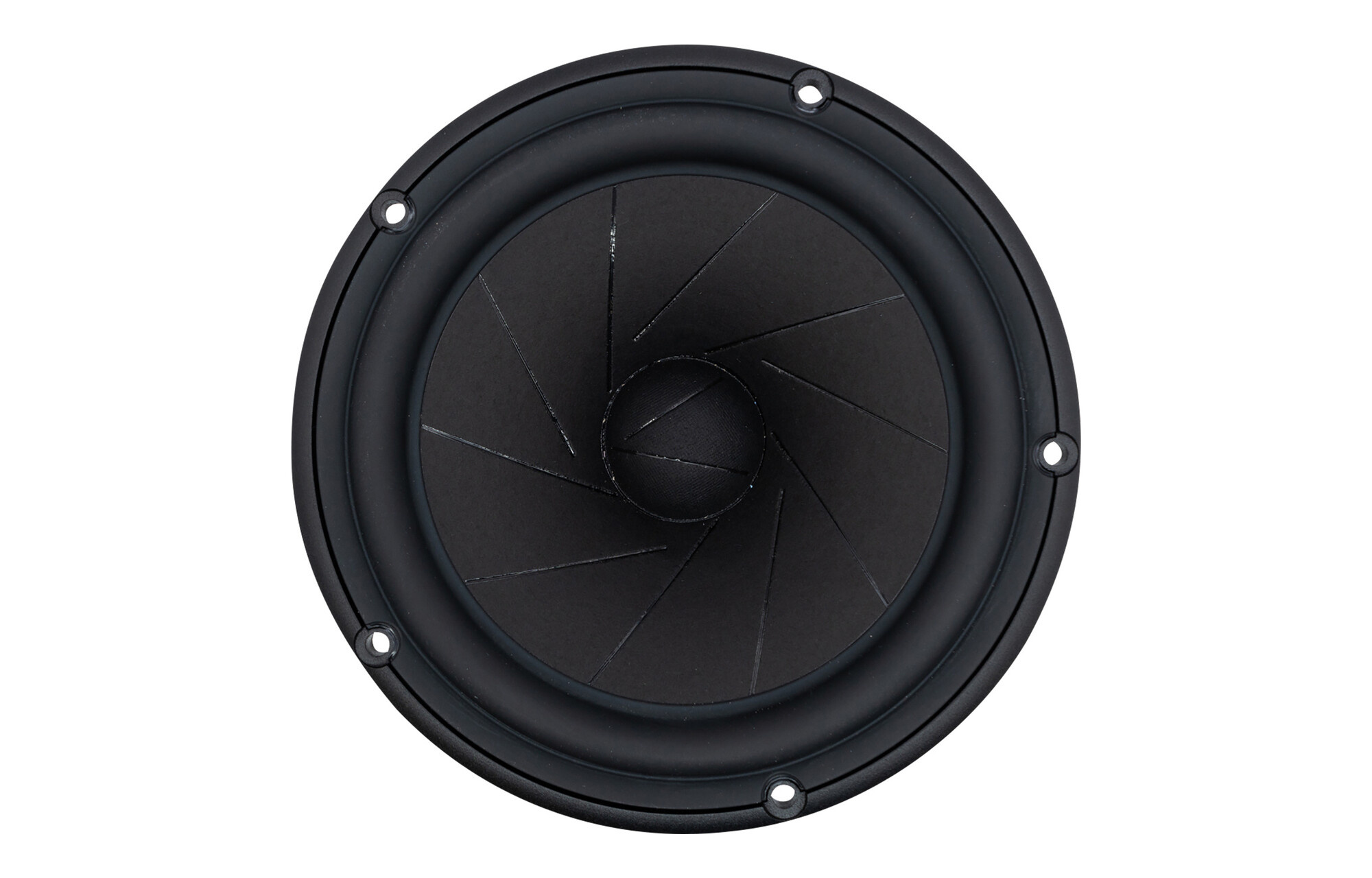

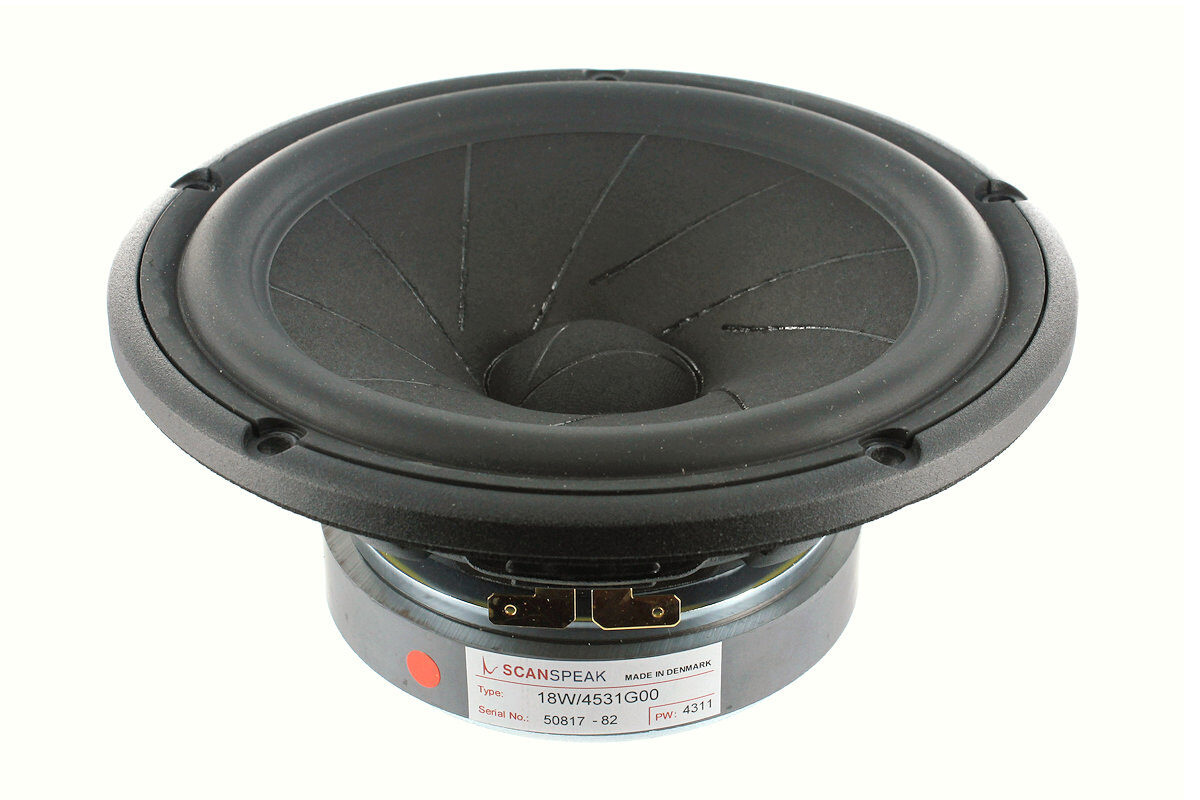

        The Scan-Speak Revelator 18W/4531G00 is a 7-inch mid-range woofer that is known for its smooth frequency response, midrange clarity, and overall high performance. It features a sliced paper cone that is filled with damping glue, which helps to reduce break-up modes and improve the overall sound quality. The woofer also has a low-loss linear suspension and a patented Symmetrical Drive (SD-1) motor design, which further contribute to its excellent performance.



        Highlights

        • Sliced paper cone with damping glue
        • Low-loss linear suspension
        • Patented Symmetrical Drive (SD-1) motor design
        • 4-ohm impedance
        • 90 dB sensitivity
        • 33 Hz resonance frequency
        • 41.9 liter equivalent volume
        • 0.35 total Q factor



        Product details

        Scan-Speak Revelator 18W/4531G00 Mid-range Woofer

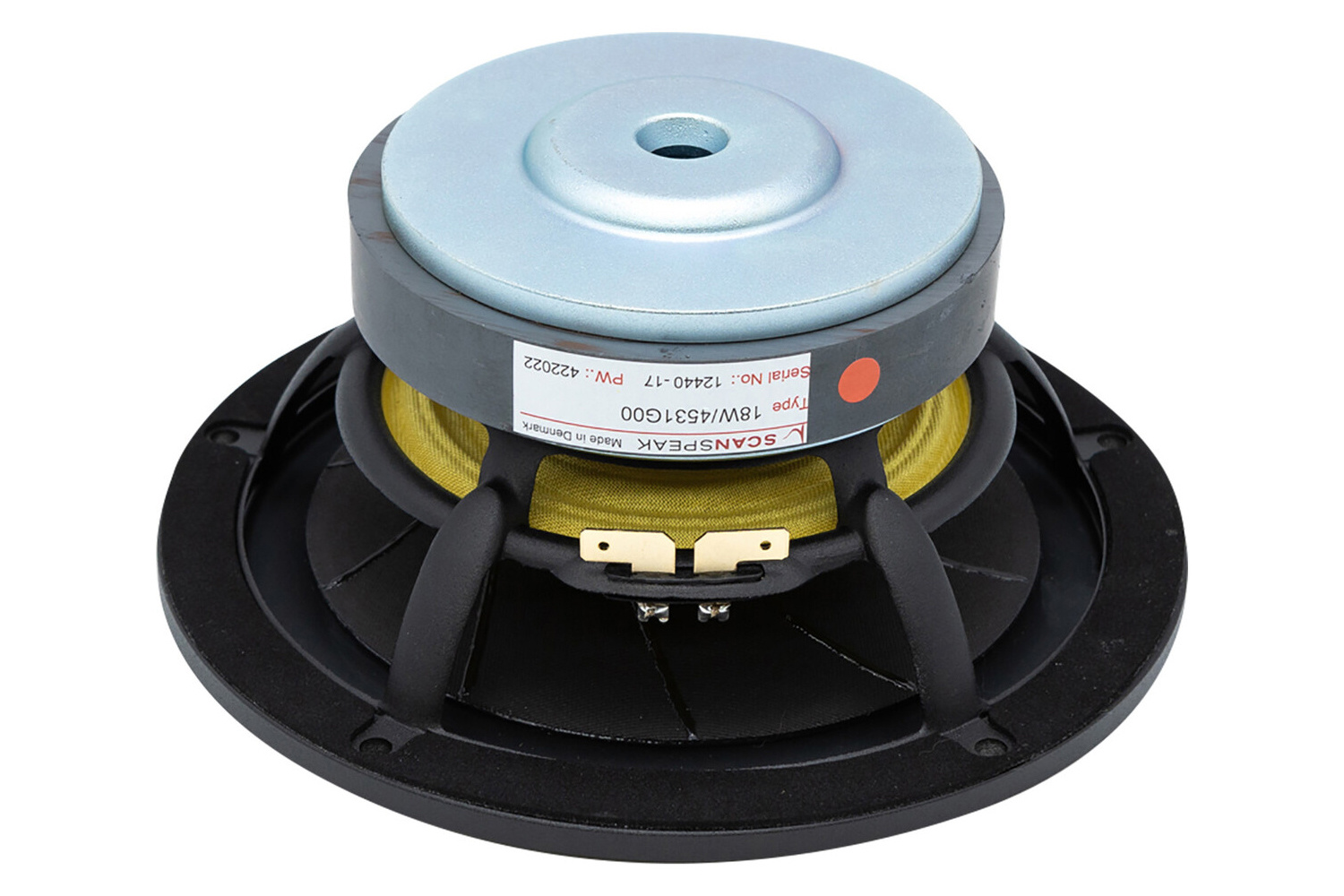

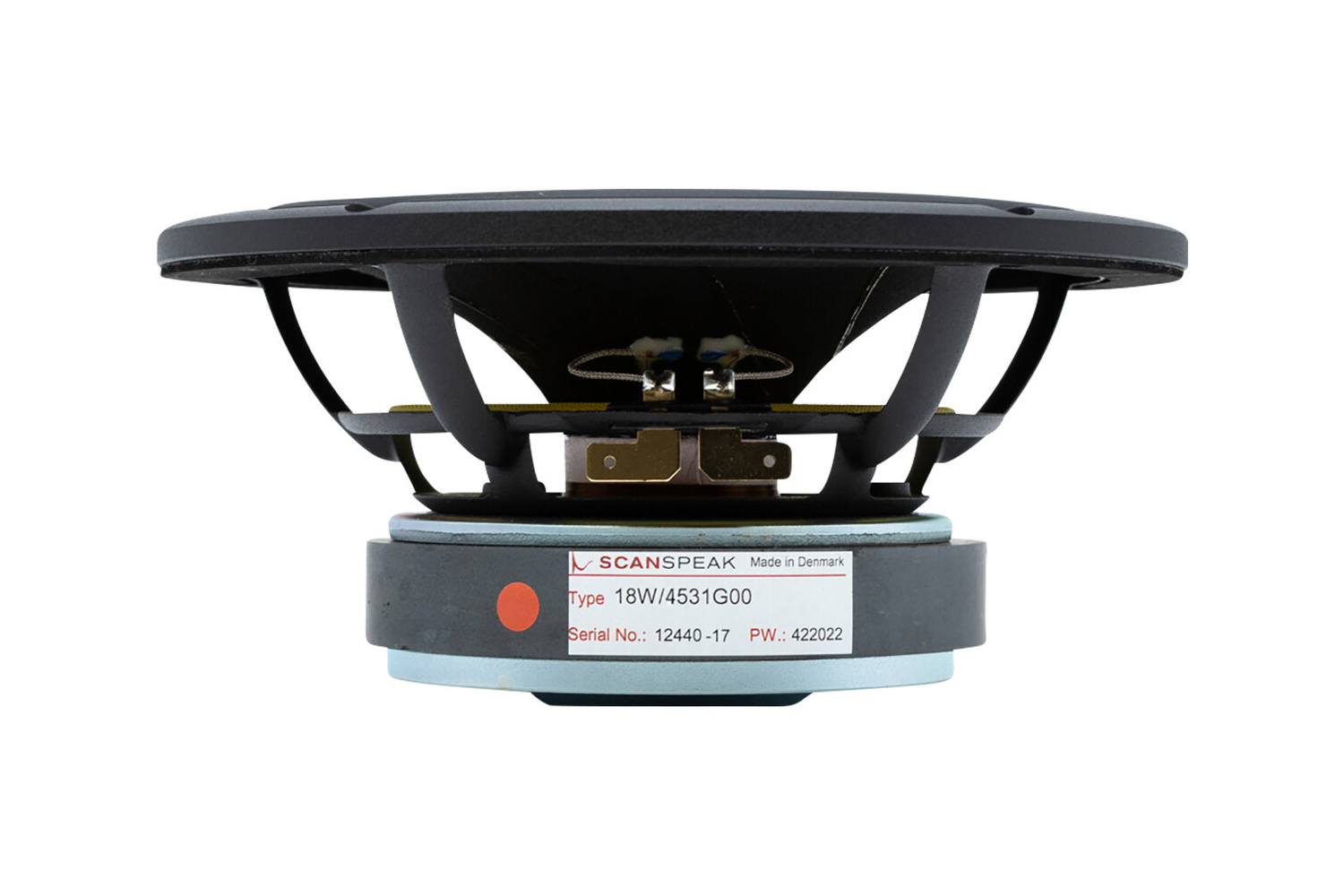

        The Scan-Speak 18W/4531G00 is a 18 cm (7") woofer from the Revelator series. It features a sliced paper cone, a large ferrite magnet, and a low-loss linear suspension. The sliced cone helps to reduce cone breakup, while the low-loss suspension minimizes distortion. The large ferrite magnet provides good power handling and bass response.



        The Scan-Speak Revelator 18W/4531G00 is a high-performance mid-range woofer that is well-suited for a variety of applications, including home audio, studio monitors, and professional sound reinforcement. It is a great choice for those who are looking for a woofer that delivers excellent sound quality and performance.

        Show more

        Specifications

        Article number
        18W/4531G00
        EAN
        8785256848416
        Woofer Series
        Scan-Speak Revelator series
        Woofer Type
        Midwoofer
        Nominal Diameter
        7 Inch
        Power Handling (RMS)
        70 Watt
        Power Handling (max)
        110 Watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        90 dB
        Frequency Response
        33-7000 Hz
        Voice Coil Diameter
        38 mm
        DC Resistance (Re)
        3.4 Ohm
        Voice Coil Inductance (Le)
        0.3 mH
        Resonant Frequency (Fs)
        33 Hz
        Mechanical Q (Qms)
        5.20
        Electromagnetic Q (Qes)
        0.38
        Total Q (Qts)
        0.35
        Diaphragm Mass Inc. Airload (Mms)
        17.5 g
        Mechanical Compliance of Suspension (Cms)
        1.33 mm/N
        Surface Area of Cone (Sd)
        157 cm2
        BL Product (BL)
        5.7 Tm
        Compliance Equivalent Volume (Vas)
        41.1 Litres
        Maximum Linear Excursion (Xmax)
        ca. 11 mm
        Driver's Mechanical Losses (Rms)
        0.70 kg/s
        Overall Outside Diameter
        182.2 mm
        Overall Depth
        77.4 mm
        Baffle Cutout Diameter
        156 mm
        # Mounting Holes
        5
        Mounting Hole Diameter
        5.3 mm
        Vented Volume
        35 Litres
        Vented F3
        17 Litres

        Show more
