        Product description Scan-Speak Illuminator 18WU/4747T00 Bass-midwoofer

        Highlights

        • Under hung motor system
        • Exceptionally long linear stroke
        • Black Anodized Aluminum Cone
        • Patented symmetrical drive motor system
        • Neodymium magnet
        • Voice coil gap fully encapsulated with copper caps
        • Optimized for woofer application in 3-way systems



        Product details

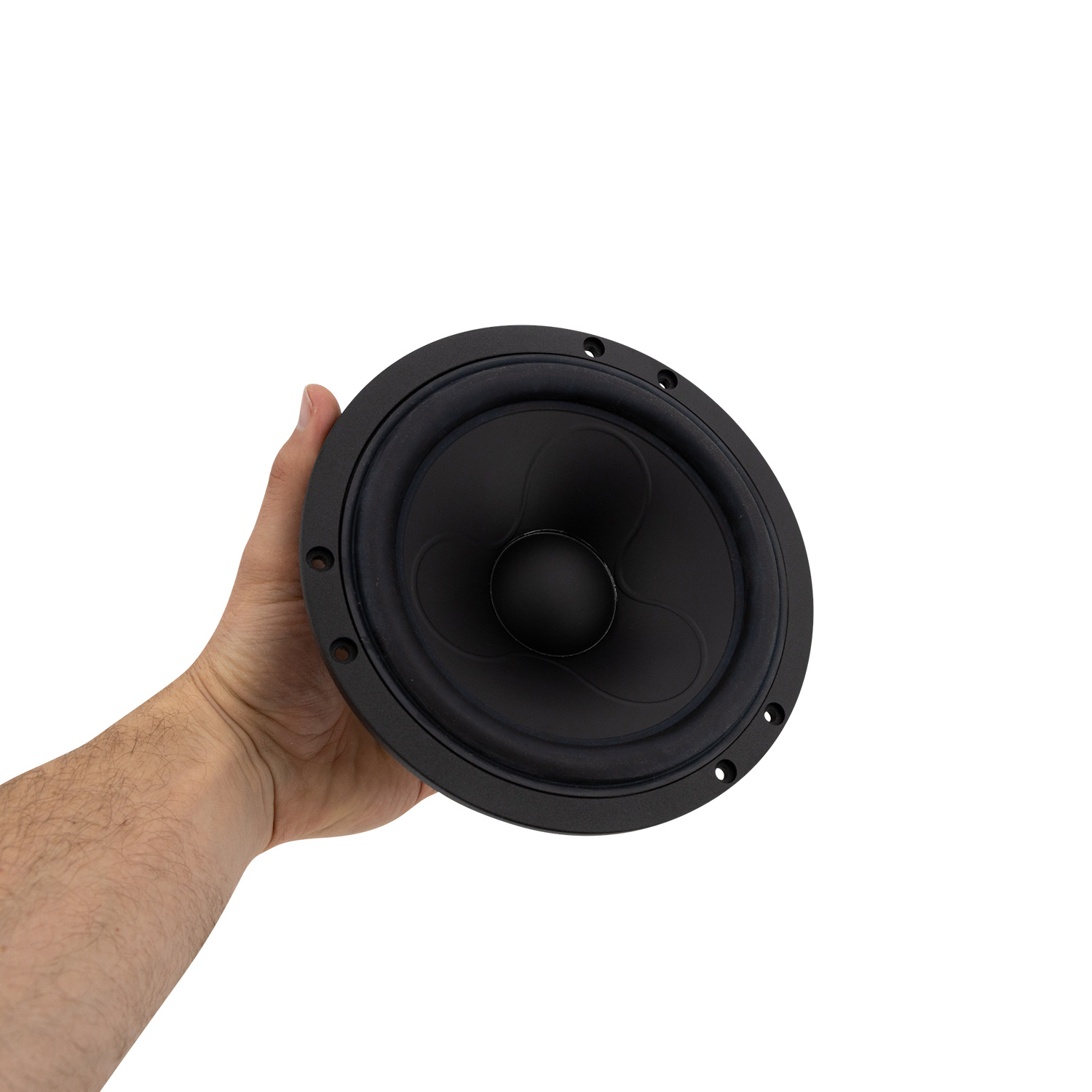

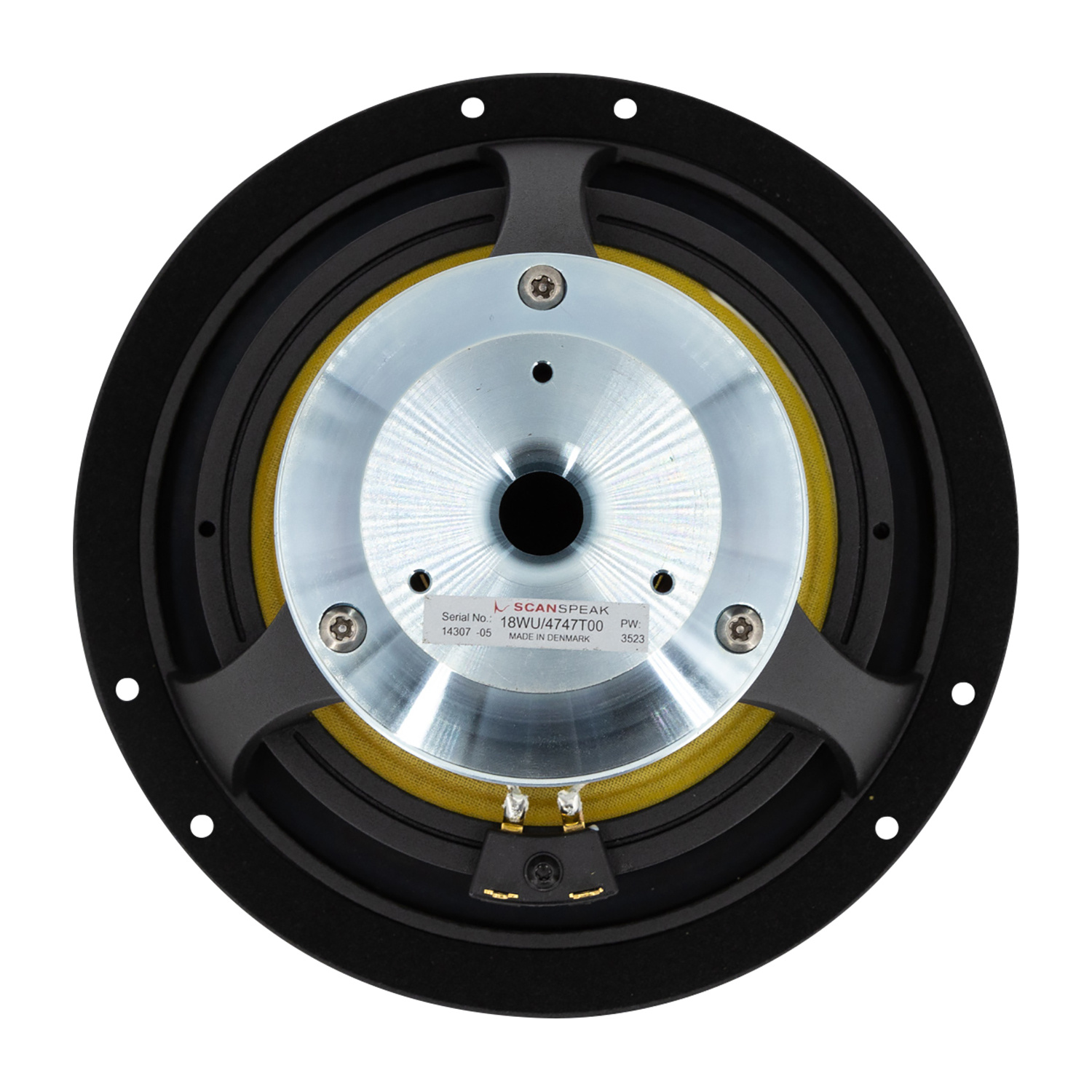

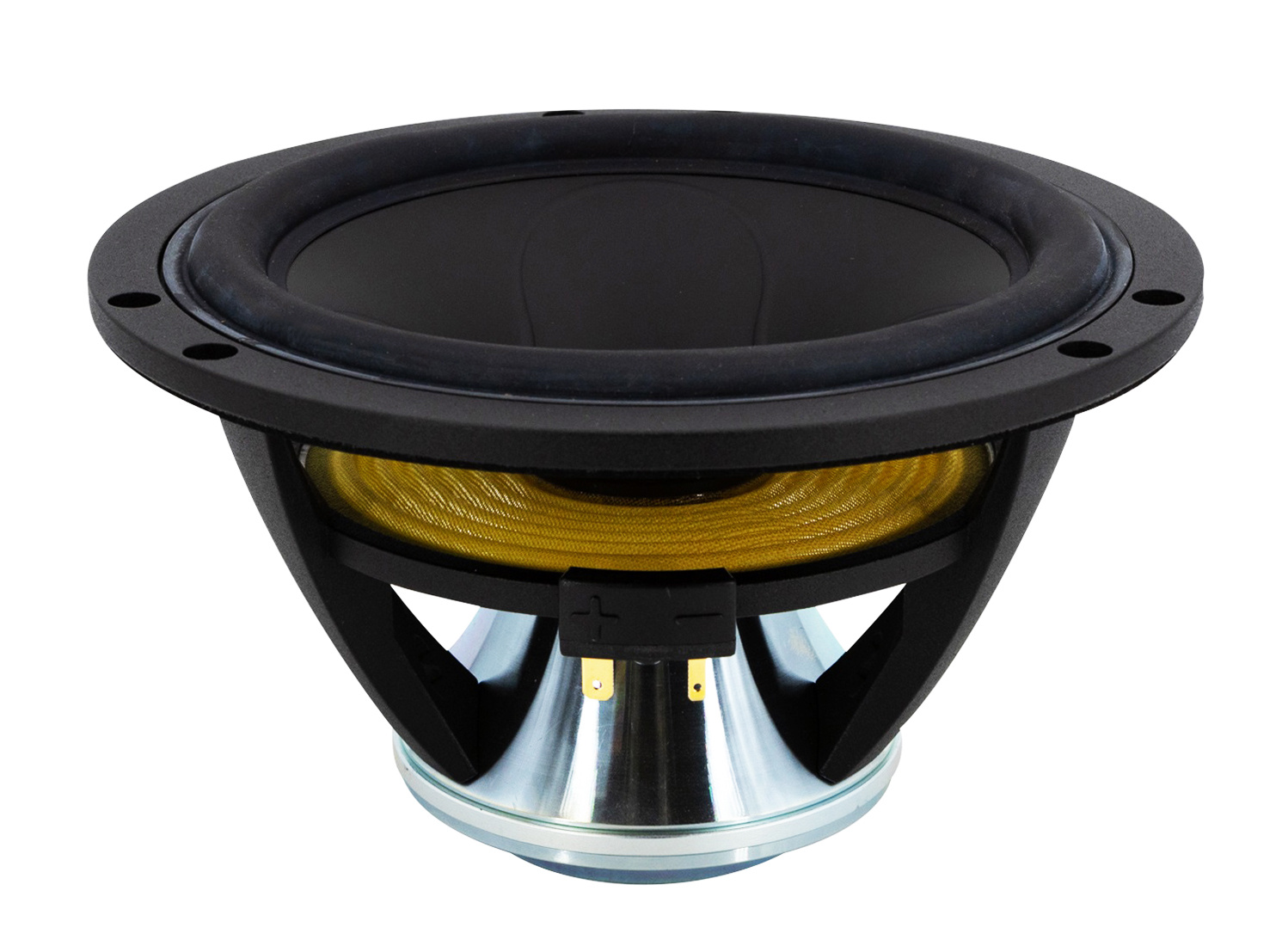

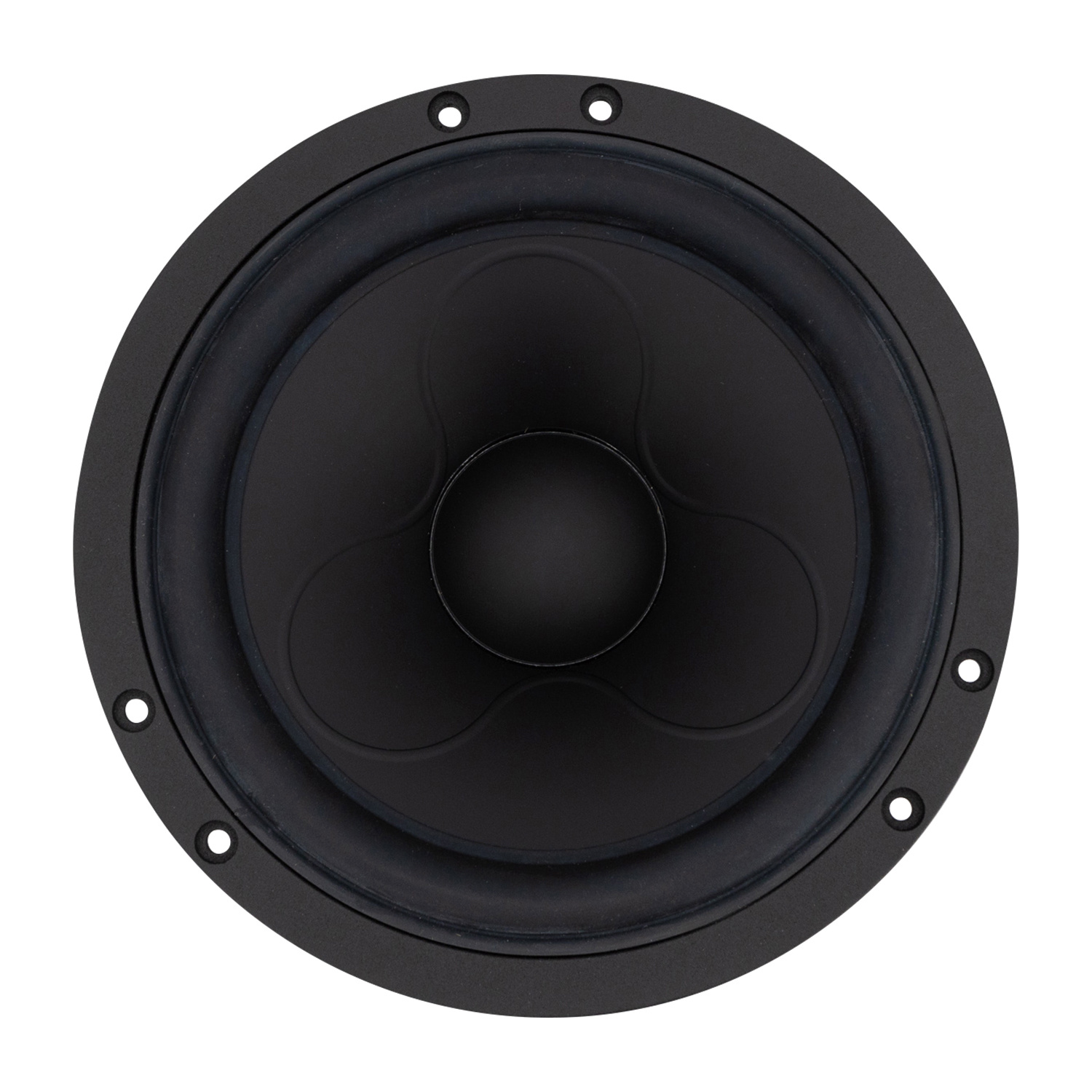

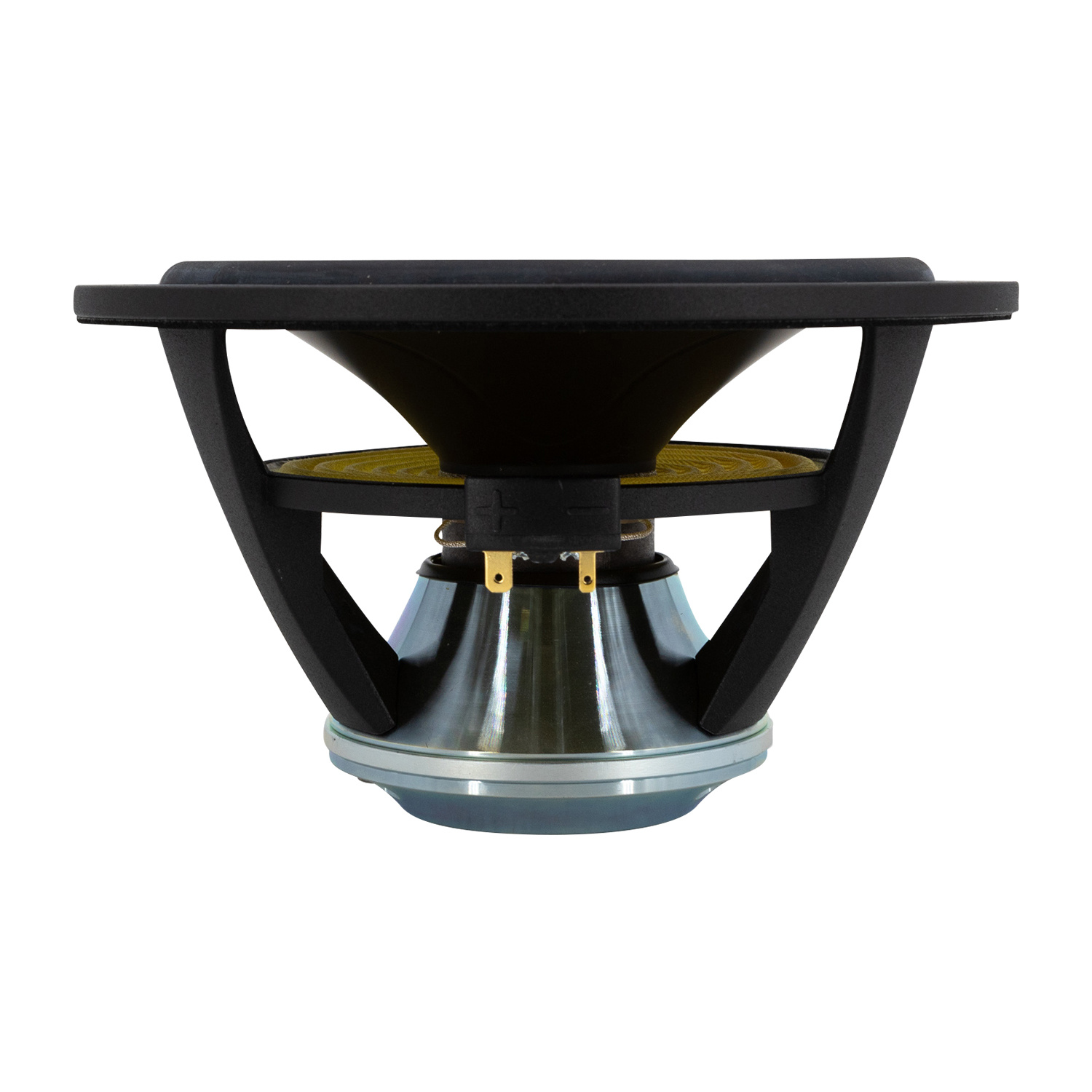

        Scan-Speak Illuminator 18WU/4747T00 7" Woofer

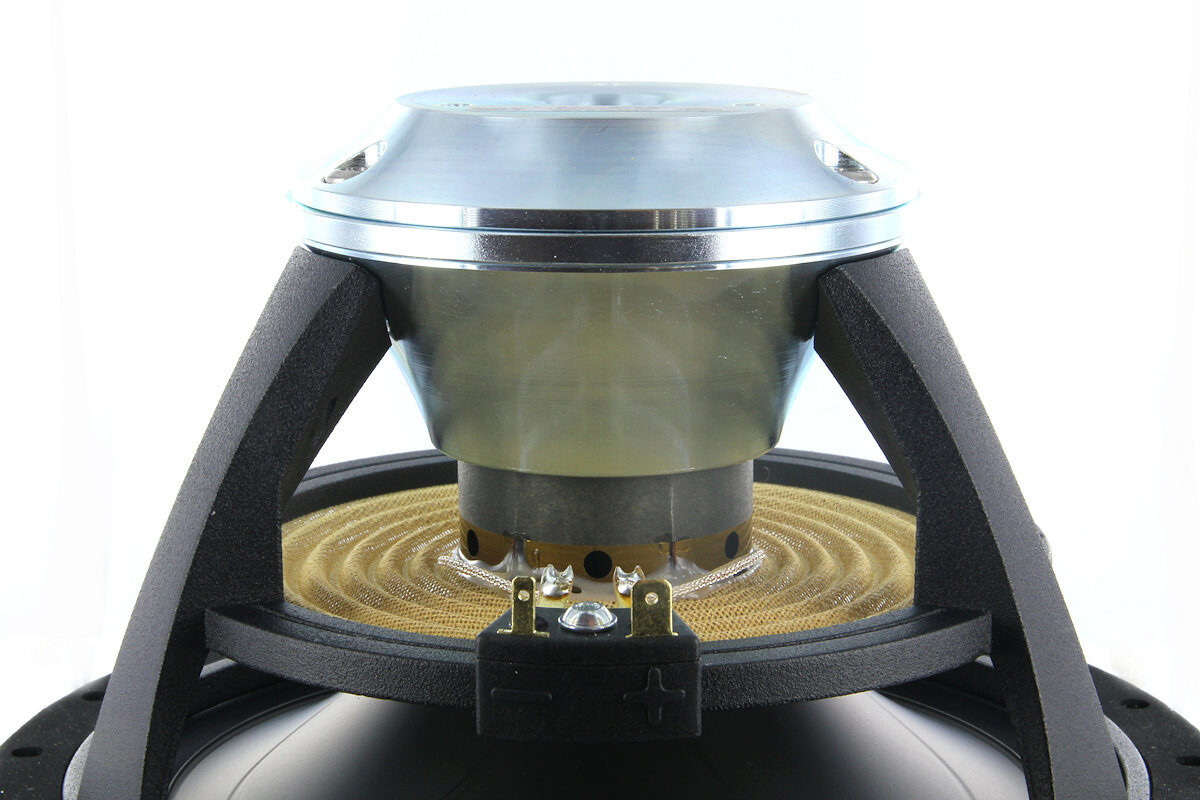

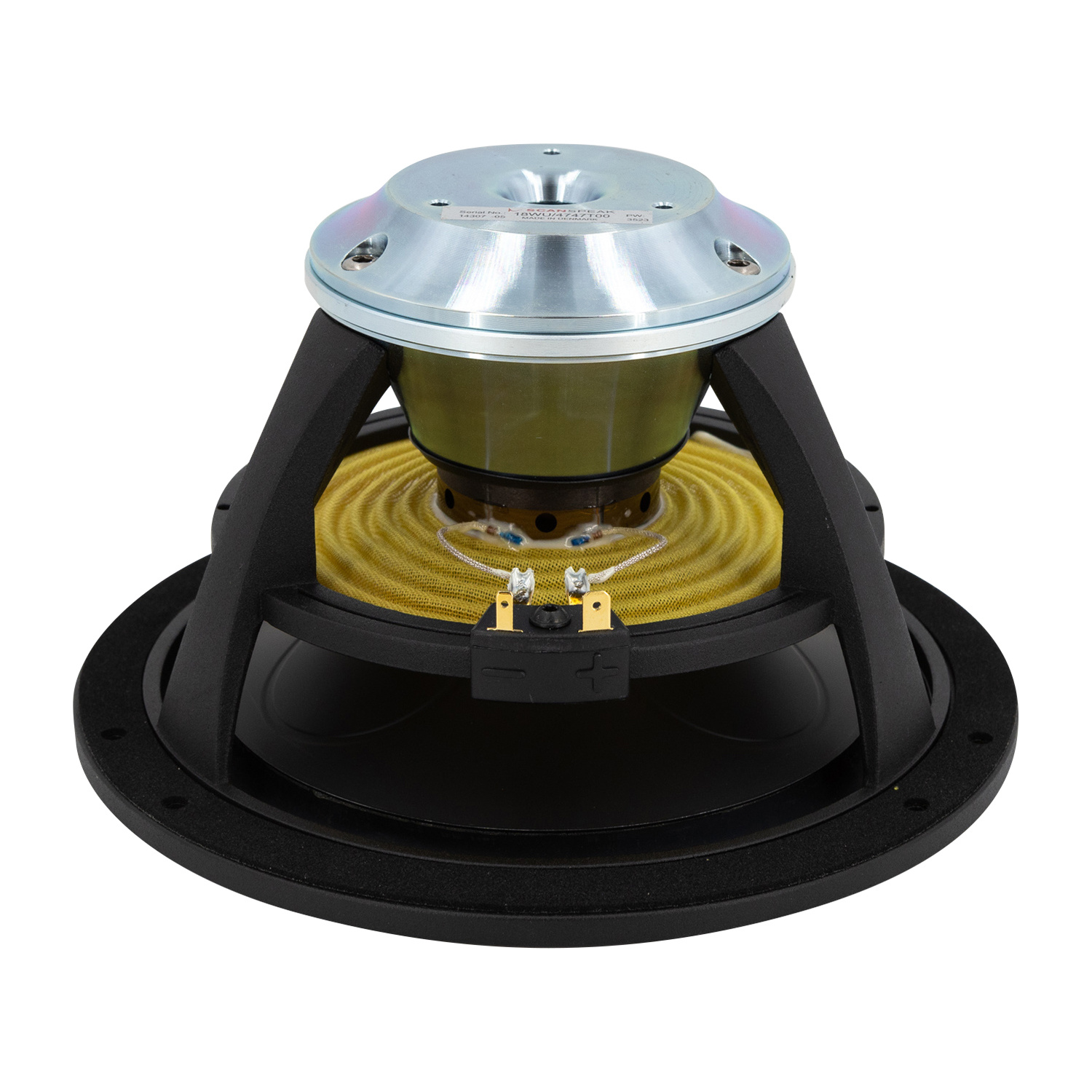

        Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.

        Show more

        Specifications

        Article number
        18WU/4747T00
        EAN
        0696277268443
        Woofer Series
        Scan-Speak Illuminator series
        Woofer Type
        Midwoofer
        Power Handling (RMS)
        80 Watts
        Power Handling (max)
        150 Watts
        Impedance (Z)
        4 ohms
        Sensitivity (SPL at 1m / 2.83V)
        88.1 dB
        Voice Coil Diameter
        1.65"
        DC Resistance (Re)
        3.2 ohms
        Voice Coil Inductance (Le)
        0.39 mH
        Resonant Frequency (Fs)
        32 Hz
        Mechanical Q (Qms)
        3.42
        Electromagnetic Q (Qes)
        0.30
        Total Q (Qts)
        0.28
        Diaphragm Mass Inc. Airload (Mms)
        17g
        Mechanical Compliance of Suspension (Cms)
        1.45 mm/N
        Surface Area of Cone (Sd)
        154 cm2
        BL Product (BL)
        6 Tm
        Compliance Equivalent Volume (Vas)
        1.70 ft.³
        Maximum Linear Excursion (Xmax)
        9 mm
