        Discovery 22W/8534G00 Woofer

        Scan-Speak Discovery 22W/8534G00 Woofer

        €119,95

        10+ In stock

        Add to cart

        Scan-Speak Discovery 22W/8534G00 Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Scan-Speak woofers
        8" | 8 Ω
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        € 99,13€ 119,95 10+ In stock
        • -5% Purchase 4 for only € 113,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer
        Discovery 22W/8534G00 Woofer

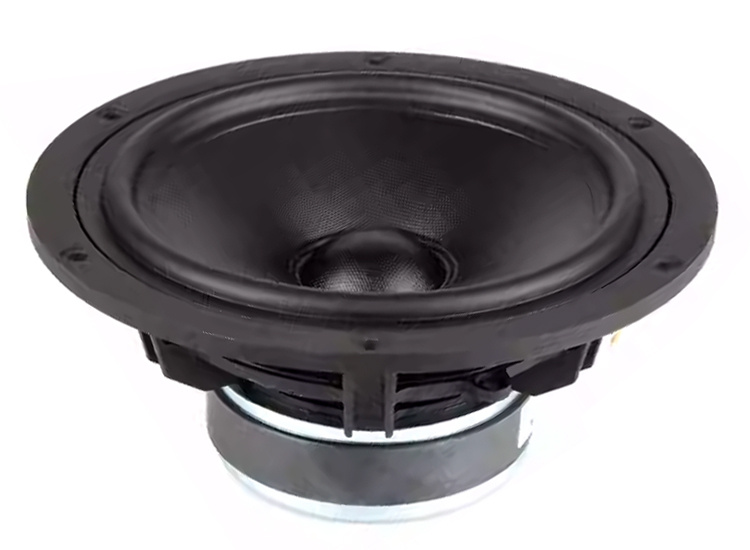

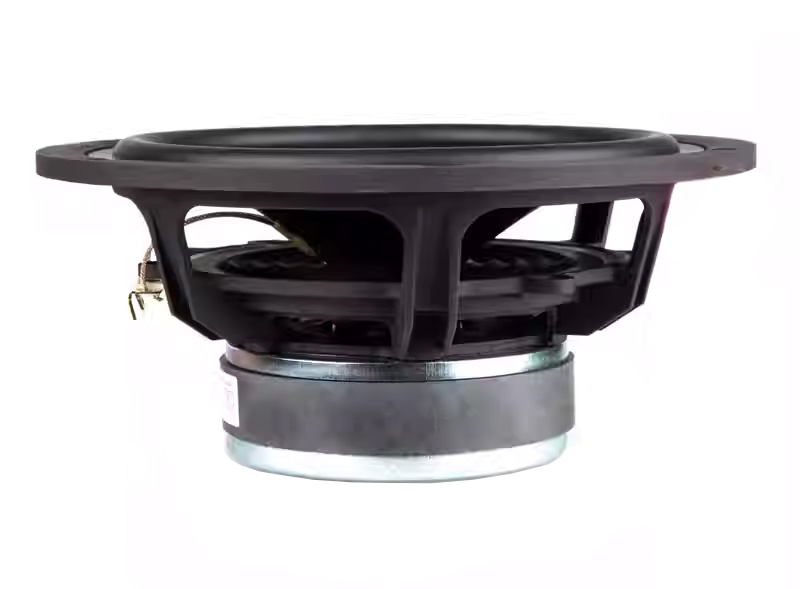

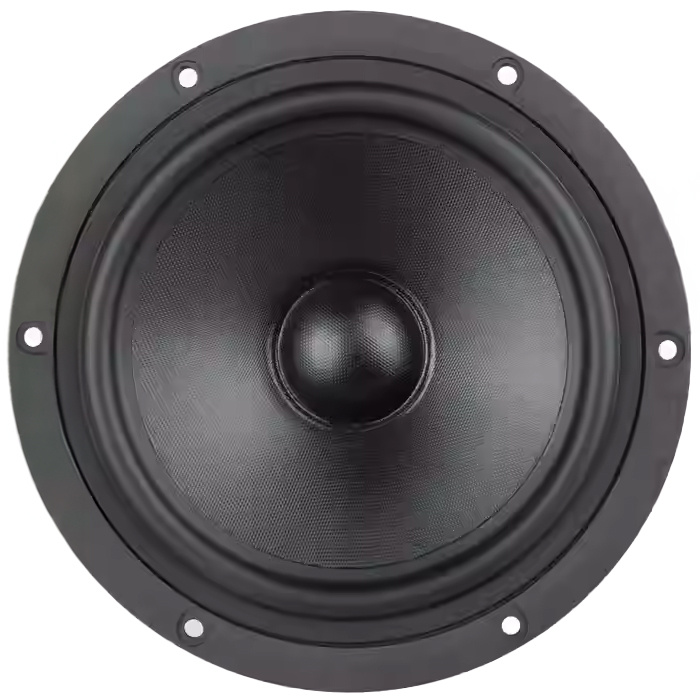

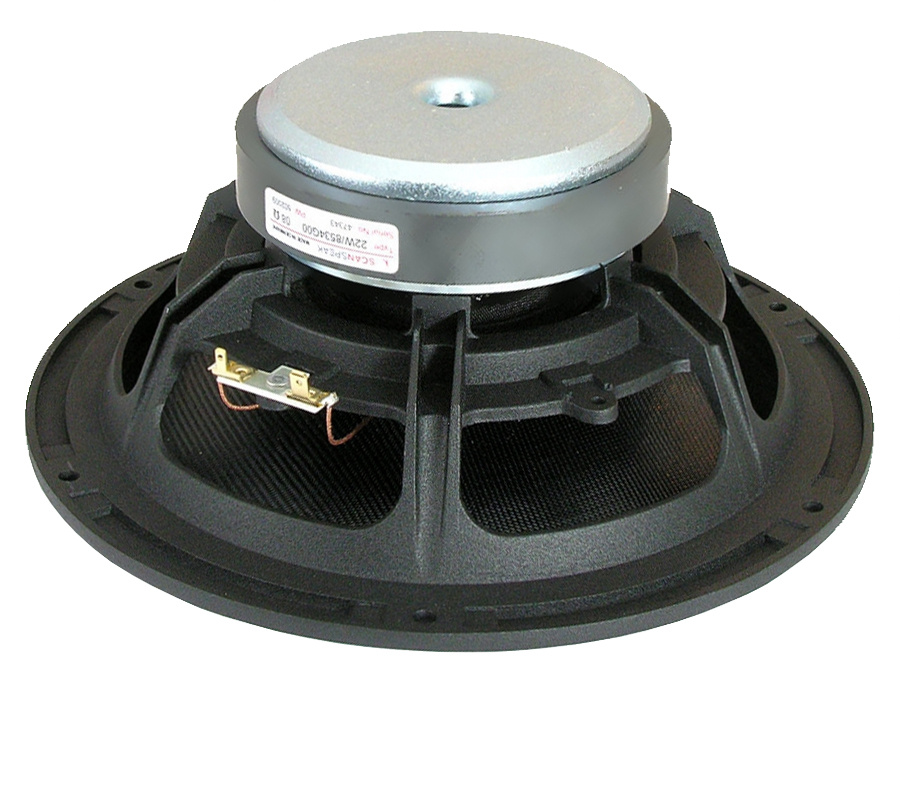

        Product description Scan-Speak Discovery 22W/8534G00 Woofer

        The Scan-Speak Discovery 22W/8534G00 Woofer is a high-performance 8-inch woofer that is designed for use in a variety of applications, including home audio, professional audio, and car audio. It features a coated fiberglass cone, a low-damping SBR rubber surround, and an aluminum ring magnet system. The woofer has a frequency response of 30Hz-2.8kHz, a sensitivity of 89dB, and an impedance of 8 ohms. It is rated for a maximum power handling of 100W RMS.



        Highlights

        • Coated fiberglass cone for a clear and detailed sound
        • Low-damping SBR rubber surround for good bass extension
        • Aluminum ring magnet system for high efficiency
        • Frequency response of 30Hz-2.8kHz
        • Sensitivity of 89dB
        • Impedance of 8 ohms
        • Maximum power handling of 100W RMS



        Product details

        Scan-Speak Discovery 22W/8534G00 Woofer



        The Scan-Speak 22W/8534G00 is a 22-cm woofer from the Discovery series. It features a coated NRSC fiberglass cone, a low-damping SBR rubber surround, a low-resonance frequency of 30 Hz, and a magnet system with an aluminum ring. The woofer is also equipped with a die-cast aluminum chassis with ventilation below the spider.



        The 22W/8534G00 is a well-made woofer with good performance. It has a smooth, extended frequency response and good bass extension. It is also relatively efficient, making it a good choice for use in high-power applications.

        Show more

        Specifications

        Article number
        22W/8534G00
        EAN
        8785256848379
        Woofer Series
        Scan-Speak Discovery series
        Woofer Type
        Woofer
        Nominal Diameter
        173 mm
        Power Handling (RMS)
        70 Watt
        Power Handling (max)
        120 Watt
        Impedance (Z)
        8 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        89 dB
        Frequency Response
        30-5000 Hz
        Voice Coil Diameter
        38 mm
        DC Resistance (Re)
        5.9 Ohm
        Voice Coil Inductance (Le)
        0.56 mH
        Resonant Frequency (Fs)
        30 Hz
        Mechanical Q (Qms)
        4.14
        Electromagnetic Q (Qes)
        0.43
        Total Q (Qts)
        0.39
        Diaphragm Mass Inc. Airload (Mms)
        23.1 g
        Mechanical Compliance of Suspension (Cms)
        1.22 mm/N
        Surface Area of Cone (Sd)
        235 cm2
        BL Product (BL)
        7.8 Tm
        Compliance Equivalent Volume (Vas)
        94.2 L
        Maximum Linear Excursion (Xmax)
        12 mm
        Driver's Mechanical Losses (Rms)
        1.05 kg/s
        Cone / Diaphragm Material
        Fibre Glass
        Basket / Frame Material
        Aluminium
        Overall Outside Diameter
        225 mm
        Baffle Cutout Diameter
        184.7 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        5.3 mm
        Vented Volume
        99 Litres
