        Revelator 28W/8878T01 Woofer

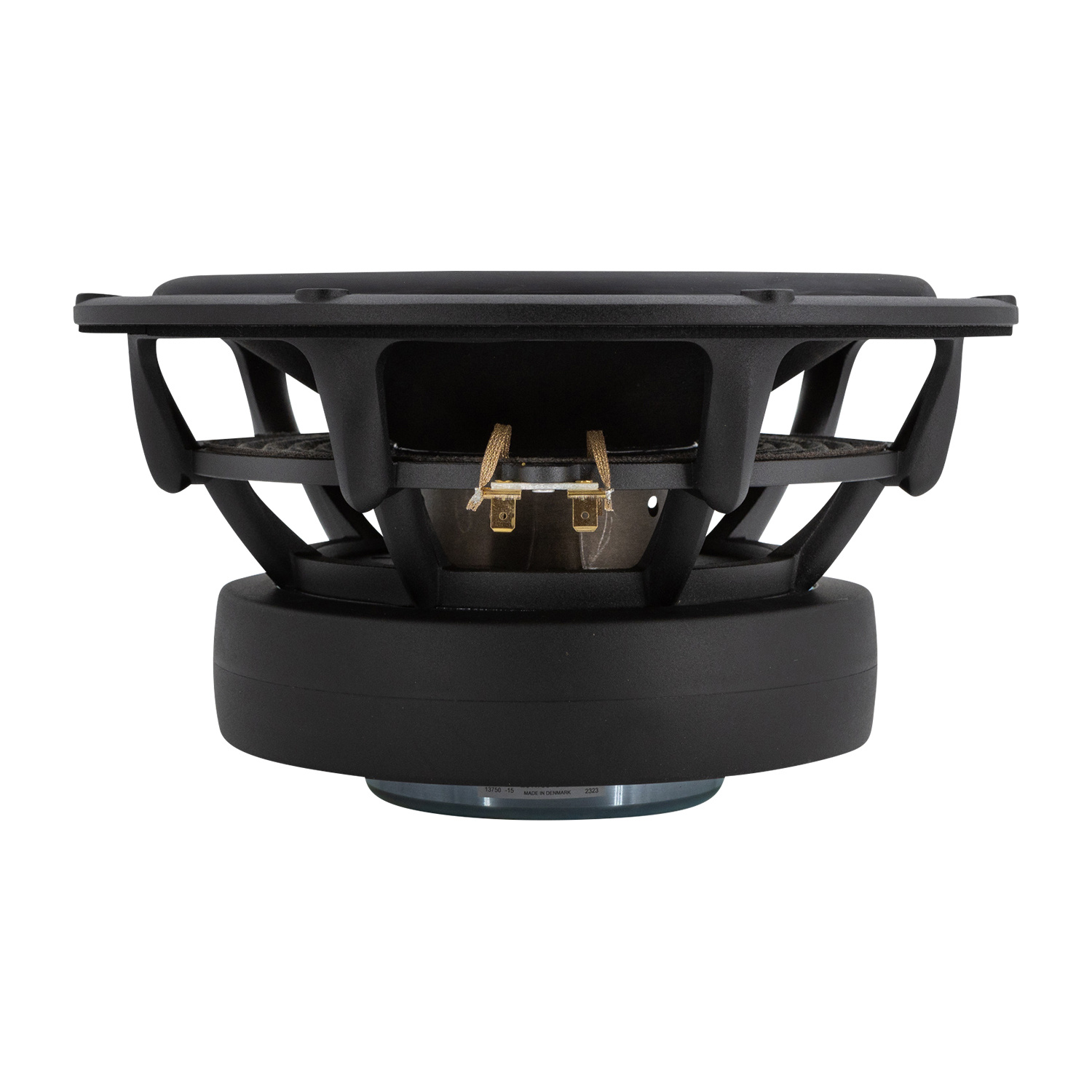

        Scan-Speak Revelator 28W/8878T01 Woofer

        €699,95

        1 In stock

        Add to cart

        Scan-Speak Revelator 28W/8878T01 Woofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Scan-Speak woofers
        11'' | 8 Ω
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        € 578,47€ 699,95 1 In stock
        • -5% Purchase 4 for only € 664,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer
        Revelator 28W/8878T01 Woofer

        Product description Scan-Speak Revelator 28W/8878T01 Woofer

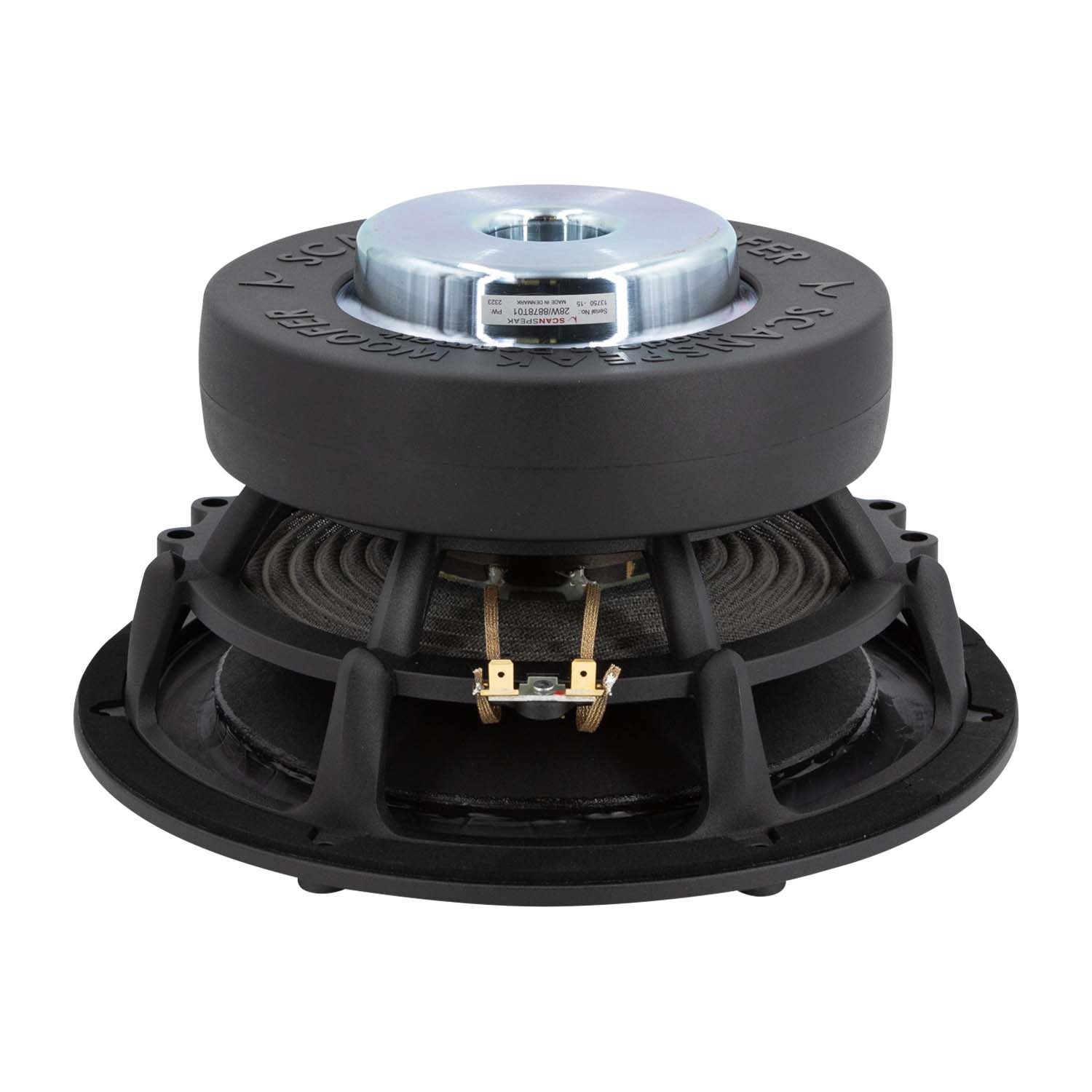

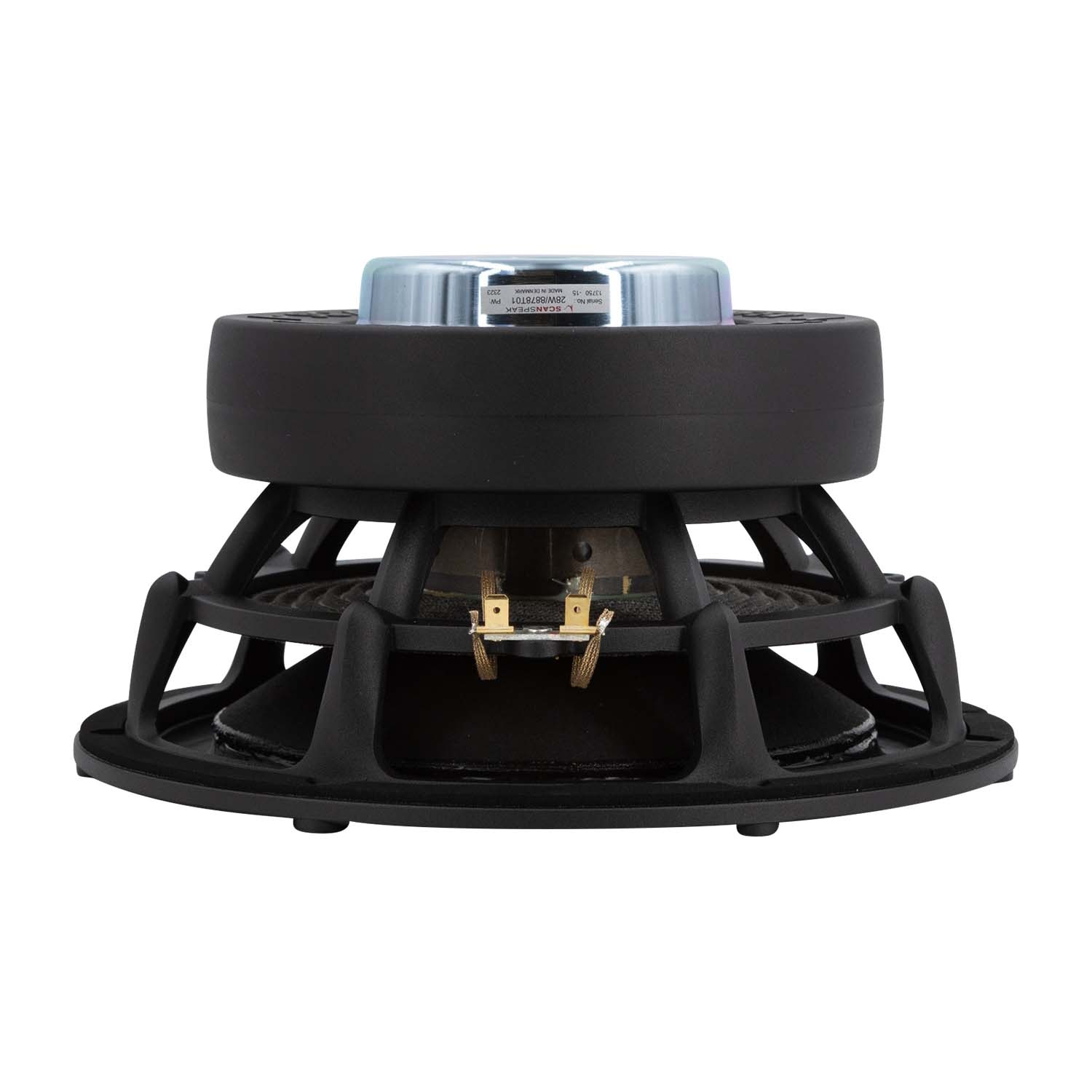

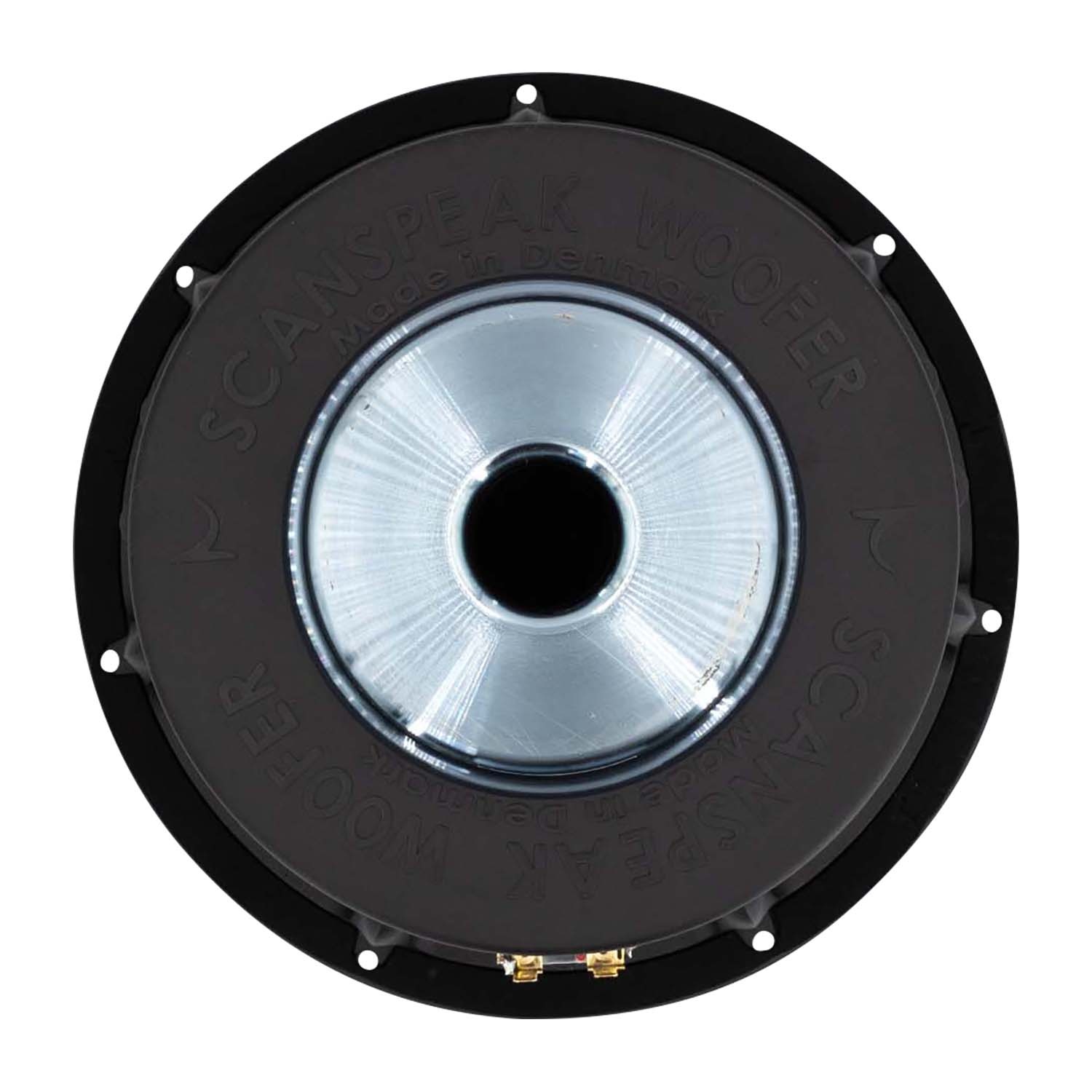

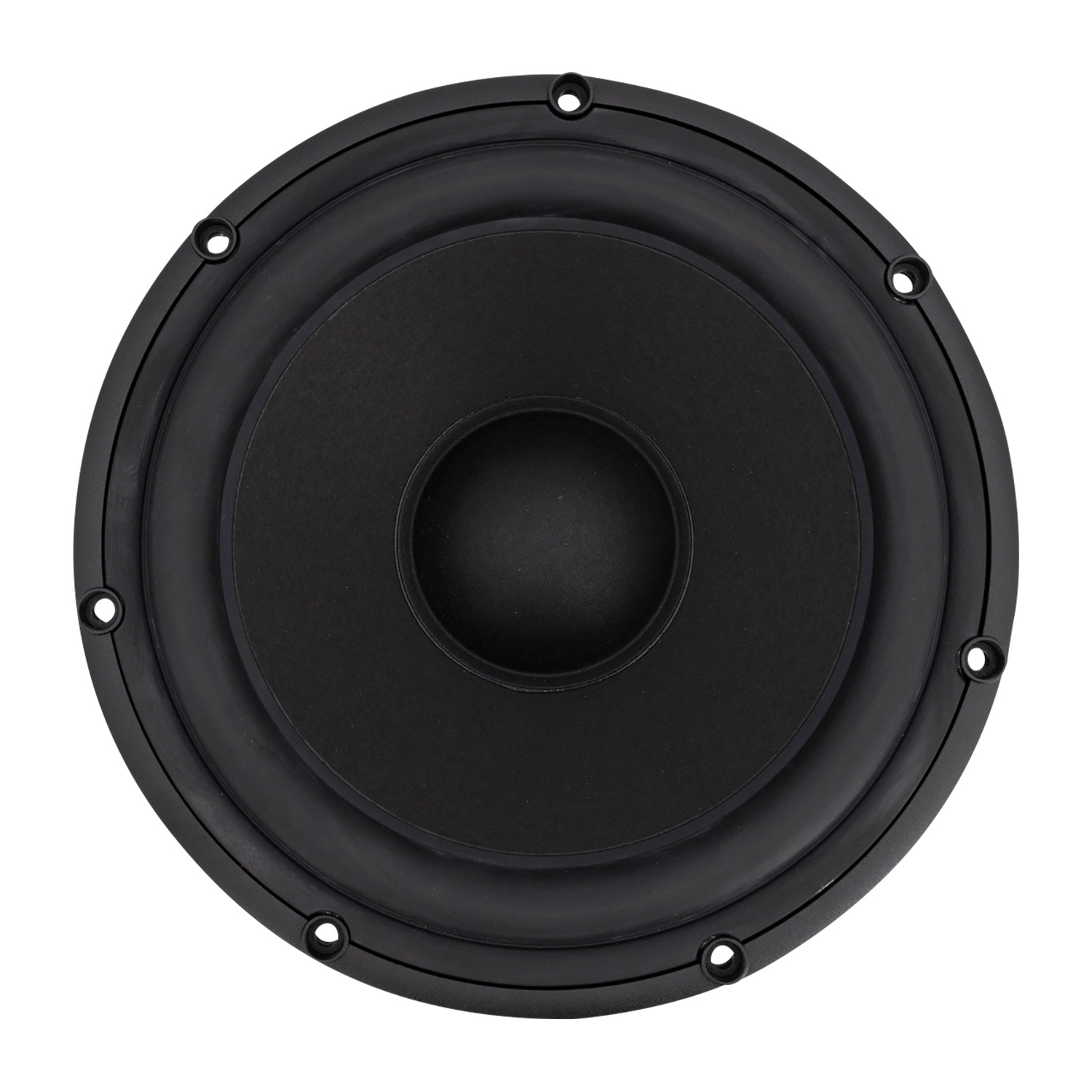

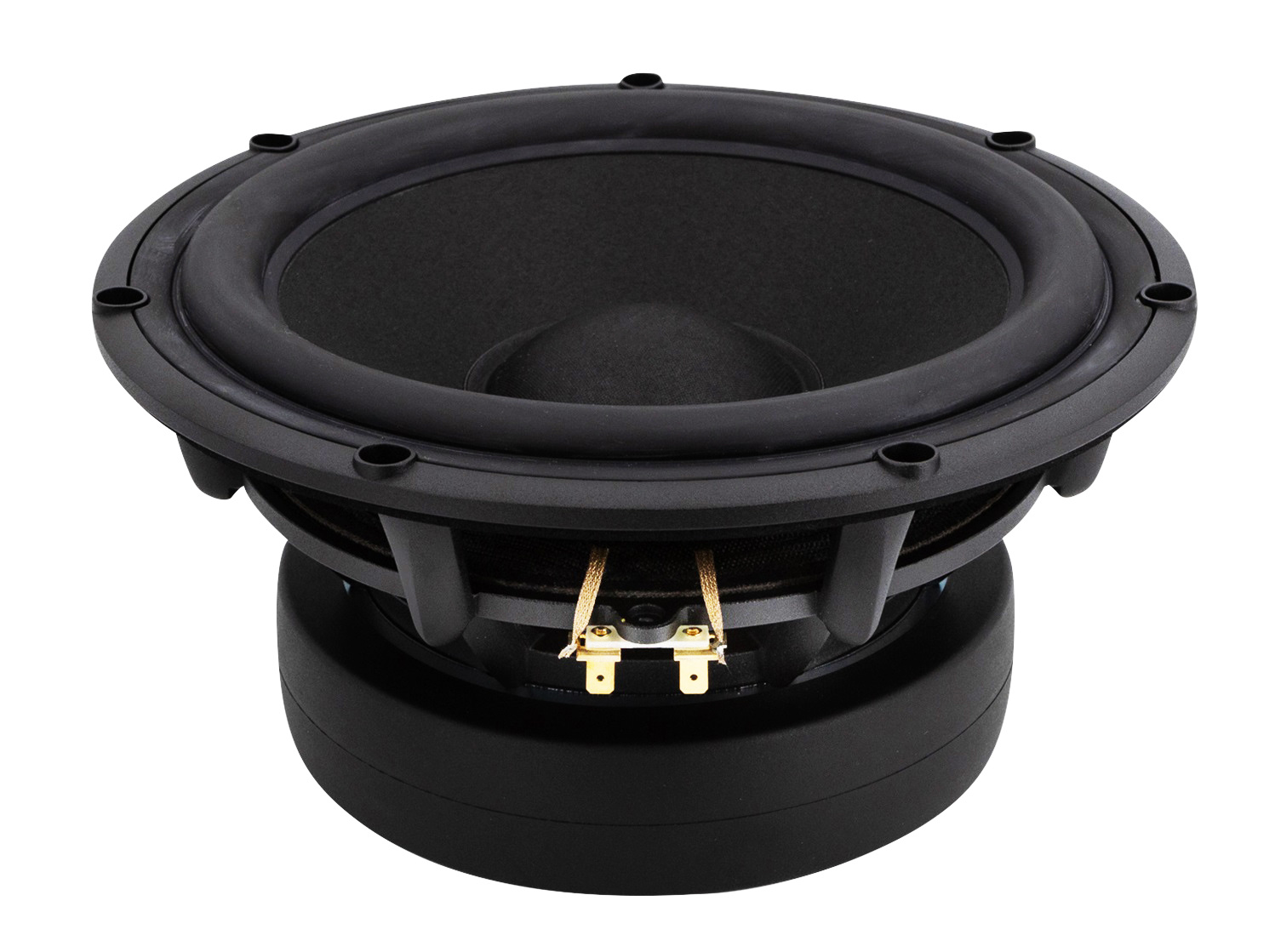

        The Scan-Speak Revelator 28W/8878T01 is a high-performance 28cm (11") woofer that is designed for use in high-end audio systems. It features a paper-sandwich cone with a special foam filling technology that gives the cone very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.



        Highlights

        • Low resonance frequency of 22Hz
        • High sensitivity of 88.5dB
        • Paper-sandwich cone with foam filling technology
        • Heavy duty copper sleeves in the motor system
        • Versatile design



        Product details

        Scan-Speak Revelator 28W/8878T01 Woofer



        The 28W/8878T01 has a low resonance frequency of 22Hz, which means that it can reproduce very deep bass frequencies. It also has a high sensitivity of 88.5dB, which means that it doesn't need a lot of power to produce loud sound. It's a very versatile woofer that can be used in a variety of applications. It is a good choice for home theater systems, studio monitors, and high-end car audio systems.

        Show more

        Specifications

        Article number
        28W/8878T01
        EAN
        8785256848560
        Woofer Series
        Scan-Speak Revelator series
        Woofer Type
        Woofer
        Nominal Diameter
        11 "
        Power Handling (RMS)
        200 Watt
        Power Handling (max)
        500 Watt
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        88.5 dB
        Frequency Response
        22-1000 Hz
        Voice Coil Diameter
        75 mm
        DC Resistance (Re)
        6.3 Ω
        Voice Coil Inductance (Le)
        0.55 mH
        Resonant Frequency (Fs)
        22 Hz
        Mechanical Q (Qms)
        5.81
        Electromagnetic Q (Qes)
        0.33
        Total Q (Qts)
        0.31
        Diaphragm Mass Inc. Airload (Mms)
        84 g
        Mechanical Compliance of Suspension (Cms)
        0.62 mm/N
        Surface Area of Cone (Sd)
        363 cm²
        Volume of Displacement (Vd)
        363 cm²
        BL Product (BL)
        14.9 Tm
        Compliance Equivalent Volume (Vas)
        116 Litres
        Maximum Linear Excursion (Xmax)
        ± 7.5 mm
        Voice Coil Former
        Titanium
        Basket / Frame Material
        Aluminum
        Overall Outside Diameter
        279.9 mm
        Overall Depth
        155.6 mm
        Baffle Cutout Diameter
        250.5 mm
        # Mounting Holes
        7
        Mounting Hole Diameter
        6.3 mm
        Vented Volume
        57 Litres

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        -
        By Mark on 19 August 2024
        Revelator 28W/8878T01 Woofer
        € 578,47
        € 699,95
