        Revelator D2904/710003 Dome Tweeter

        Scan-Speak Revelator D2904/710003 Dome Tweeter

        €319,95

        Out of stock

        Add to cart

        Scan-Speak Revelator D2904/710003 Dome Tweeter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Scan-Speak tweeters
        1" | 4 Ω
        Revelator D2904/710003 Dome Tweeter
        Revelator D2904/710003 Dome Tweeter
        Revelator D2904/710003 Dome Tweeter
        Revelator D2904/710003 Dome Tweeter
        Revelator D2904/710003 Dome Tweeter
        Revelator D2904/710003 Dome Tweeter
        € 264,42€ 319,95 Out of stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Revelator D2904/710003 Dome Tweeter
        Revelator D2904/710003 Dome Tweeter
        Revelator D2904/710003 Dome Tweeter
        Revelator D2904/710003 Dome Tweeter
        Revelator D2904/710003 Dome Tweeter
        Revelator D2904/710003 Dome Tweeter

        Product description Scan-Speak Revelator D2904/710003 Dome Tweeter

        Highlights

        • 1" Coated Textile Diaphragm
        • Patented Symmetrical Drive (SD-2) motor

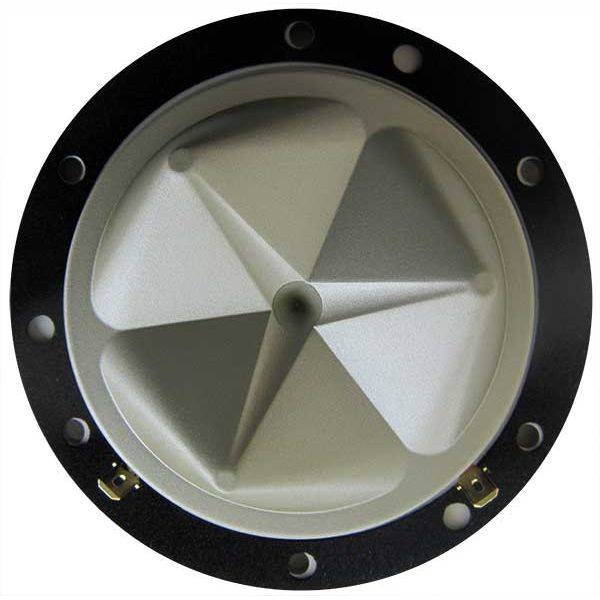

        • Non Resonant Alu Rear Chamber
        • Large Roll Surround for Wide Dispersion
        • Large Ring Neo Magnet for High Output
        • Silver Anodized Machined Alu Face Plate



        Product details

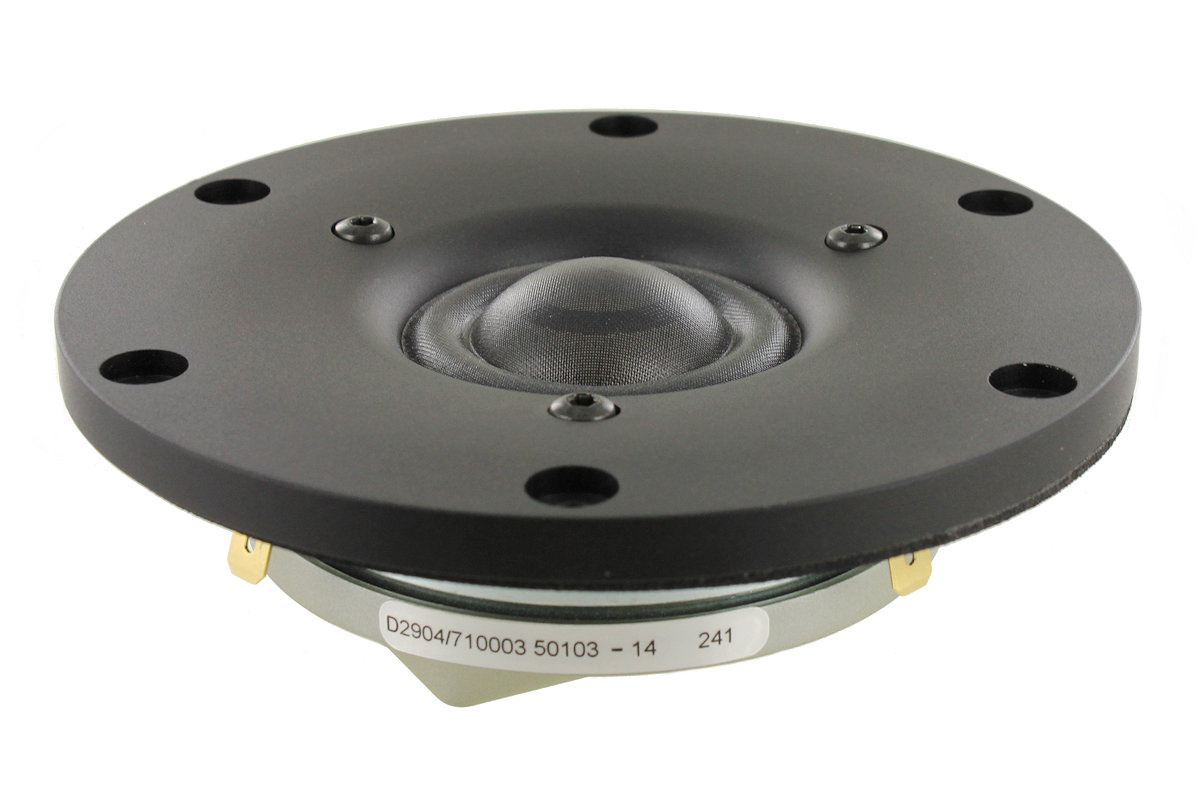

        Scan-Speak Revelator D2904/710003 1" Coated Textile Dome Tweeter

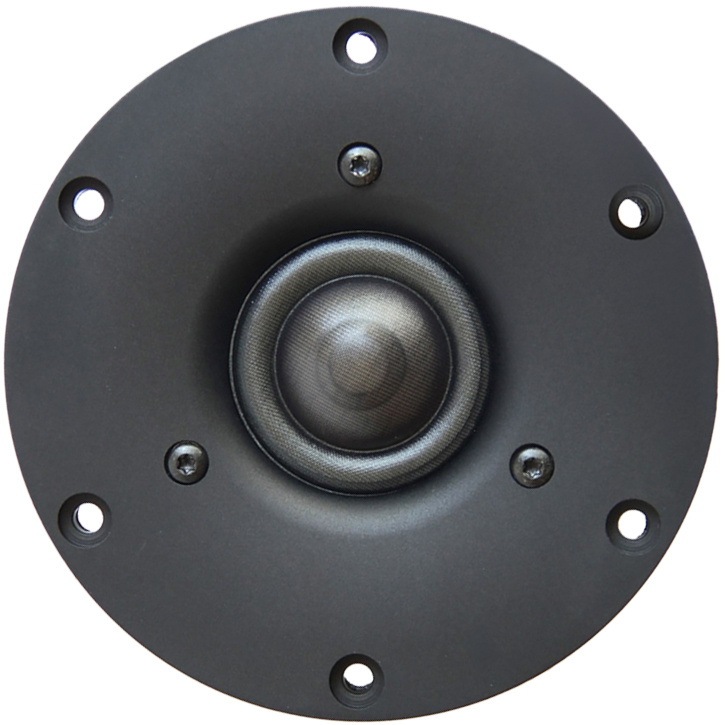

        The Scan-speak D2904-710003 tweeter is a 1" soft dome with wide surround, using the same chambering as the Ring Radiator.



        The carefully designed dome and surround result in a linear response and an exceptionally good off axis response. Note the smooth roll off on the low end, making this tweeter an excellent choice for simple slopes. A specially designed venting system uses a needle to cut down on turbulence in the air cavity. Better dynamics are achieved by not using ferrofluid, voice coil cooling is performed by the venting system and conduction through copper rings. The new SD-2 neodymium magnet system improves transient response.



        Specifications: Compliance Equivalent Volume (Vas): 0.0007 ft.³ • BL Product (BL): 2.8 Tm • Mechanical Compliance of Suspension (Cms): 0.23 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.4 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm2

        Show more

        Specifications

        Article number
        D2904/710003
        EAN
        696277268467
        Tweeter Type
        Dome Tweeter
        Tweeter Series
        Revelator
        Power Handling (RMS)
        90 Watts
        Power Handling (max)
        150 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94.4 dB
        Resonant Frequency (Fs)
        520 Hz
        DC Resistance (Re)
        3 Ω
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        3.50
        Electromagnetic Q (Qes)
        0.50
        Total Q (Qts)
        0.44
        Overall Outside Diameter
        104.2 mm
        Cutout Diameter
        70 mm
        Depth
        26.4 mm
        Mounting Type
        Holes (6) 4.2 mm

        Show more
