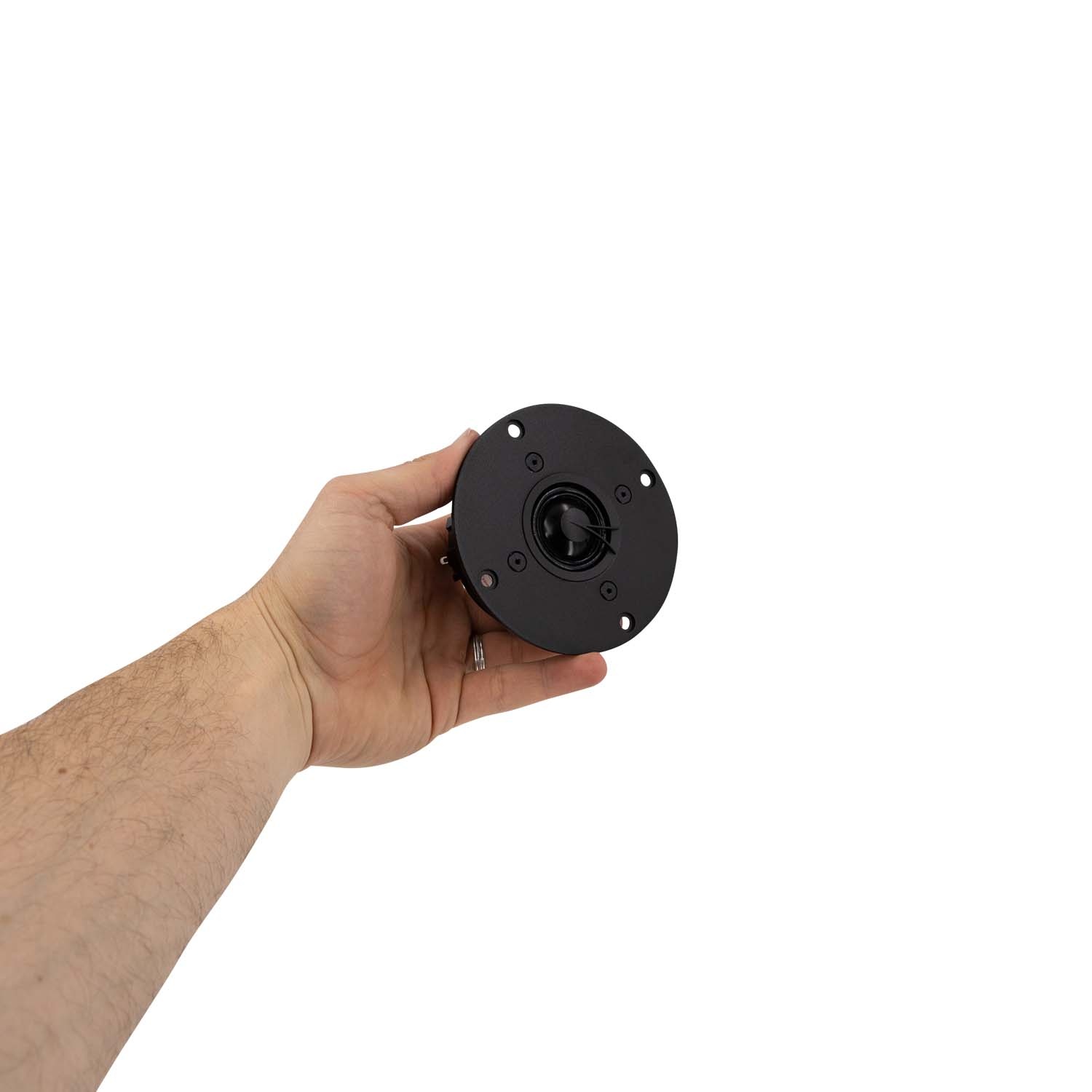

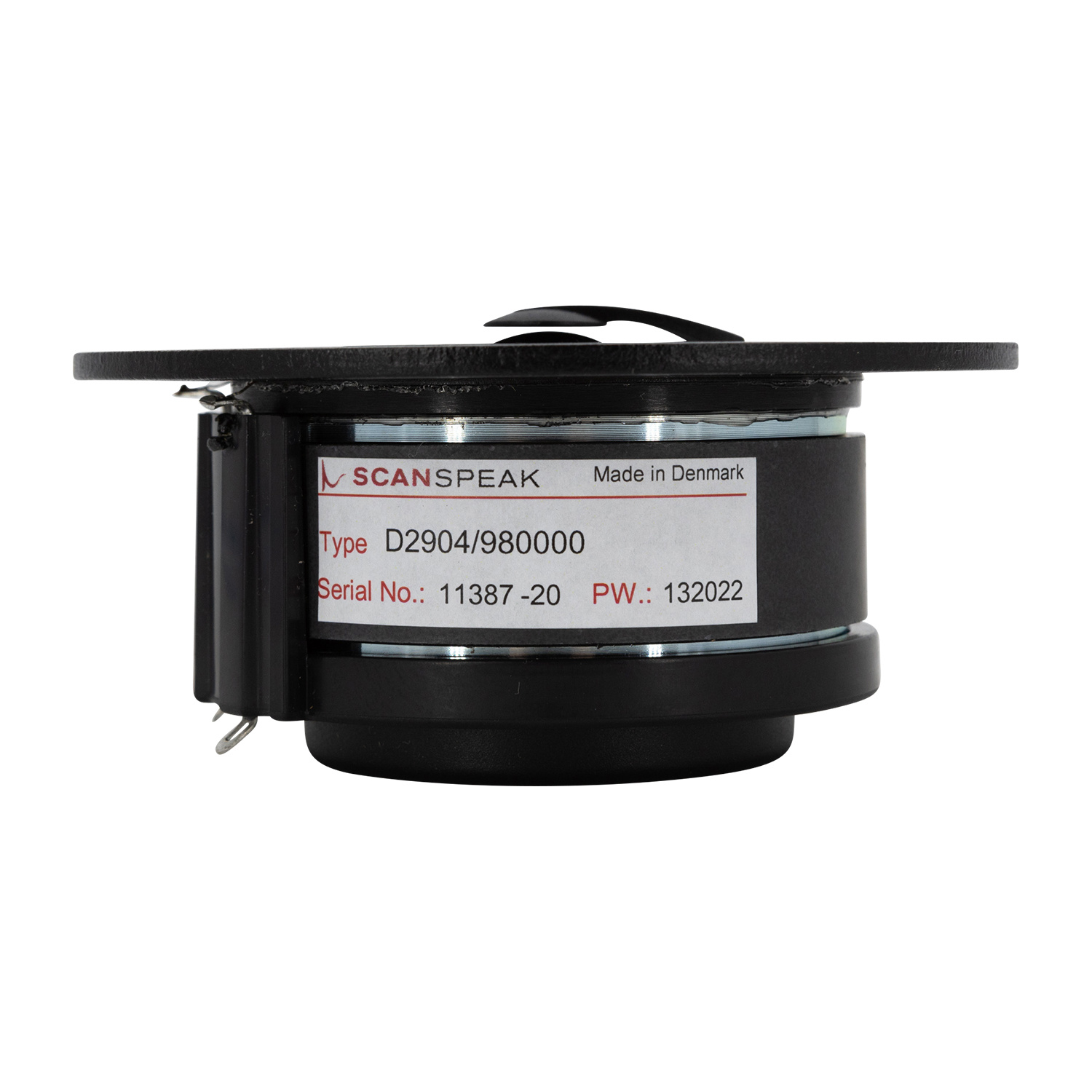

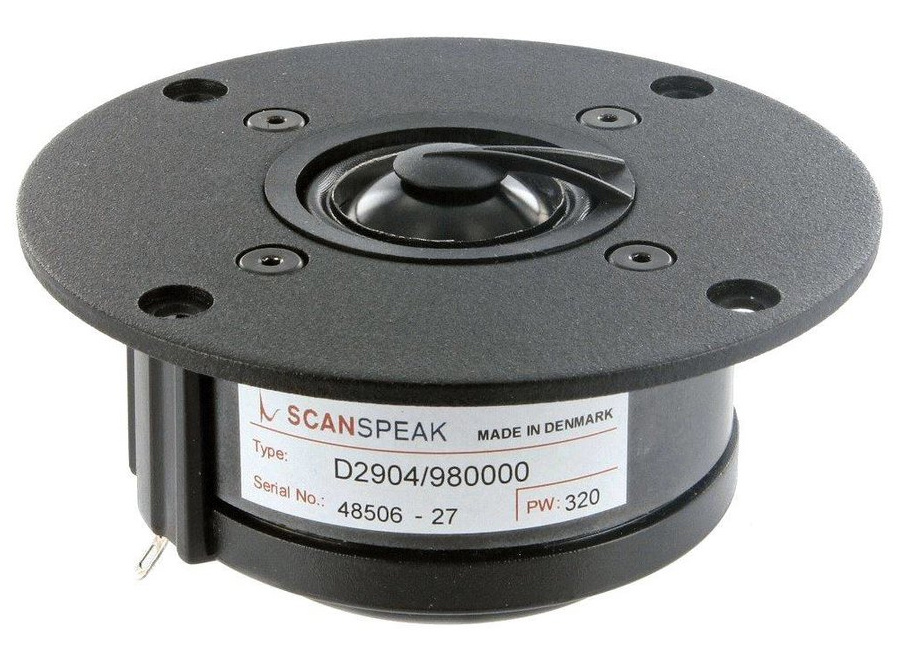

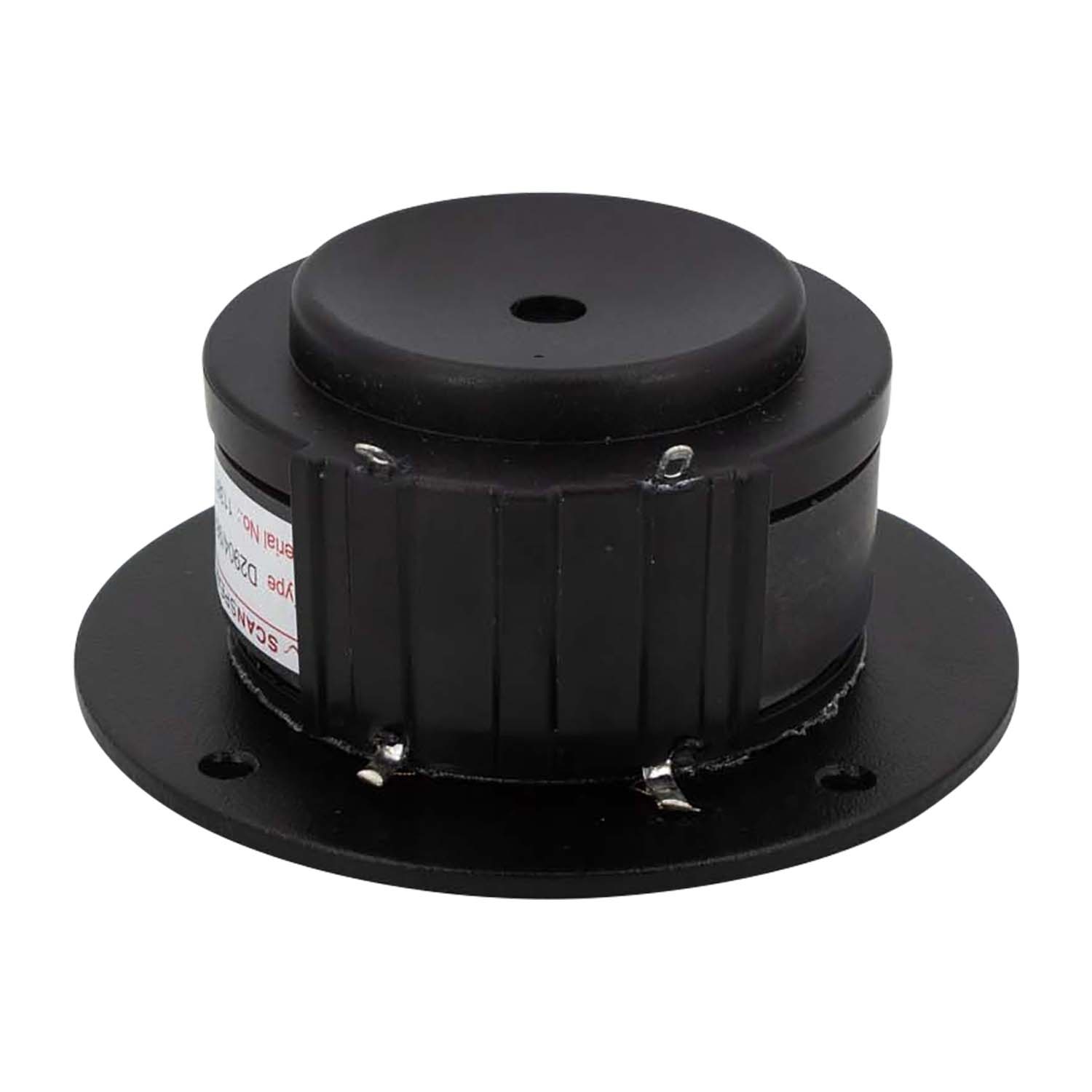

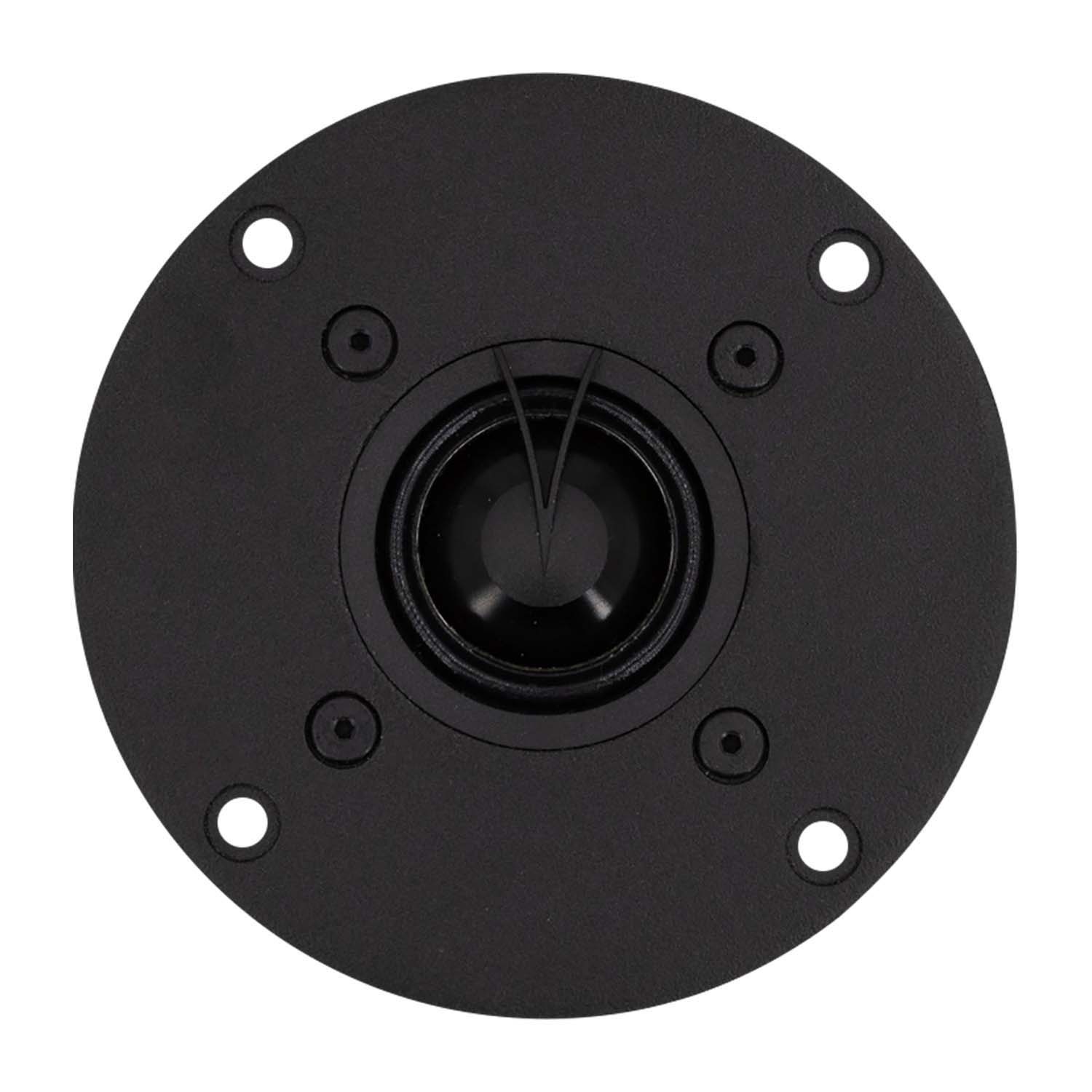

        Classic D2904/980000 Dome Tweeter

        Scan-Speak Classic D2904/980000 Dome Tweeter

        €214,95

        5 In stock

        Add to cart

        Scan-Speak Classic D2904/980000 Dome Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Scan-Speak tweeters
        1" | 4 Ω
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        € 177,64€ 214,95 5 In stock
        • -5% Purchase 4 for only € 204,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter
        Classic D2904/980000 Dome Tweeter

        Product description Scan-Speak Classic D2904/980000 Dome Tweeter

        Highlights

        • 1" Aluminium Dome Diaphragm
        • Patented Symmetrical Drive (SD) motor
        • Wave Guide
        • Low Resonance Rear Chamber
        • Black Painted Alu Face Plate



        Product details

        ScanSpeak Classic D2904/980000 1" Tweeter Aluminum Dome



        The Scan-speak D2904/9800 is a high-end 1" aluminum dome tweeter. The magnet system uses the Symmetric Drive technology that almost eliminates electrical phase shift. The specially designed chamber reduces air noise and compression. The geometry of the dome causes the "break-up" to appear beyond the audible range. A specially designed diffusor is used to equalize the response in the upper octave. The tweeter has a very clear and open sound.



        Specifications: BL Product (BL): 2.8 Tm • Mechanical Compliance of Suspension (Cms): 0.20 mm/N • Diaphragm Mass Inc. Airload (Mms): 0. 6 g • Maximum Linear Excursion (Xmax): 0.1 mm • Surface Area of Cone (Sd): 8.5 cm2

        Show more

        Specifications

        Article number
        D2904/980000
        EAN
        0691046948502
        Tweeter Type
        Dome
        Tweeter Series
        Classic Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        160 Watts
        Power Handling (max)
        430 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        1,000 to 18,000Hz
        Resonant Frequency (Fs)
        500 Hz
        DC Resistance (Re)
        3.5 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        3.09
        Electromagnetic Q (Qes)
        0.84
        Total Q (Qts)
        0.66

        Show more

        Reviews

        1 reviews
        Review this product
        5 of 5
        Top geluid. De kat had de vorige tweeters gemold, die waren van hetzelfde type allen uit 2006, dus inmiddels 15 jaar oud. Blijft een van de beste tweeters die je kunt kopen. geluid is helder, zonder schel te zijn. Heel veel detail.
        By Michiel K. on 10 February 2021
