        Revelator D2908/716000 Dome Tweeter

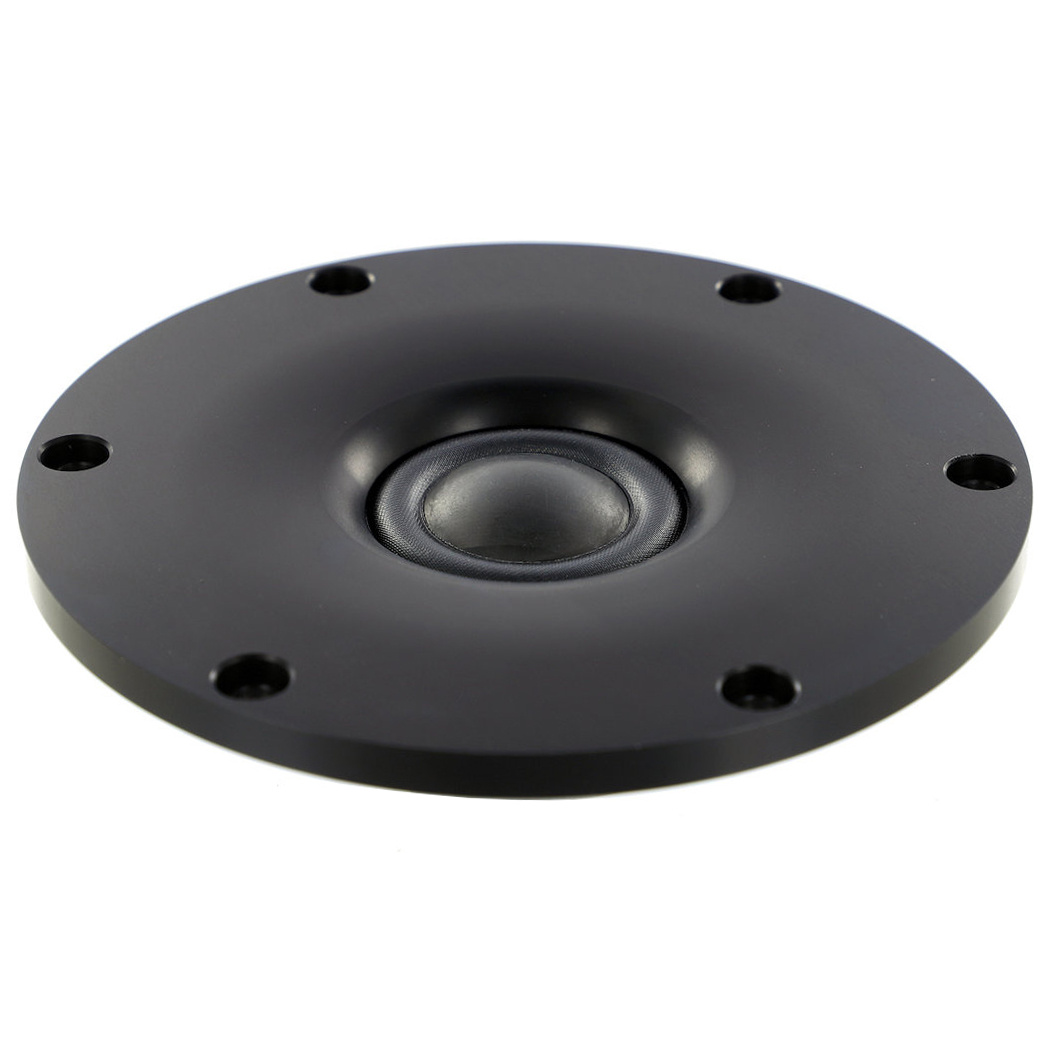

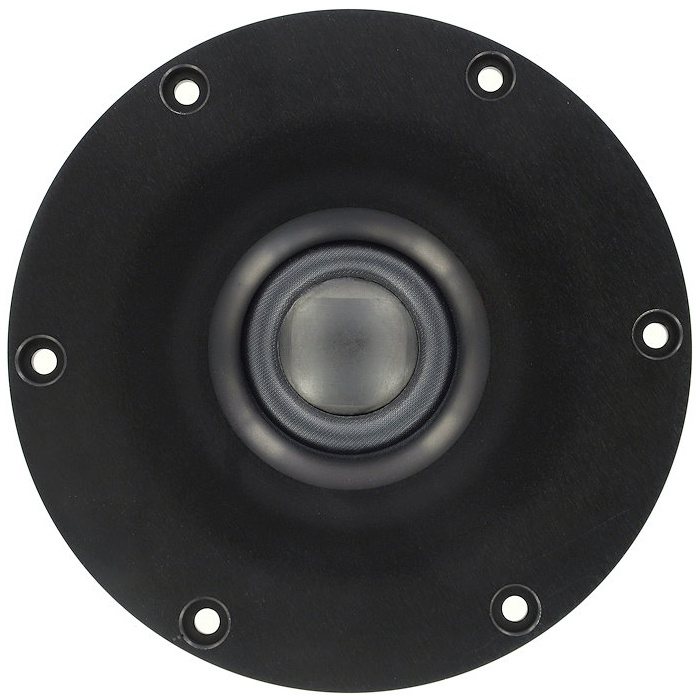

        Scan-Speak Revelator D2908/716000 Dome Tweeter

        €499,95

        4 In stock

        Add to cart

        Scan-Speak Revelator D2908/716000 Dome Tweeter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Dome tweeter
        1" | 4 Ω
        Revelator D2908/716000 Dome Tweeter
        Revelator D2908/716000 Dome Tweeter
        Revelator D2908/716000 Dome Tweeter
        Revelator D2908/716000 Dome Tweeter
        € 413,18€ 499,95 4 In stock
        • -5% Purchase 4 for only € 474,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Revelator D2908/716000 Dome Tweeter
        Revelator D2908/716000 Dome Tweeter
        Revelator D2908/716000 Dome Tweeter
        Revelator D2908/716000 Dome Tweeter

        Product description Scan-Speak Revelator D2908/716000 Dome Tweeter

        The Scan-Speak Revelator D2908/716000 dome tweeter caters to audio enthusiasts seeking a dynamic and accurate listening experience. This tweeter incorporates a unique feature: a Thin-Ply Carbon Diaphragm (TPCD). This lightweight yet rigid material allows the tweeter to respond to rapid volume shifts with exceptional precision, ensuring clear and undistorted sound even during powerful musical passages.



        Highlights of the Scan-Speak Revelator D2908/716000

        • Bespoke tailored Thin-Ply Carbon Diaphragm (TPCD)
        • Rear Mount Magnet System
        • Patented Symmetrical Drive (SD-2) motor
        • Titanium Voice Coil Former
        • Black Anodized 120mm Machined Alu Faceplate
        • Non Resonant Aluminium Rear Chamber



        Product details Scan-Speak Revelator D2908/716000

        Scan-Speak Revelator D2908/716000 Dome Tweeter

        The Revelator D2908/716000 packs a punch despite its compact size. Its high power handling capacity allows it to deliver crisp and dynamic sound at higher volumes. While it doesn't boast the extreme highs of the Illuminator model, it still offers a wide frequency response, faithfully reproducing the sparkle and detail in the upper ranges of your music. Similar to its high-end counterpart, the Revelator D2908/716000 delivers consistent sound quality across a wide listening area. This, combined with its detailed response and dynamic range, makes it a versatile option for speaker builders crafting high-fidelity systems.

        Show more

        Specifications

        Article number
        D2908/716000
        Tweeter Type
        Dome
        Tweeter Series
        Revelator
        Cone / Dome Diameter
        26 mm
        Power Handling (RMS)
        160 Watt
        Power Handling (max)
        200 Watt
        Impedance (Z)
        8 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        92 dB
        Frequency Response
        2.500 - 40.000 Hz
        Resonant Frequency (Fs)
        534 Hz
        DC Resistance (Re)
        5.7 Ohm
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        7.3
        Electromagnetic Q (Qes)
        0.50
        Total Q (Qts)
        0.47
        Overall Outside Diameter
        120 mm
        Cutout Diameter
        90 mm
        Depth
        33.5 mm

        Show more
