        Illuminator D3004/602010 Dome Tweeter

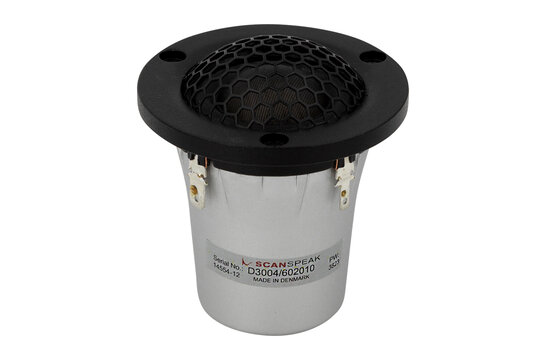

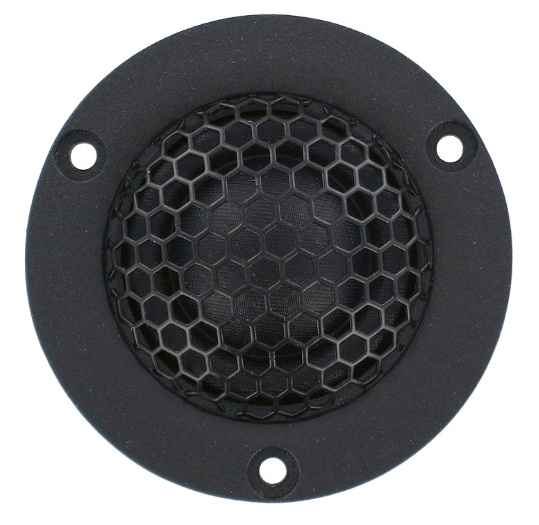

        Scan-Speak Illuminator D3004/602010 Dome Tweeter

        €149,95

        8 In stock

        Add to cart

        Scan-Speak Illuminator D3004/602010 Dome Tweeter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Scan-Speak tweeters
        1" | 4 Ω
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        € 123,93€ 149,95 8 In stock
        • -5% Purchase 4 for only € 142,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter
        Illuminator D3004/602010 Dome Tweeter

        Product description Scan-Speak Illuminator D3004/602010 Dome Tweeter

        Highlights

        • 1" Textile Dome Diaphragm
        • Patented Symmetrical Drive (SD-2) motor

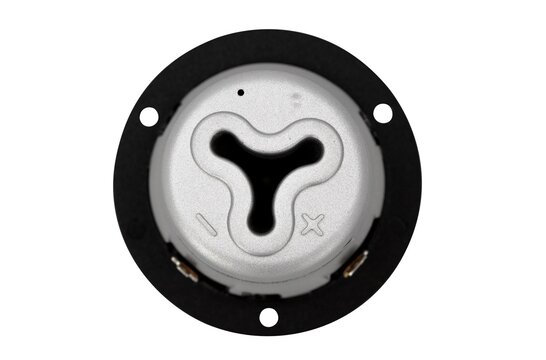

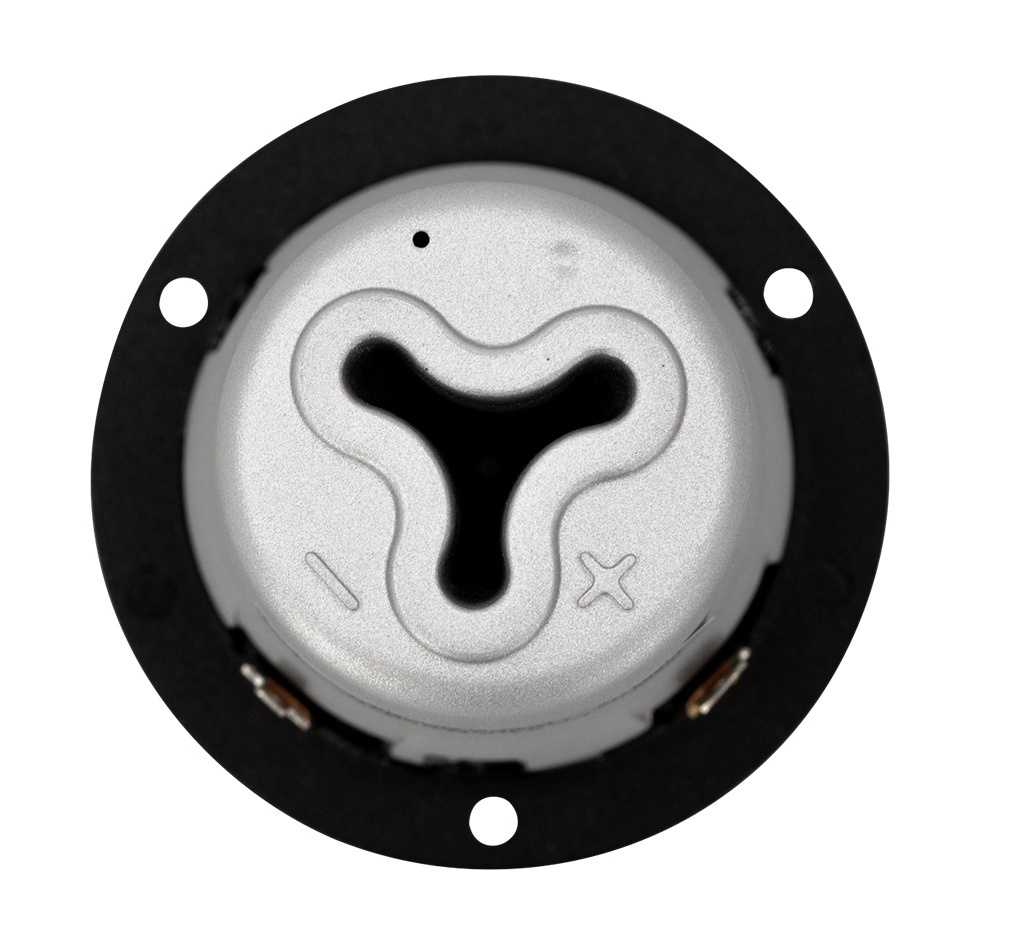

        • Large Non Resonant Alu Rear Chamber
        • Large Roll Surround f. Wide Dispersion

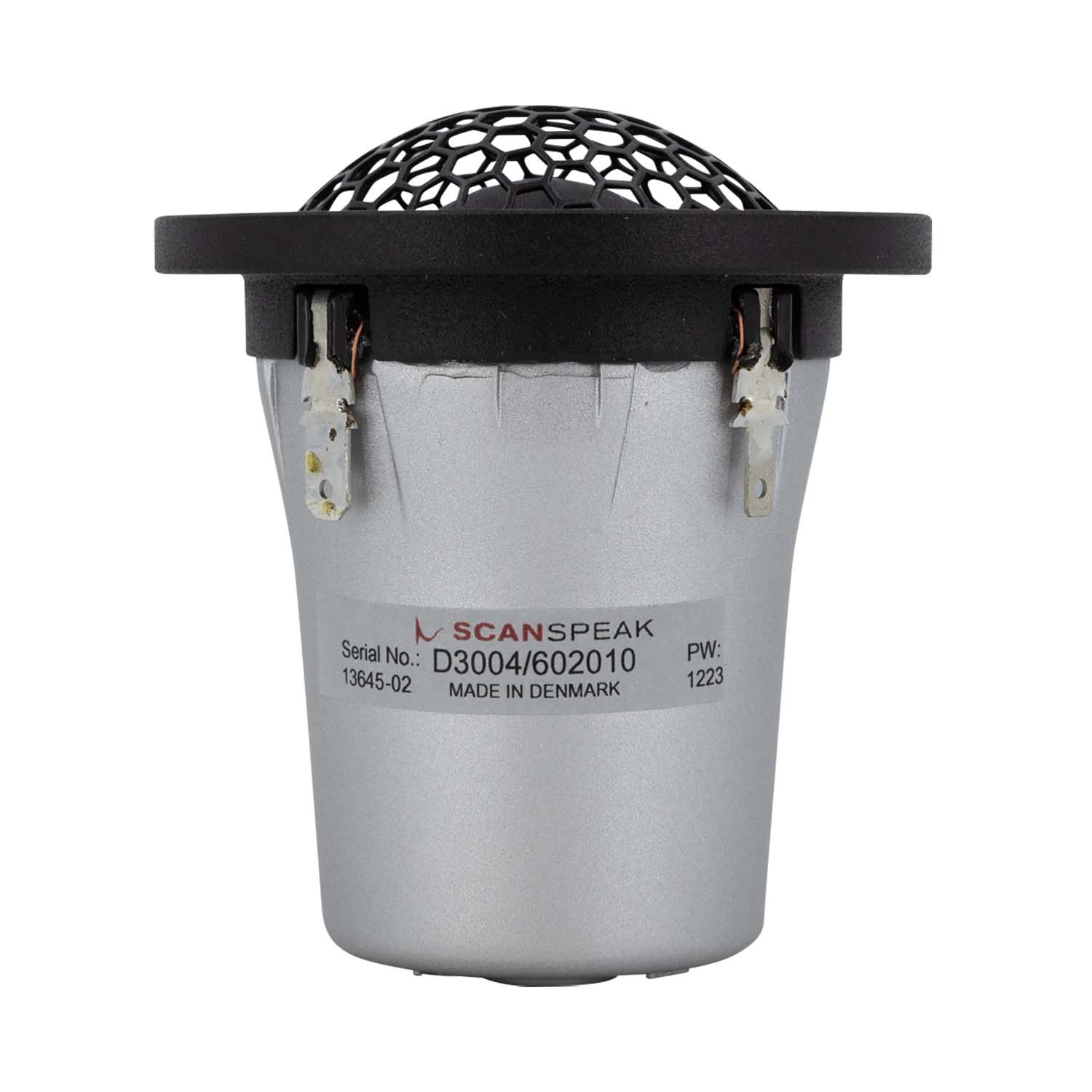

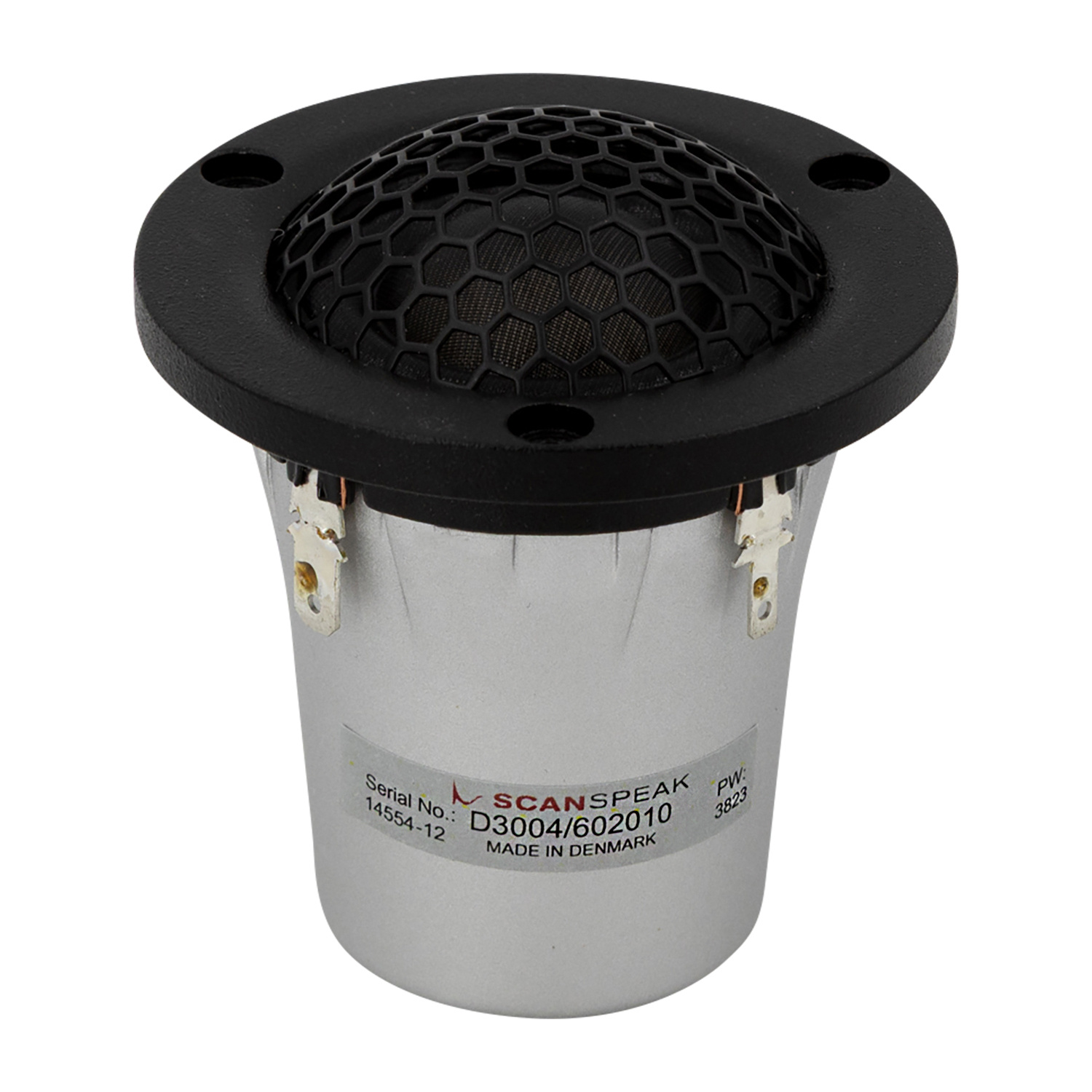

        • Sound Transparent Protective Grill

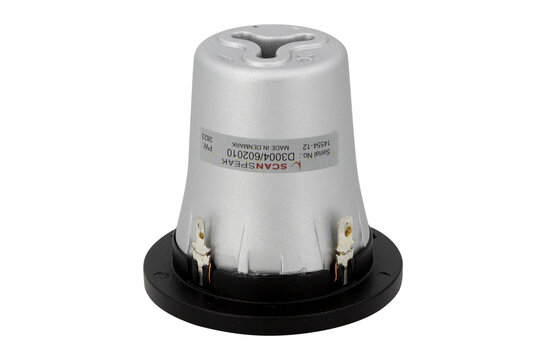

        • Die Cast Housing & Face Plate



        Product details

        Scan-Speak Illuminator D3004/602010 1" Textile Dome Tweeter

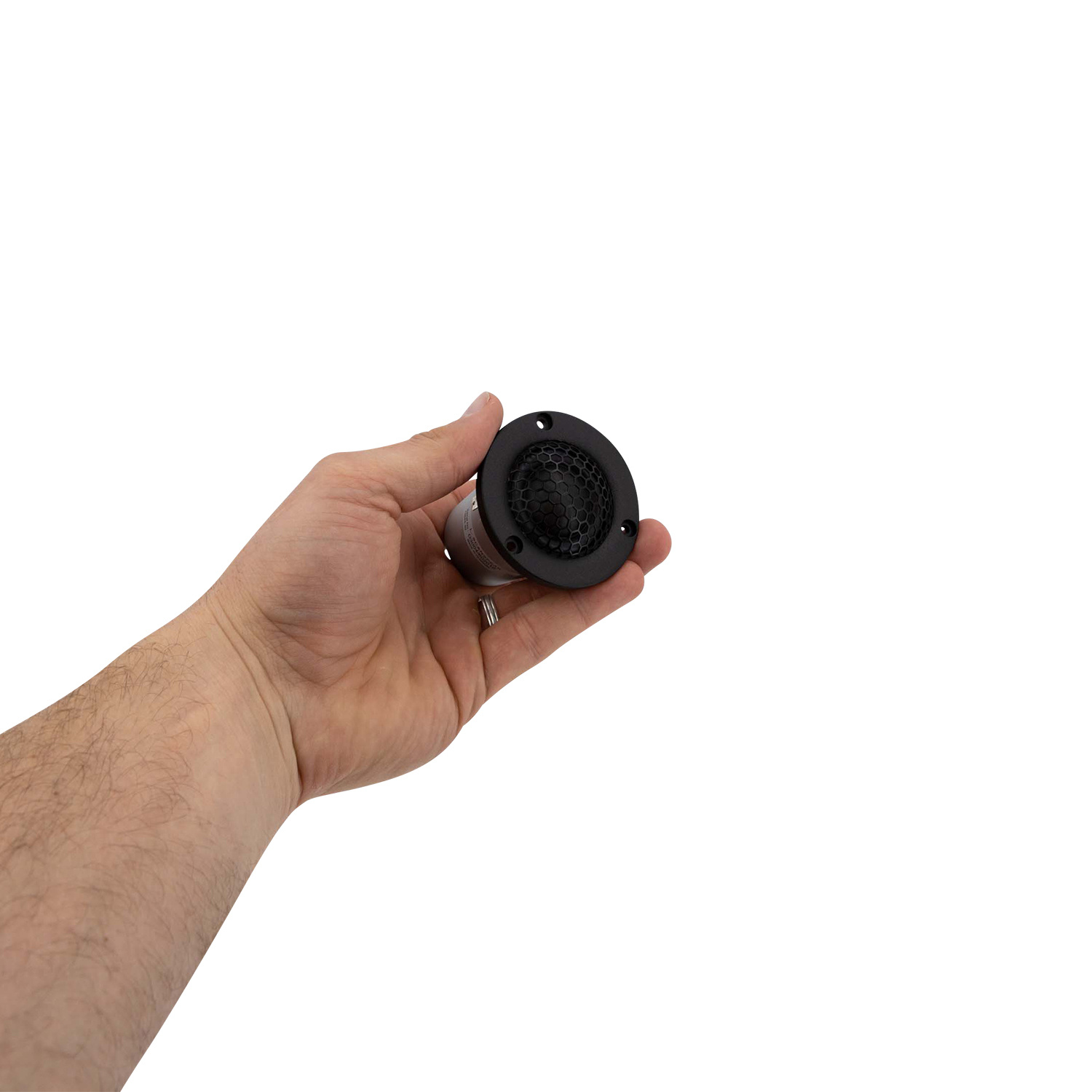

        The compact size is one of the key elements of these Illuminator tweeters, which provides a high degree of flexibility within design options. The small size is employed without compromising sound quality where these compact tweeters are fully comparable to the renowned full size Illuminator and Revelator tweeters, no matter if the music is played at high or low listening levels.



        Specifications: Compliance Equivalent Volume (Vas): 0.001 ft.³ • BL Product (BL): 1.7 Tm • Mechanical Compliance of Suspension (Cms): 0.40 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 7 cm2

        Show more

        Specifications

        Article number
        D3004/602010
        EAN
        0696277268276
        Tweeter Type
        Dome
        Tweeter Series
        Illuminator Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        50 Watts
        Power Handling (max)
        130 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        89.6 dB
        Resonant Frequency (Fs)
        425 Hz
        DC Resistance (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        2.50
        Electromagnetic Q (Qes)
        0.97
        Total Q (Qts)
        0.70
