        Revelator R2904/700000 Ring Radiator Tweeter

        Scan-Speak Revelator R2904/700000 Ring Radiator Tweeter

        €349,95

        4 In stock

        Add to cart

        Scan-Speak Revelator R2904/700000 Ring Radiator Tweeter

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Scan-Speak
        Show all Scan-Speak tweeters
        1" | 4 Ω
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        € 289,21€ 349,95 4 In stock
        • -5% Purchase 4 for only € 332,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter
        Revelator R2904/700000 Ring Radiator Tweeter

        Product description Scan-Speak Revelator R2904/700000 Ring Radiator Tweeter

        Highlights

        • 1" Ring Dome Diaphragm
        • Patented Symmetrical Drive (SD-2) motor

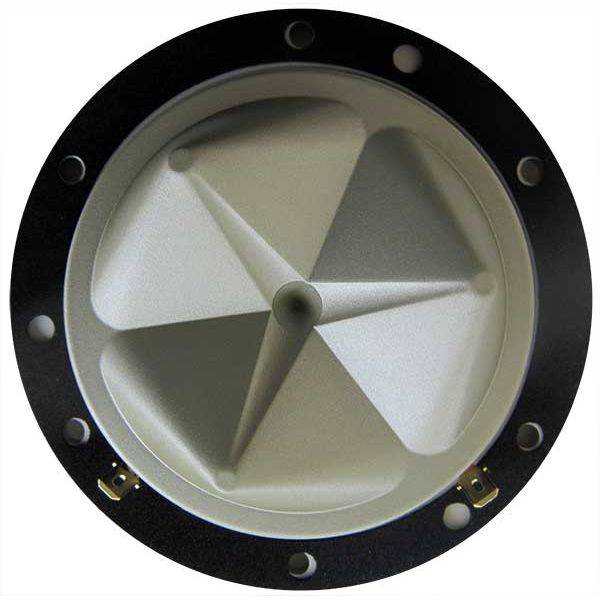

        • Non Resonant Alu Rear Chamber
        • Patented Phase Plug Design
        • Large Ring Neo Magnet for High Output

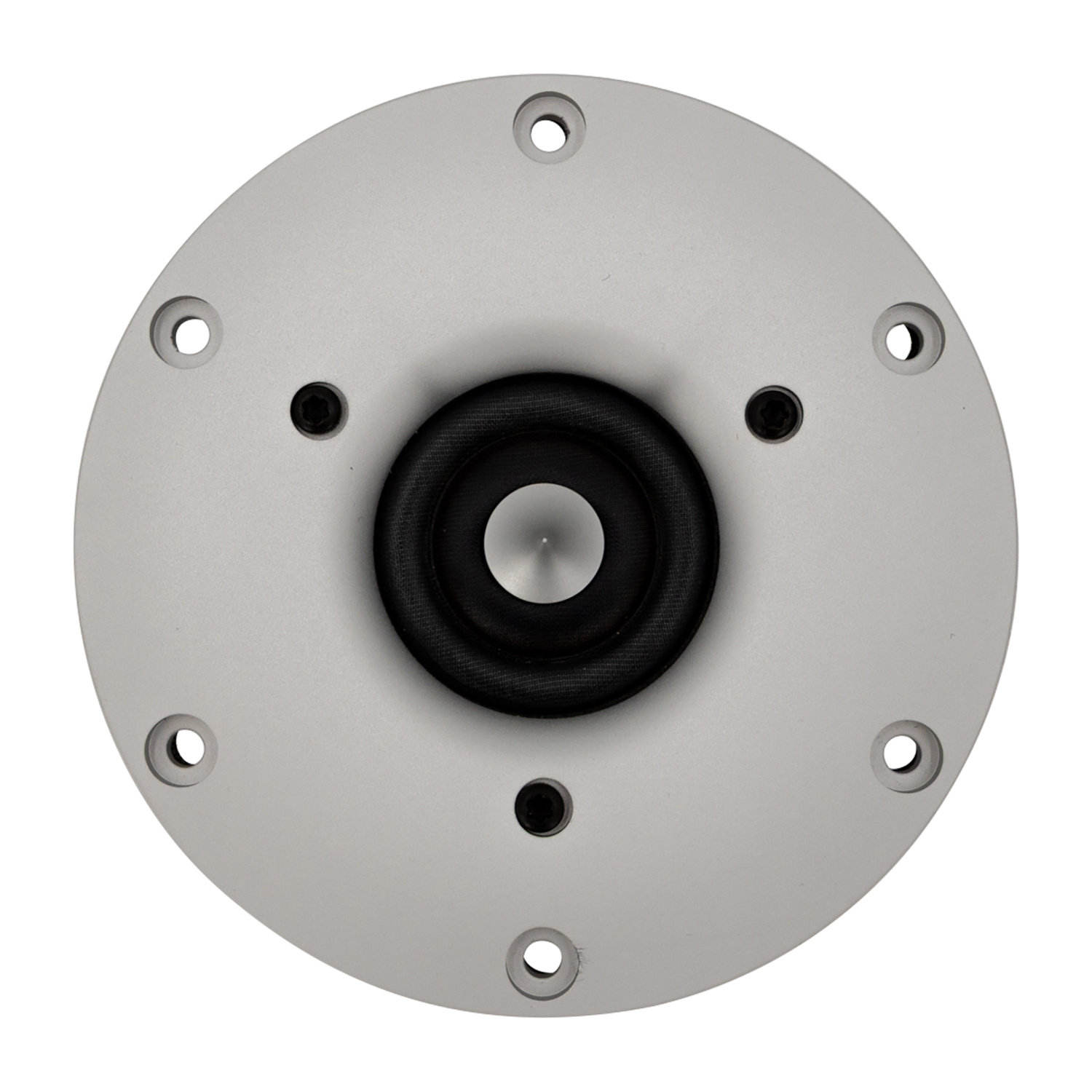

        • Anodized Mashined Alu Face Plate



        Product details

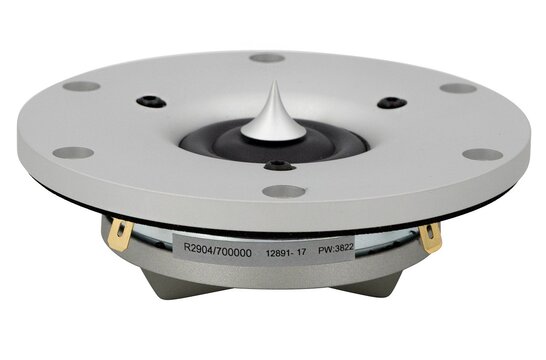

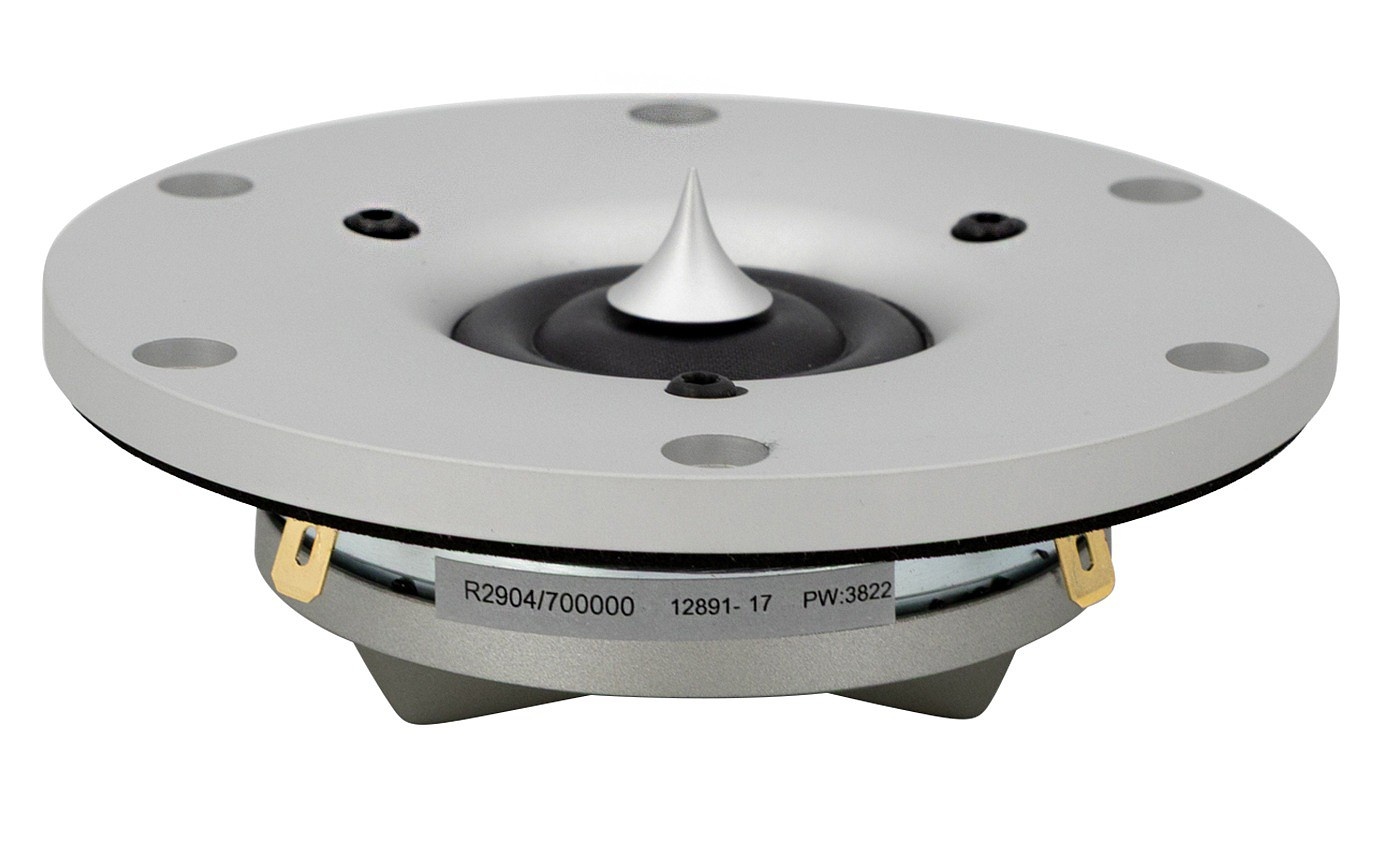

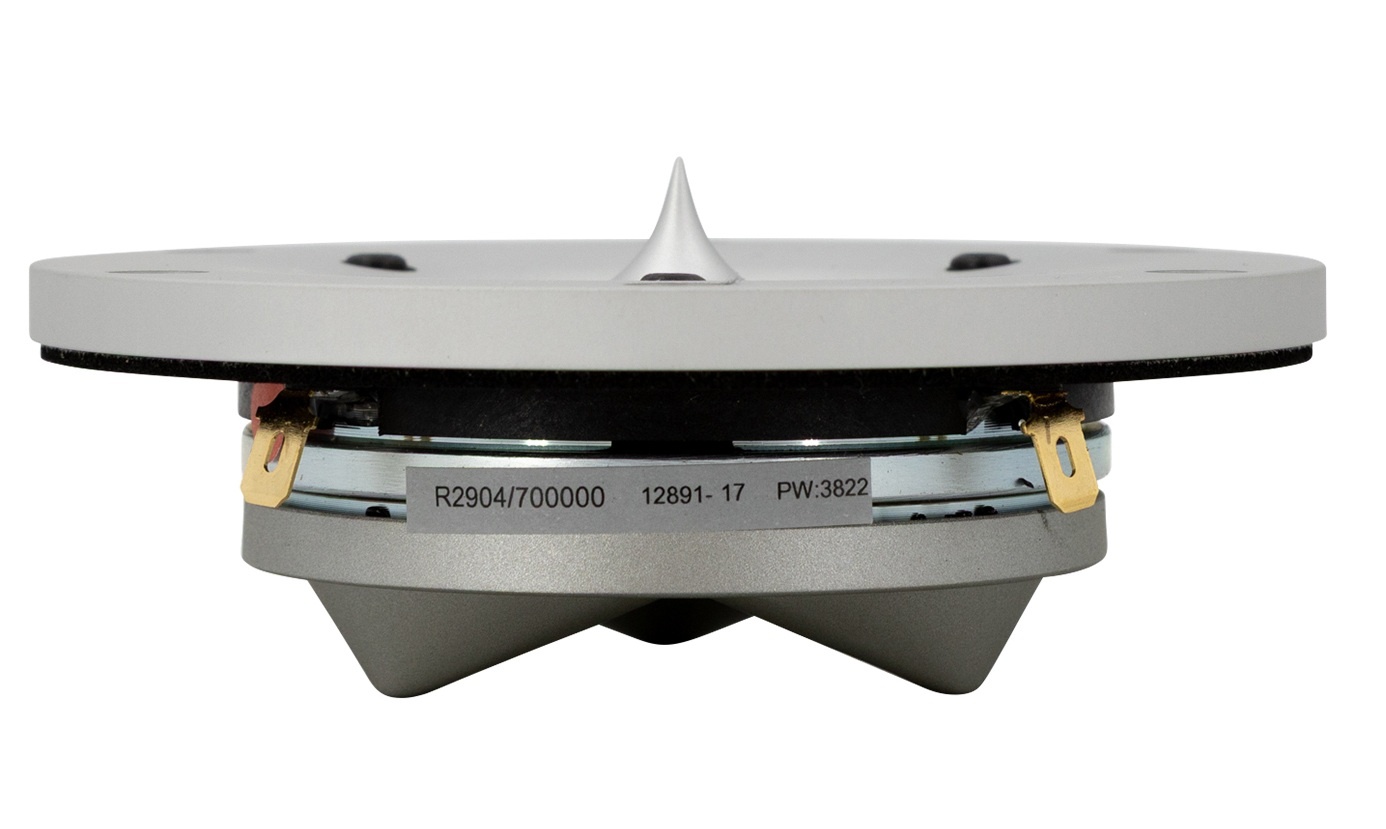

        Scan-Speak Revelator R2904/700000 1" Ring Radiator

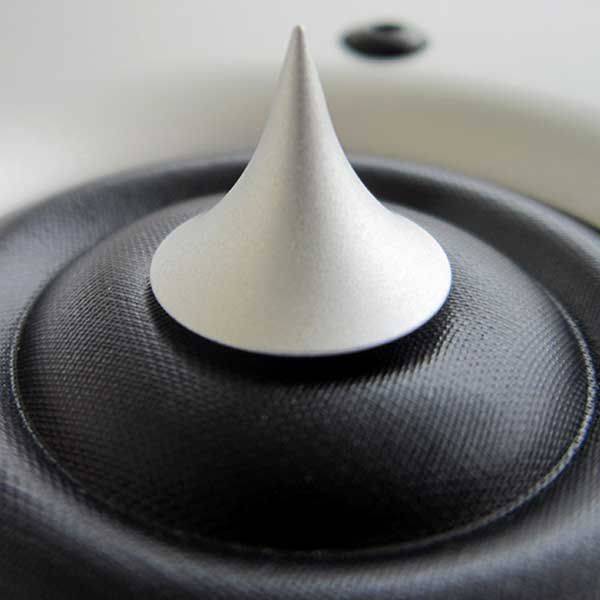

        The Scan-speak R2904-700000 tweeter is the new flagship tweeter in the Scan-speak line. This tweeter incorporates many innovative design concepts. The first notable difference is the use of a phase plug. The dome is attached to the phase plug, so the radiating area is now concentrated around the voice coil.



        This offers more control and reduces distortion and loss that occur at the center of the dome on dome tweeters. The phase plug also acts as a wave guide, reducing high frequency cancellations. A specially designed venting system uses a needle to cut down on turbulence in the air cavity. Better dynamics are achieved by not using ferrofluid, voice coil cooling is performed by the venting system and conduction through copper rings. The new SD-2 neodymium magnet system improves transient response.



        Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.8 Tm • Mechanical Compliance of Suspension (Cms): 0.31 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

        Show more

        Specifications

        Article number
        R2904/700000
        EAN
        0696277268498
        Tweeter Type
        Ring Radiator
        Tweeter Series
        Revelator Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        160 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94.5 dB
        Resonant Frequency (Fs)
        520 Hz
        DC Resistance (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.01 mH
        Mechanical Q (Qms)
        2.90
        Electromagnetic Q (Qes)
        0.38
        Total Q (Qts)
        0.33

        Show more
