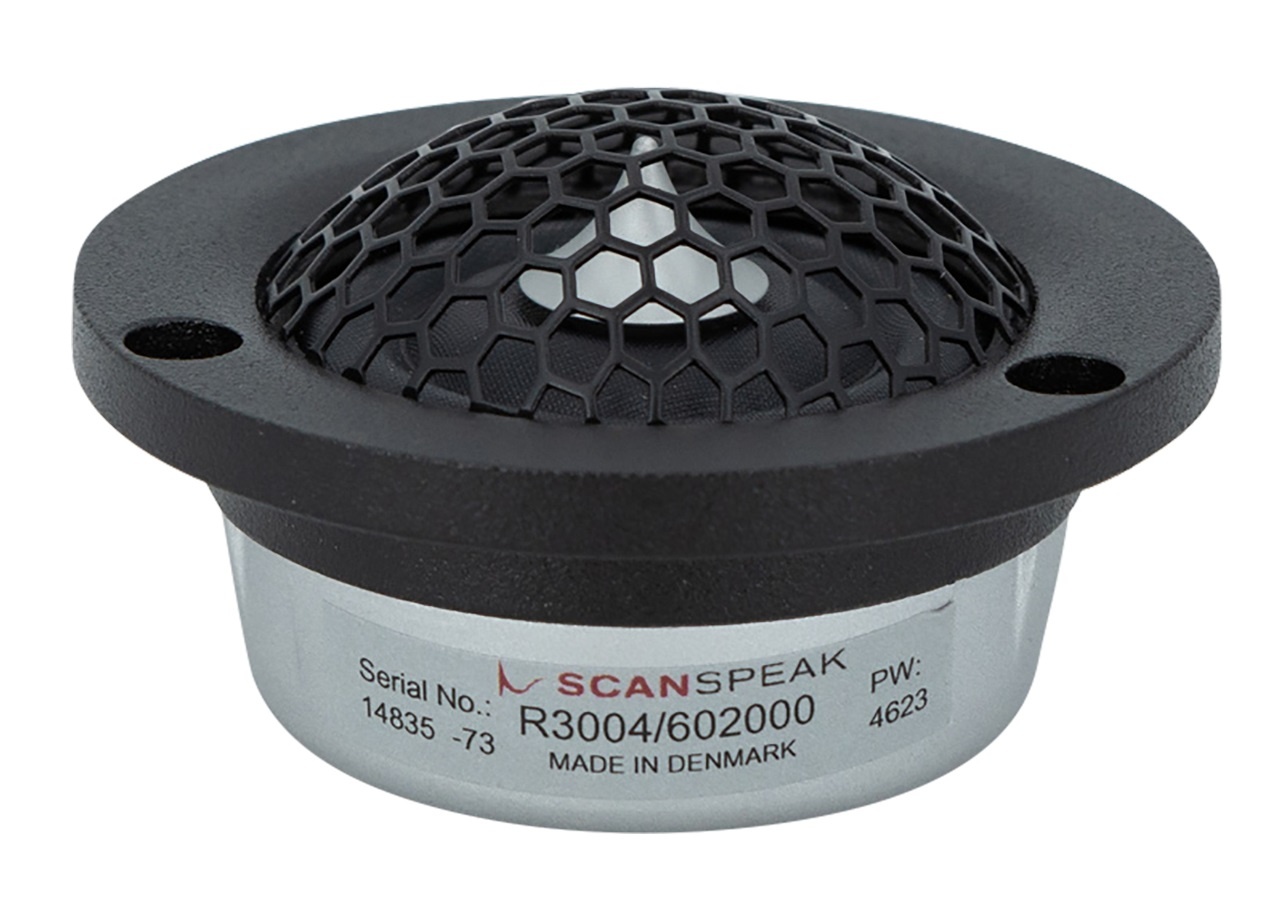

        Product description Scan-Speak Illuminator R3004/602000 Ring Radiator Tweeter

        Highlights

        • 1" Soft Ring Dome
        • Ring Neodymium Magnet
        • Patented Symmetrical Drive (SD-2) motor
        • Patented Phase Plug Design

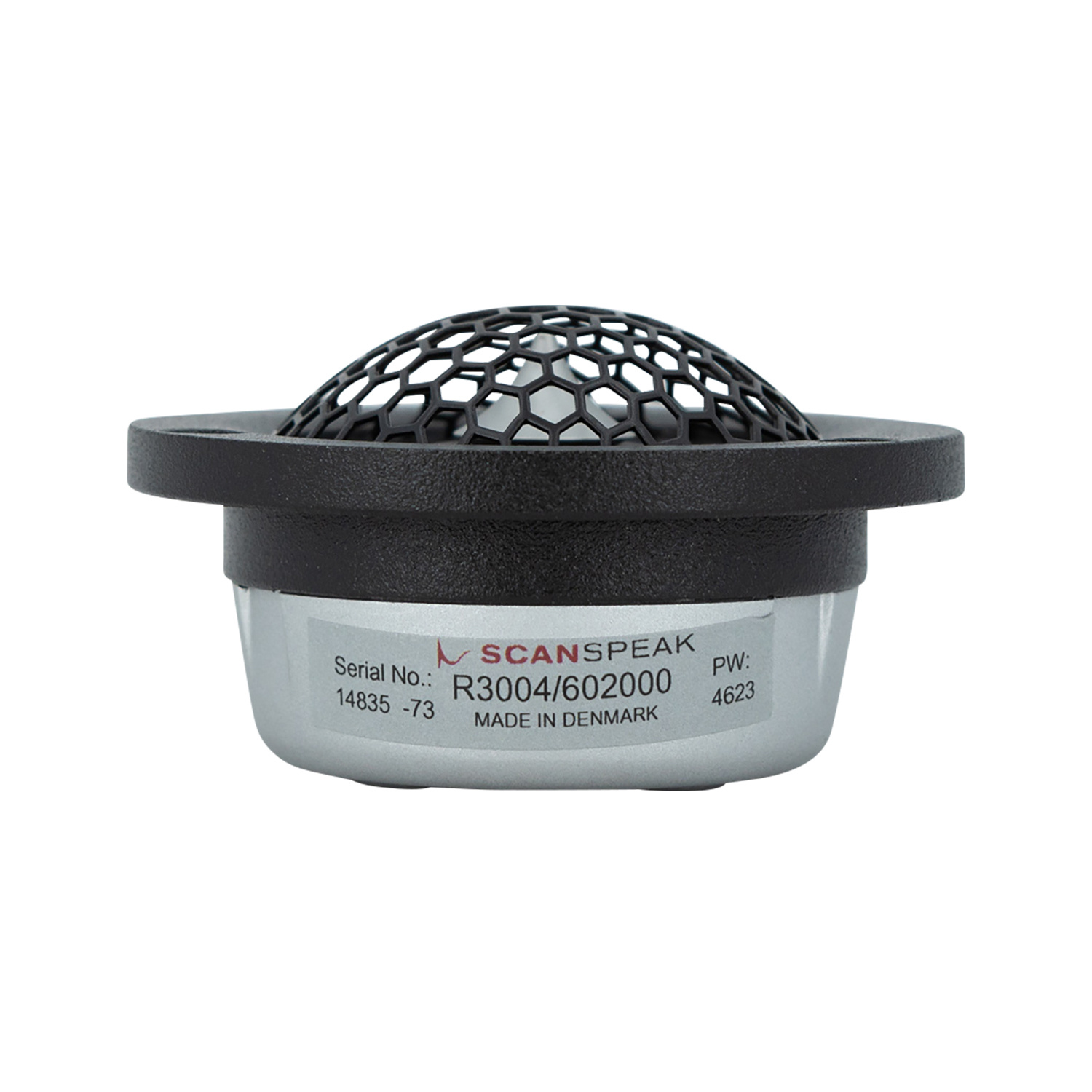

        • Aluminum Face Plate and Housing

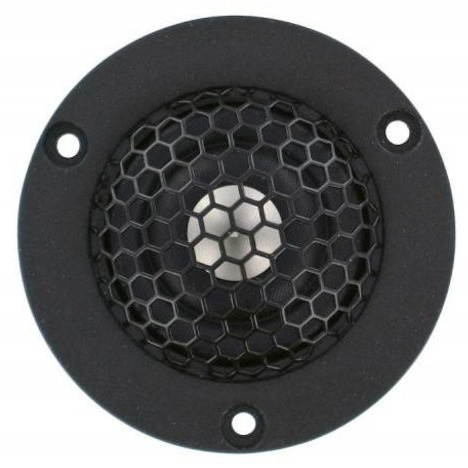

        • Sound Transparent Protective Grill

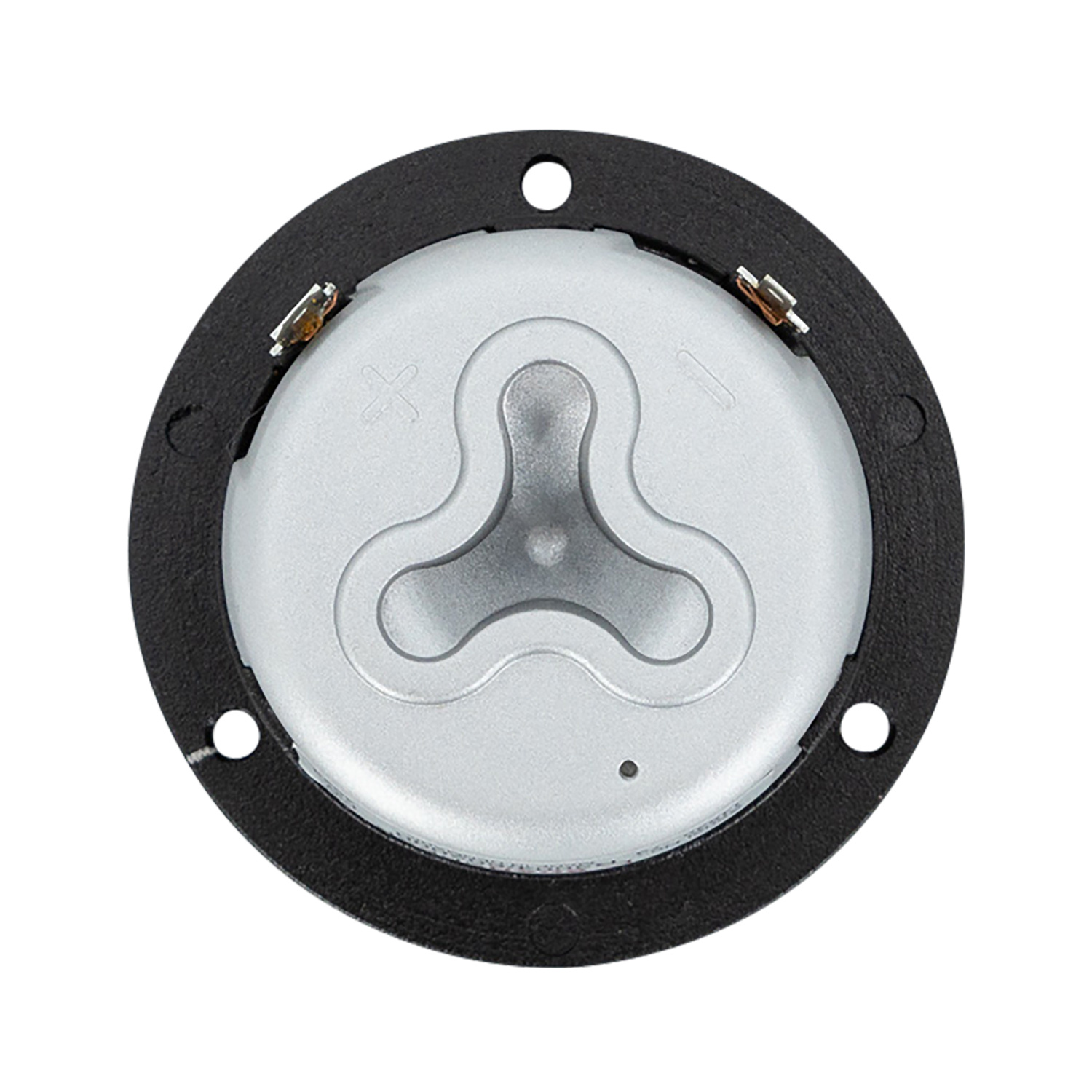

        • Shallow Non Resonant Alu Rear Chamber
        • 9mm (2.44") diameter flange with 21.5mm (0.85") depth
        • Excellent choice for both home hi-fi and autosound applications



        Product details

        Scan-Speak Illuminator R3004/602000 1" Ring Radiator



        The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.

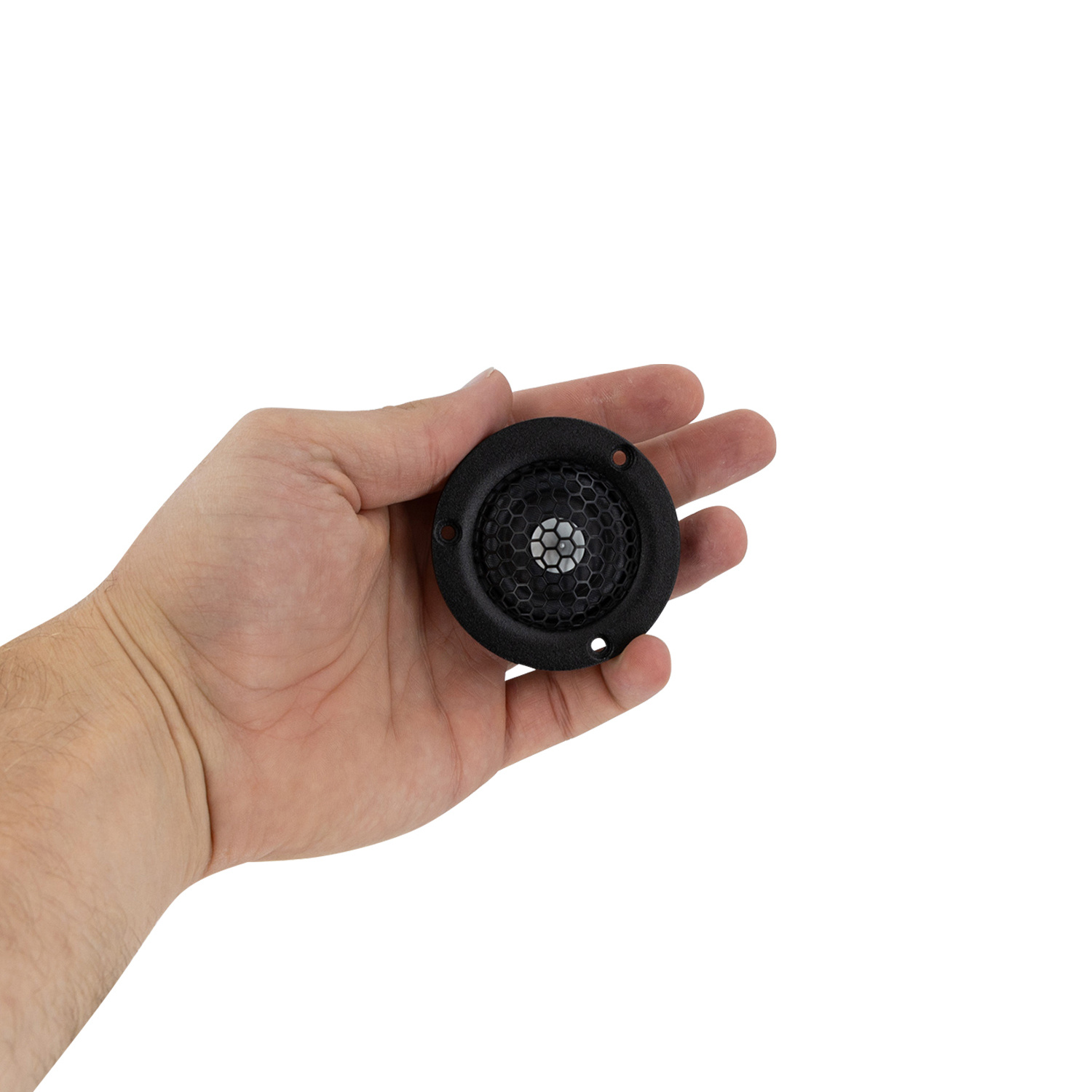

        The R3004-602000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminum and designed with a contoured shape that functions as a heat sink in high power applications.



        Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 1.7 Tm • Mechanical Compliance of Suspension (Cms): 0.19 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

        Show more

        Specifications

        Article number
        R3004/602000
        EAN
        0696277268344
        Tweeter Type
        Ring Radiator
        Tweeter Series
        Illuminator Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        50 Watts
        Power Handling (max)
        130 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        87.4 dB
        Resonant Frequency (Fs)
        625 Hz
        DC Resistance (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.02 mH
        Mechanical Q (Qms)
        5.73
        Electromagnetic Q (Qes)
        1.43
        Total Q (Qts)
        1.14

        Show more
