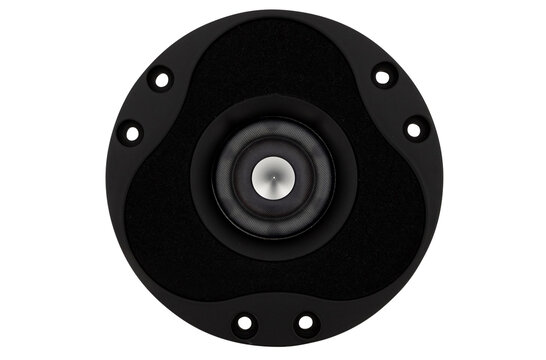

        Illuminator R3004/662000 Ring Radiator Tweeter

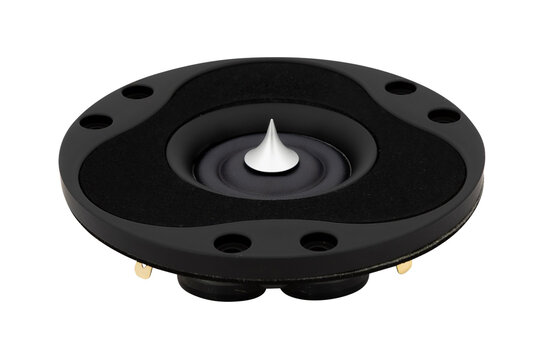

        Illuminator R3004/662000 Ring Radiator Tweeter

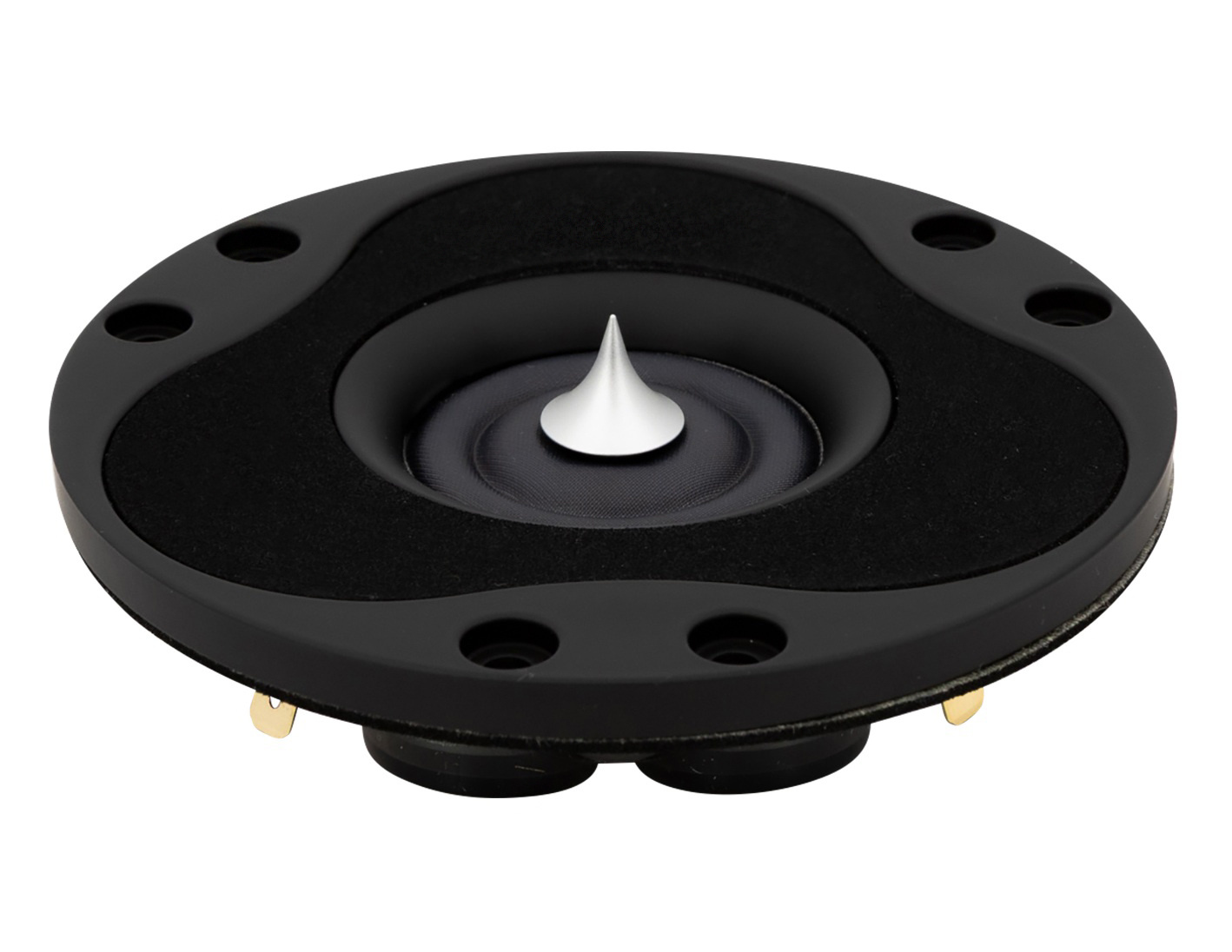

        Illuminator R3004/662000 Ring Radiator Tweeter

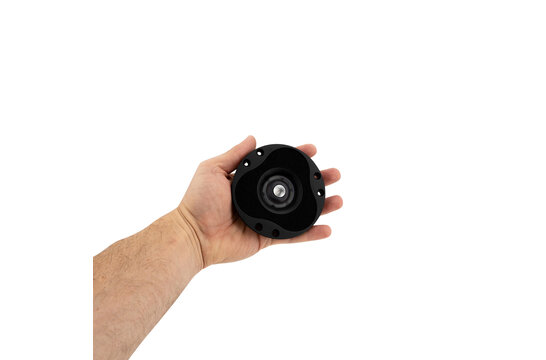

        Illuminator R3004/662000 Ring Radiator Tweeter
        € 223,10€ 269,95 9 In stock
        • -5% Purchase 4 for only € 256,45 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Illuminator R3004/662000 Ring Radiator Tweeter
        Illuminator R3004/662000 Ring Radiator Tweeter
        Illuminator R3004/662000 Ring Radiator Tweeter
        Illuminator R3004/662000 Ring Radiator Tweeter

        Product description Scan-Speak Illuminator R3004/662000 Ring Radiator Tweeter

        Highlights

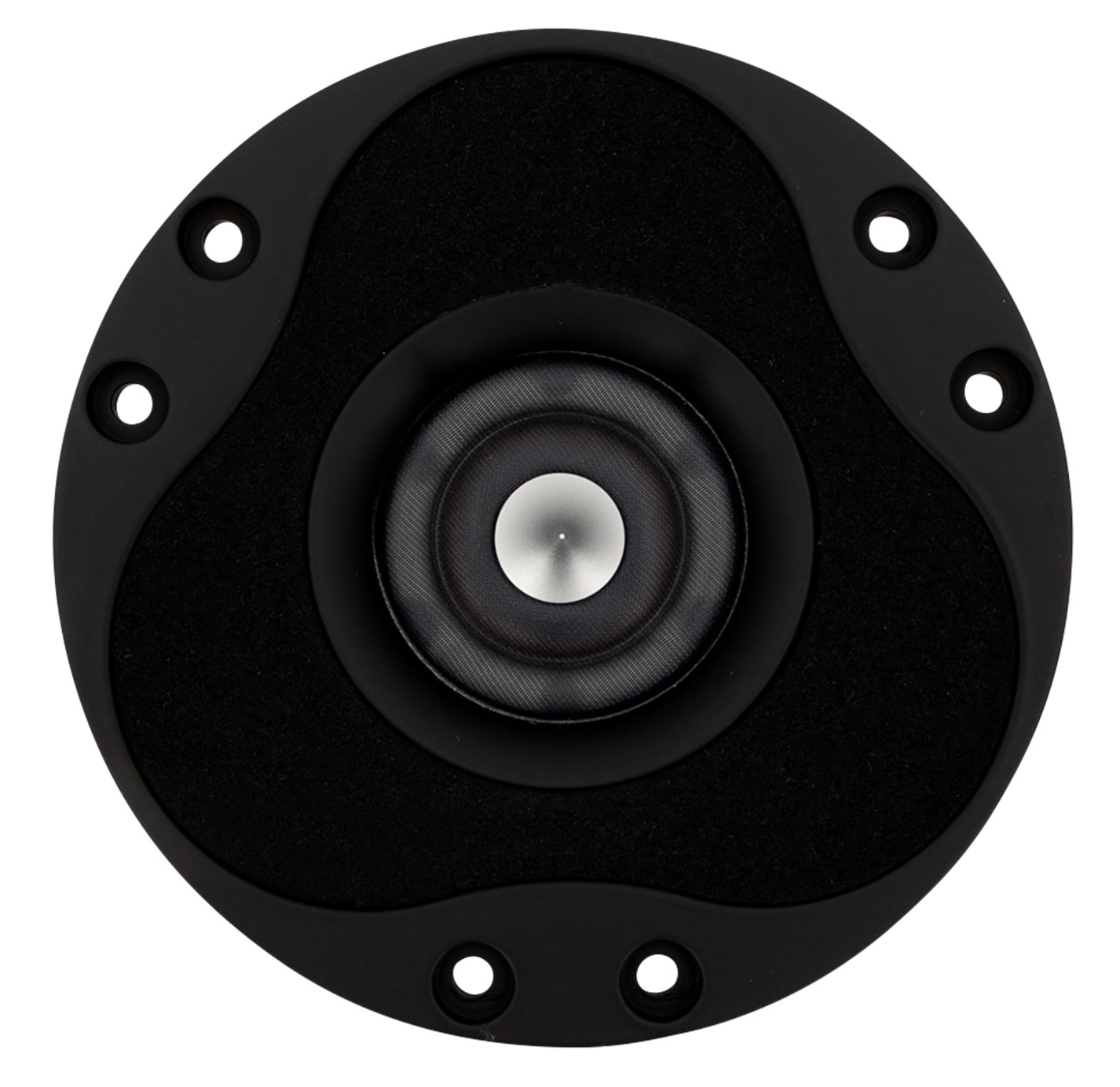

        • 1" Ring Dome Diaphragm
        • Patented Symmetrical Drive (SD-2) motor
        • Diffraction Damping Rubber Front

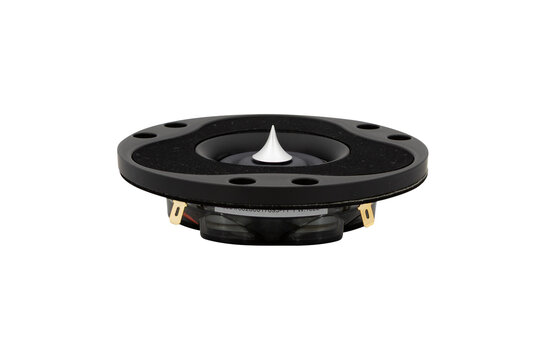

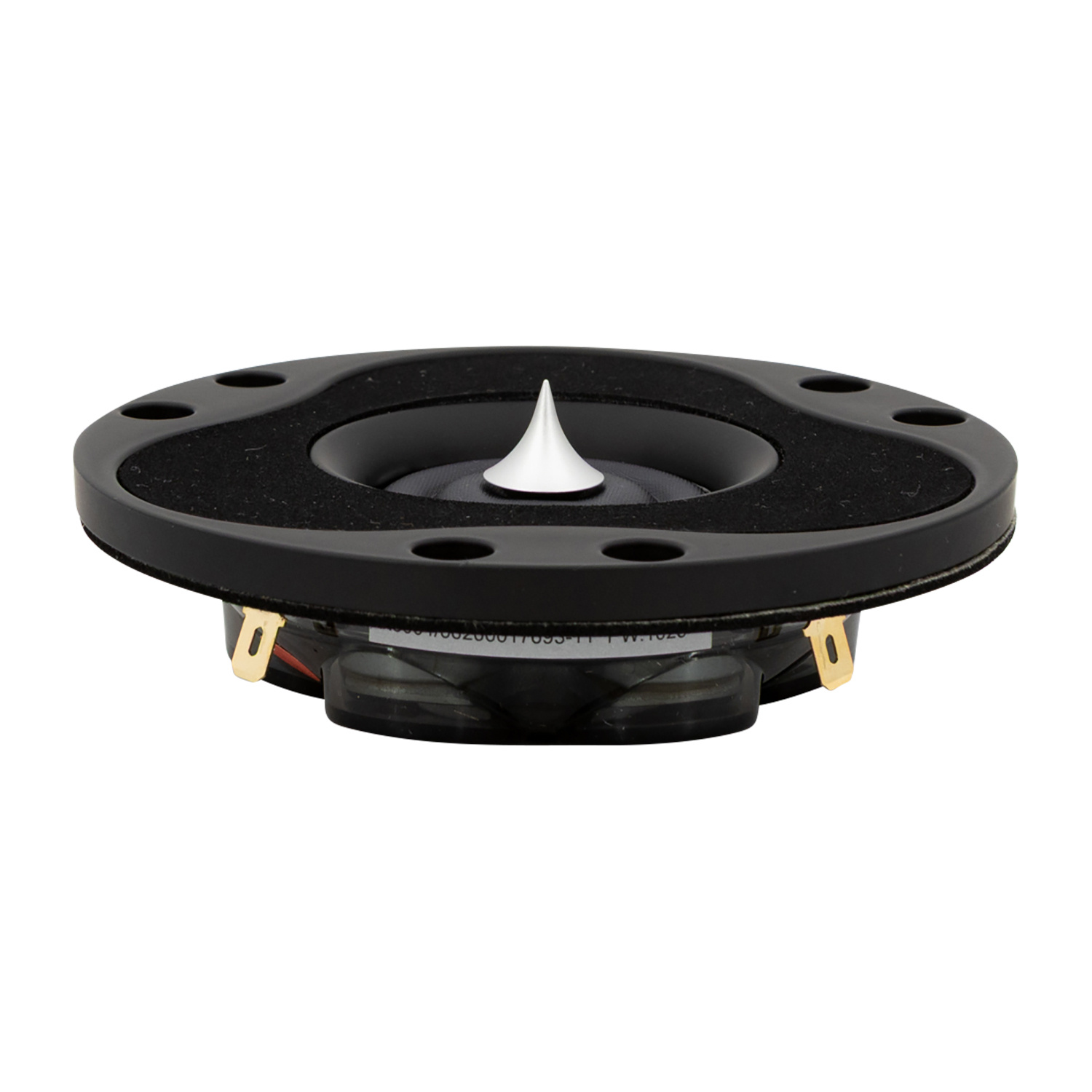

        • Patented Phase Plug Design
        • AirCirc Motor Design with 6 Neo magnets
        • Die Cast Rubber Painted Alu Face Plate



        Product details

        Scan-Speak Illuminator R3004/662000 1" Ring Radiator



        The Illuminator tweeters continue with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability.

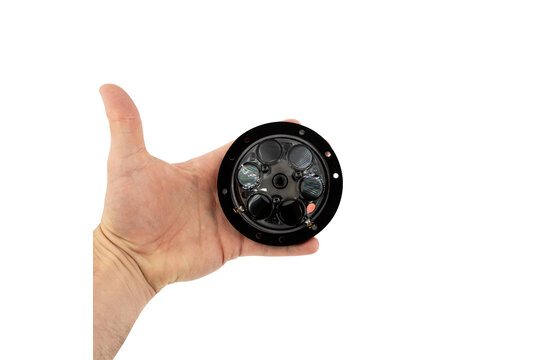

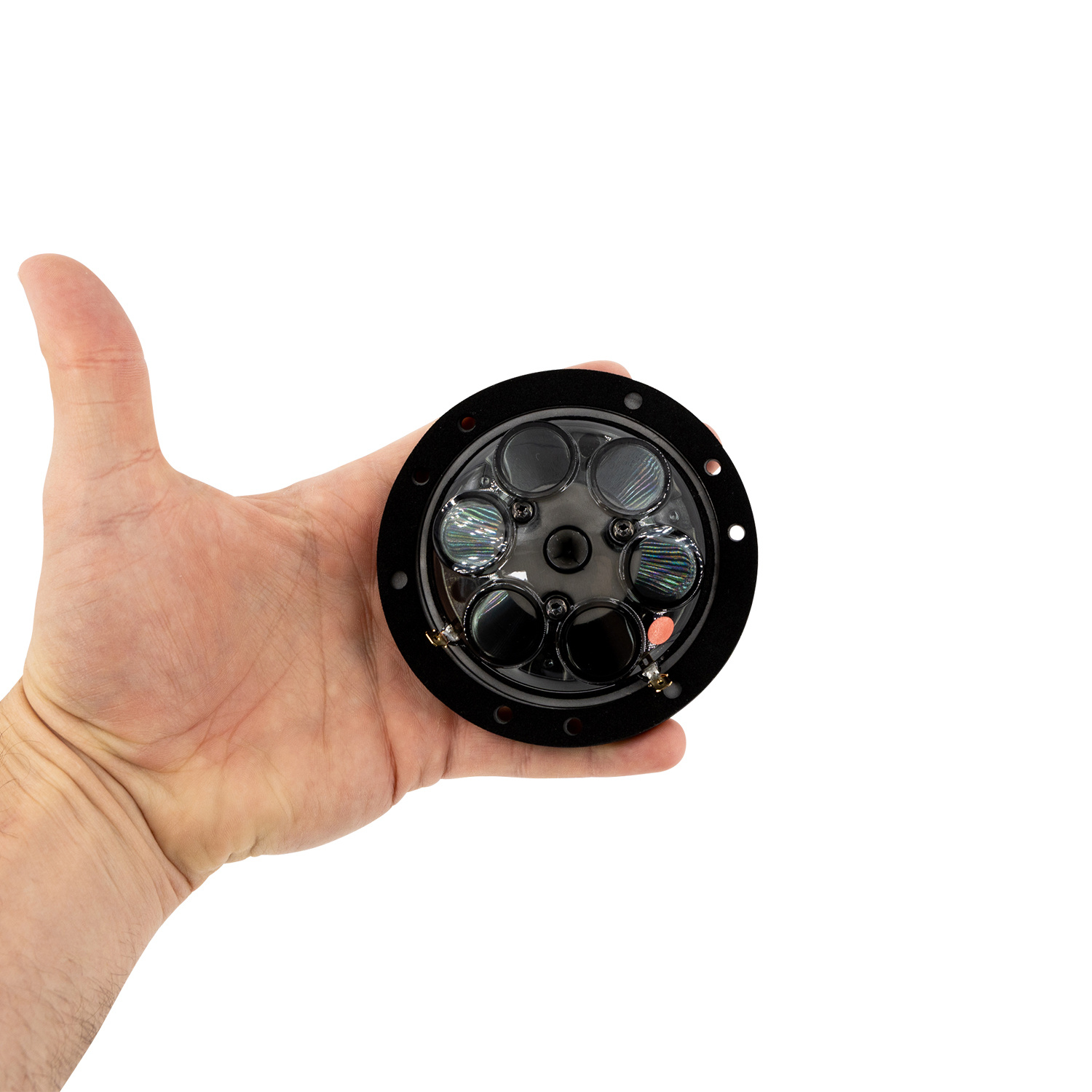

        The R3004 builds on the experience of the one-inch R29 ring radiator, resulting in low resonance frequency, superb vocal rendition and excellent imaging at all listening locations. Scan-speak’s unique AirCirc Magnet System -- named for the way it optimizes air flow within the chamber – rearranges the traditional magnet structure from a single magnet to an open magnetic circuit comprised of six separate neodymium slugs. This, in combination with the chamber, results in the elimination of the reflections and resonances that compromise the performance of traditional motors.



        Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.3 Tm • Mechanical Compliance of Suspension (Cms): 0.31 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.35 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

        Show more

        Specifications

        Article number
        R3004/662000
        EAN
        0696277268368
        Tweeter Type
        Ring Radiator
        Tweeter Series
        Illuminator Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        90 Watts
        Power Handling (max)
        150 Watts
        Impedance (Z)
        4 Ω
        Sensitivity (SPL at 1m / 2.83V)
        90.4 dB
        Resonant Frequency (Fs)
        520 Hz
        DC Resistance (Re)
        3 ohms
        Voice Coil Inductance (Le)
        0.03 mH
        Mechanical Q (Qms)
        3.27
        Electromagnetic Q (Qes)
        0.56
        Total Q (Qts)
        0.48
