        Product description SEAS Prestige 27TDFC - H1189-06 Dome Tweeter

        Highlights

        • Sonotex precoated fabric diaphragm with high consistency and excellent stability against variations in air humidity
        • 90 Watts RMS Power Handling
        • 90 dB 2.83V/1m Sensitivity



        Product details

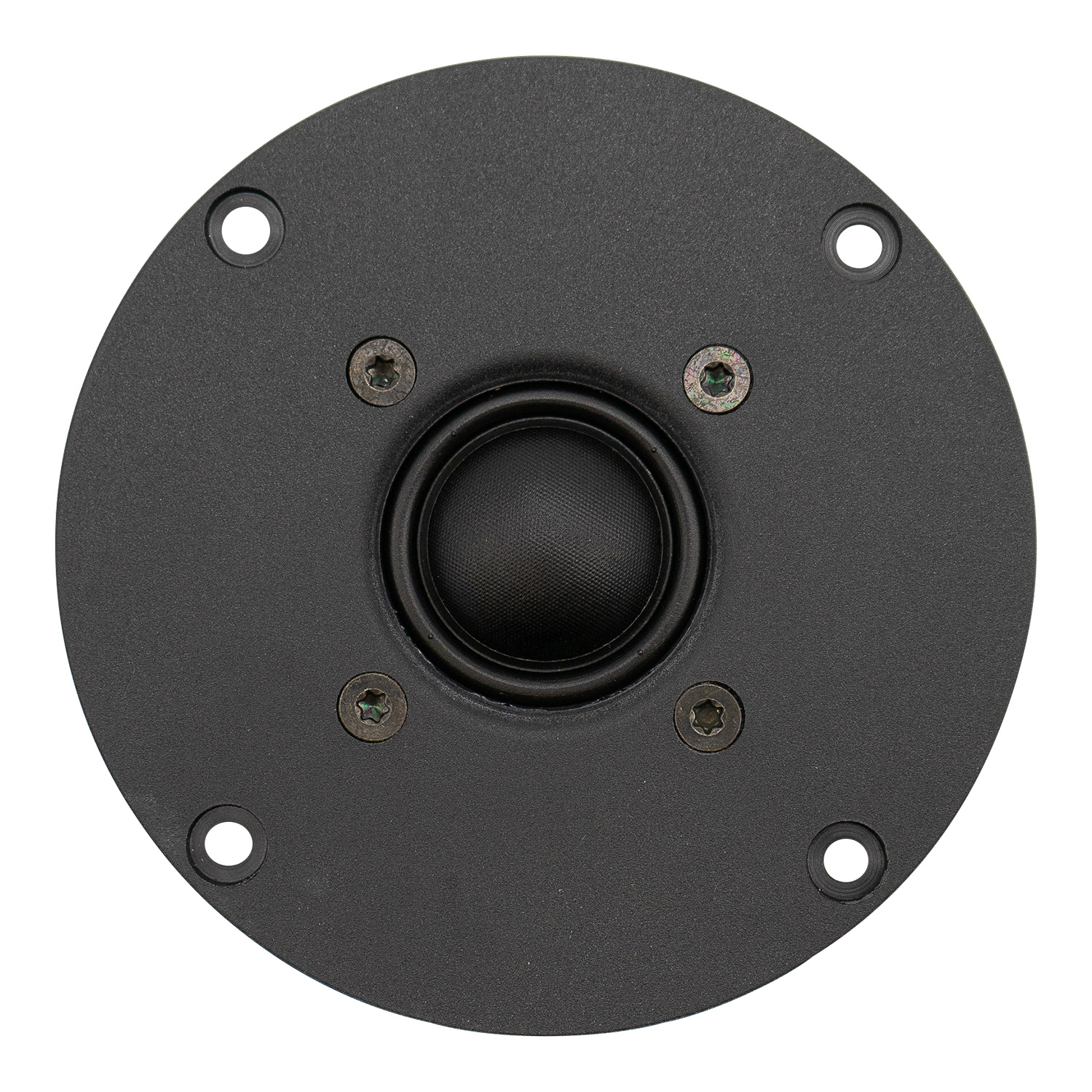

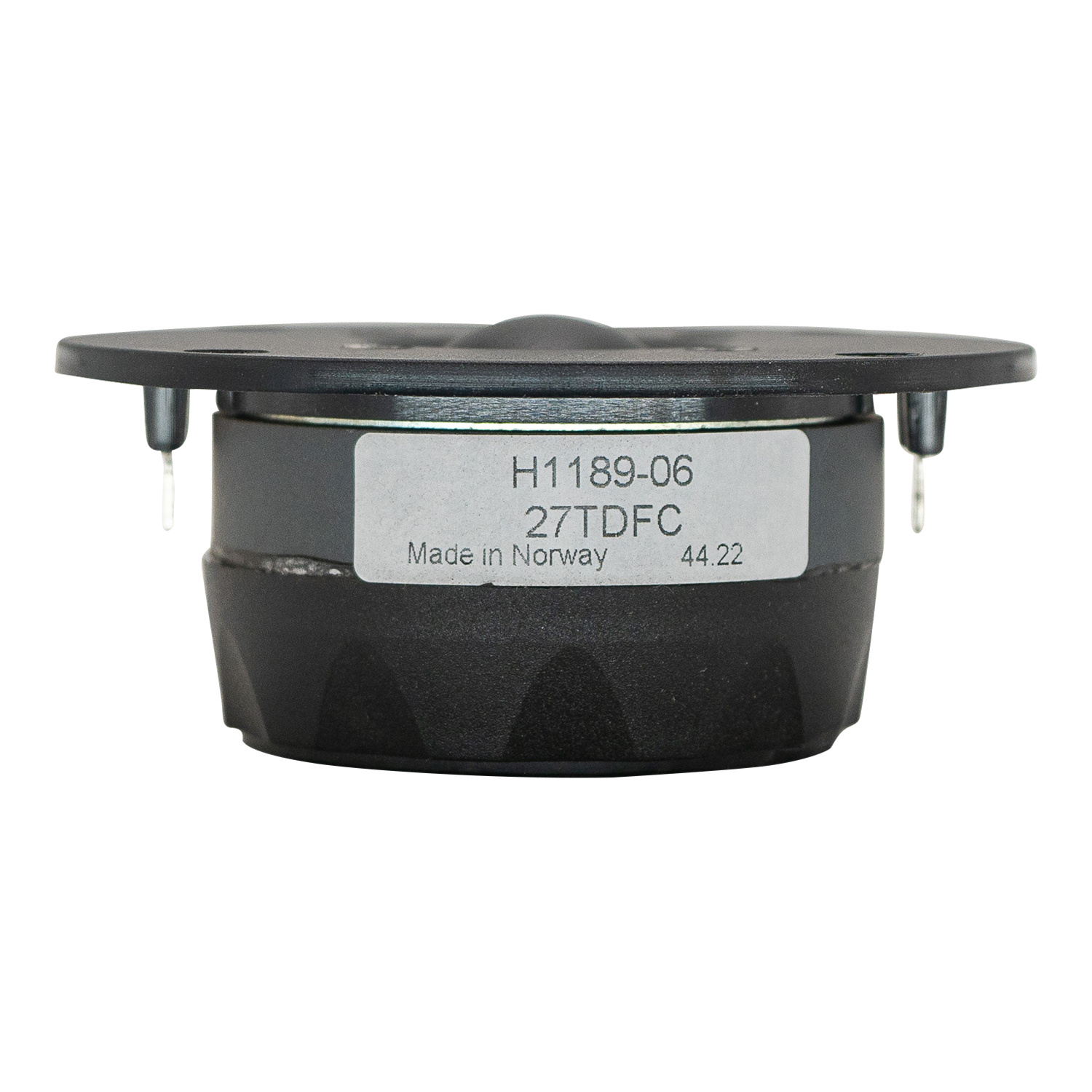

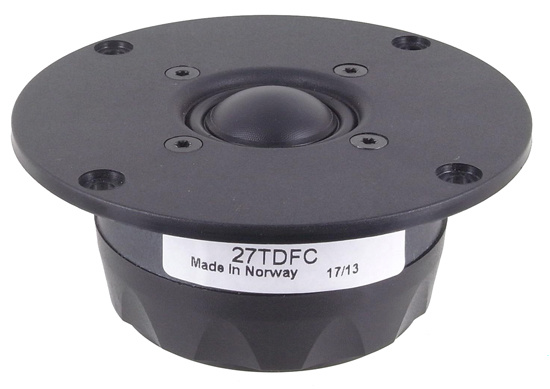

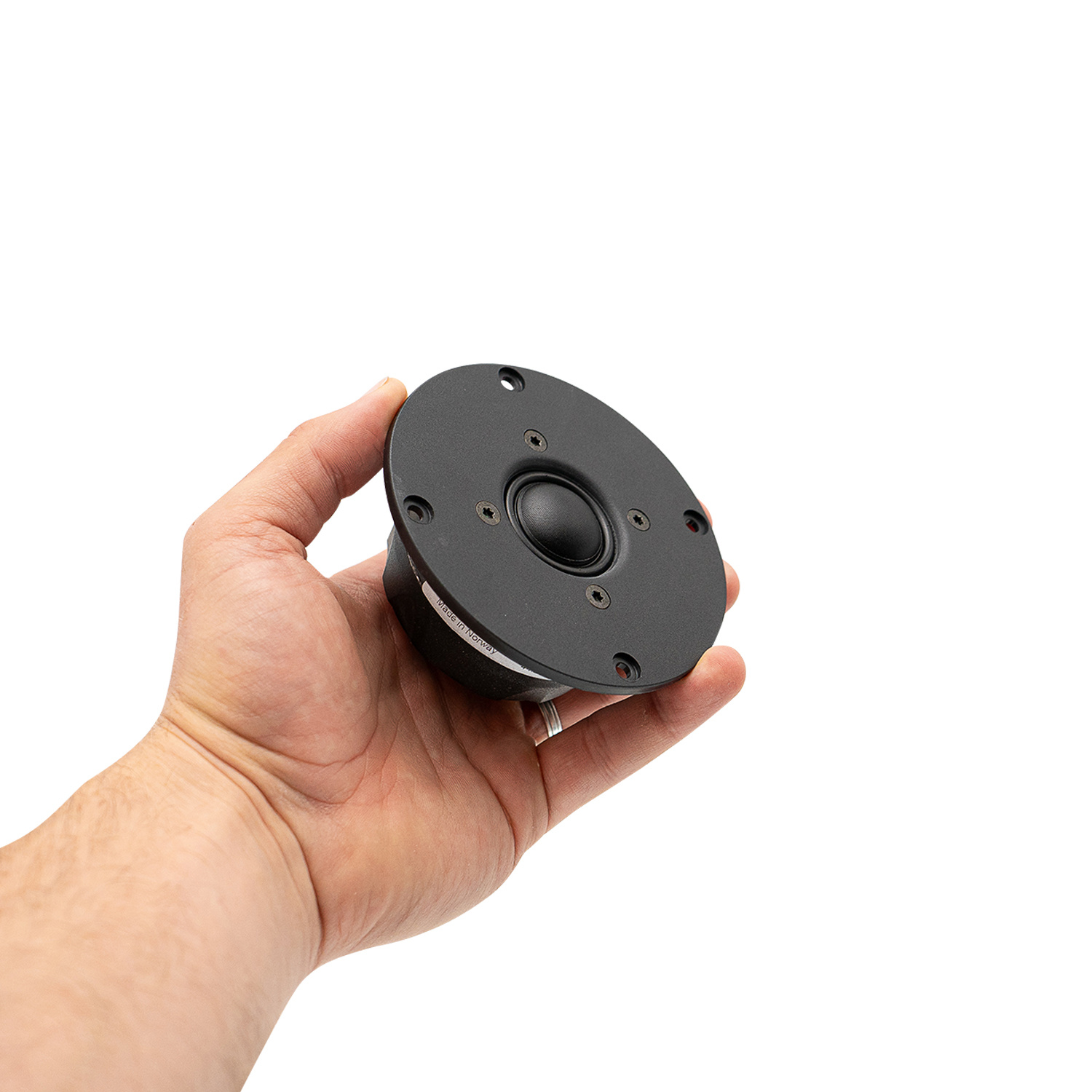

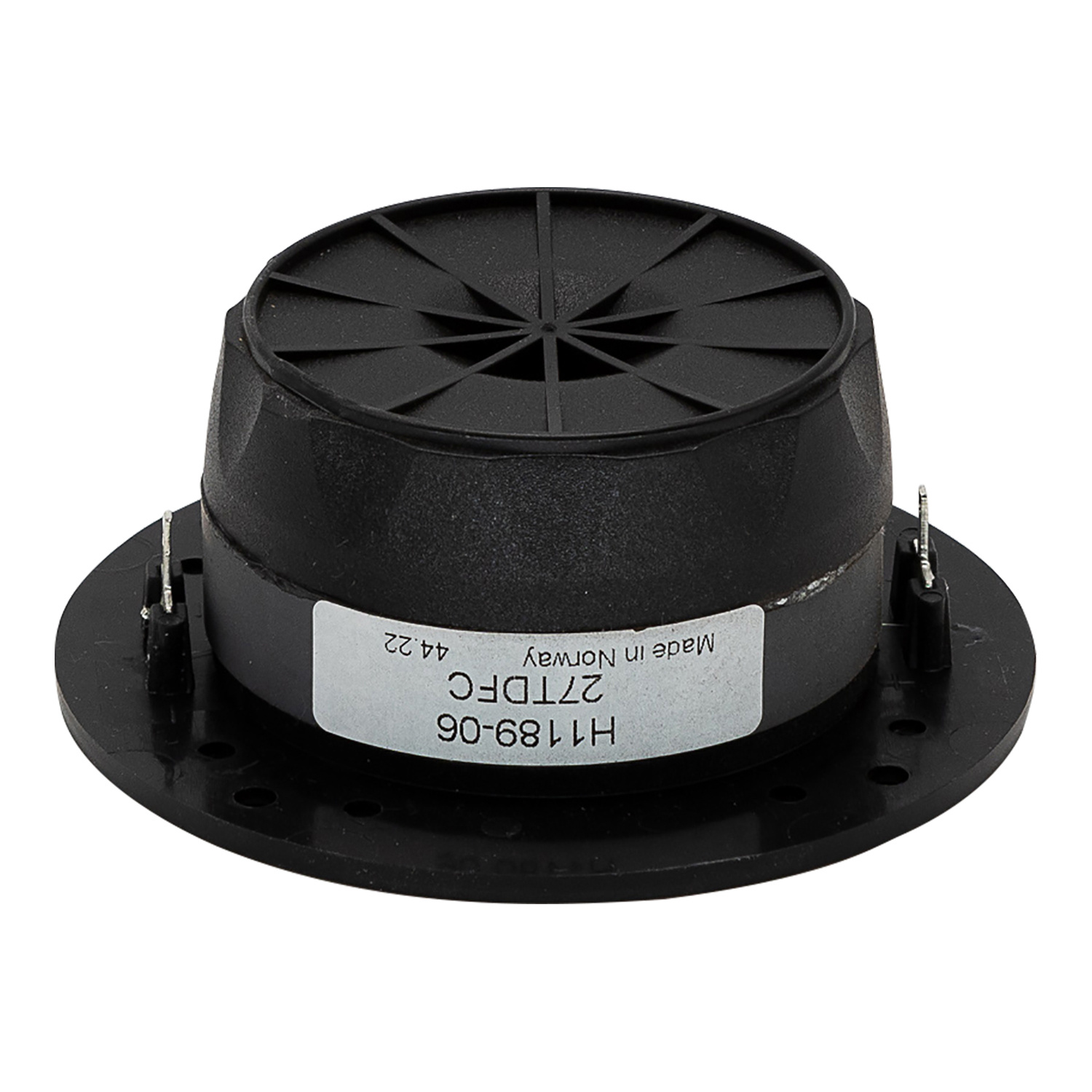

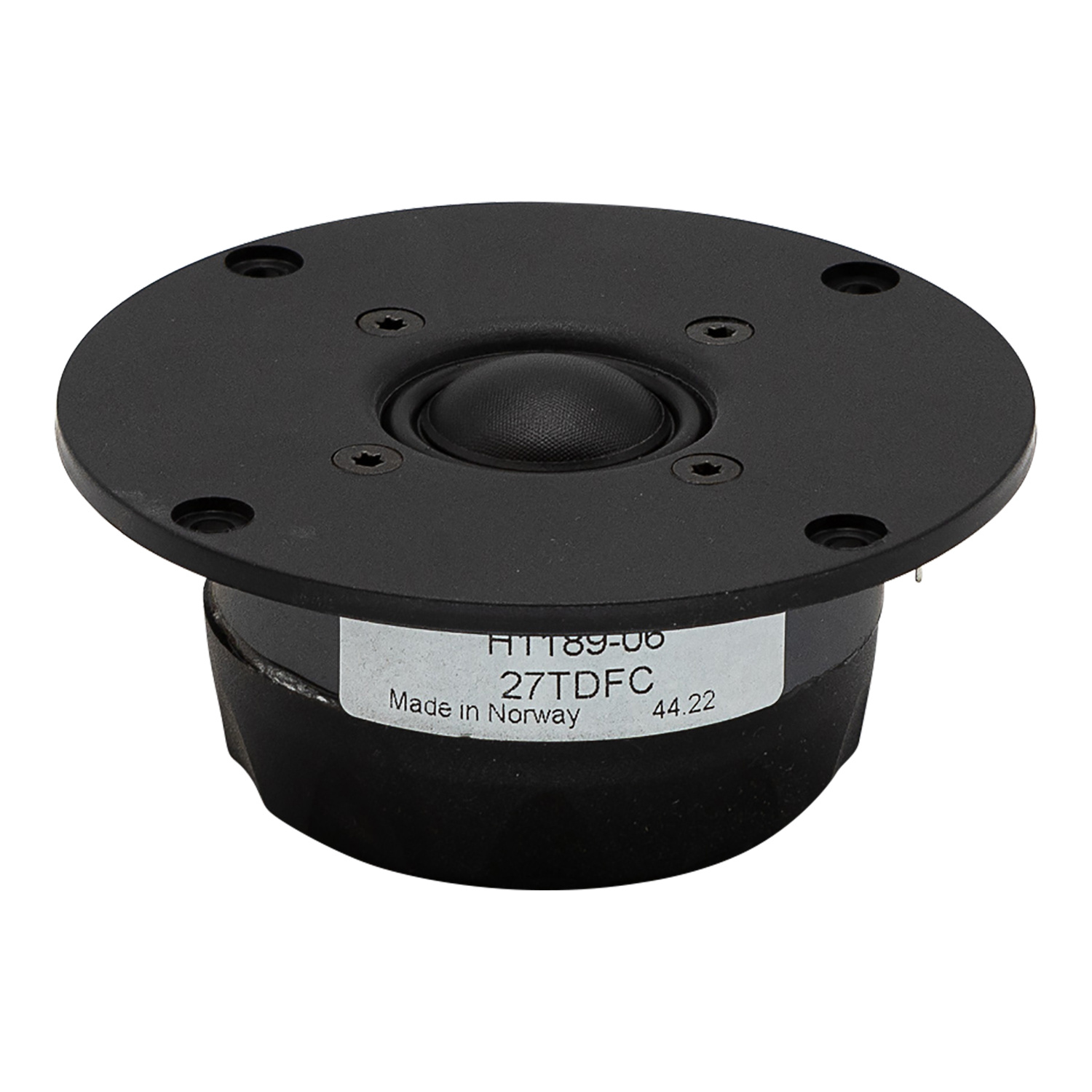

        Seas Prestige 27TDFC - H1189-06 1'' Textile Dome Tweeter

        The 27TDFC is a high definition precoated fabric dome tweeter with a wide, soft polymer surround and a rear chamber. Sonotex precoated fabric diaphragm with high consistency and excellent stability against variations in air humidity. Sonomax surround for low resonance and excellent mechanical linearity.

        Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels. Stiff and stable rear chamber with optimal acoustic damping allows the tweeter to be used with moderately low crossover frequencies.

        The chassis is precision molded from glass fiber reinforced plastic, and its front design offers optimum radiation conditions.

        A great application example would be the SEAS application De Mimir. To learn more, please check out our blog article "SEAS Application Notes".

        Show more

        Specifications

        Article number
        27TDFC
        EAN
        0696277269747
        Tweeter Type
        Textile Dome
        Tweeter Series
        Prestige Series
        Cone / Dome Diameter
        25 mm | 1"
        Power Handling (RMS)
        90 Watts
        Impedance (Z)
        6 Ω
        Sensitivity (SPL at 1m / 2.83V)
        90 dB
        Frequency Response
        1,500 to 25,000 Hz
        Resonant Frequency (Fs)
        550 Hz
        DC Resistance (Re)
        4.8 ohms
        Voice Coil Inductance (Le)
        0.05 mH
        Overall Outside Diameter
        4.09"
        Cutout Diameter
        3.35"
        Depth
        1.67"

        Show more

        Reviews

        3 reviews
        Review this product
        5 of 5
        They are in the tuning phase, they are quite sharp somewhere around 8 kHz. I think it needs more They are in the tuning phase, they are quite sharp somewhere around 8 kHz. I think it needs more time for things to fall into place. Otherwise, I cut them at 1.8 kHz. 3rd order and they dance with the Monacor SPH-100C. They will be excellent tweeters!
        By Steve DeSantis on 3 January 2024
        5 of 5
        I am really happy with the purchase of these tweeters. I upgraded my diy speakers according to this project http://www.audioweb.cz/viewtopic.php?id=2748 The change was impressive in comparison to Monacor DT-300. The reproduction of high spectrum is on another level. There's no more lack of hi-hat and cymbals in records. I was also surprised by the space and localisation of instruments the speakers are now capable of.
        By Tomas M. on 28 July 2019
