        Product description SEAS Excel C16NX001/F - E0080-04/06 Coaxial Woofer

        Highlights

        • FEA optimised magnet system
        • Graphene treated magnesium cone
        • Titanium former for woofer and tweeter
        • Unique radial reinforced rubber surround
        • Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment



        Product details

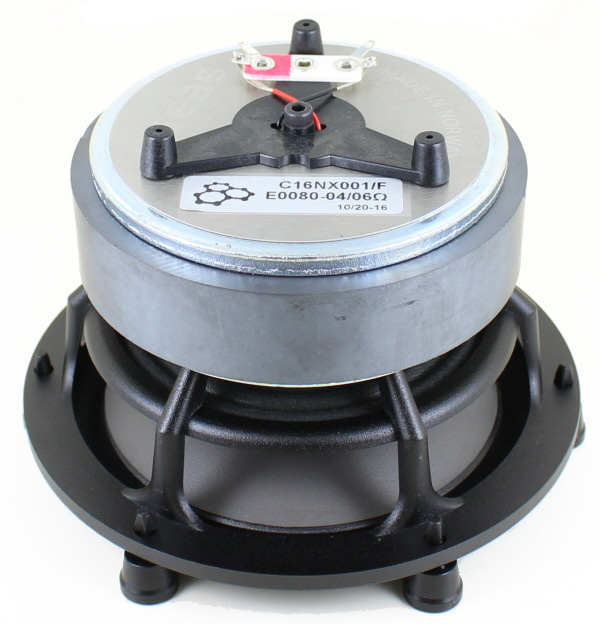

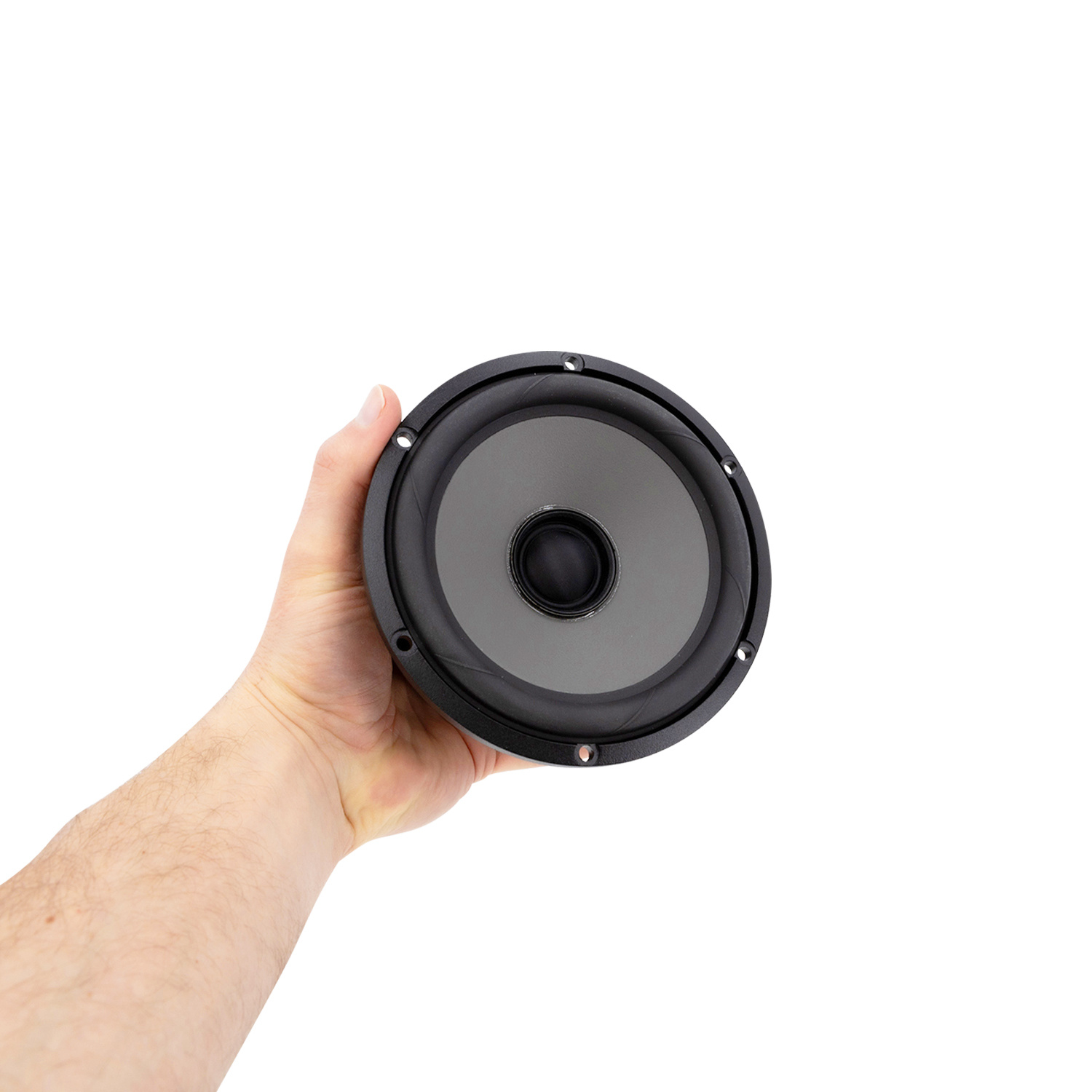

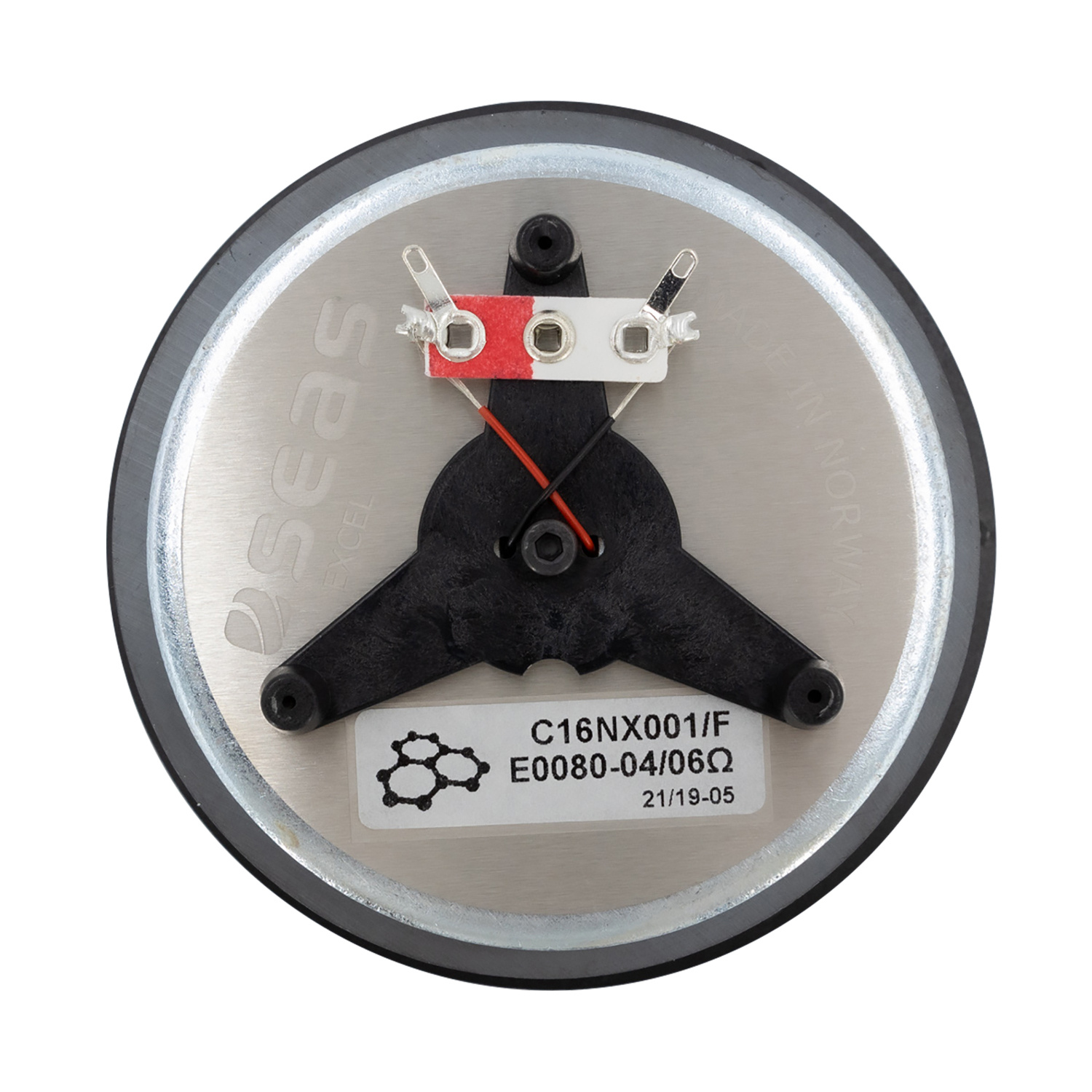

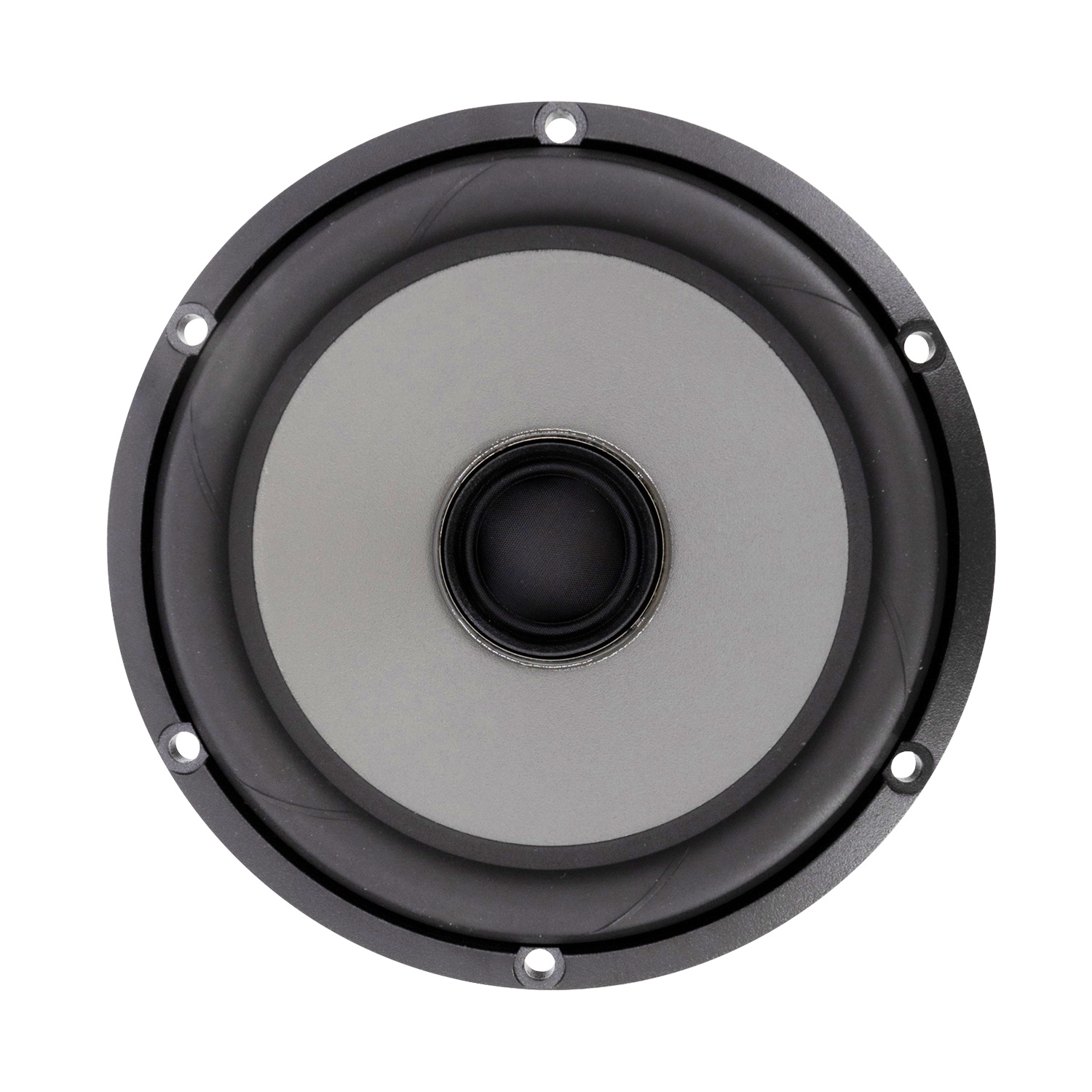

        Seas Excel Graphene C16NX001/F - E0080-04/06 5" Coaxial Woofer 4 Ohms



        The precision cast, machined and Graphene treated magnesium cone acts as a piston through the working frequency band without showing any sign of midrange resonances.



        The woofer has an FEA optimised magnet system with precisely fitted copper parts for excellent linearity, high powerhandling and low distortion. A titanium voice coil former with a long copper clad aluminium winding for excellent force transfer, transient sound reproduction and large linear excursion. This results in very low mechanical damping for better clarity and brings out the micro details in the music.



        The coaxially arranged tweeter with a precoated fabric dome is fitted with a Titanium former, has a low resonance frequency and integrates with the cone driver to form a point source for excellent sound stage imaging.

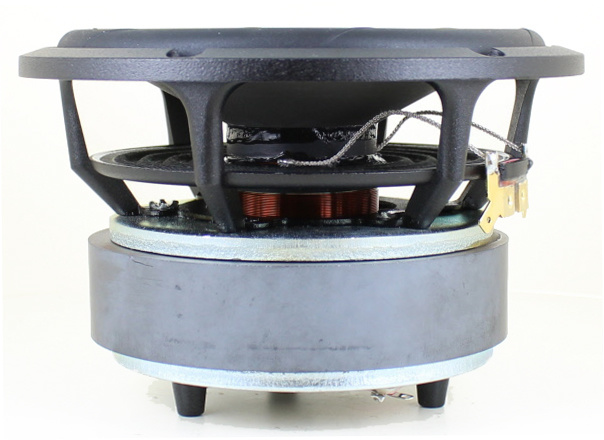

        The extremely stiff and stable injection moulded metal basket designed for smooth air-flow, keeps the critical components in perfect alignment and reduce sound reflection, air flow noise and cavity resonance to a minimum.

        Show more

        Specifications

        Article number
        C16NX001/F
        EAN
        0691046949073
        Woofer Series
        SEAS Excel series
        Woofer Type
        Coaxial
        Nominal Diameter
        5"
        Power Handling (RMS)

        150 watts (woofer)
        90 watts (tweeter)

        Power Handling (max)

        250 watts (woofer)
        220 watts (tweeter)

        Continuous Program Power
        -
        Impedance (Z)

        4 ohms (woofer)
        6 ohms (tweeter)

        Sensitivity (SPL at 1m / 2.83V)
        88.5 dB
        Frequency Response
        20 - 20,000 Hz
        Voice Coil Diameter

        39 mm (woofer)
        26 mm (tweeter)

        Magnet Weight
        -
        DC Resistance (Re)

        3 ohms (woofer)
        4.7 ohms (tweeter)

        Voice Coil Inductance (Le)

        0.23 mH (woofer)
        0.05 mH (tweeter)

        Resonant Frequency (Fs)
        35 Hz (woofer), 1165 Hz (tweeter)
        Mechanical Q (Qms)
        4.85
        Electromagnetic Q (Qes)
        0.33
        Total Q (Qts)
        0.31
        Diaphragm Mass Inc. Airload (Mms)
        16.2g
        Mechanical Compliance of Suspension (Cms)
        1.26 mm/N
        Surface Area of Cone (Sd)
        94 cm²
        Volume of Displacement (Vd)
        65.8 cm³
        BL Product (BL)
        -
        Compliance Equivalent Volume (Vas)
        16 liters
        Maximum Linear Excursion (Xmax)
        7 mm
        Driver's Mechanical Losses (Rms)
        -
        Cone / Diaphragm Material
        Graphene treated magnesium
        Surround Material
        Rubber
        Voice Coil Wire Material
        Copper-clad aluminum
        Voice Coil Former
        Titanium
        Dual Voice Coil
        -
        Basket / Frame Material
        -
        Magnet Material
        -
        Shielded
        -
        Overall Outside Diameter
        146 mm
        Overall Depth
        89 mm
        Baffle Cutout Diameter
        127 mm
        # Mounting Holes
        6
        Mounting Hole Diameter
        5 mm
        Sealed Volume
        -
        Sealed F3
        -
        Vented Volume
        -
        Vented F3
        -
