        Product description SEAS Exotic T35 - X3-06 Dome Tweeter

        Highlights

        • 35mm voice coil
        • Aluminum front plate
        • Coated fabric dome with integral surround manufactured by Dr. K. Müller in Germany



        Product Details

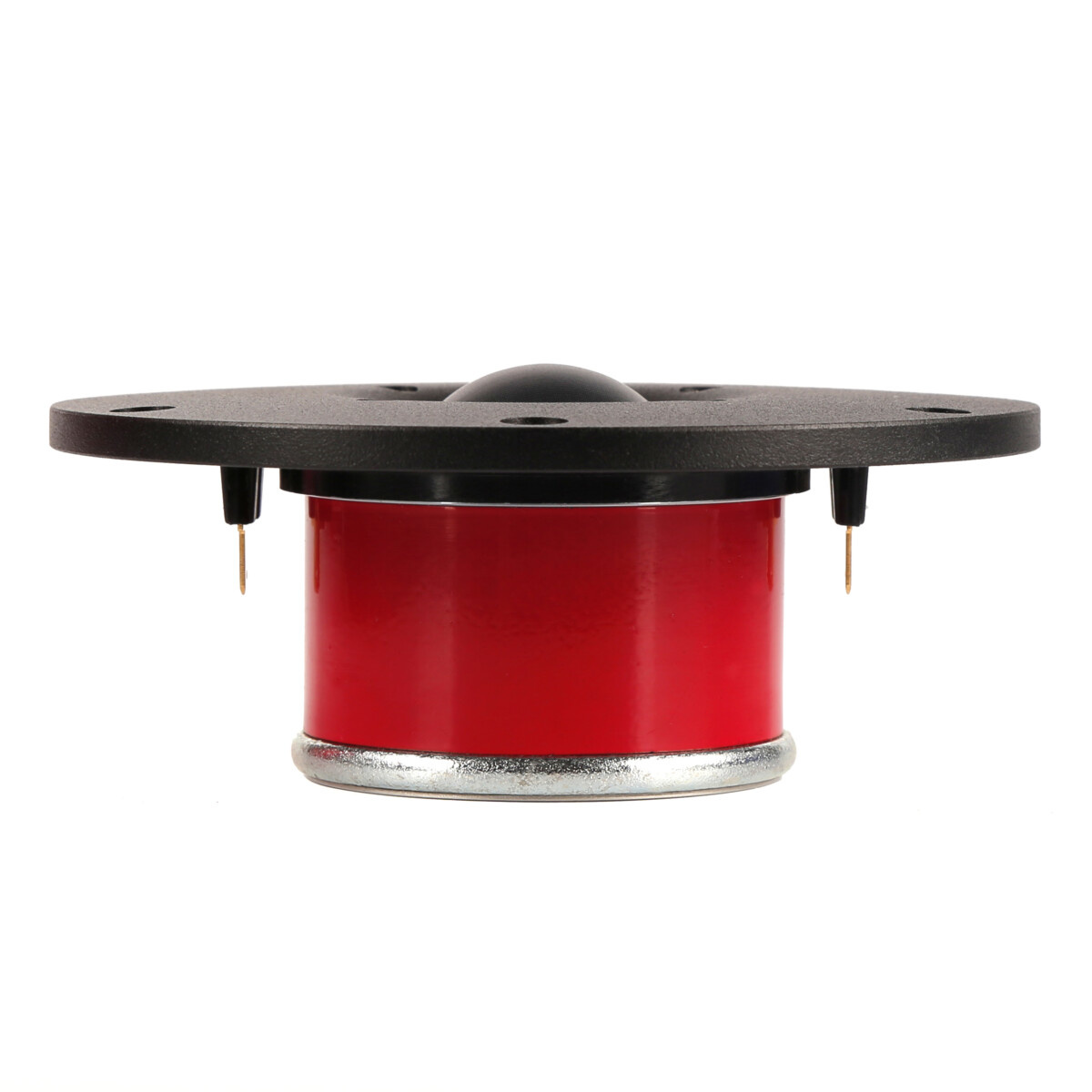

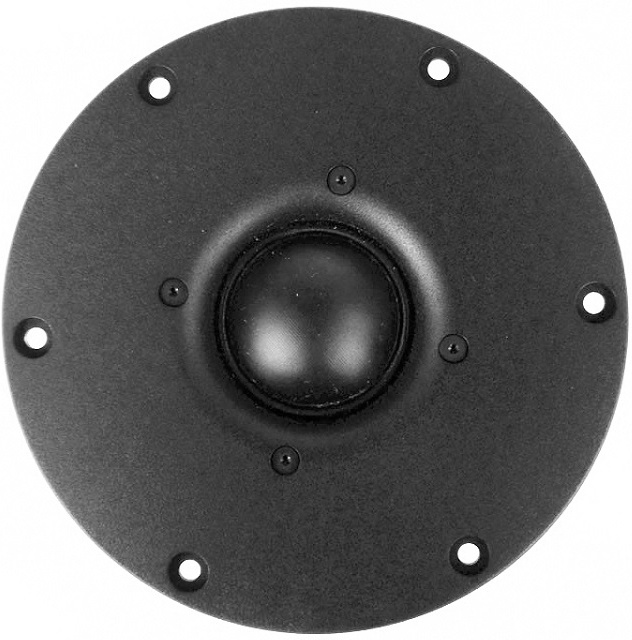

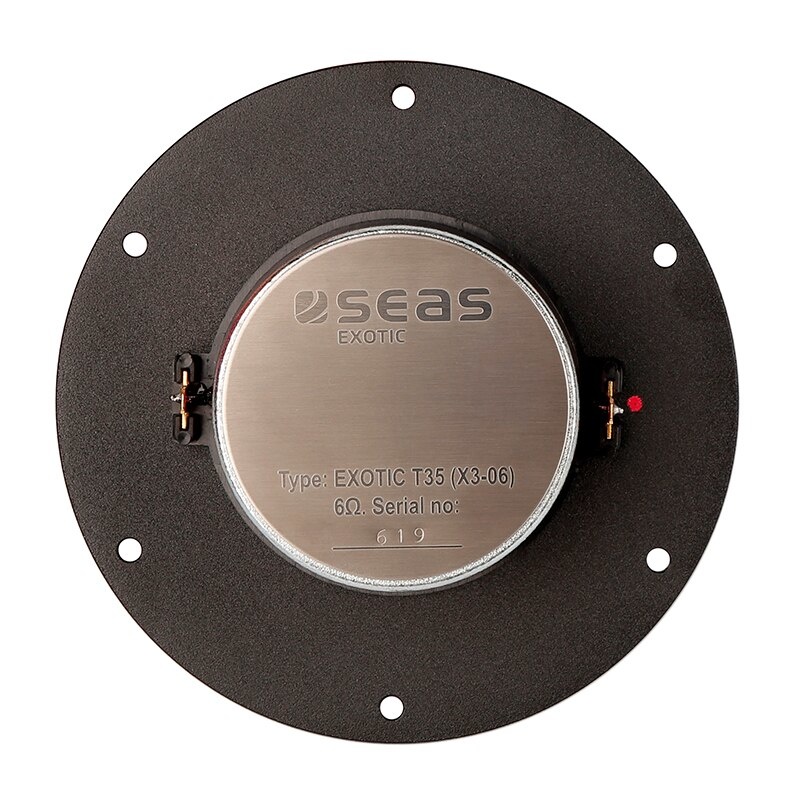

        SEAS Exotic T35 - X3-06 1.5" Dome Midrange Tweeter



        The Exotic T35 is a classic dome midrange tweeter with high sensitivity and smooth, extended frequency response. A coated fabric dome with integral surround manufactured by Dr K. Müller in Germany ensures excellent performance and consistency. This supplier was among the first in the world to offer fabric dome diaphragms and did produce the diaphragm for the famous 1.5” Dome Tweeter H087, developed by Seas in 1968. A high-efficiency Alnico V ring magnet in a carefully designed system contributes to high sensitivity and low distortion. A large and well-damped cavity in the pole ensures a low resonance frequency and smooth response. A generously underhung 35mm voice coil wound from copper-clad aluminum wire further enhances the sensitivity. Flexible lead-out wires and venting holes in the aluminum coil former help reduce noise to a minimum. A large diameter 7mm thick precision machined aluminum front plate with moderate horn loading ensures linear frequency response and represents an extremely stable platform for the magnet system and the moving parts.



        Show more

        Specifications

        Article number
        EXOTIC T35
        EAN
        8785256843749
        Tweeter Type
        Dome midrange tweeter
        Tweeter Series
        Exotic
        Cone / Dome Diameter
        38 mm | 1.5"
        Power Handling (RMS)
        100 Watts
        Power Handling (max)
        250 W
        Impedance (Z)
        6 Ω
        Sensitivity (SPL at 1m / 2.83V)
        94 dB
        Resonant Frequency (Fs)
        600 Hz
        DC Resistance (Re)
        4.6 Ohms
        Voice Coil Inductance (Le)
        0.06 mH
        Recommended cut frequency
        1500 - 25000 Hz
