        Excel W12CY003 - E0044 4.5" Nextel Cone Woofer

        SEAS Excel W12CY003 - E0044 4.5" Nextel Cone Woofer

        €239,95

        7 In stock

        SEAS Excel W12CY003 - E0044 4.5" Nextel Cone Woofer

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: SEAS
        € 198,31€ 239,95 7 In stock
        • -5% Purchase 4 for only € 227,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Product description SEAS Excel W12CY003 - E0044 Bass-midwoofer

        Highlights

        • Long term power handling (RMS) is 70 Watts
        • Unique Nextel coating ensures smooth frequency response and low distortion
        • Increased long term power handling capacity and eliminated resonances in the cavity inside the voice coil former



        Product details

        Seas Excel W12CY003 - E0044 4.5" Nextel Cone Woofer

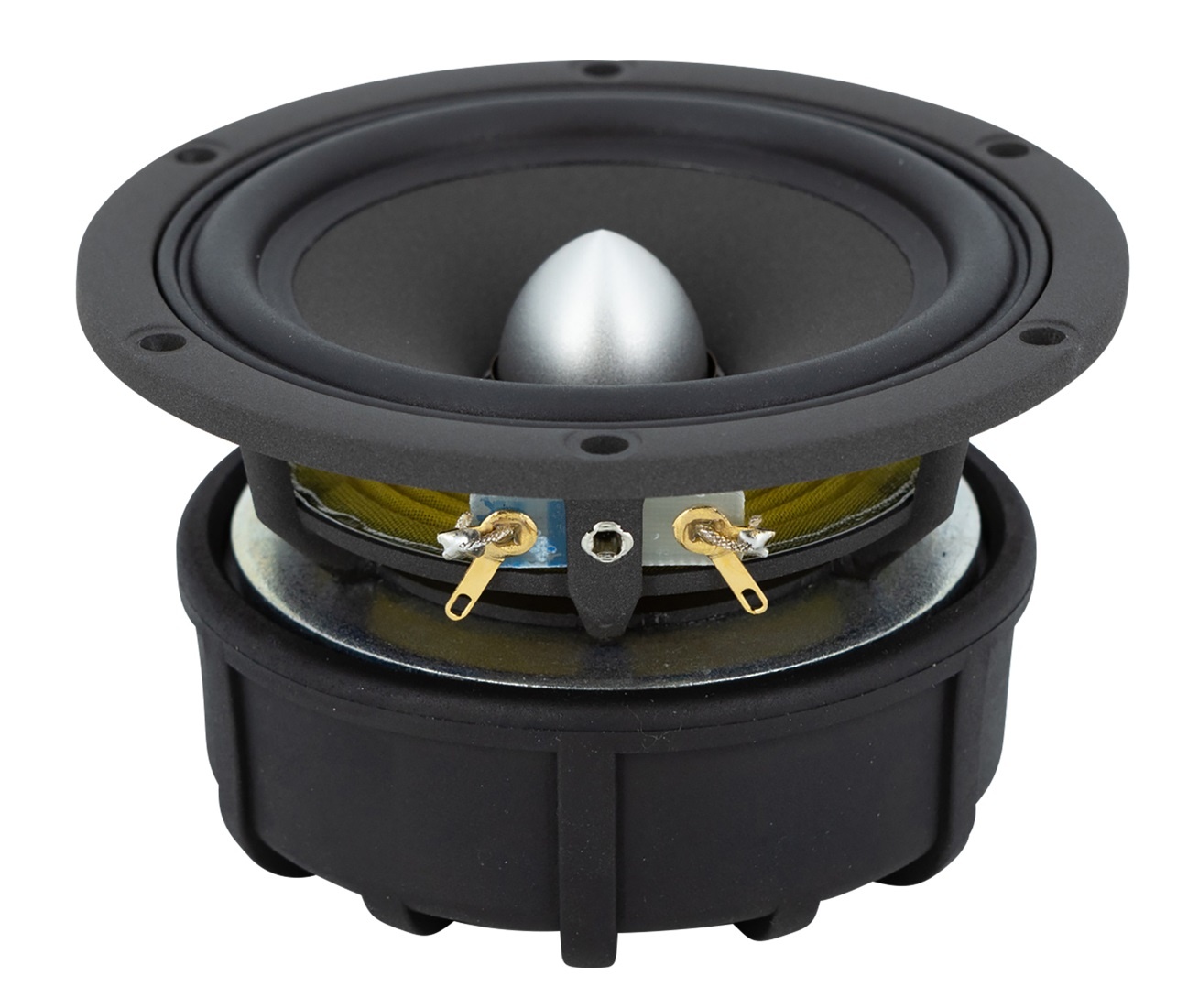

        A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion. Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.



        A large magnet system provides good sensitivity and transient response. A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.



        An extremely stiff and stable injection molded Nextel coated metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

        Show more

        Specifications

        Article number
        W12CY003
        EAN
        0696277270125
        Woofer Series
        SEAS Excel series
        Woofer Type
        Midwoofer
        Nominal Diameter
        4,5"
        Power Handling (RMS)
        70 Watts
        Power Handling (max)
        200 Watts
        Impedance (Z)
        8 ohms
        Sensitivity (SPL at 1m / 2.83V)
        85.5 dB
        Frequency Response
        60 to 3,500 Hz
        Voice Coil Diameter
        1.02"
        Magnet Weight
        14.8 oz.
        DC Resistance (Re)
        5.5 ohms
        Voice Coil Inductance (Le)
        0.41 mH
        Resonant Frequency (Fs)
        60 Hz
        Mechanical Q (Qms)
        2.30
        Electromagnetic Q (Qes)
        0.44
        Total Q (Qts)
        0.36
        Diaphragm Mass Inc. Airload (Mms)
        6.1g
        Mechanical Compliance of Suspension (Cms)
        1.2 mm/N
        Compliance Equivalent Volume (Vas)
        0.14 ft.³
        Maximum Linear Excursion (Xmax)
        3 mm
        Overall Outside Diameter
        4.74"
        Overall Depth
        2.81"
        Baffle Cutout Diameter
        3.9"
        Bolt Circle Diameter
        4.36"
        # Mounting Holes
        6

        Show more
