SMSL A100 stereo amplifier

The Class-D amplification stage of the A100 is based on an Infineon MA12070 chip, offering a good energy reserve while ensuring a clear and faithful reproduction. This one takes advantage of the MERUS architecture, in which each half-bridge uses four MOSFETS.

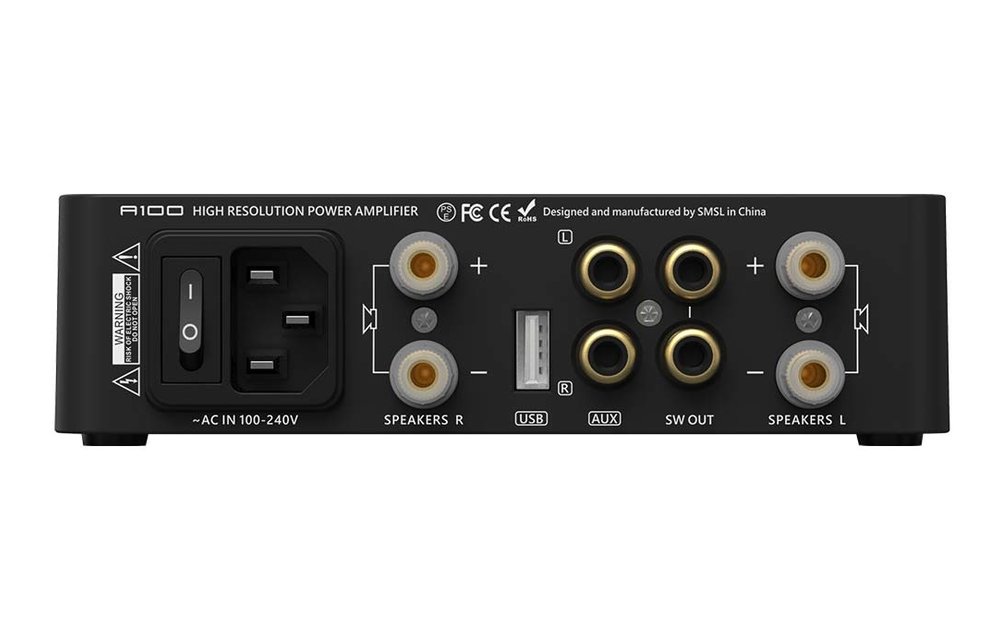

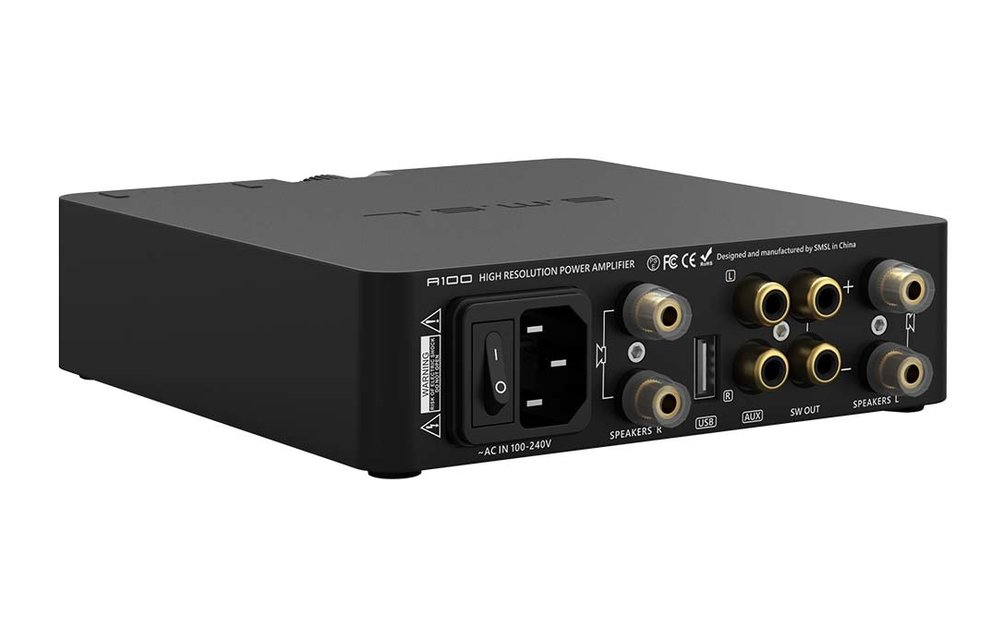

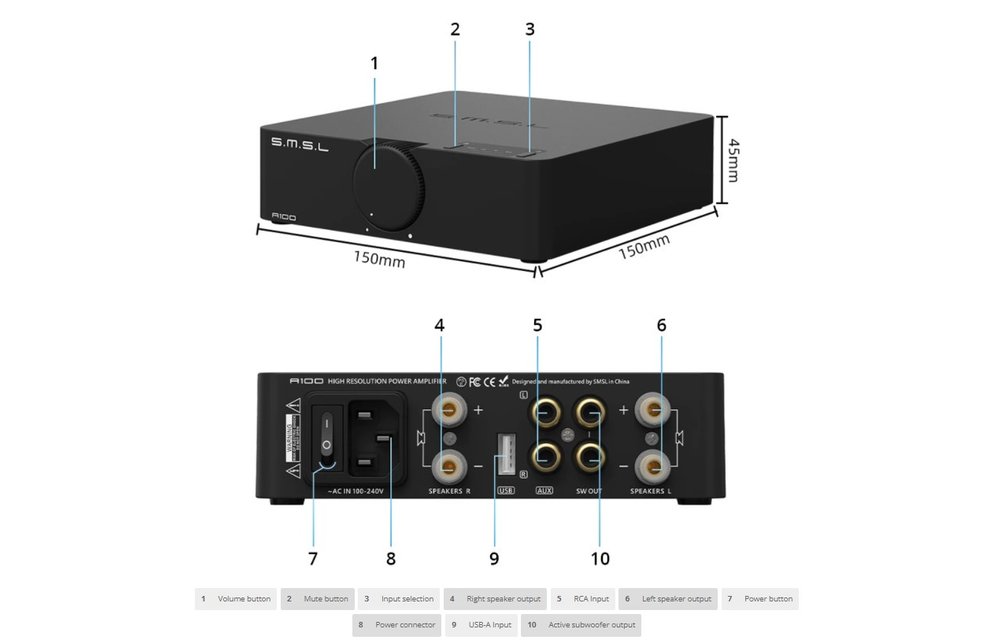

In addition to its stereo RCA and USB-A input, the A100 embeds a Bluetooth 5.0 receiver allowing you to broadcast your music from a distance, from a connected smartphone for example. The integrated chip supports the aptX transmission codec ensuring very good audio quality and signal stability. In addition to the classic speaker output, the A100 is equipped with a subwoofer output on stereo RCA. It is thus possible to connect an active subwoofer and thus integrate a 2.1 system.

Specifications: Product type: Amplifier • Amplifier type: Class-D • Inputs: Bluetooth 5.0, 1x USB-A, 1x Stereo RCA • Outputs: Speaker terminals, 1x Stereo RCA subwoofer output • THD+N: 0.005% • SNR: 103dB • Channel separation: 88dB • Output power: 2x80W @ 4Ω; 2x40W @ 8Ω • Input sensitivity: 180mW • Input impedance: 22kΩ • Supply voltage: 100-240VAC • Consumption: 35W • Dimensions: 165 x 150 x 43mm • Weight: 600g • Color: Black.

Package Includes:

• SMSL A100
• 1x Power cable
