Highlights
- Board Type: Board
- input: USB,
- output: RCA, 3.5mm AUX, S/PDIF,
- Control Interface: Hardware
- Size: 3 x 2 inches (76.2mm x 50.8mm)
- Power Voltage: 5V
Product details

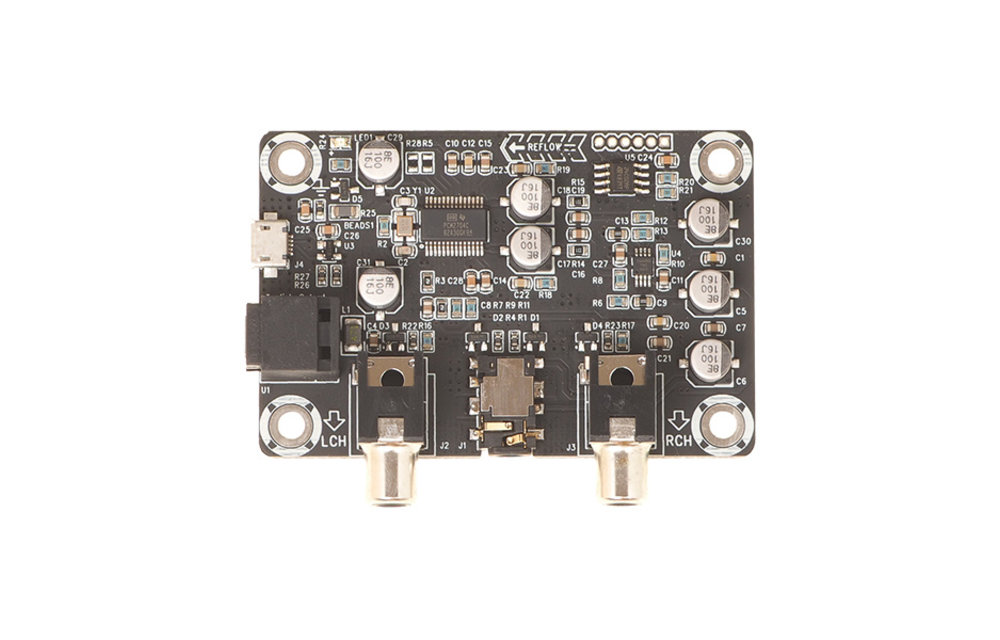

Sure Electronics AA-AA21111 USB Codec Analog S/PDIF Output Converter - UCC1
This board is a high performance signal converter board integrated with a USB-compliant full-speed protocol controller and S/PDIF. It can convert the USB input to S/PDIF output and analog output. It's driver free and can support both Windows and Mac OS. The universal Micro USB is used for power supply as well as audio data transfer. It supports 32kHz, 44.1kHz and 48kHz sample rate and 16-bit Delta-sigma stereo DAC. RCA jacks and 3.5mm headphone jack is pre-mounted on this board for easy connection.
Specifications: Universal Micro USB for Power Supply and Audio Data Transfer • Fully Compliant with USB 2.0 Specification • Driver Free and Support Windows and Mac OS • 3.5mm Headphone Output Jack • RCA Line Level Output • S/PDIF Optical Output • Sampling Rates: 32 kHz, 44.1 kHz, 48 kHz • 16-Bit Delta-Sigma Stereo DAC • Weight: 30g/0.066lbs • Size: 3" X 2" (76.2mm x 50.8mm).
