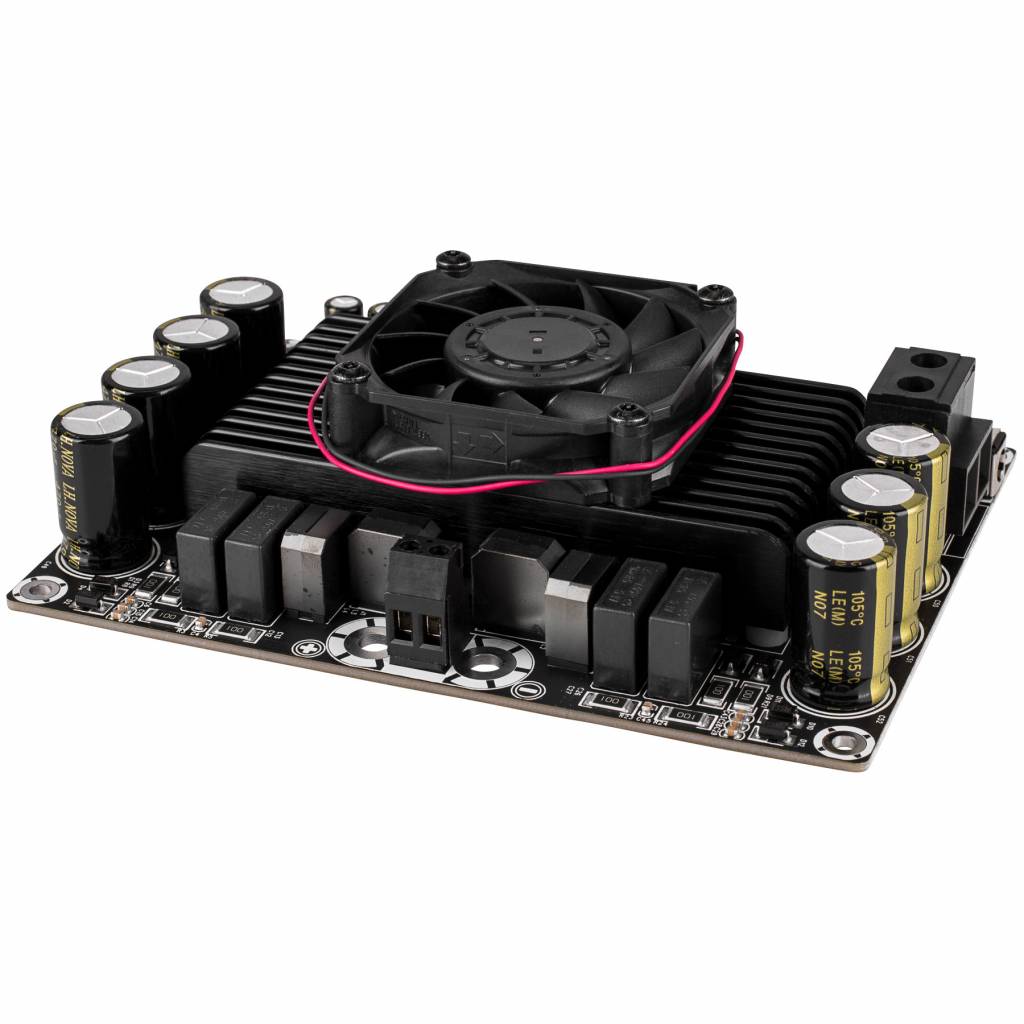

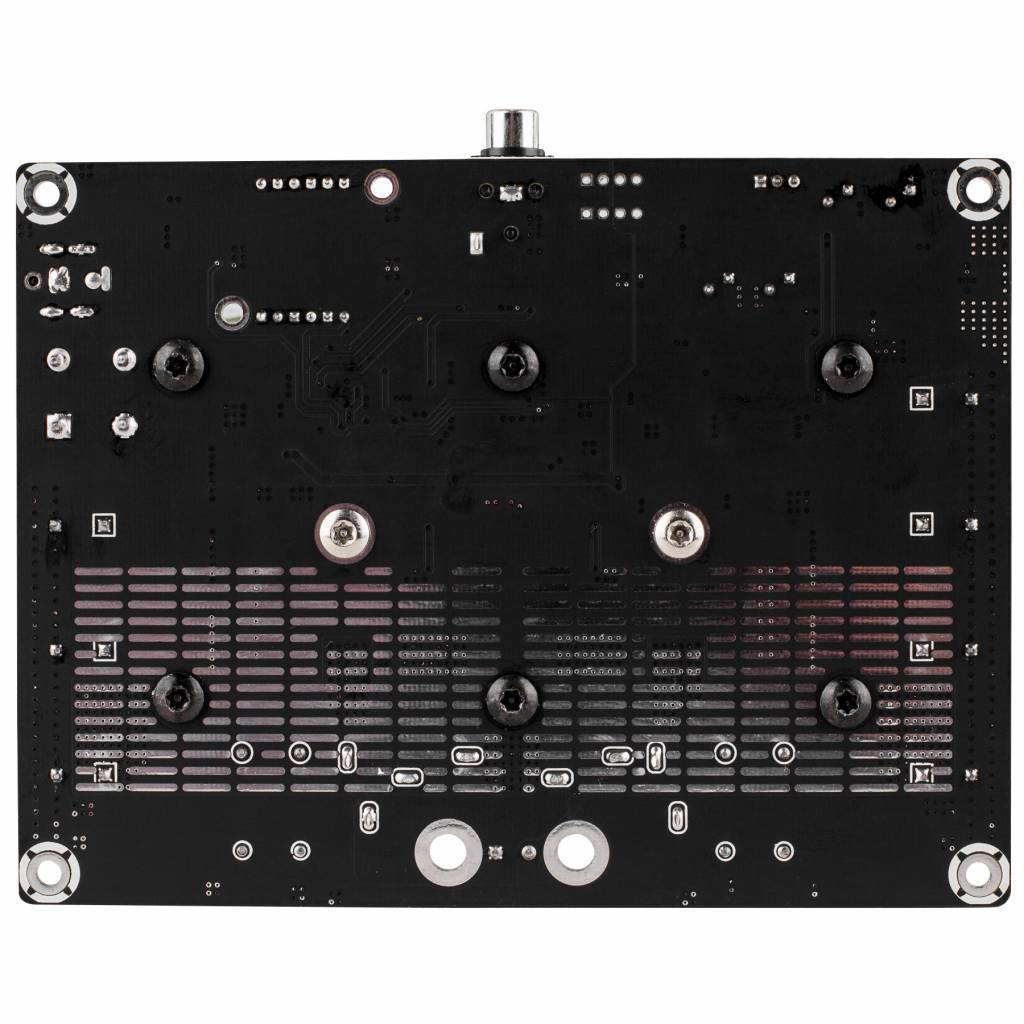

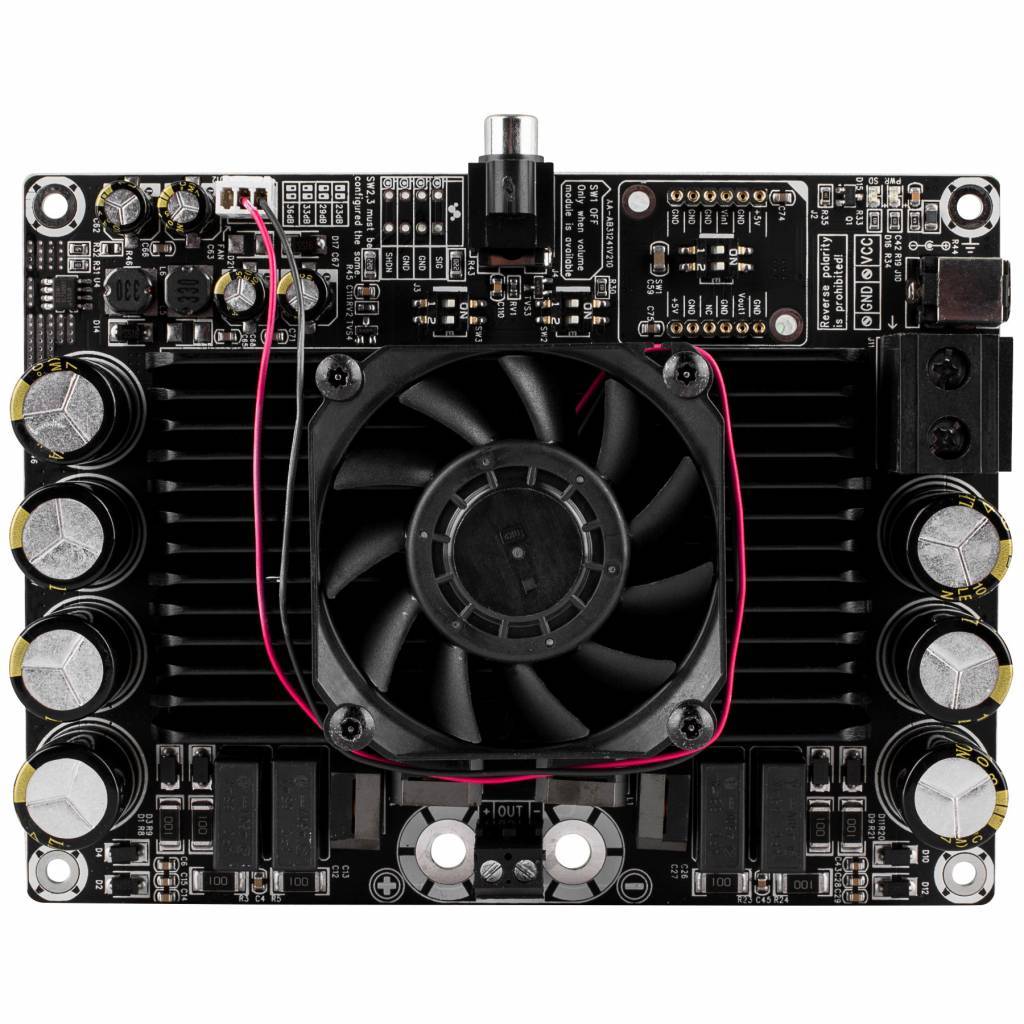

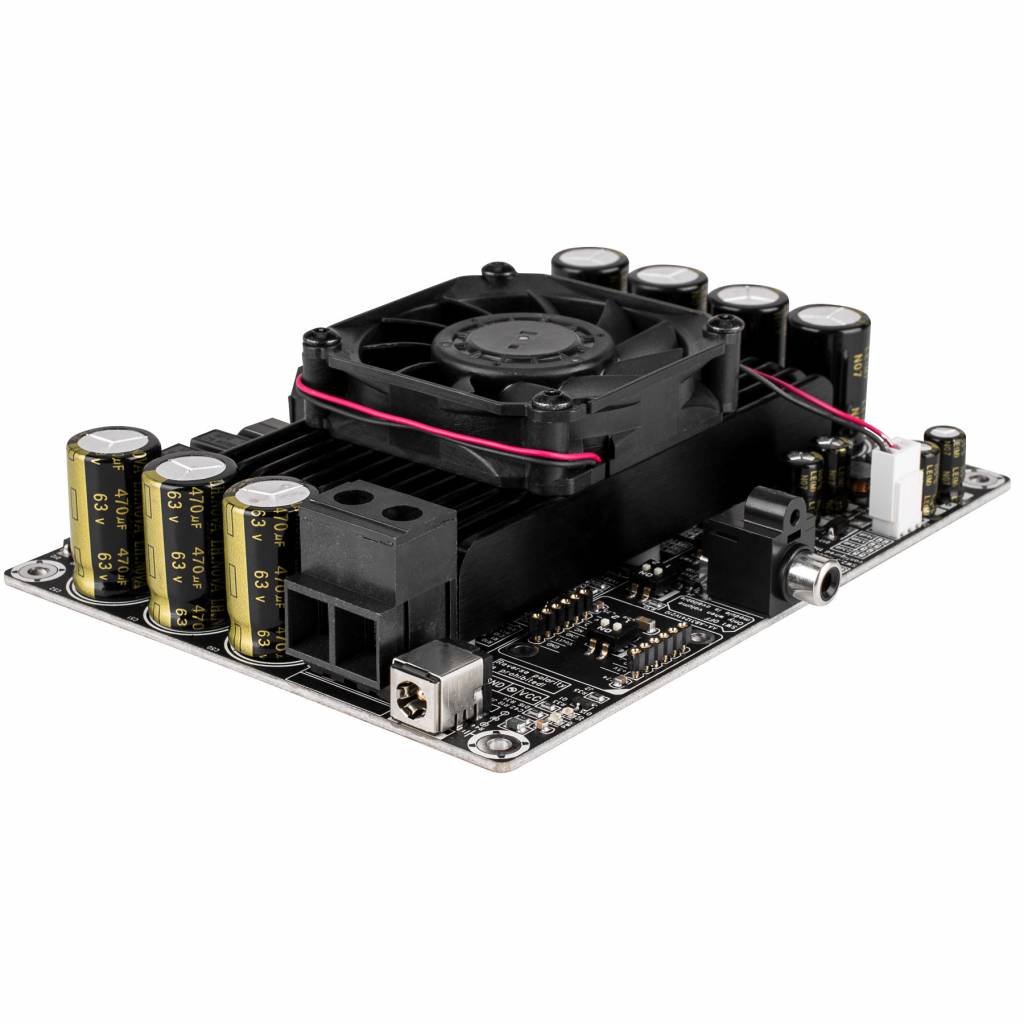

        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board

        Sure Electronics AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board

        €65,95

        2 In stock

        Add to cart

        Sure Electronics AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Sure Electronics
        Show all Amplifier modules
        1 x 300 W
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        € 54,50€ 65,95 2 In stock
        • -5% Purchase 4 for only € 62,65 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board
        AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board

        Product description Sure Electronics AA-AB31191 Amplifier module

        This 1 x 300W Class-D audio amplifier board integrates TI’s high performance TAS5613 supporting single channel audio amplification.



        Highlights

        • Perfect for use as a subwoofer amplifier for home or vehicle
        • Up to 300W of Class-D clean power
        • Over-engineered protection circuits
        • Requires 18 to 38 VDC power supply
        • Temperature controlled cooling fan



        Product details

        Sure Electronics AA-AB31191 1x300W TAS5613 Class D Audio Amplifier Board

        Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.



        This 1 x 300W Class-D audio amplifier board integrates TI’s high performance TAS5613 supporting single channel audio amplification. For do-it-yourselfers, looking for a subwoofer amp for your home or vehicle. Temperature controlled cooling fan, as well as protection circuits to protect against over/under voltage, over current, short circuit, and over temperature conditions are built-in for years of enjoyment. Requires a DC power supply ranging from 18 to 38V.

        Show more

        Specifications

        Article number
        AA-AB31191
        EAN
        0691046948694
        Rated power output
        1 x 300 watts at 2 ohms
        Minimum load
        2 ohms
        Efficiency
        >90 %
        Signal-to-noise ratio (SNR)
        -
        Distortion
        -
        Frequency response
        20 - 22,000 Hz
        Gain
        20, 26, 30 or 32 dB
        Input sensitivity

        2450 mV at 20 dB gain
        1225 mV at 26 dB gain
        766 mV at 30 dB gain
        583 mV at 32 dB gain

        Input impedance
        13 - 16.7k ohms
        Amplifier Classification
        Class D
        Circuit Topology
        Texas Instruments TAS5613
        Speaker output channels
        1
        Input connection type
        RCA
        Speaker output connection type

        Screw terminals
        PCB solder connectors

        DSP function
        -
        Bluetooth
        -
        EQ Adjustment
        -
        Power Requirements
        25 - 38 VDC
        Power inlet connector

        Screw terminals
        DC jack

        Current limit
        -
        Under/over voltage protection
        Dimensions (L x W x H)
        152.4 x 114.3 mm
        Mounting hole spacing
        -
        Mounting hole diameter
        -
