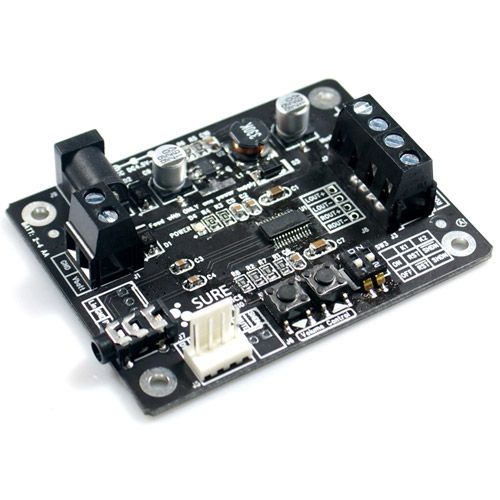

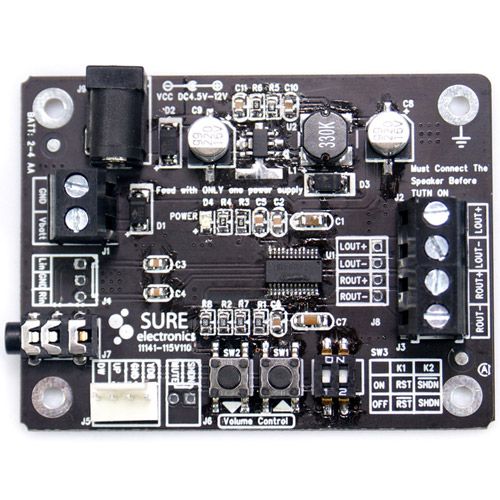

        AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

        Sure Electronics AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

        €14,95

        3 In stock

        Add to cart

        Sure Electronics AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Sure Electronics
        Show all Amplifier modules
        2 x 2 W
        AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board
        AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board
        AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board
        AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board
        € 12,36€ 14,95 3 In stock
        • -5% Purchase 4 for only € 14,20 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board
        AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board
        AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board
        AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

        Product description Sure Electronics AA-AB32131 Amplifier module

        This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load.



        Highlights

        • Pre-assembled, pre-tested
        • Small size but big sound quality
        • Perfect Class-D architecture
        • Fully-bridged stereo output
        • Two channels—each up to 2W
        • Up to 88% efficiency
        • Does not require a heat sink for most applications



        Product details

        Sure Electronics AA-AB32131 2x2W 4 Ohm Class-D Audio Amplifier Board

        Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.

        This high-quality dual channel Class-D audio amplifier board is capable of delivering 2W per channel of output power into a 4 ohm load. A PAM's PAM8803 IC offers ultra-low total harmonic distortion and noise, allowing it to deliver outstanding sound reproduction. Especially suitable for small speakers with an impedance of 4 or 8 ohms. This board can be powered by an external DC supply (4.5V to 12V) via a power port, 2.5V to 4.0V DC via a terminal block, or 2 to 3 AA batteries. Audio signal is input by a 2510 connector or 3.5 mm headphone jack, and volume control is adjustable by on-board buttons.

        Show more

        Specifications

        Article number
        AA-AB32131
        EAN
        0844632088117
        Rated power output

        2 x 2.6 watts at 4 ohms
        2 x 1.5 watts at 8 ohms

        Minimum load
        4 ohms
        Efficiency
        70 - 75 %
        Signal-to-noise ratio (SNR)
        84 dB
        Distortion

        0.17 % THD at 1 kHz, 4 ohms, 1 watt
        0.19 % THD at 1 kHz, 8 ohms, 0.5 watt

        Frequency response
        20 - 20,000 Hz
        Gain
        23.8 dB
        Input sensitivity
        0.72 V
        Input impedance
        60k ohms
        Amplifier Classification
        Class D
        Circuit Topology
        Diodes Incorporated PAM8803
        Speaker output channels
        2
        Input connection type

        3.5 mm jack
        PCB solder connection

        Speaker output connection type
        Screw terminal
        DSP function
        -
        Bluetooth
        -
        EQ Adjustment
        -
        Power Requirements

        4.5 - 12 VDC (DC jack)
        2.5 - 4 VDC (PCB screw terminal)

        Power inlet connector

        2.1 mm DC jack
        PCB solder connection

        Current limit
        0.46 A
        Under/over voltage protection
        -
        Dimensions (L x W x H)
        72 x 55 x 18 mm
        Mounting hole spacing
        62 x 45 mm
        Mounting hole diameter
        -

        Show more

        Reviews

        0 reviews
        Review this product

        There are no reviews written yet about this product..
