        Product description Sure Electronics AA-AK11231 Mono Power Amplifier Kit

        This small, easy-to-assemble mono audio amplifier kit's Class-AB design provides up to 10 watts of pristine, accurate audio reproduction combined with an authoritative bass punch.



        Highlights

        • Small, mono amplifier kit
        • Great kit for beginners
        • Supplies up to 10W of clean, clear power
        • Designed to work with 4.5 to 25 VDC power supplies (sold separately)



        Product details

        Sure Electronics AA-AK11231 1 X 10 Watt 4 Ohm Class AB Audio Amplifier DIY Kit



        This Class-AB mono audio amplifier kit incorporates the TDA2030 power amplifier IC to deliver pristine, accurate audio reproduction combined with an authoritative bass punch, all in a small, hand-held sized package.



        Assembly is accomplished in minutes, due to the easy to mount and solder through-hole components. Able to be powered by a wide voltage range of 4.5 to 25 VDC, this amplifier can suit a wide range of applications: active speakers, mini subwoofers, even mobile audio applications. Power supply not included.

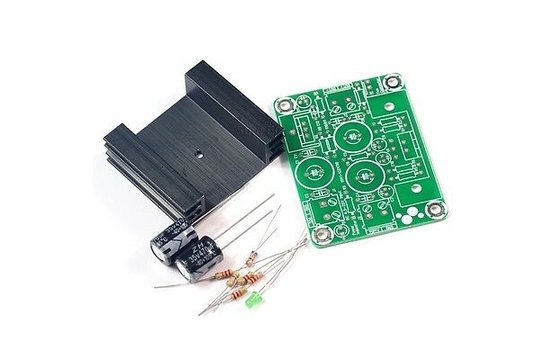

        Includes:

        • PCB (L x W): 2-7/16" x 1-7/8"
        • One TDA2030 amplifier IC
        • Resistors:
          One 680Ω (blue, gray, red, gold stripes)
          One 4.7Ω (yellow, red, orange stripes)
          One 4.7 kΩ (yellow, purple, red, gold stripes)
          Four 22 kΩ (red, red, orange, gold stripes)
        • Capacitors:
          Three  470 μF, 35V electrolytic (black, white stripe indicates negative lead)
          Four 22 μ  35V electrolytic (black, white stripe indicates negative lead)
          Four 1 μF monolithic (small yellow, non-polarized)
        • One green LED
        • One heatsink
        • Three screws (two for mounting the heatsink to the PCB, one for mounting the IC to the heatsink)
        • One screw nut (for securing the IC to the heatsink)

        Specifications

        Article number
        AA-AK11231
        EAN
        6959687301006
        Rated power output
        1 x 10 Watt (4 Ohm)
        Frequency response
        40 to 15,000 Hz
        Input impedance
        5 MΩ
        Amplifier Classification
        AB
        Power Requirements
        4,5 tot 25 VDC
