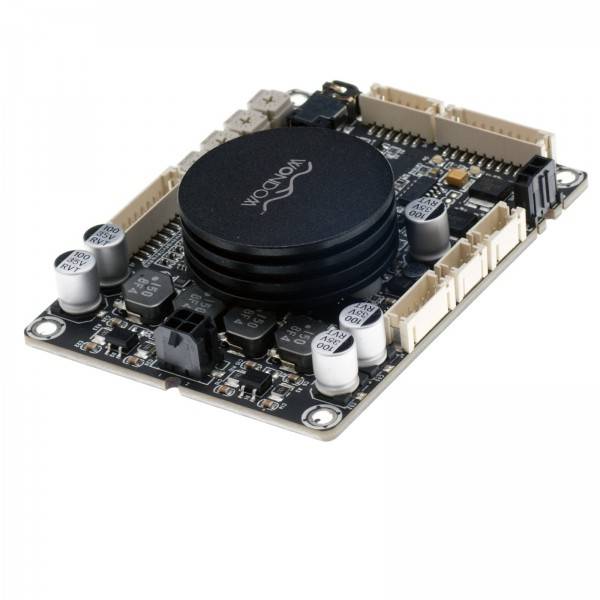

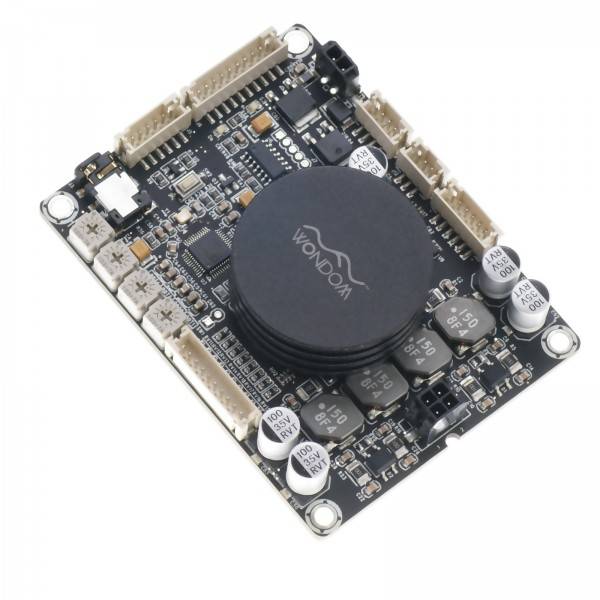

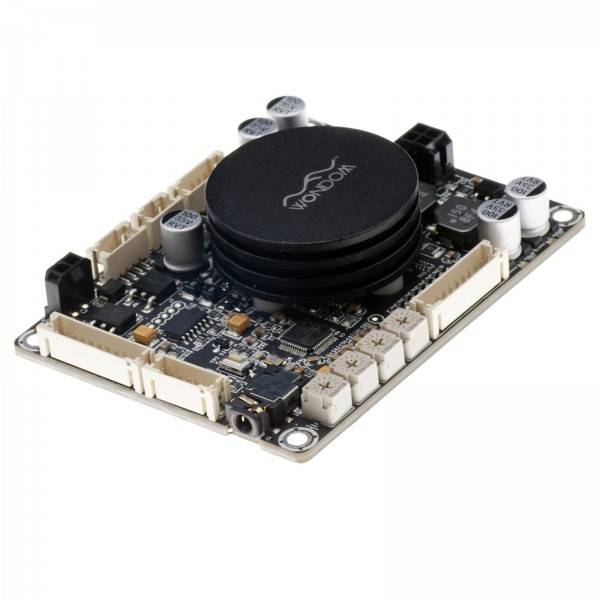

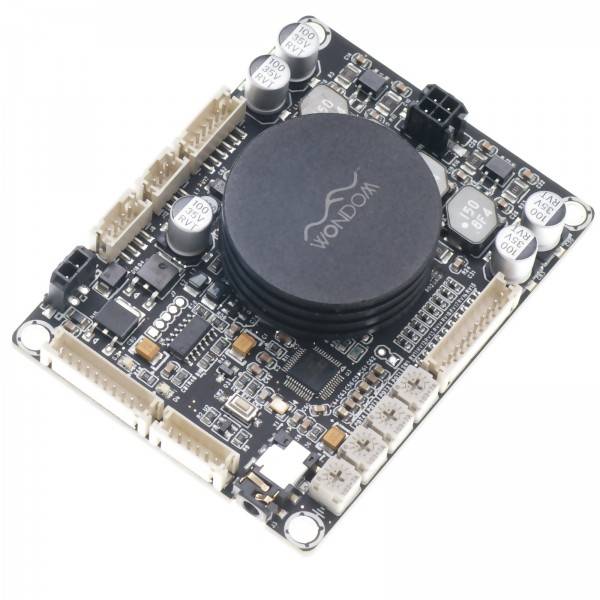

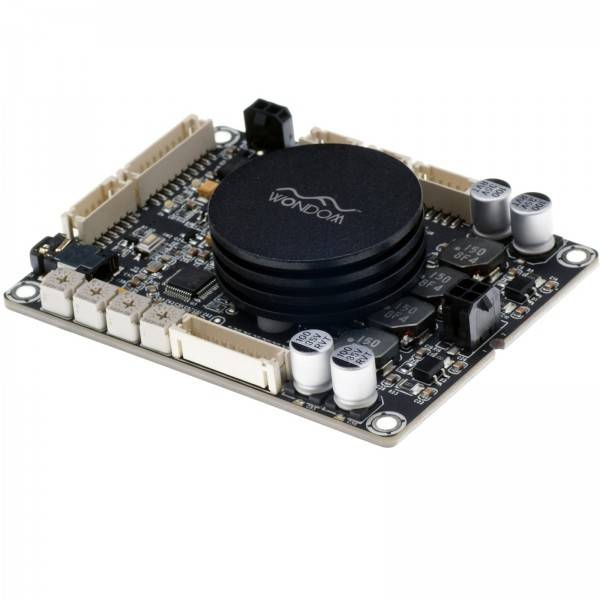

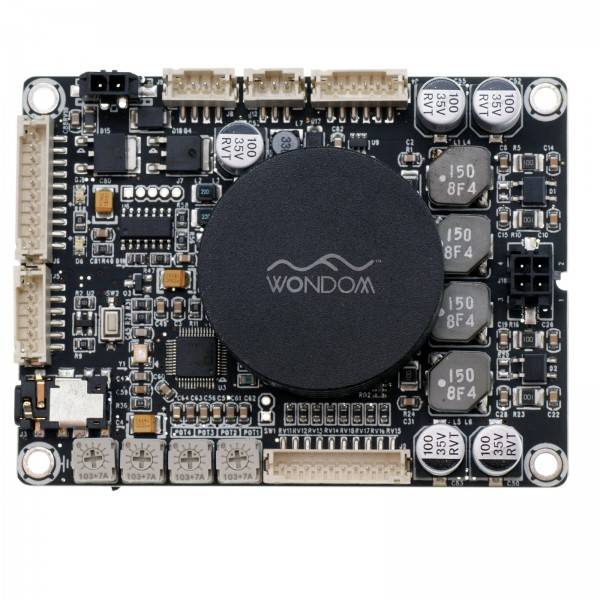

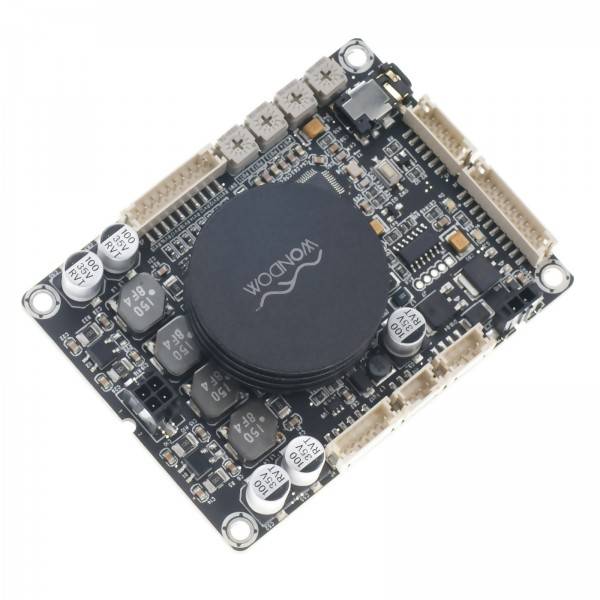

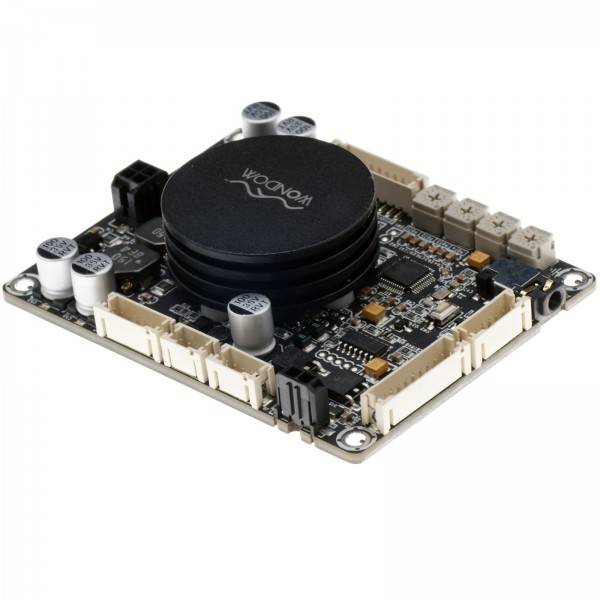

      AA-JA31181 1x 100 Watt Class D Audio Amplifier Board

      Sure Electronics AA-JA31181 1x 100 Watt Class D Audio Amplifier Board

      €44,95

      2 In stock

      Sure Electronics AA-JA31181 1x 100 Watt Class D Audio Amplifier Board

      3 reviews
      4 from 5
      3 reviews
      5 stars
      67%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 star
      0%
      View all reviews
      € 44,95 2 In stock
      • -5% Purchase 4 for only € 42,70 per piece
      • We ship to United States of America
      • Ordered now, shipped today
      • At least two years warranty
      • 45-day cooling-off period to return
      • Customer rating:
      Request quotation

      Product description Sure Electronics AA-JA31181 Amplifier module

      The Sure Electronics AA-JA31181 1x 100 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-100 an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board.



      Highlights

      • ADAU1707 Audio DSP Integrated
      • PBTL Configurable
      • Fully Compatible with JAB1 and JAB2
      • USBi or WONDOM In-Circuit Programmer
      • Debug Port for Sigma Studio through original
      • 15.2cm x 6.86cm PCB Size



      Connections:





      High Quality Audio Performance

      The Sure Electronics AA-JA31181 1x 100 Watt Class D Audio Amplifier Board with Audio DSP - JAB3-100 delivers high quality sound without drawing a lot power. The JAB series amplifier boards support Parallel Bridge Tied Load mode, under which two outputs are connected together as one channel. Under PBTL (mono) mode, either of the two inputs can work as the input connector. If audio signal is transmitted to both of the two inputs, the outputs are mixed. Connect the positive and negative output together for best efficiency



      Compatible with JAB1/ 2

      JAB1 and JAB2 provide a stereo solution for portable Bluetooth speakers with MPPT battery charging. More than the headphone amplifier, JAB3 also provides a flexible DSP solution. This means, when working with JAB1/2 main boards, it is a complete 4.0 (BTL), 2.1 and 0.2 (PBTL) audio system with control interfaces and signal processing. The application ranges from active louderspeaker concepts (digital 3 way 3 unit, 2 way 2 unit crossover, bass enhancement, etc.) and realize the transformation from 2.0 to 2.1 (when used with JAB2). With four potentiometers, customers can get the default function and adjust the volume of audio input, gain, cut-off frequency of bass and treble.



      DSP Integration

      With integrated debug port for Sigima Studio, customers can pre-program with Sure Electronics ICP1, ICP2 or the original Analog USBi to get more functions which includes equalization, crossover, bass enhancement, multiband dynamics processing, delay compensation, etc. The on board fully programmable 28-/56-bit audio DSP ADAU1701 from Analog device is competent in various signal processing applications. This process can compensate for real-world limitations of speakers, amplifiers, and listening environments, providing dramatic improvements in perceived audio quality. Most process is done in full 56-bit, double precision mode, resulting in very good low level signal performance. Two Σ-Δ ADCs and four Σ-Δ DACs integrated in this DSP provide a 98.5 dB analog input to analog output dynamic. Each ADC has a THD + N of -83 dB, and each DAC has a THD + N of -90 dB. The popular applications are active louderspeaker, public address system and active subwoofer, including stereo high pass filter and mixed low pass filter, also named with powered speaker controller.



      Extremely low standby power

      The Sure Electronics JAB3-100 will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit).







      Applications





      Package includes

      • 1 x Sure Electronics JAB3-100 1x 100 Watt Class D Audio Amplifier Board with Audio DSP
      • 1 x power cable
      • 1 x 4-conductor speaker cable
      • 1 x 5mm jack cable



      Specifications

      Article number
      AA-JA31181
      EAN
      0691046948854
      Rated power output
      100 watts at 4 ohms
      Minimum load
      2 ohms
      Efficiency
      84 %
      Signal-to-noise ratio (SNR)
      88 dB
      Distortion

      0.03 % THD at 200 Hz, 2 ohms, 1 watt
      0.05 % THD at 200 Hz, 2 ohms, 10 watts

      Frequency response
      20 - 20,000 Hz
      Gain
      26 dB
      Input sensitivity
      0.770 V
      Input impedance
      10k ohms
      Amplifier Classification
      Class D
      Circuit Topology
      Texas Instruments TPA3116
      Speaker output channels
      1
      Input connection type
      4 pin PCB connector
      Speaker output connection type
      4 pin PCB connector
      DSP function
      Bluetooth
      -
      EQ Adjustment
      Power Requirements
      12 - 26 VDC
      Power inlet connector
      2 pin PCB connector
      Current limit
      -
      Under/over voltage protection
      -
      Dimensions (L x W x H)
      91 x 69 x 23 mm
      Mounting hole spacing
      84 x 61 mm
      Mounting hole diameter
      3.5 mm

      Show more

      5 of 5
      Ik gebruik deze amp om een sub-woofer driver aan te sturen die ik uit een oude defecte sub van Philips had gehaald. Geprogrammeerd met de ICP5 wat in het begin moeizaam ging (sigma studio is nog steeds the way to go en check de Wondom site goed voor documentatie en basis config). Top op heden geen enkel probleem ervaren. Tevens compitabel met de Dayton Audio KAB-PMV3 Panel Mount for KAB-v3
      By Knoose on 1 March 2023
      5 of 5
      -
      By Bastian on 29 December 2022
