        Product description Sure Electronics AA-JA32151 Amplifier module

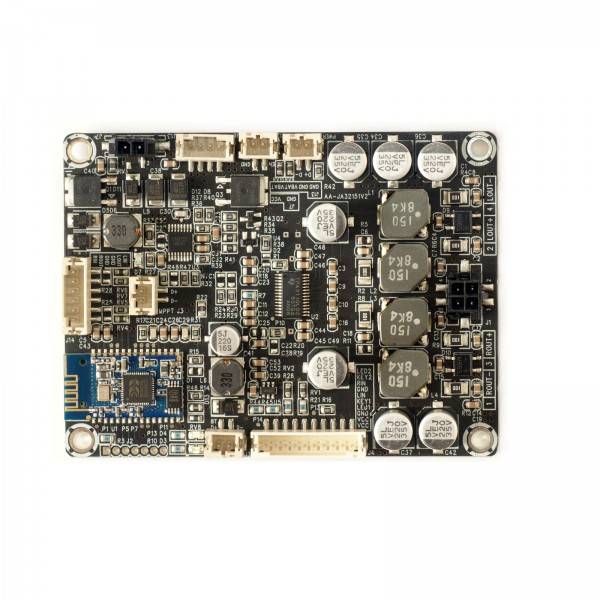

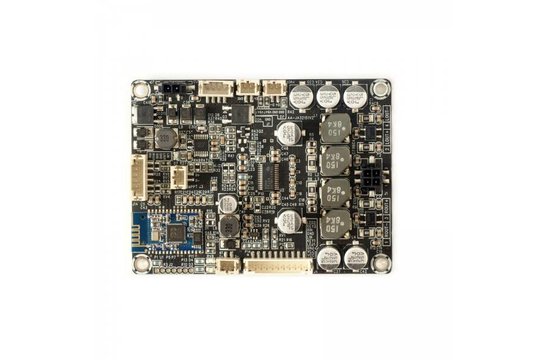

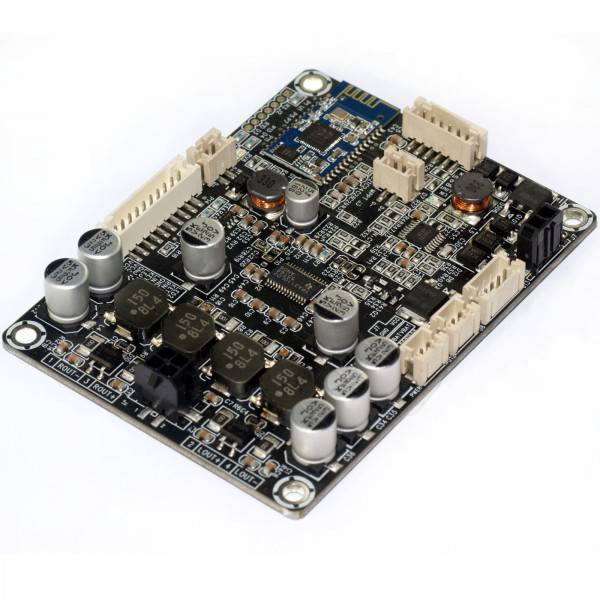

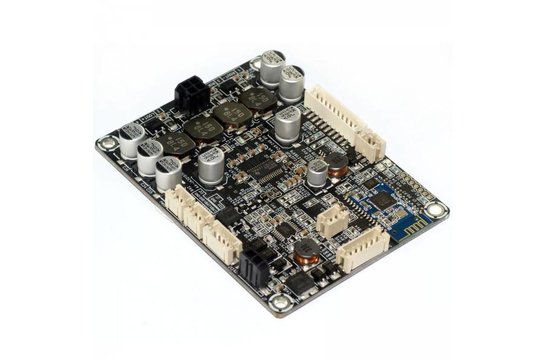

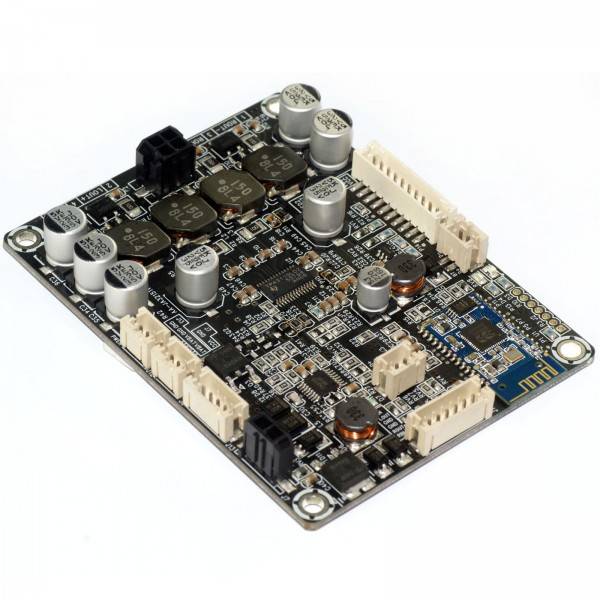

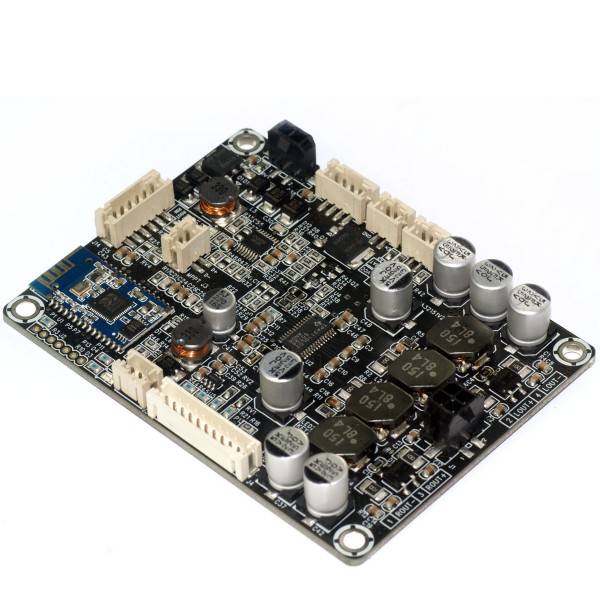

        The Sure Electronics 2 x 15 Watt 8 Ohm Class D Audio Amplifier with Bluetooth 2.1 – JAB1 is an amplifier board easily built in to any project, speaker build or other DIY project in need of a small amplifier board with enough power to drive stereo speakers.



        Highlights

        • Bluetooth V2.1 +EDR, A2DP
        • LED Status Indicators
        • Size: 9.14cm x 6.86cm

        Tip:  Take a look at the table in this blogpost to see which power supply to choose for this product.

        Connections:

          width=



        High Quality Audio Performance

        The Sure Electronics AA-JA32151 2 x 15 Watt 8 Ohm Class D Audio Amplifier with Bluetooth 2.1 – JAB1 delivers high quality sound without drawing a lot power. This is due to the highly efficient Texas Instruments TPA3110 Class-D amplifier chip. The TI TPA3110 operates at 90% efficiency, thus eliminating the need for a heat sink and reducing its overall size. Its high efficiency becomes a major advantage when powering from batteries as it prolongs the playtime of a single charge. Its ultra-low distortion and pop-free performance make this hi-fi amplifier board an integral asset in any quality audio build.



        Extremely low standby power

        The Sure Electronics JAB1 will remain powered up to 7 days in standby mode even while Bluetooth is enabled. This standby time is approximately 4x longer than the competition due to the use of a high efficiency DC/DC converter which minimizes power consumption thanks to the employment of a micro controller as the PMU (Power Management Unit).



        Integrated Bluetooth

        The Sure Electronics JAB1 Amplifier Board offers a built-in Bluetooth 2.1 module which enables easy pairing with any mobile device or tablet for convenient access to audio. It is also CE and FCC ready for certification purposes.



        Multiple Power Paths

        The Sure Electronics JAB1 features numerous power options for creative, wireless sound projects. This flexibility eliminates limitations often caused by most other amp boards. Therefore, your design can be cord restricted or truly portable.



        Applications

        width=



        Package includes

        • 1 x Sure Electronics AA-JA32151 2 x 15 Watt 8 Ohm Class D Audio Amplifier with Bluetooth 2.1
        • 1 x power cable
        • 1 x 4-conductor speaker cable

        Show more

        Specifications

        Article number
        AA-JA32151
        EAN
        0691046948809
        Rated power output
        2 x 15 watts at 8 ohms
        Minimum load
        4 ohms
        Efficiency
        90 %
        Signal-to-noise ratio (SNR)
        82 dB
        Distortion
        0.07 % THD at 1 kHz, 8 ohms, 10 watts
        Frequency response
        22 - 22,000 Hz
        Gain
        36 dB
        Input sensitivity
        -
        Input impedance
        -
        Amplifier Classification
        Class D
        Circuit Topology
        Texas Instruments TPA3110
        Speaker output channels
        2
        Input connection type

        4 pin PCB connector
        Bluetooth

        Speaker output connection type
        4 pin PCB connector
        DSP function
        -
        Bluetooth
        version 2.1
        EQ Adjustment
        -
        Power Requirements
        12 - 24 VDC
        Power inlet connector
        2 pin PCB connector
        Current limit
        -
        Under/over voltage protection
        -
        Dimensions (L x W x H)
        91 x 69 x 23 mm
        Mounting hole spacing
        84 x 61 mm
        Mounting hole diameter
        3.5 mm
