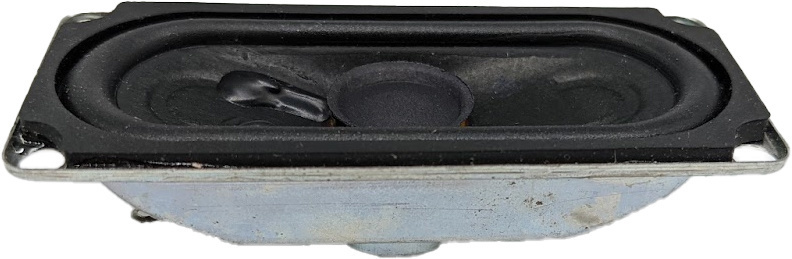

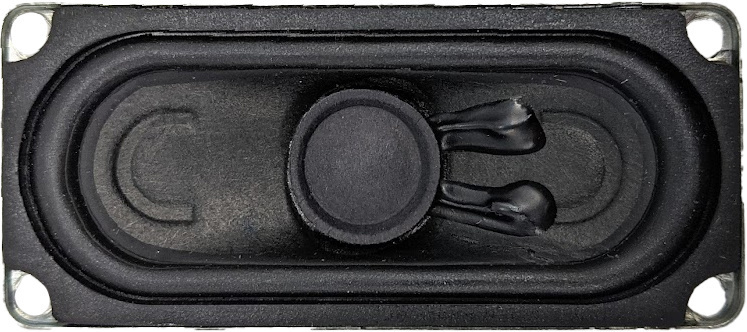

        AA-SP15118 SUFR730 270X30mm Full-range Woofer

        Sure Electronics AA-SP15118 SUFR730 270X30mm Full-range Woofer

        €3,95

        4 In stock

        Add to cart

        Sure Electronics AA-SP15118 SUFR730 270X30mm Full-range Woofer

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Sure Electronics
        Show all Full-range woofer
        70 x 30mm" | 8 Ω
        AA-SP15118 SUFR730 270X30mm Full-range Woofer
        AA-SP15118 SUFR730 270X30mm Full-range Woofer
        AA-SP15118 SUFR730 270X30mm Full-range Woofer
        AA-SP15118 SUFR730 270X30mm Full-range Woofer
        € 3,26€ 3,95 4 In stock
        • -5% Purchase 4 for only € 3,75 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped today
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        AA-SP15118 SUFR730 270X30mm Full-range Woofer
        AA-SP15118 SUFR730 270X30mm Full-range Woofer
        AA-SP15118 SUFR730 270X30mm Full-range Woofer
        AA-SP15118 SUFR730 270X30mm Full-range Woofer

        Product description Sure Electronics AA-SP15118 SUFR7302 Full-range Woofer

        Highlights

        • Minimal resonance from paper cone with foam surround.
        • Powerful neodymium motor for lightweight and minimal size.
        • Flat mounting flange for easy installation and suitable for panel mounting.
        • Optimized for voice band.



        Product Details

        Sure Electronics AA-SP15118 SUFR730 270X30mm Full-range Woofer



        The SUFR7302 70x30mm, 2-Watt, 8-Ohm is a neodymium powered full range speaker specially designed for DIY and kiosk applications. Its small size, light weight and high build quality make it suitable for wide DIY and kiosk applications. SUFR7302 features paper cone with foam surround for minimal resonance. It is specially designed to have a flat mounting flange for easy installation. Sure Electronics provides a free cabinet design which is available to download from their website and is optimized for panel mounting. Their cabinet prototype has been tested to work fine with their SUFR7302. It provides high cost-performance (CP) value.

        Show more

        Specifications

        Article number
        AA-SP15118
        EAN
        6959687300634
        Woofer Type
        Full-range Woofer
        Nominal Diameter
        70 x 30 mm
        Power Handling (RMS)
        2 W
        Power Handling (max)
        5 W
        Impedance (Z)
        7.27Ω
        Sensitivity (SPL at 1m / 2.83V)
        81 dB
        Voice Coil Diameter
        12.7mm
        DC Resistance (Re)
        7.17Ω
        Voice Coil Inductance (Le)
        0.05mH at 1kHz
        Resonant Frequency (Fs)
        300 Hz
        Mechanical Q (Qms)
        4.66
        Electromagnetic Q (Qes)
        6.97
        Total Q (Qts)
        2.79
        Diaphragm Mass Inc. Airload (Mms)
        0.70g
        Mechanical Compliance of Suspension (Cms)
        0.40m/N
        Surface Area of Cone (Sd)
        11.51cm²
        BL Product (BL)
        1.20Tm
        Compliance Equivalent Volume (Vas)
        0.03L
        Maximum Linear Excursion (Xmax)
        0.5 mm
        Driver's Mechanical Losses (Rms)
        0.30kg/s
        Cone / Diaphragm Material
        Paper

        Show more
