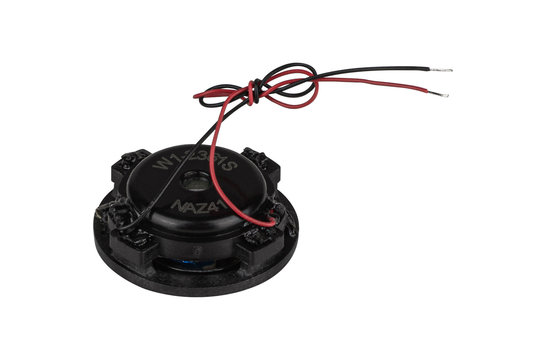

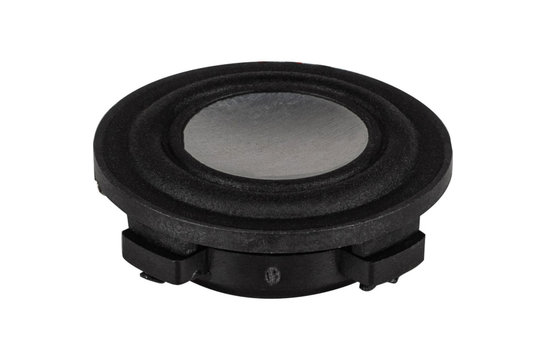

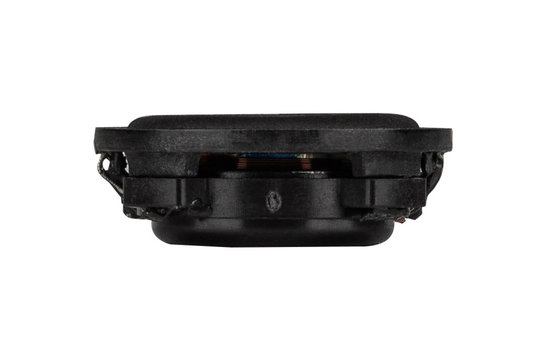

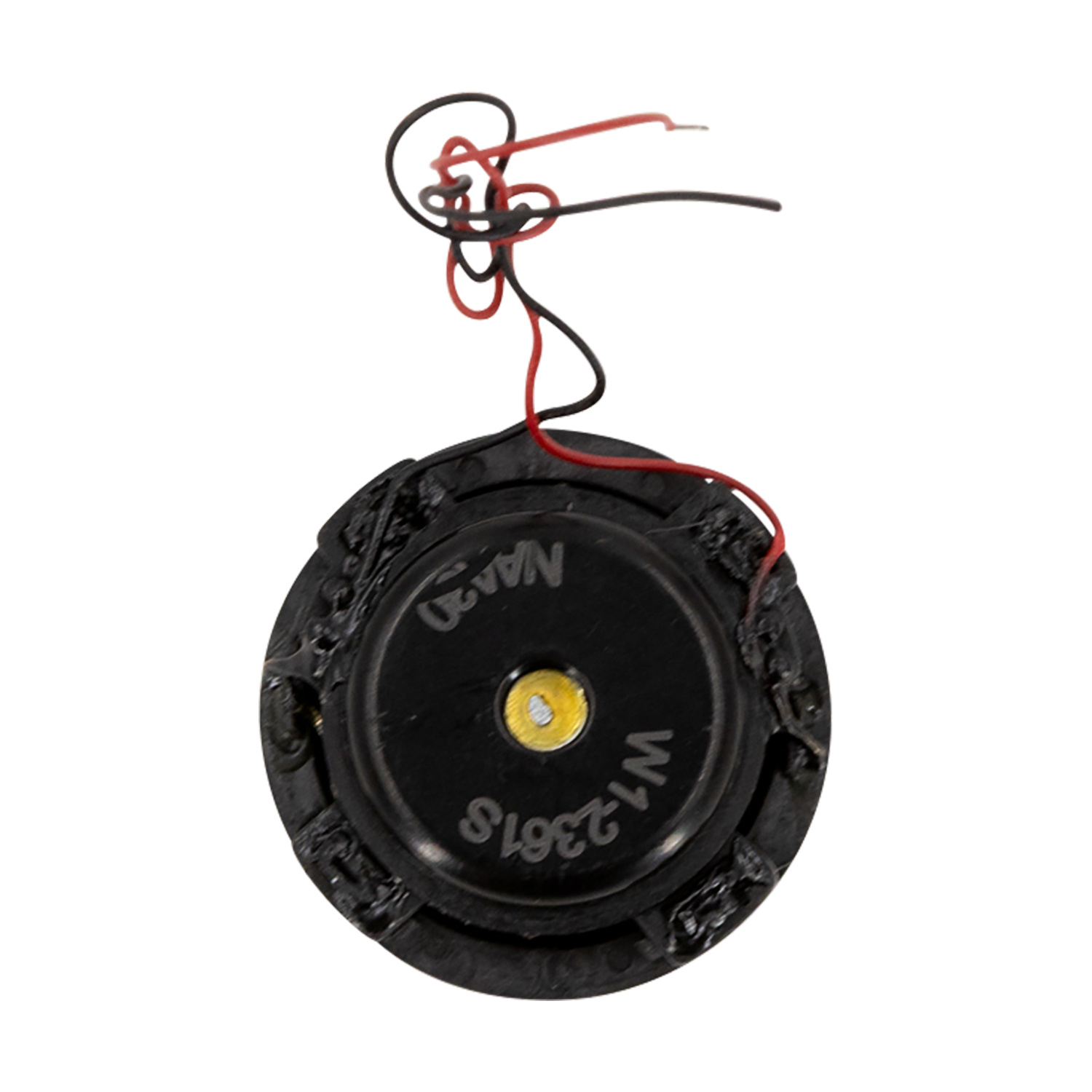

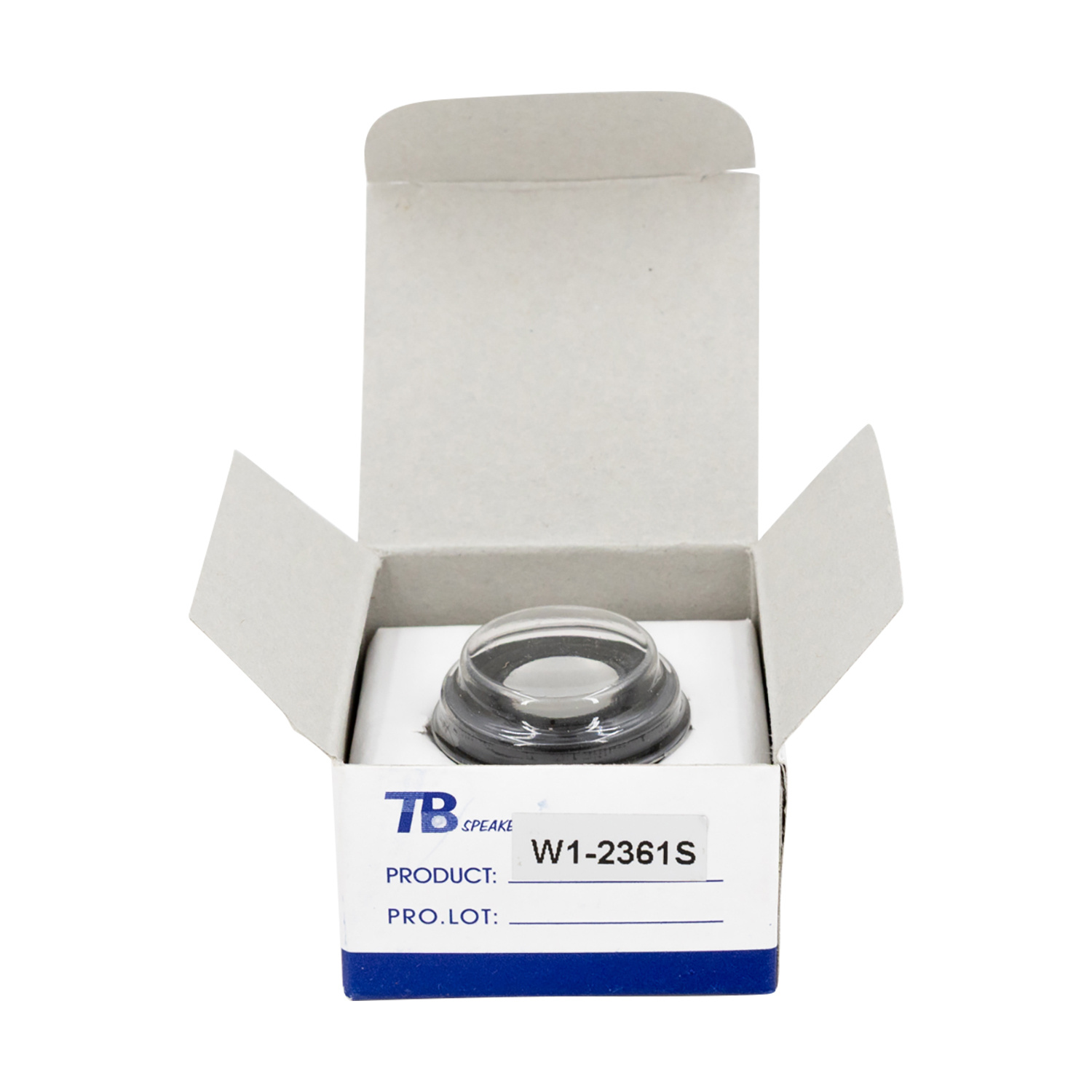

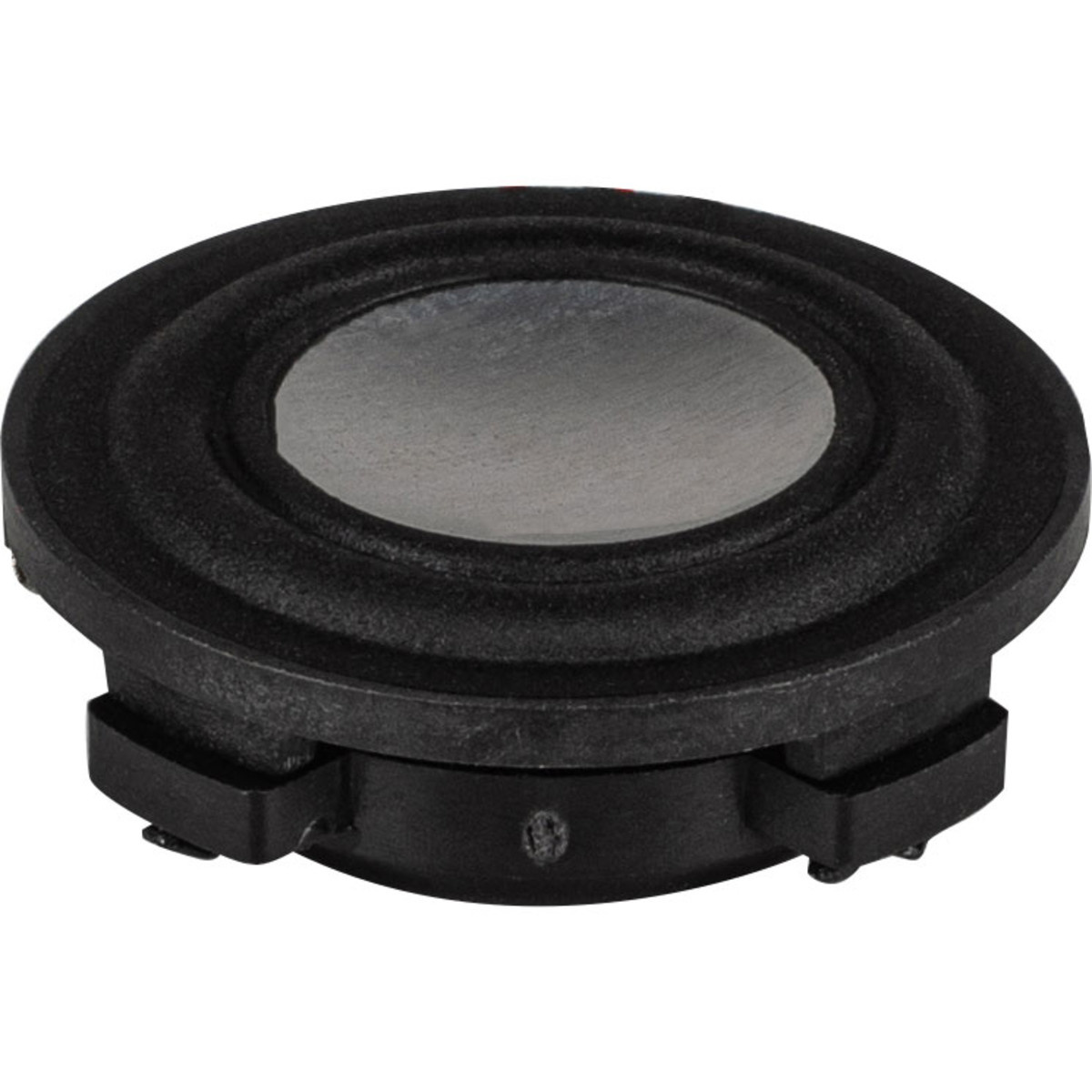

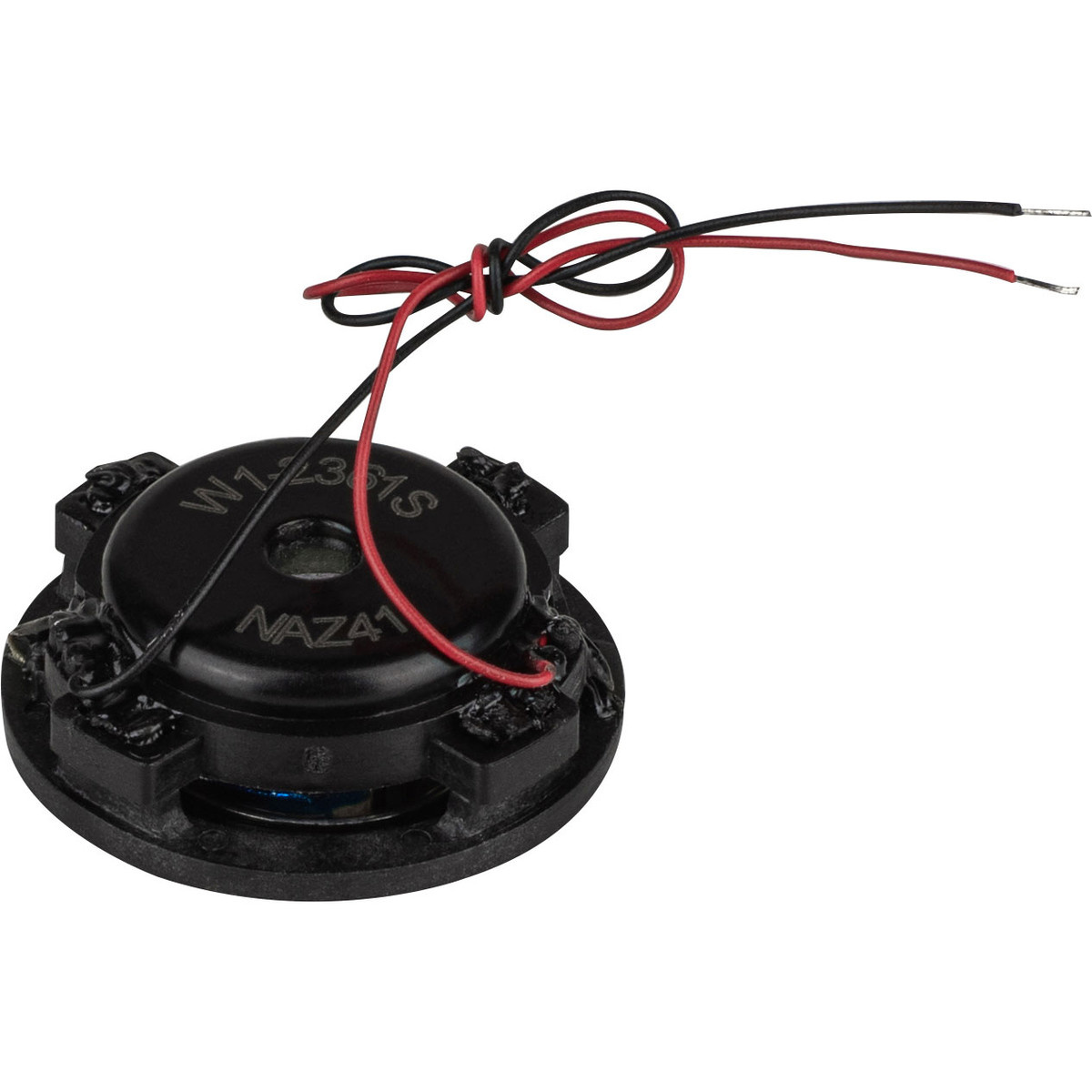

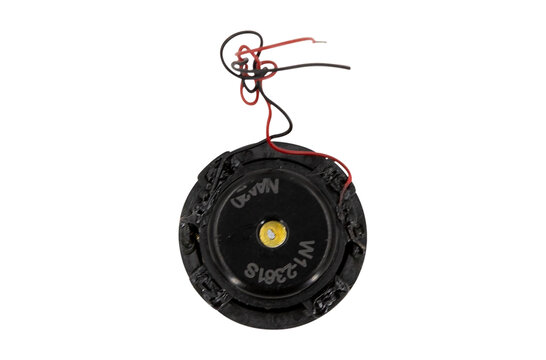

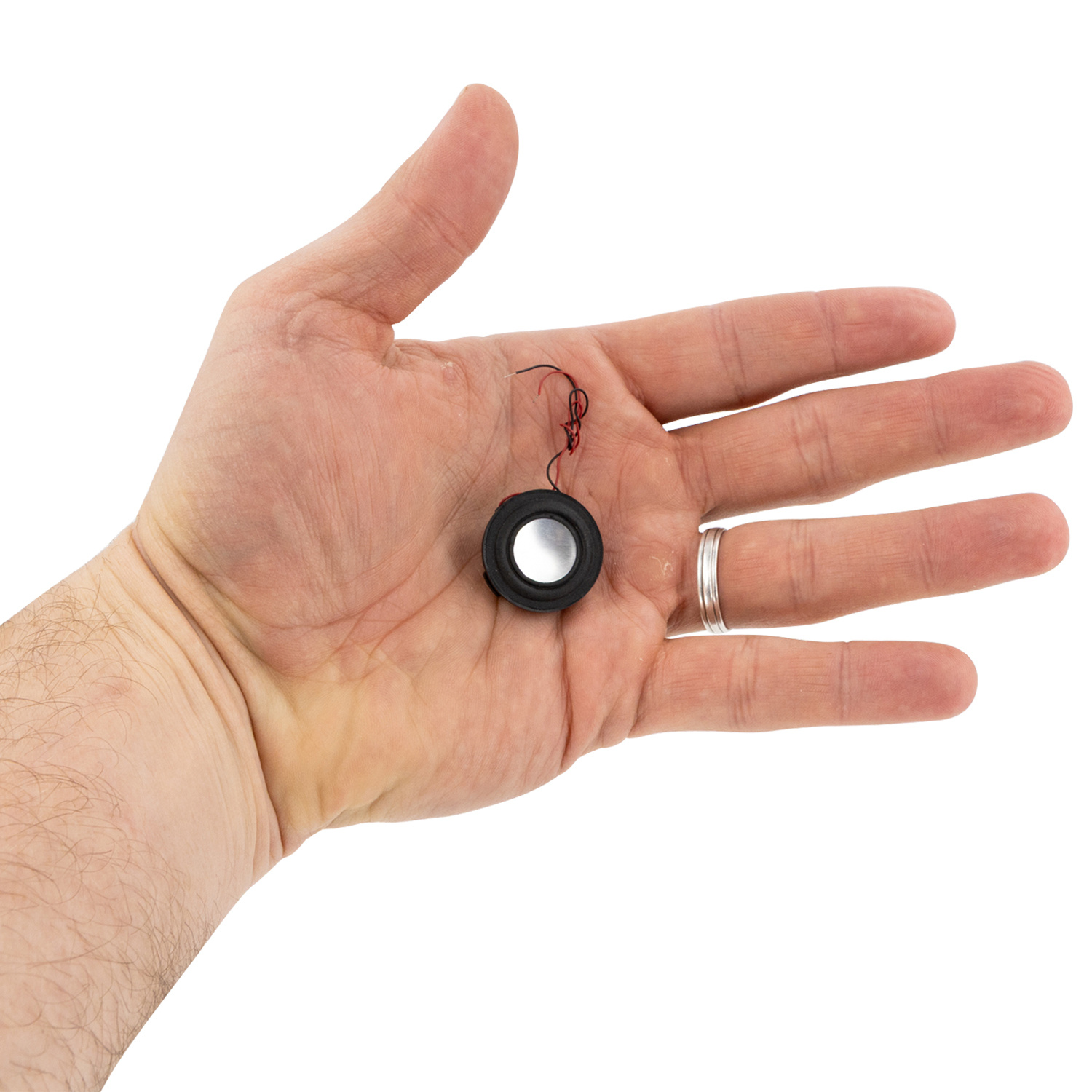

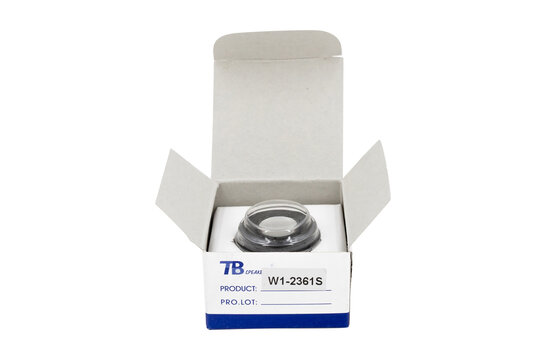

        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm

        Tang Band W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm

        €31,45

        Out of stock

        Add to cart

        Tang Band W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm

        1 reviews
        4 from 5
        1 reviews
        5 stars
        0%
        4 stars
        100%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Tang Band
        Show all Micro speaker
        1" | 4 Ω
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        € 25,99€ 31,45 Out of stock
        • -5% Purchase 4 for only € 29,88 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm
        W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm

        Product description Tang Band W1-2361S Low Profile Full-Range Woofer

        With an extremely low-profile design, Tang Band's W1-2361S 1" aluminum cone full-range driver makes it possible to add the high-quality audio capability to almost anything. With a compact but powerful neodymium motor and innovative frame and suspension design, this driver requires less than 3/8" of mounting depth allowing it to fit into almost anything. The wide bandwidth capability and low distortion ensure high fidelity audio output.



        Highlights

        • Less than 3/8" mounting depth makes it easy to add high fidelity audio to almost anything
        • The smooth and natural response from 220 to 20,000 Hz for true full-range response
        • High energy neodymium magnet and the innovative suspension keeps size as small as possible
        • 82 dB sensitivity for surprising output capability from a driver this small
        • Rigid and lightweight aluminum cone delivers detailed and accurate high frequency



        Product Details

        Tang Band W1-2361S 1" Low Profile Aluminum Cone Full-Range Woofer 4 Ohm

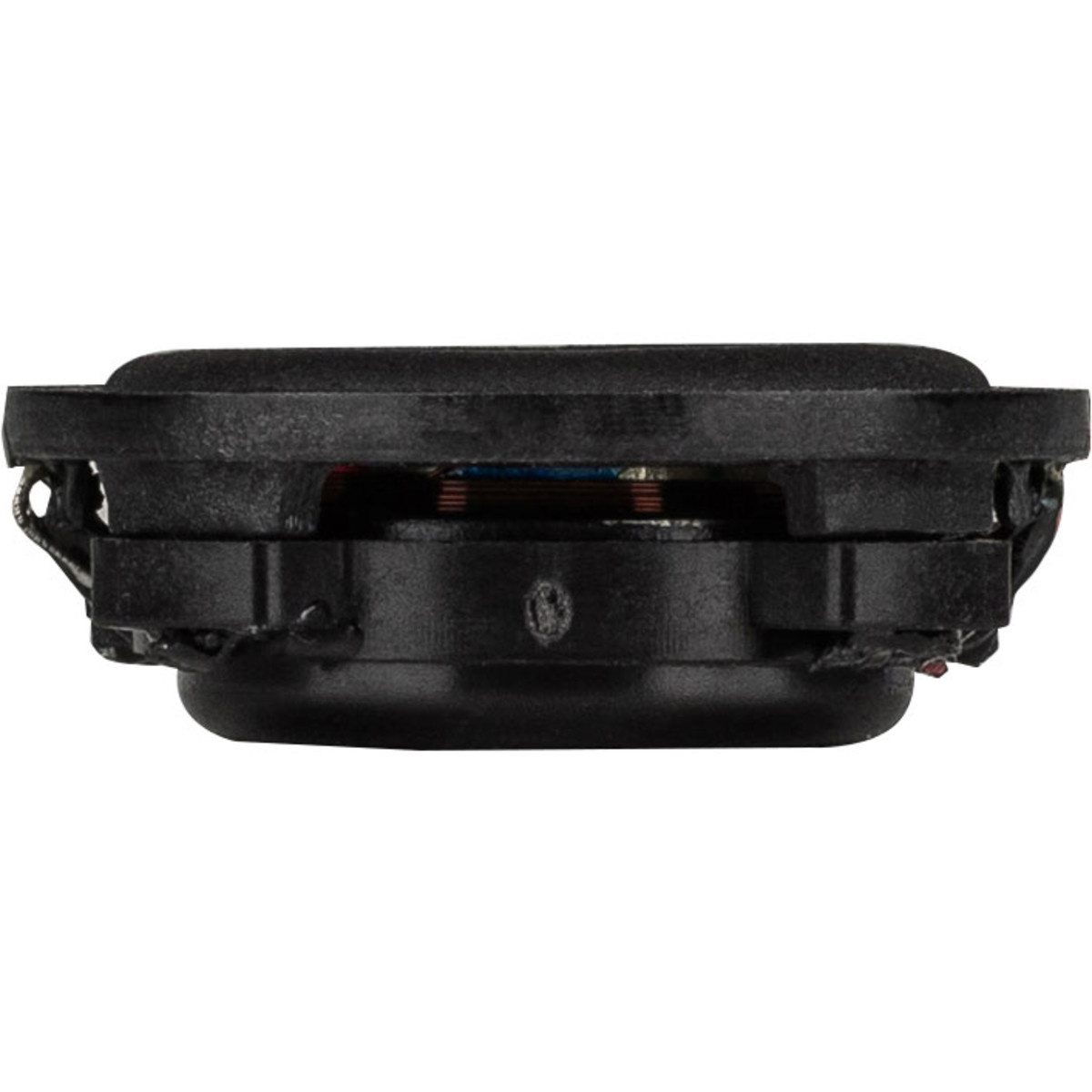

        The ultra-slim W1-2361S 1" aluminum cone full-range driver from Tang Band is the perfect solution for adding audio to the smallest projects and designs. Capable 220 to 20,000 Hz frequency response, this driver will produce excellent sound quality with incredible detail. The high-energy neodymium motor keeps the size as small as possible without sacrificing efficiency or output capability. An innovative suspension and frame design keep mounting depth less than 3/8" for use in locations where other drivers just won't fit. Finally, the lightweight aluminum diaphragm delivers accurate sound quality with low distortion, while controlling resonances to eliminate hash peaks. The W1-2361S makes it possible to add the high-fidelity audio capability to almost anything.

        Show more

        Specifications

        Article number
        W1-2361S
        EAN
        0848864066639
        Woofer Type
        Full Range Woofer
        Nominal Diameter
        1"
        Power Handling (RMS)
        1 Watts
        Power Handling (max)
        2 Watts
        Impedance (Z)
        4 Ohms
        Sensitivity (SPL at 1m / 2.83V)
        81 dB
        Frequency Response
        220 to 20,000Hz
        Voice Coil Diameter
        13.28"
        DC Resistance (Re)
        3.6Ω
        Voice Coil Inductance (Le)
        0.0036mH
        Resonant Frequency (Fs)
        220 Hz
        Mechanical Q (Qms)
        0.35
        Electromagnetic Q (Qes)
        0.38
        Total Q (Qts)
        0.18
        Diaphragm Mass Inc. Airload (Mms)
        0.13g
        Moving Mass Of Diaphragm (Mmd)
        0.13
        Mechanical Compliance of Suspension (Cms)
        3.75mm/N
        Surface Area of Cone (Sd)
        3.6cm²
        BL Product (BL)
        1.33T·m
        Compliance Equivalent Volume (Vas)
        0.0116ft³
        Maximum Linear Excursion (Xmax)
        0.25 mm
        Cone / Diaphragm Material
        Aluminium
        Surround Material
        Santoprene
        Basket / Frame Material
        Polymer
        Magnet Material
        Neodymium
        Overall Outside Diameter
        0.984"
        Overall Depth
        0.361"
        Baffle Cutout Diameter
        .875"

        Show more

        Reviews

        1 reviews
        Review this product
        4 of 5
        I use this one as a tweeter for a 2-way speaker. Selected it for its small size, expecting perfect sound in all directions. That it delivers. Unfortunately, the sensitivity is very low, and power handling is not amazing. It cannot match the loudness of the woofer part of my speaker... and i have already blown one. The price is quite high for what it is, i think.
        By Viktor Titov on 21 October 2023
