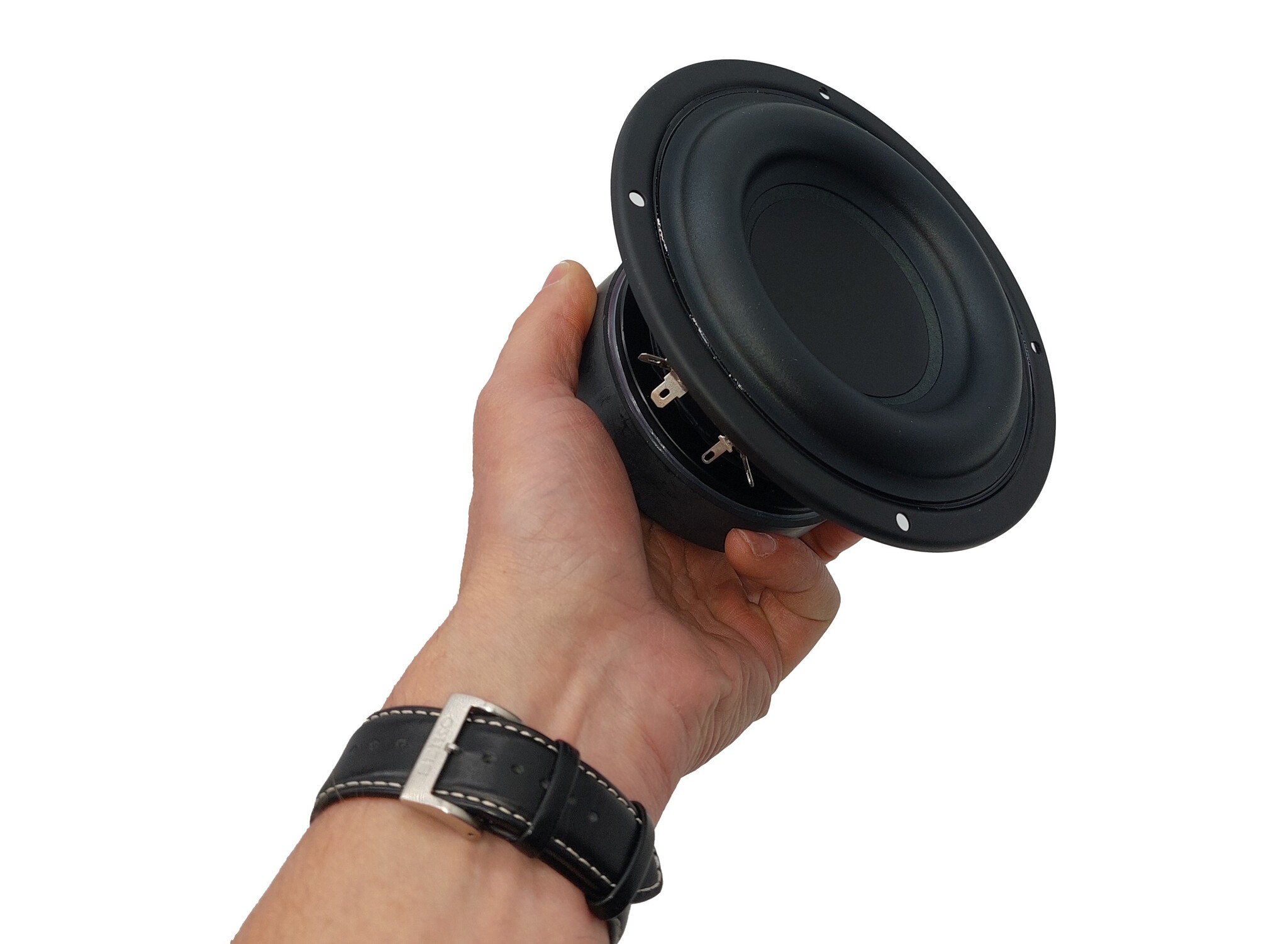

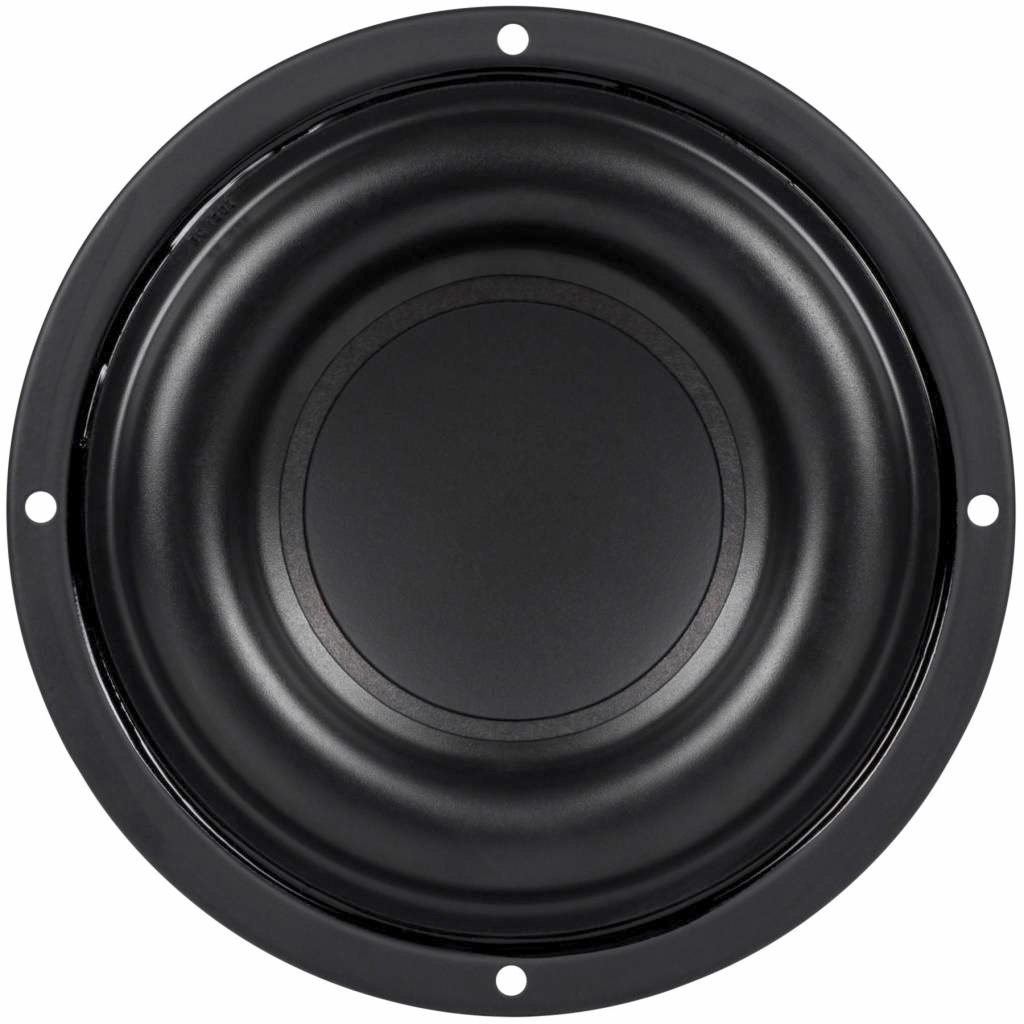

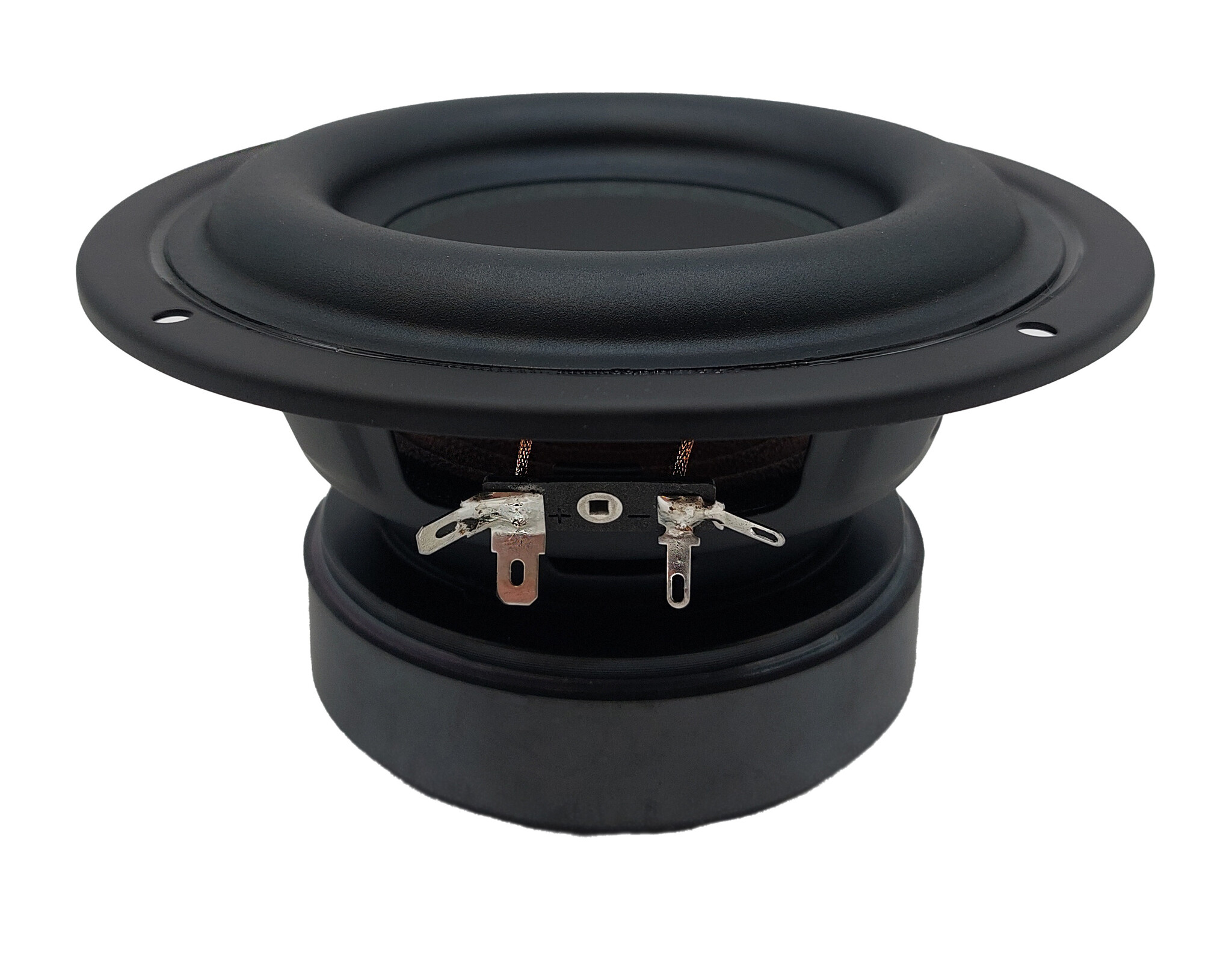

Tang Band W5-1138SMF Subwoofer audio components

€54,95

10+ In stock

Add to cart

Tang Band W5-1138SMF Subwoofer audio components

31 reviews

Brand: Tang Band

Show all Subwoofer

5¼" | 4 Ω

€ 54,⁹⁵ 10+ In stock

We ship to United States of America
Ordered now, shipped tomorrow
At least two years warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description Tang Band W5-1138SMF Subwoofer

Tang Band's unique W5-1138SMF is the 5-1/4" driver of choice for ultra-miniaturized subwoofer systems intended for computer workstations, offices, and even mobile audio applications.

Highlights of the W5-1138SMF subwoofer

Long-throw high-power loading design (X-max = 9.25mm)
Paper cone with big roll, less damping rubber surround
Vented pole piece
Stamping steel basket
Suitable for subwoofer application

Product details Tang Band W5-1138SMF

Tang Band W5-1138SMF 5-1/4" Paper Cone Subwoofer Speaker

Unleash Big Bass in a Compact Package. The one-of-a-kind Tang Band W5-1138SMF 5-1/4" subwoofer has a generous 9.25 mm of Xmax. A wide roll surround, raised flat spider, and large 1-1/4" 4-layer voice coil ensure impressive bass performance and high power handling. The vented pole and vented spider allow good airflow around the coil to improve heat dissipation and reduce power compression. The ultimate miniature subwoofer driver!

Experience powerful, room-filling bass in the tiniest of spaces with the Tang Band Ultra-Miniaturized Subwoofer. Designed to deliver impressive low-frequency performance in a compact form factor, this subwoofer is perfect for applications where space is limited but audio quality is paramount. Get ready to redefine your audio experience with big bass from a small package.

Uncompromising Sound Quality

Don't let its size fool you. Tang Band's unique W5-1138SMF is designed for exceptional bass reproduction without sacrificing audio fidelity. Thanks to advanced technology and high-quality components, this compact powerhouse ensures that every beat and rumble can be felt. Prepare for a world of rich, deep sound that will elevate your audio system to new heights.

Space-Saving Design

This ultimate miniature subwoofer driver is a perfect solution for environments where space is at a premium. It can be seamlessly integrated into small enclosures, custom-built cabinets, and even mobile audio applications. The sleek design ensures that it blends effortlessly with your existing audio setup without compromising on performance.

Efficient Power Handling

Despite its small size, the ultimate miniature subwoofer driver is designed to handle power efficiently. With a robust power rating, it can deliver impressive bass response even with low-powered amplifiers, making it ideal for setups where space and power constraints exist. Experience thunderous bass without taking up a lot of space, and enjoy a well-balanced audio system that delivers the full spectrum of sound.

PR14-B Subwoofer bundle

Tang Band W5-1138SMF and PR14 join forces for Incredible bass performance! Check out the Tang Band PR14-B Subwoofer bundle here.

FAQ about the Tang Band W5-1138SMF

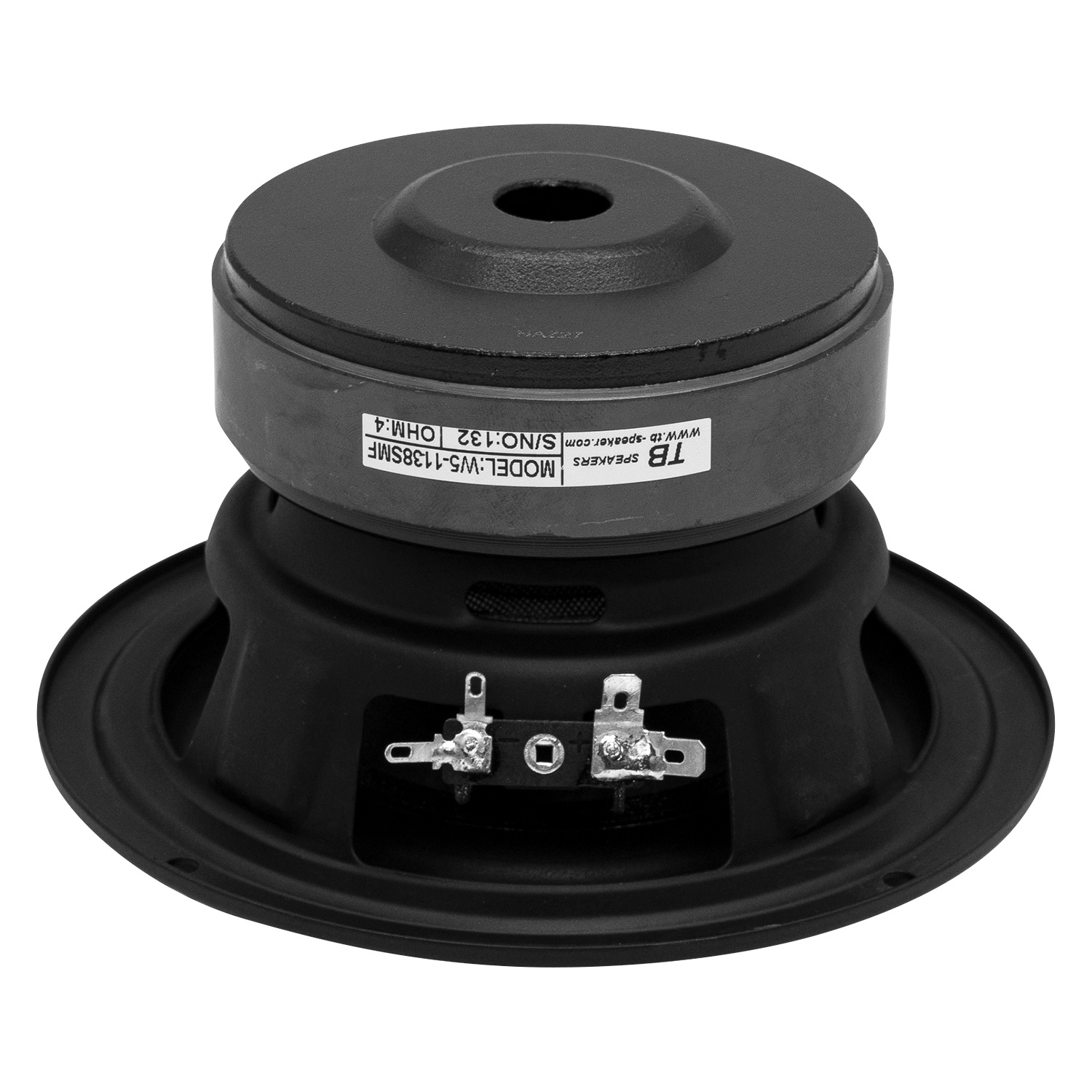

What crimp on disconnect sizes are advised for this woofer?

The smaller terminal is 2.8 mm, the larger would be 5.2 mm

I would like to attempt to recreate the Boenicke W5. Is the W5-1138SMF a good match for the subwoofer in this build?

That sounds like a cool project! The W5-1138SMF is well regarded on many DIY-forums as a suitable driver. Please visit our DIY audio gallery page for more inspiration.

Specifications

Article number: W5-1138SMF
EAN: 0844632092855
Woofer Type: Subwoofer
Nominal Diameter: 5-1/4"
Power Handling (RMS): 40 Watts
Power Handling (max): 80 Watts
Impedance (Z): 4 ohms
Sensitivity (SPL at 1m / 2.83V): 85 dB
Frequency Response: 45 to 1,500 Hz
Voice Coil Diameter: 1.25"
DC Resistance (Re): 3.4 ohms
Voice Coil Inductance (Le): 0.34 mH
Resonant Frequency (Fs): 45 Hz
Mechanical Q (Qms): 3.56
Electromagnetic Q (Qes): 0.57
Total Q (Qts): 0.49
Diaphragm Mass Inc. Airload (Mms): 28.81g
Mechanical Compliance of Suspension (Cms): 0.37 mm/N
Surface Area of Cone (Sd): 94 cm²
BL Product (BL): 7.17 Tm
Compliance Equivalent Volume (Vas): 0.17 ft.³
Maximum Linear Excursion (Xmax): 9.25 mm
Cone / Diaphragm Material: Paper
Surround Material: Rubber
Basket / Frame Material: Steel
Magnet Material: Ferrite
Overall Outside Diameter: 6.14"
Overall Depth: 3.67"
Baffle Cutout Diameter: 4.74"
# Mounting Holes: 4
Sealed Volume: 0.1 ft.³
Sealed F3: 73 Hz
Vented Volume: 0.26 ft.³
Vented F3: 35 Hz

Reviews

31 reviews

Review this product

5 of 5

Sehr schnell und super Service

By Klaus on 31 December 2024

5 of 5

By Milo on 24 December 2024

5 of 5

Wurde in einem kleinen subwoofer verbaut. Ich habe kein großes großes Wohnzimmer, da tut es das 5 1/4tel chassis. Ich habe mich getraut und Echtholz verwendet. Es ist, bei der kleinen Bauform, stabil genug. Es ist ein kleiner U-Trichter drin. Die Öffnung ist unten und der Schall/Luft wird nach vorne abgeleitet. Graue (vintage) Bespannung musste ich in den USA bestellen. Da warte ich noch drauf. Das Resultat ist, wie ich finde, ein deutlicher...

By Manfred on 26 November 2024

5 of 5

By Holger on 23 November 2024

5 of 5

By Klemen on 3 November 2024

5 of 5

snel, en goed verpakt

By Patrick on 11 September 2024

5 of 5

Ich habe das Produkt schon seit zwei Jahren und hatte noch keine Probleme. Das einzige was mich persönlich etwas stört ist das nicht dabei steht welche Größe das Bassreflexrohr haben muss.Aber ansonsten tolles Produkt. Kann man nur weiter Empfehlen.

By Thoran on 29 August 2024

4 of 5

Simplify Loud- no, Tight- yes, Low- yes. But not as good as 5 inch peerless sls..

By R1 Rob on 1 June 2024

5 of 5

Amazing driver for a good price, just goes and goes ...

By Niklas on 3 February 2024

5 of 5

Can make a home built boom box (Carmody Isetta) REALLY boom - if you want it to. Dial it back a bit and it is really very civilised.

By Rob on 24 December 2023

5 of 5

Great choice, good stock, quick delivery, the best diy audio in Europe.

By Francisco on 11 December 2023

5 of 5

Used it in a Voxel sub, and I'm impressed !

By Niklas on 3 November 2023

5 of 5

By Pierluigi on 28 September 2023

5 of 5

High value for money

By Conrad on 23 May 2023

5 of 5

By Oskar on 13 April 2023

3 of 5

Very good driver for the money. good enough construction for the money, offers a great amount of bass. Solid performance with 'modern' music with a lot of boom boom. Not very musical (not suited to classical where bass is music). 3 stars for my use, might be 5 stars for many others, depending mostly on musical genres.

By Osvaldo on 4 March 2023

4 of 5

Wollte erst nur 3 Sterne geben, hatte aber falsche Erwartungen. Für nen schmalen Taler kann man in relativ kleinen Gehäusen opulenten Bass erzeugen, dieses allerdings im gewissen Rahmen und daher nur mit begrenzten Pegel möglich. Dann ist das Ganze leider wenig audiophil. Das Chassis ist sehr träge und der Wirkungsgrad dürftig. Für ne Dreiwegebox bspw. nur zu gebrauchen, wenn man die Gruppenlaufzeit und Impusantwort mit ner aktiven Lösung...

By Frank Skorupa on 12 January 2023

5 of 5

Erstaunlich was für ein Fundament der kleine erzeugt. Ich dachte mein großer Sub ist an. Der Pegel ist zwar begrenzt aber der Tiefgang ist enorm. Sehr gut verarbeitet und abartig gut. Optimales Volumen: 16 Liter bei fTun > 37 Hz = f3 > 33 Hz Plane noch ein Konzept mit 4 Stück. Mal sehen wohin dann die Party geht.

By Enrico on 6 November 2022

5 of 5

By Inear on 18 October 2022

5 of 5

Using it in a Subwoofer with 12.1 L net volume, tuned to 39Hz with a rather long but still reasonable lenght of the BR tunnel. Starts dropping at around 36Hz and reaches around 30Hz (-8db). I like it and the price seams reasonable for what I got.

By RS on 23 June 2022

5 of 5

If you want a subwoofer moving a lot of air with big xmax in a small enclosure (below 14L) there are really not many options, the W5 is one of them. I Built a 12.5L box tuned at 36hz with an f3 of 31hz with an external port and hits mighty fine on the lows (around 40hz) for its size and power requirement. I'm in the bedding in stage still but it seems like it is absolutely worth the asking price. Also thanks to soundimports (and UPS) ...

By Alexander K. on 16 March 2022

4 of 5

Nice little bass. I did not get it working nicely (yet) but my room modes are horrible. Frame could be sturdier. Also you need sealing tape with this.

By Ville on 15 December 2021

3 of 5

The advertised specs for this small subwoofer are nowhere close to actual figures as tested with Dayton Audio DATS V3. I could not get any of the free air properties to come even within an acceptable margin of error close to the ones advertised in the Tang Bang data sheet. As for Fs it is advertised as 45HZ but mine read 66HZ. I purchased another similar unit from another supplier just to check and it read 63HZ. I asked a friend on mine who has o...

By George on 9 February 2021

5 of 5

Just what I was looking for and SoundImports are the company to get it from having bought previously from them.

By Anthony M. on 5 August 2020

4 of 5

No description was given

By Renaud D. on 29 July 2020

5 of 5

The sub is smooth. It would be nice if the driver has 80w rms but it is how it is. Planine to put 2 together.

By Raul on 10 May 2020

5 of 5

Great little unit for small cabinet subs

By Hans Henrik M. on 11 February 2020

5 of 5

The smooth bass it puts out for it's size is just amazing. It can push serious air and allows you to feel the music, it's such a package and the ideal component to any speaker. It took me a while to find a product to fit my needs perfectly but now that I have l'll be encorparating this sub into most of my builds.

By James Moran on 21 July 2019

5 of 5

Good driver for the money

By Josef N. on 3 July 2019

5 of 5

No description was given

By Gytis K. on 11 January 2019

5 of 5

Very nice bass for a 5-1/4" with low volume required.

By Jarno v. on 8 September 2018
