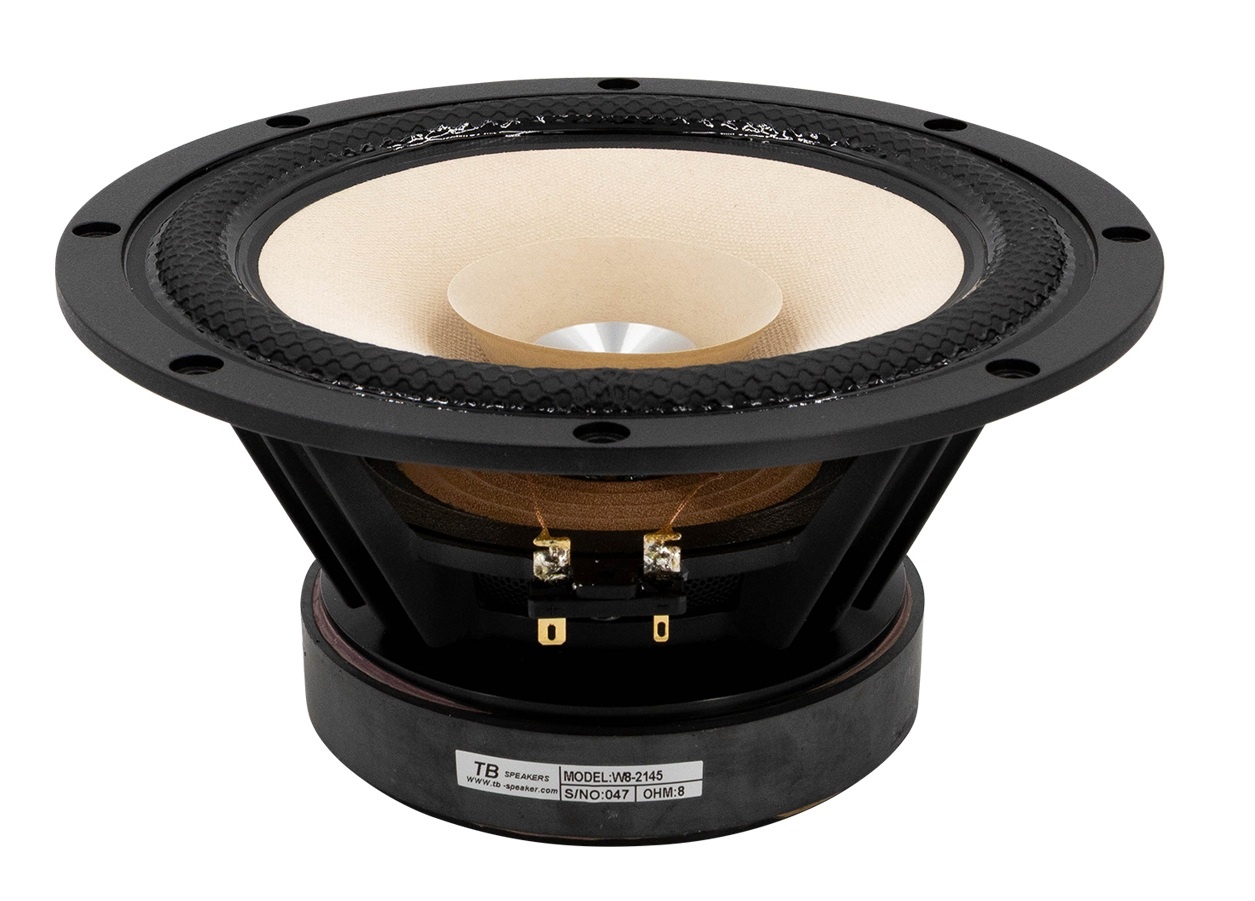

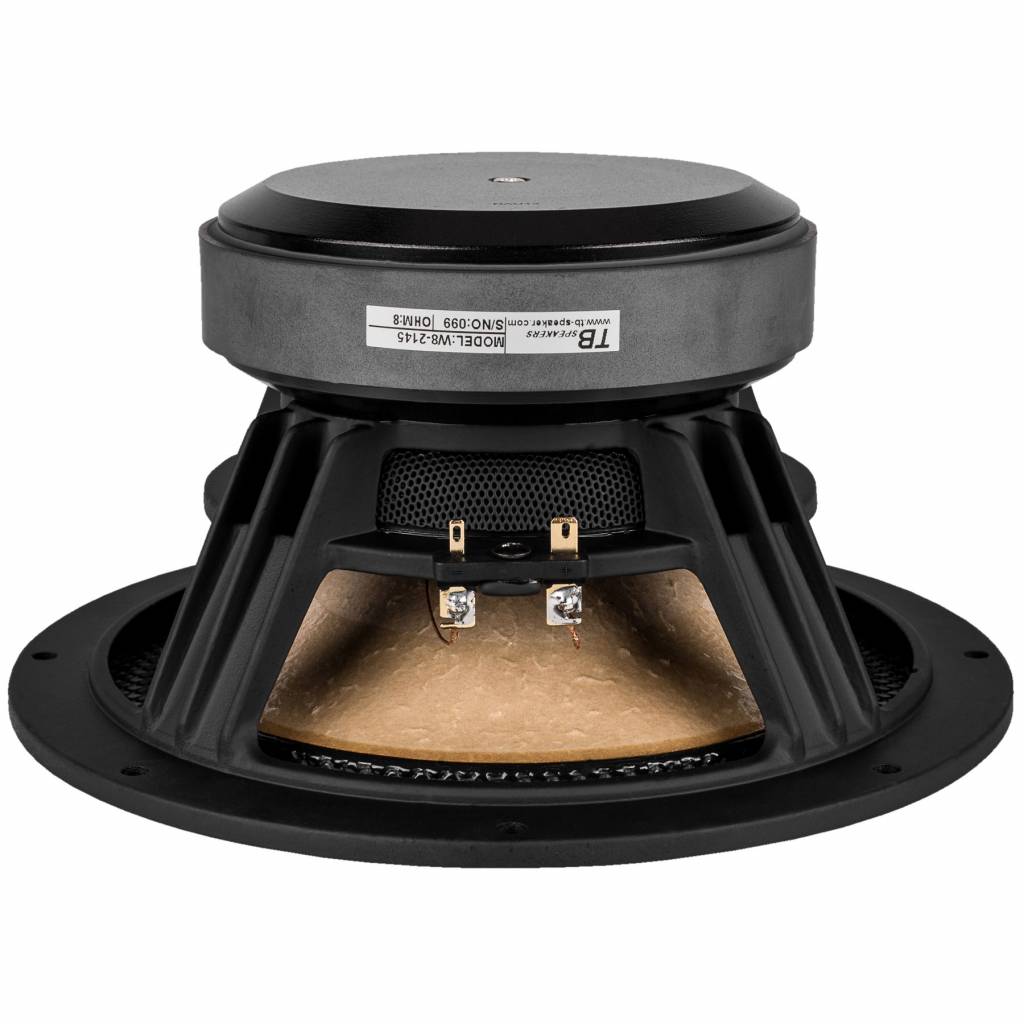

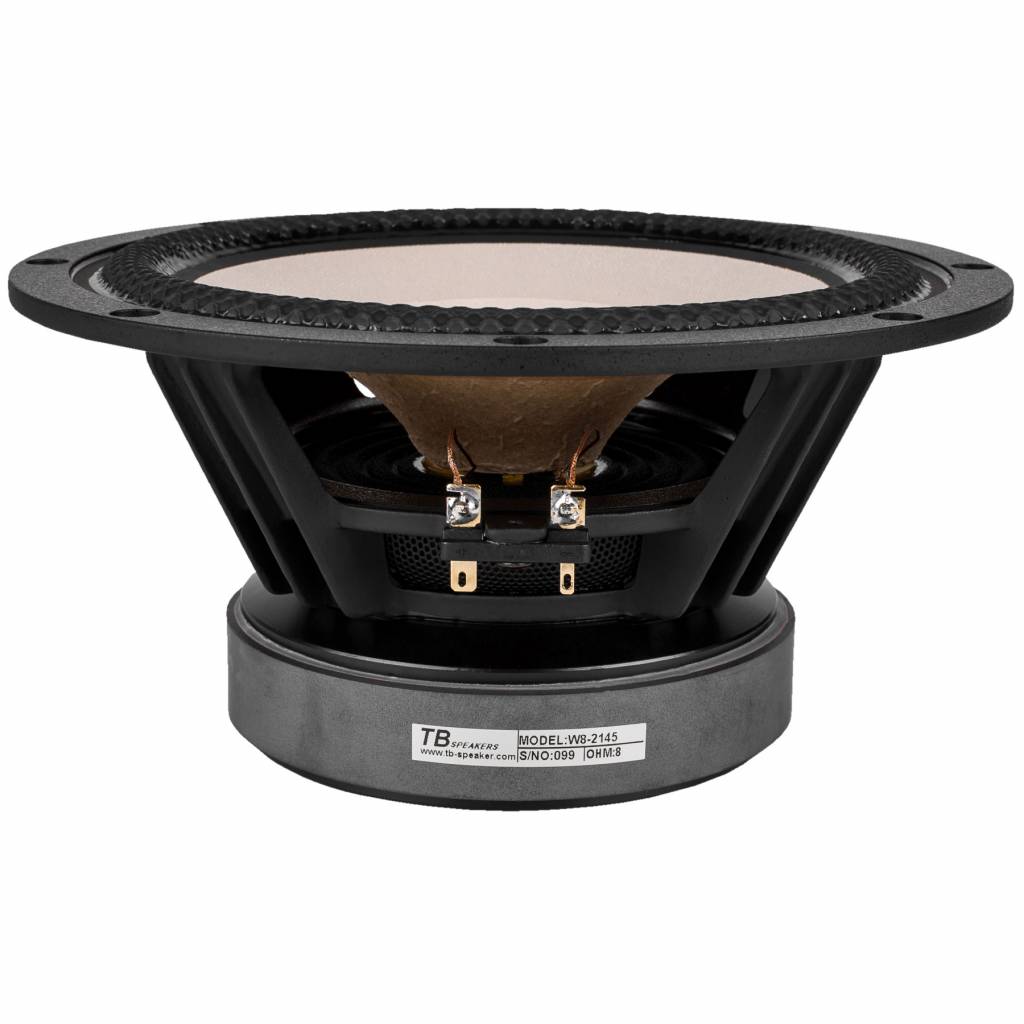

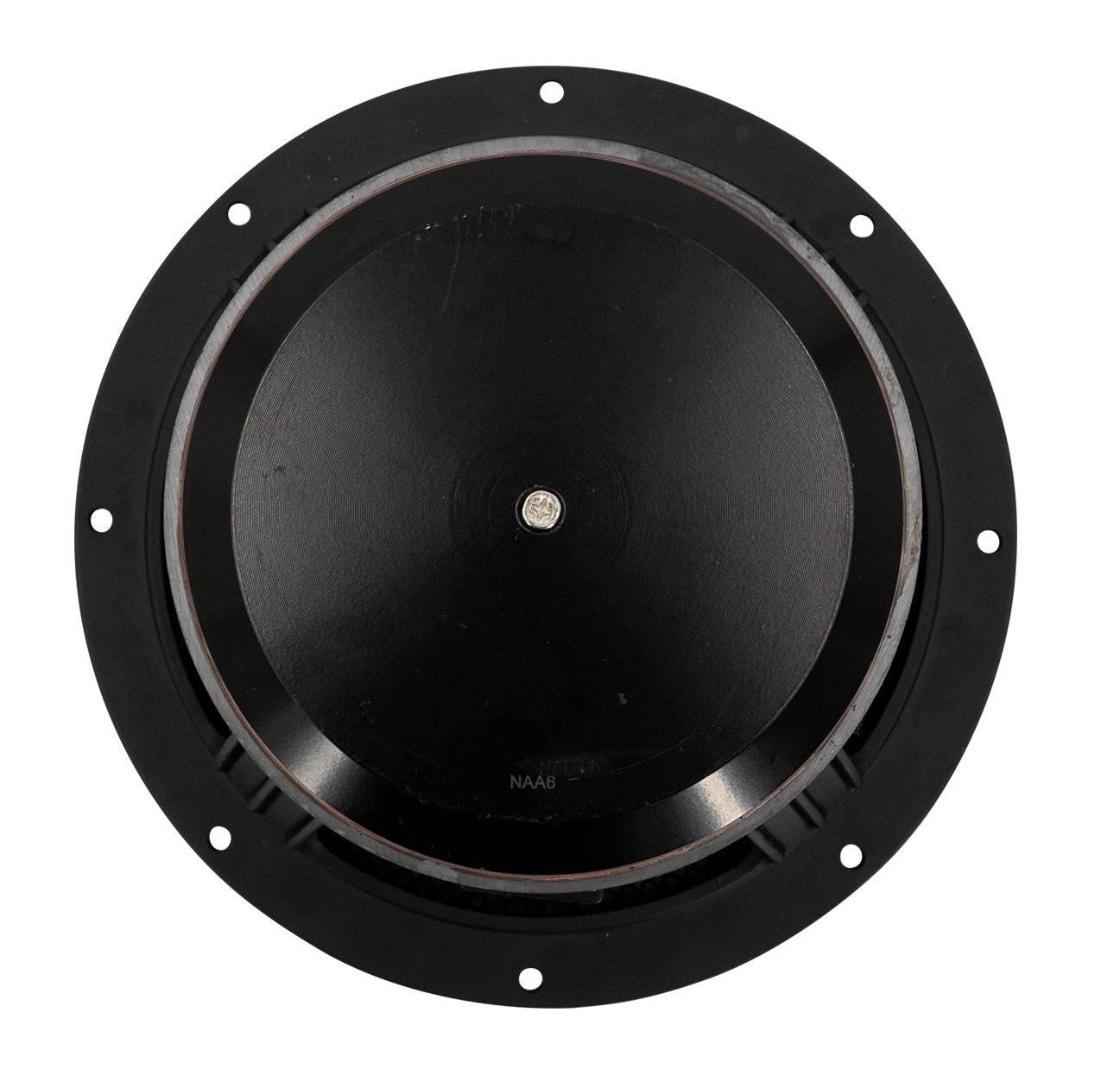

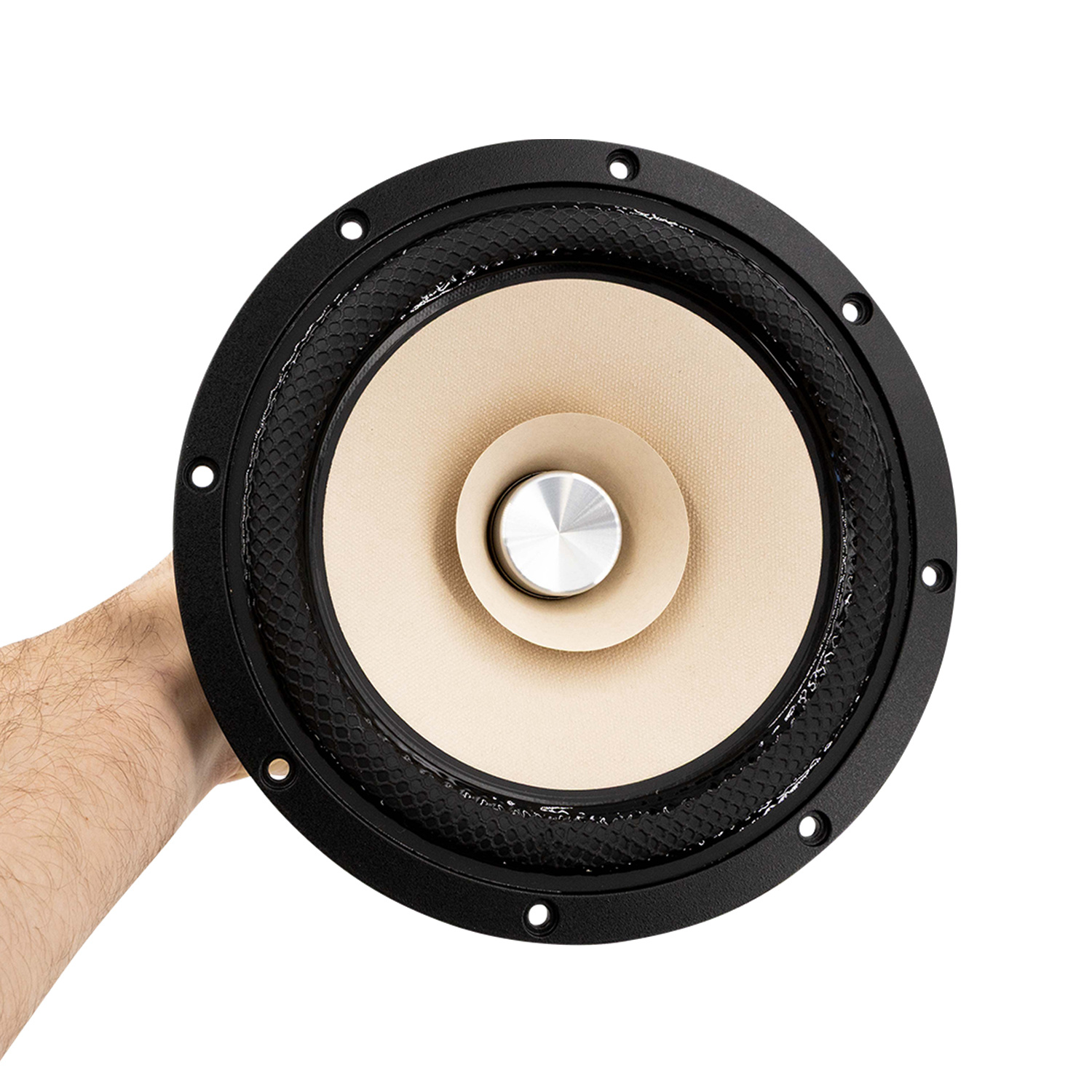

Tang Band W8-2145 8" Paper Cone Full Range Driver 8 Ohm

€179,95

3 In stock

Add to cart

Tang Band W8-2145 8" Paper Cone Full Range Driver 8 Ohm

11 reviews

Brand: Tang Band

Show all Full-range woofer

8" | 8 Ω

W8-2145 8" Paper Cone Full Range Driver 8 Ohm

€ 179,⁹⁵ 3 In stock

We ship to United States of America
Ordered now, shipped tomorrow
At least two years warranty
45-day cooling-off period to return

Customer rating:

Compare

Request quotation

Product description Tang Band W8-2145 Full-range Woofer

Tang Band's W8-2145 full-range driver uses and underhung motor to deliver linear response with minimal 2nd and 3rd order THD. The bamboo fiber reinforced paper cone uses a whizzer cone for improved high frequency and off axis response.

Highlights

Aluminum phase plug also acts as a shorting ring for lower distortion
Underhung voice coil improves control for lower distortion

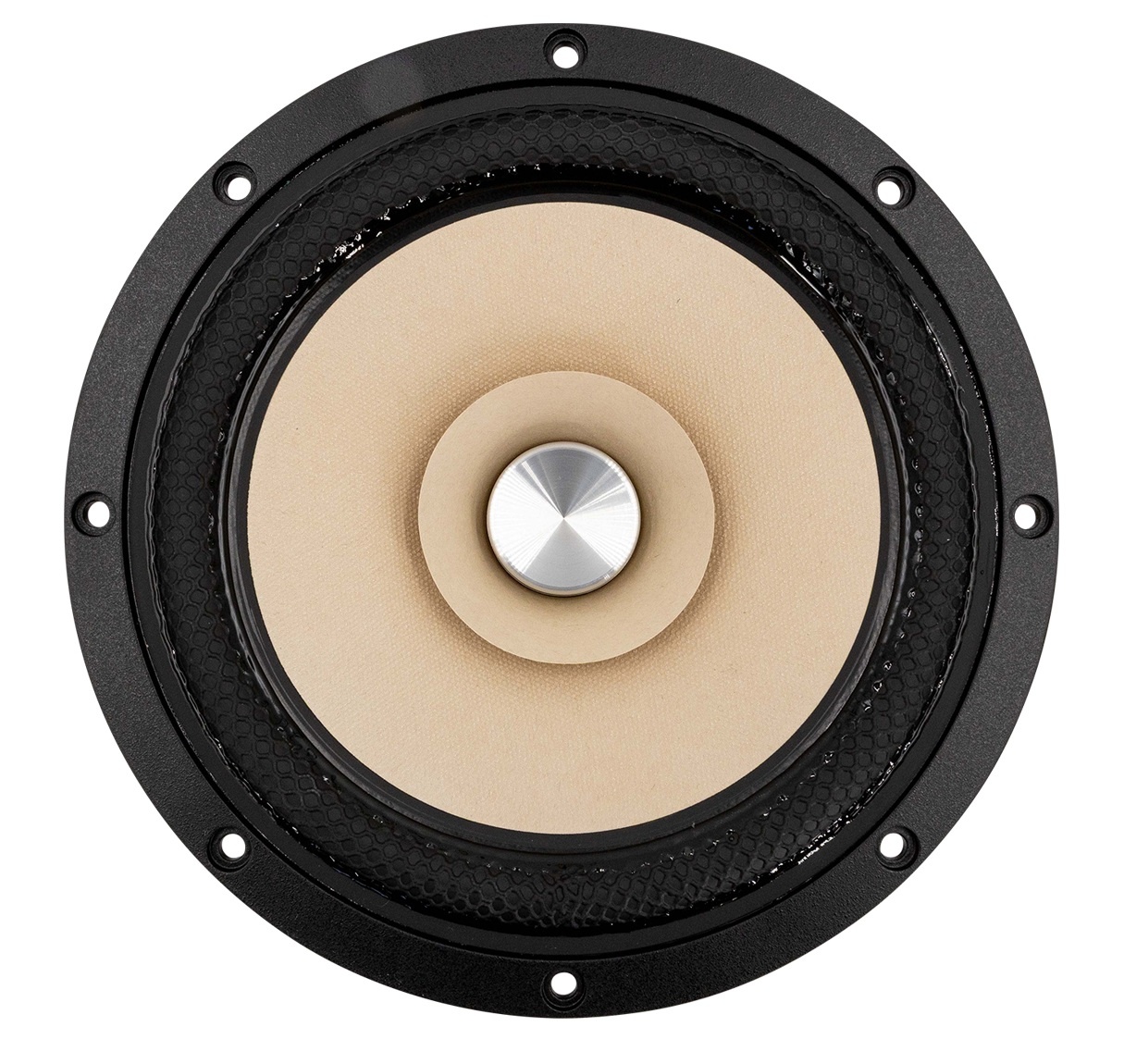

Whizzer cone design increases high frequency response
Unique surround and large spider keeps cone linear well beyond the rated xmax

Product details

Tang Band W8-2145 8" Paper Cone Full Range Driver 8 Ohm

The W8-2145 full range driver from Tang Band with its bamboo fiber reinforced paper cone can provide incredibly smooth response from 40 to 20,000 Hz. With an underhung motor design, most of the voice coil stays within the magnetic gap for the highest possible control to keep 2nd and 3rd order harmonic distortion at a minimum. The unique whizzer cone with phase plug design allows for better dispersion while increasing high frequency response. This driver is ideally suited for small single driver speaker systems with incredibly smooth and full sound.

Specifications

Article number: W8-2145
EAN: 0848864023809
Woofer Type: Full-range
Nominal Diameter: 8"
Power Handling (RMS): 40 Watts
Power Handling (max): 80 Watts
Impedance (Z): 8 ohms
Sensitivity (SPL at 1m / 2.83V): 90 dB
Frequency Response: 40 to 20,000 Hz
Voice Coil Diameter: 1.5"
DC Resistance (Re): 6.8 ohms
Voice Coil Inductance (Le): 0.011 mH
Resonant Frequency (Fs): 40 Hz
Mechanical Q (Qms): 1.65
Electromagnetic Q (Qes): 0.61
Total Q (Qts): 0.44
Diaphragm Mass Inc. Airload (Mms): 14.97g
Mechanical Compliance of Suspension (Cms): 1.05 mm/N
Surface Area of Cone (Sd): 212.3 cm²
BL Product (BL): 6.59 Tm
Compliance Equivalent Volume (Vas): 2.39 ft.³
Maximum Linear Excursion (Xmax): 3 mm
Cone / Diaphragm Material: Bamboo Fiber / Paper
Surround Material: Santoprene®
Voice Coil Wire Material: Copper
Basket / Frame Material: Cast Aluminum
Magnet Material: Ferrite
Overall Outside Diameter: 8.77"
Overall Depth: 4.5"
Baffle Cutout Diameter: 7.5"
# Mounting Holes: 8
Sealed Volume: 1.1 ft.³
Sealed F3: 71 Hz
Vented Volume: 2.8 ft.³
Vented F3: 36 Hz

Reviews

11 reviews

Review this product

5 of 5

By Alexey on 2 April 2024

5 of 5

By Magnus on 24 September 2023

5 of 5

Dieser Breitbänder ist jeden Cent wert! Betrieben im Open baffle mit zwei GRS 12SW-4 .
Aktiv nur Bass getrennt bei 150 Hz-Tang Band läuft Fullrange.

By Bernhard on 30 November 2020

5 of 5

Es wurde keine Beschreibung gegeben.

By Michael K. on 14 November 2020

5 of 5

By Jaroslav K. on 6 October 2020

5 of 5

The Speakers are great, they have a nice flat curve, are super clear, and voices like singing sound great, but I would recommend a nice clear subwoofer with them, because they just dont have any bass. They reproduce low frequencies, but you just cant feel them which is to be excpected from fullrange speakers.

By Charel on 27 September 2020

5 of 5

Feinauflösend und sehr ausgewogen, zurzeit habe ich noch einen kleinen Sperrkreis bei 3 KHz, kann aber durchaussein das man den nach längerem einspielen nicht mehr braucht. Tolles Preis-Leistungs-Verhältniss.

By Henning R. on 16 August 2020

5 of 5

Experience with whizzer cones in the past has been bad.....but the TB is very good. Treble is natural, lush and extended. Much detail from this speaker and a bit harsh between 1-4k at first. Seems to settle after 30 hours. Very pleased & have ordered W8-1772.

By VICTOR P. on 3 July 2020

5 of 5

Ok, ich habe schon eine Bewertung über dieses Produkt geschrieben. Bin voll zufrieden. Wer "sparsam" selbst bauen will, kann dieses Chassis in ein Horn stecken - das wäre für mich ein nächstes Projekt -, oder in ein halbes und rundes Brett, als Open-Baffle stecken, wie ich es gemacht habe. Etwas weg vonne Wand und die kleine Wohnung hat "Rund-Um-Musik". Gruß, wj ... ach ja, da sind dann noch meine beiden SUB-Woofer als Ripol. Der Breitbä...

By Wolfgang J. on 8 May 2020

5 of 5

Dieses Chassis als Open-Buffle und dazu der Sub-Woofer als Ripol ergibt ein System der einfach offen ist für den Klang. Die Stimmen/Musik sind natürlich im Raum verteilt, nicht metallisch und/oder aufdringlich. Stelle keine Ansprüche an das letzte Quantchen Hifi; bin als Selbstbauer voll zufrieden und kannn dieses System nur empfehlen.

By Wolfgang J. on 6 May 2020

5 of 5

tolles chassis, jeden cent wert.

By horst i. on 9 May 2019
