        TEAX32C20-8 sound exciter

        Tectonic Elements TEAX32C20-8 sound exciter

        €36,45

        6 In stock

        Add to cart

        Tectonic Elements TEAX32C20-8 sound exciter

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Tectonic Elements
        Show all Exciters
        20 W | 32 mm
        TEAX32C20-8 sound exciter
        TEAX32C20-8 sound exciter
        TEAX32C20-8 sound exciter
        TEAX32C20-8 sound exciter
        € 30,12€ 36,45 6 In stock
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        TEAX32C20-8 sound exciter
        TEAX32C20-8 sound exciter
        TEAX32C20-8 sound exciter
        TEAX32C20-8 sound exciter

        Product description Tectonic Elements TEAX32C20-8 Exciter

        Turn anything into a speaker with the Tectonic Elements TEAX32C20-8 exciter. Compact size is great for adding sound to small surfaces and two 3M adhesive rings for surface attachment.



        Highlights

        • High output design
        • Two 3M mounting rings for superior support
        • High power handling



        Product details

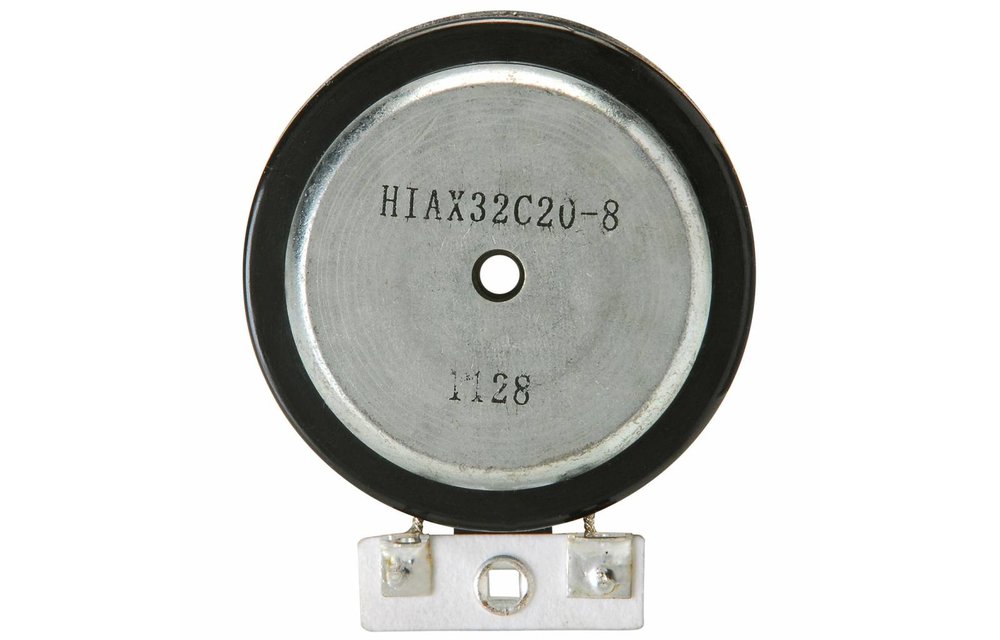

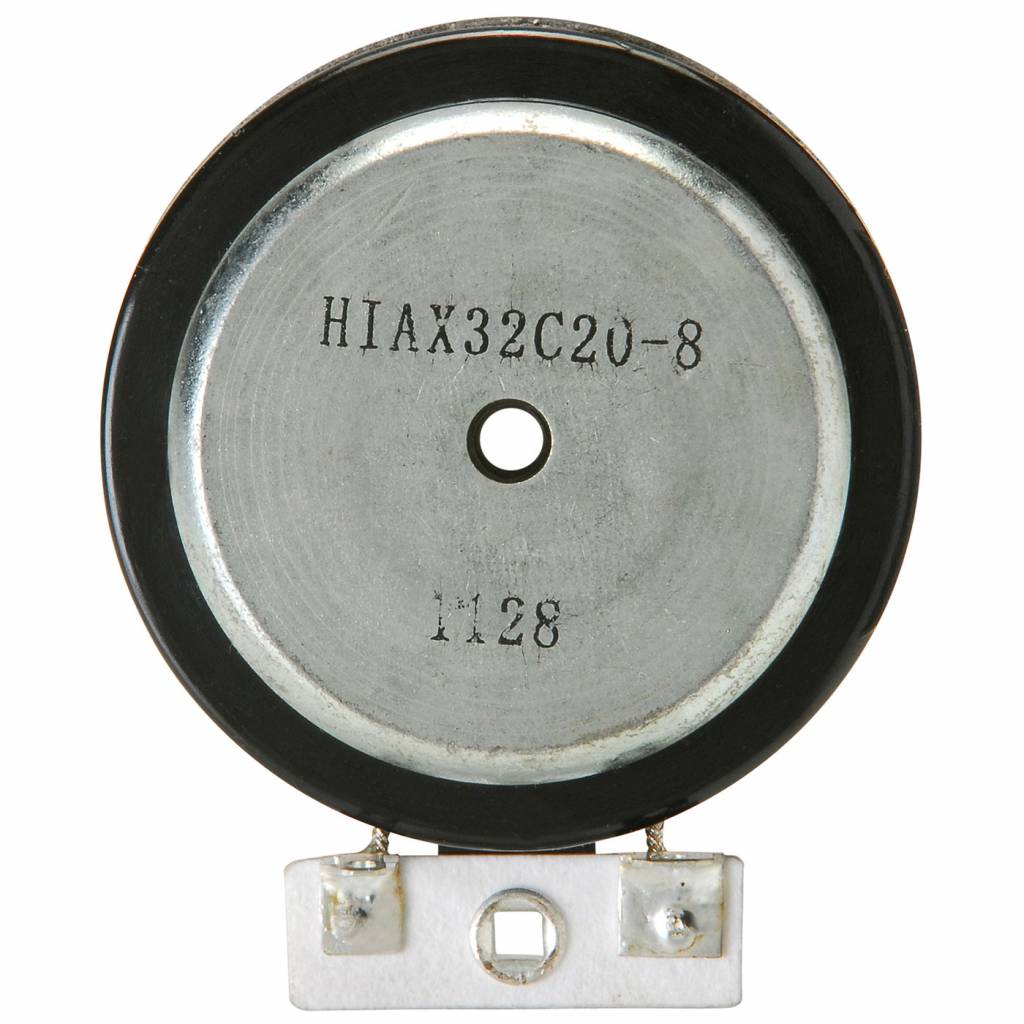

        Tectonic Elements TEAX32C20-8 32mm Self Supported Exciter 8 Ohm



        Tectonic Elements 32 mm TEAX32C20-8 balanced exciter was originally designed for automotive applications where its rugged design would allow it to pass the requirements for automobiles. It is specially balanced so that when applied to vertical surfaces the exciter is perfectly balanced and will not fall off the surface.

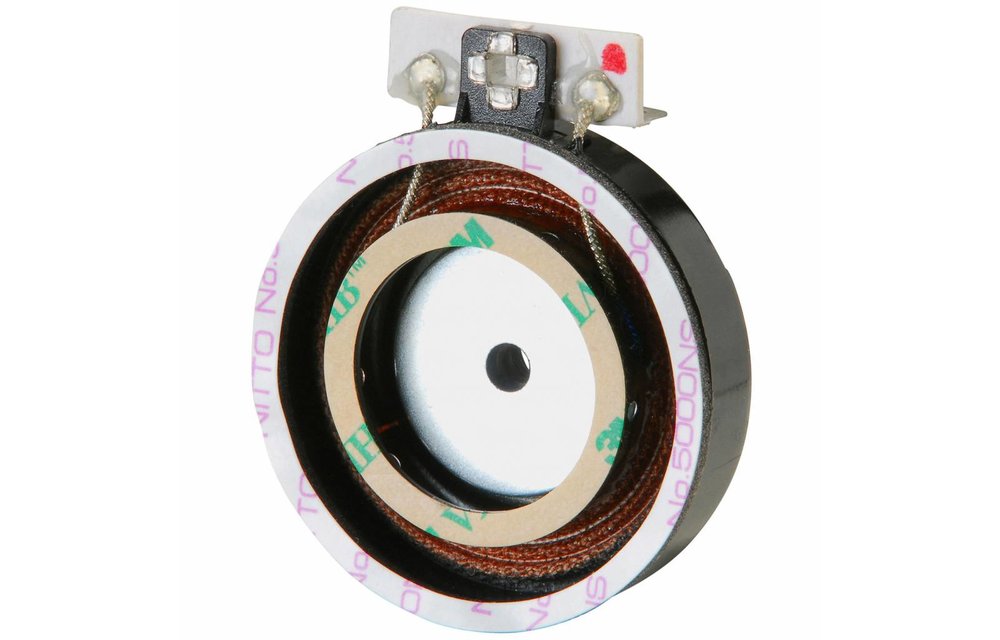

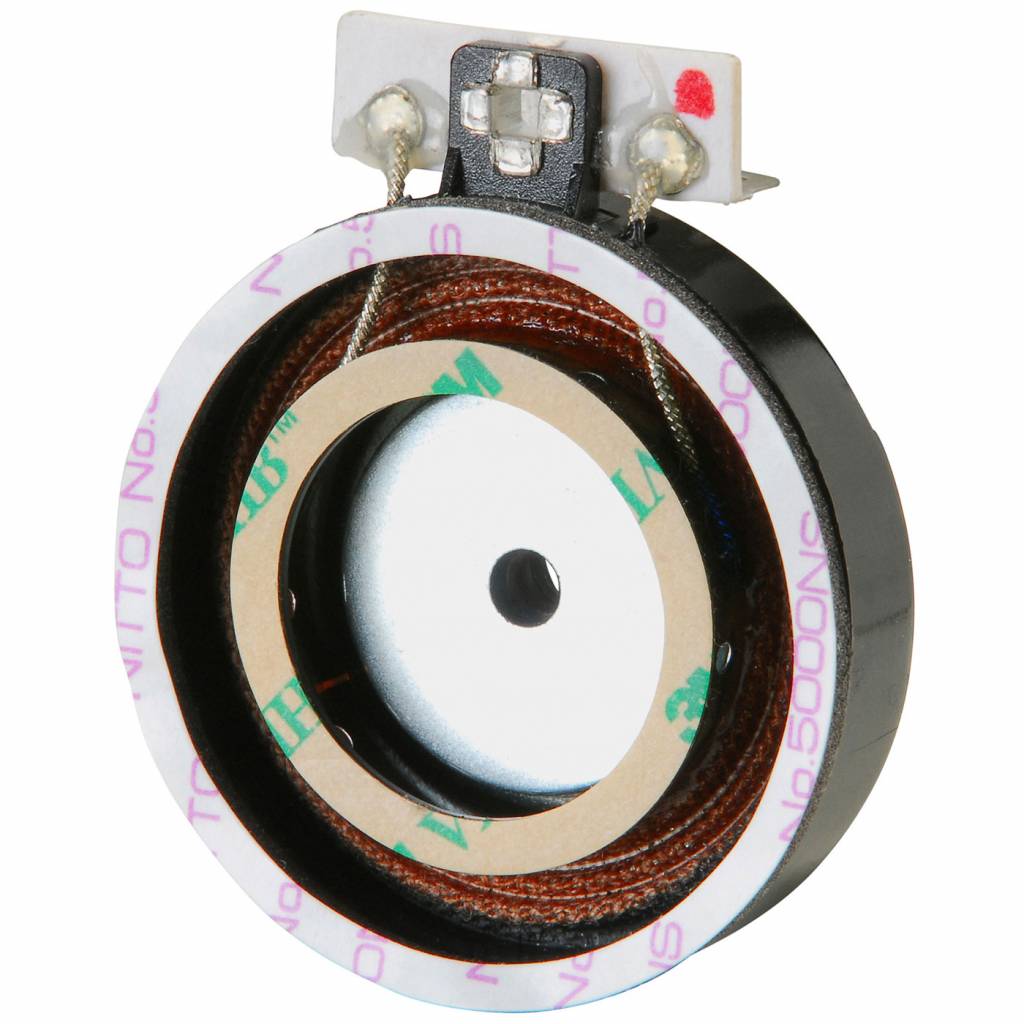

        The exciter comes with a special mounting adapter which features two 3M adhesive discs to allow the exciter to be attached to a wide range of materials. The exciter comes with solder tabs for connection of amplifier wiring. Sold individually.



        A basic guide to creating invisible sound with exciters

        Curious about how to create invisible sound with exciters? In this blog, Ben Zenker, an expert with more than 15 years of experience and 10 internationally reviewed publications, shares his in-depth knowledge on material selection, installation and optimising sound quality. An indispensable resource for the passionate DIY audio enthusiast.



        A great field of application for this exciter is so-called DML or flat-panel speakers. DML stands for Distributed Mode Loudspeakers and is a term for speakers that catch the eye with their incredibly slim design.

        Show more

        Specifications

        Article number
        TEAX32C20-8
        EAN
        0844632095511
        Type
        Full-Range
        Power Handling (RMS)
        20 watts
        Power Handling (max)
        -
        Impedance
        8 ohms
        Frequency Response
        100 - 15.000 Hz
        Resonant Frequency (Fs)
        400 Hz
        DC Resistance (Re)
        7.4 ohms
        Voice Coil Inductance (Le)
        1 mH
        Total Q (Qts)
        -
        Diaphragm Mass Inc. Airload (Mms)
        3.4 grams
        Mechanical Compliance of Suspension (Cms)
        0.046 mmN-1
        BL Product (BL)
        7.4 Tm
        Voice Coil Diameter
        32 mm
        Overall Outside Diameter
        51.2 mm
        Overall Depth
        22.5 mm
        Overall Dimensions (L x W x H)
        -
        Mounting surface dimensions
        -
        # Mounting Holes
        -
        Mounting type
        Self 3M VHB adhesive pre-applied mounting
        Weight
        150 grams
