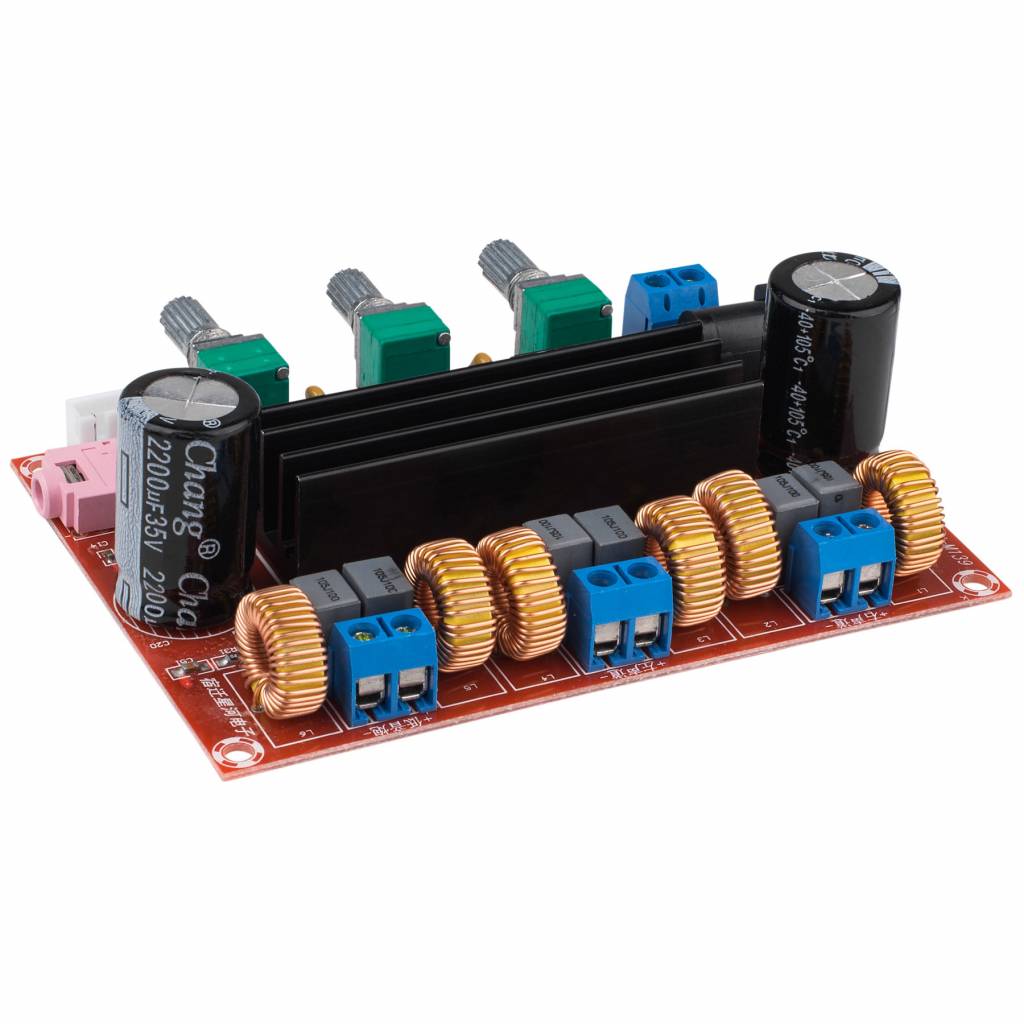

        TPA3116D2.1 Amplifier module

        TPA3116D2.1 Amplifier module

        €31,45

        3 expected on 27-11-2024

        Add to cart

        TPA3116D2.1 Amplifier module

        2 reviews
        4 from 5
        2 reviews
        5 stars
        50%
        4 stars
        0%
        3 stars
        0%
        2 stars
        50%
        1 star
        0%
        View all reviews
        Show all Amplifier modules
        2 x 50 + 100 W
        TPA3116D2.1 Amplifier module
        TPA3116D2.1 Amplifier module
        TPA3116D2.1 Amplifier module
        TPA3116D2.1 Amplifier module
        TPA3116D2.1 Amplifier module
        TPA3116D2.1 Amplifier module
        € 25,99€ 31,45 Out of stock3 expected on 27-11-2024
        • -5% Purchase 4 for only € 29,88 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Back in stock soon
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        TPA3116D2.1 Amplifier module
        TPA3116D2.1 Amplifier module
        TPA3116D2.1 Amplifier module
        TPA3116D2.1 Amplifier module
        TPA3116D2.1 Amplifier module
        TPA3116D2.1 Amplifier module

        Product description TPA3116D2.1 Amplifier module

        This easy-to-use 2.1 amplifier board is big on power, delivering 50 watts into stereo channels and an additional 100 watts into a mono subwoofer channel. Use this board for multimedia sound systems, boom box projects, digital signage, or even mobile audio.



        Highlights

        • Class D efficiency in a compact size
        • Built-in volume, subwoofer, and satellite potentiometer for sound customization
        • 3.5 mm audio jack, 2.1 mm DC power jack, and phoenix speaker connectors for easy hook-up
        • Pre-assembled and pre-tested for easy project integration
        • 12 to 21 VDC for versatility
        • 2 x 50W plus 100W into a mono channel for 2.1 applications



        Product details

        This handy audio amplifier board has big power in a small package. Delivering 2 x 50W plus 100W into a mono channel, this 2.1 board makes it easy to add the bass you need to your next powered speaker project. Use this board in desktop multimedia powered speakers, or cool boom box applications. The tiny size makes implementation limitless and the easy-to-use 12 VDC power requirement makes it a great addition to any mobile audio project.

        These boards are pre-tested and pre-assembled, which makes your project easy to complete. The on-board jacks, potentiometers, and screw terminals mean you can get this board powered up and playing music in minutes. Just connect your power source using a 2.1 x 5.5 mm DC power plug, a 3.5 mm stereo audio source, and run speaker wire from the six screw terminals to you speakers and you are done. If you don't want to use the 3.5 mm jack, an optional 3-pin connector for internal line-in audio is available (wiring harnesses not included).

        Show more

        Specifications

        Article number
        TPA3116D2.1
        EAN
        0848864051215
        Rated power output
        2 x 50 watt + 1 x 100 watt at 8 ohms
        Minimum load
        4 ohms
        Efficiency
        -
        Signal-to-noise ratio (SNR)
        100 dB
        Distortion
        -
        Frequency response
        14 - 100,000 Hz
        Gain
        -
        Input sensitivity
        -
        Input impedance
        -
        Amplifier Classification
        Class D
        Circuit Topology
        Texax Instruments TPA3116
        Speaker output channels
        3
        Input connection type
        3.5 mm stereo jack or 3-pin line-in socket
        Speaker output connection type
        Screw terminals
        DSP function
        -
        Bluetooth
        -
        EQ Adjustment
        Power Requirements
        12 - 21 VDC
        Power inlet connector
        DC jack (2.1 x 5.5 mm) or screw terminals
        Current limit
        -
        Under/over voltage protection
        -
        Dimensions (L x W x H)
        70,4 x 100,3 x 29,7 mm without potmeters (shaft length potmeters 15.3 mm)
        Mounting hole spacing
        -
        Mounting hole diameter
        -

        Show more

        Reviews

        2 reviews
        Review this product
        5 of 5
        Danke!!! Alles Super. Sehr gute produkt.
        By Evgenios X. on 14 April 2020
        2 of 5
        Leuke versterkertje, maar red lange niet de 100 watt. Geen aanrader
        By Mattia on 20 December 2019
