- Article number

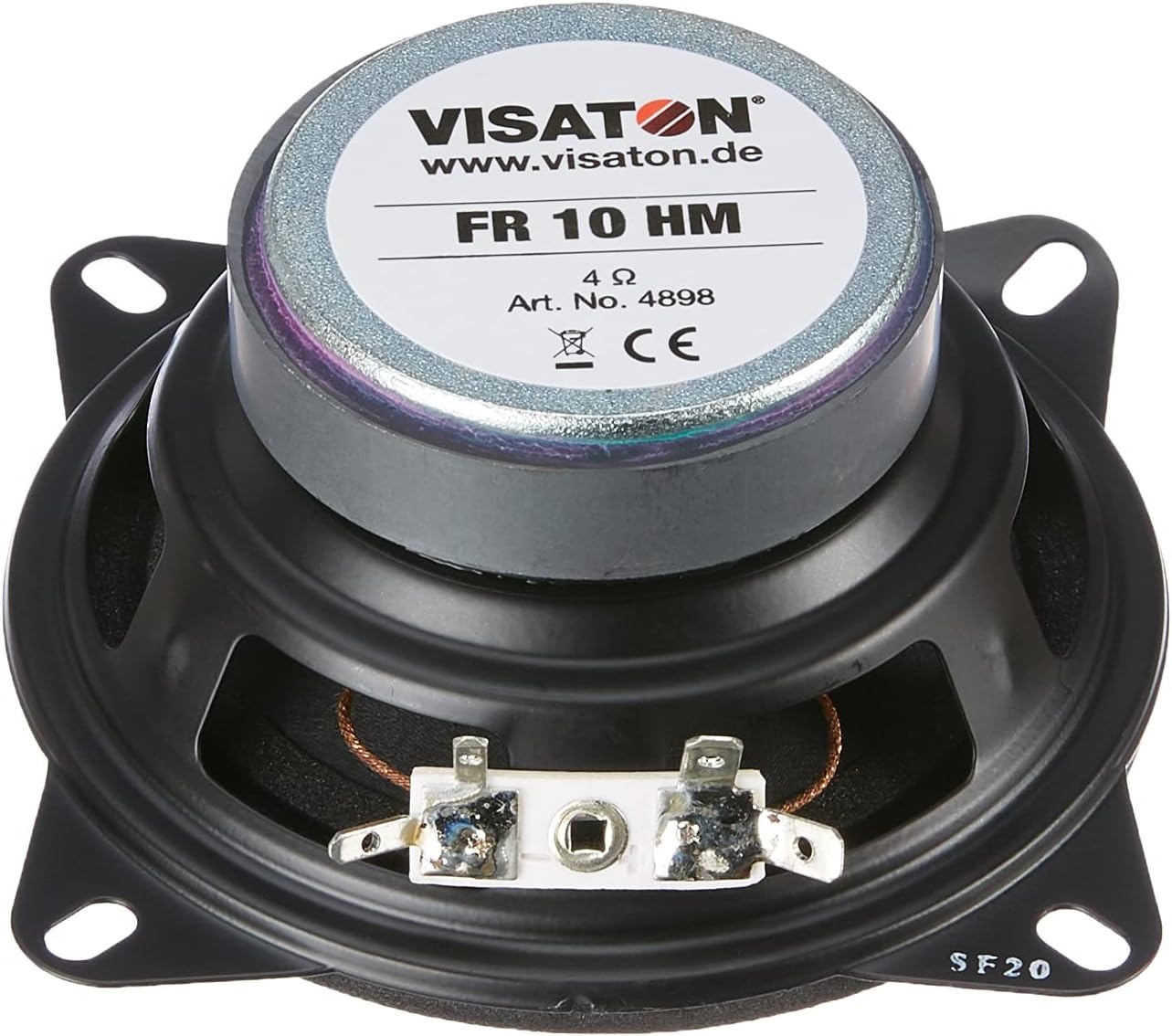

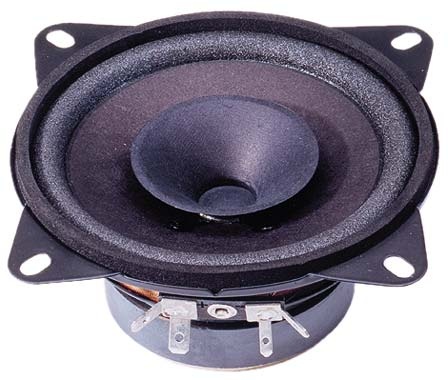

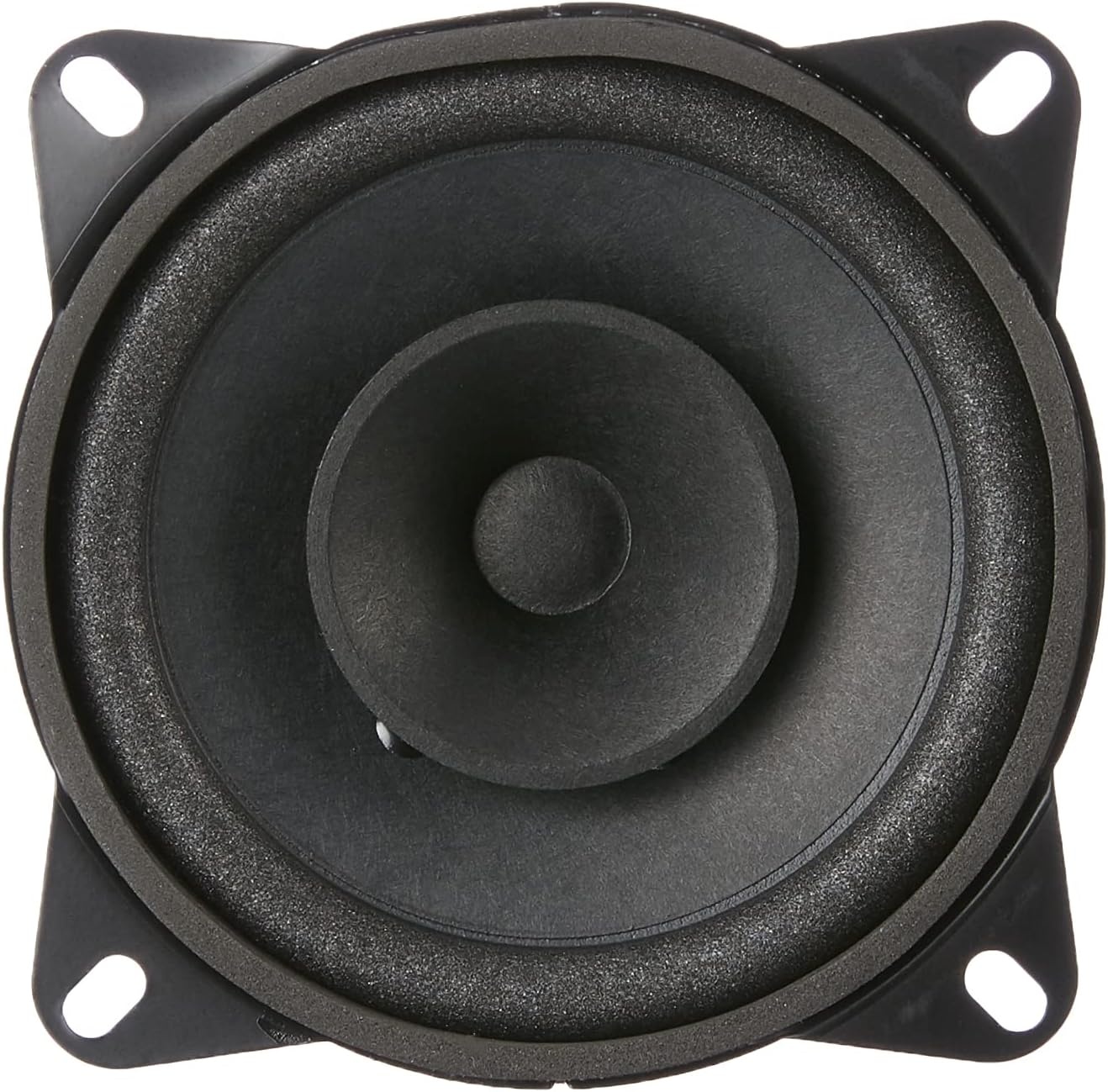

- FR 10 HM - 8
- EAN
- 4007540048994
- Woofer Type
- Full range speaker
- Nominal Diameter
- 4"
- Power Handling (RMS)
- 20 Watts
- Power Handling (max)
- 30 Watts
- Impedance (Z)
- 8 Ω
- Sensitivity (SPL at 1m / 2.83V)
- 86 dB
- Frequency Response
- 95-22.000 Hz
- Voice Coil Diameter
- 14 mm
- DC Resistance (Re)
- 7.2 Ω
- Voice Coil Inductance (Le)
- 0.2 mH
- Resonant Frequency (Fs)
- 120 Hz
- Mechanical Q (Qms)
- 5.89
- Electromagnetic Q (Qes)
- 1.91
- Total Q (Qts)
- 1.44
- Diaphragm Mass Inc. Airload (Mms)
- 2.8 g
- Surface Area of Cone (Sd)
- 50 cm²
- BL Product (BL)
- 2.9 Tm
- Compliance Equivalent Volume (Vas)
- 2 Liters
- Maximum Linear Excursion (Xmax)
- +/−2 mm
- Overall Outside Diameter
- 100 mm + 116.5 mm holes
- Overall Depth
- 49 mm
- Baffle Cutout Diameter
- 94 mm
- # Mounting Holes
- 4 Holes 4.8 x 7.8 mm
