        B2518 10'' Subwoofer 8 ohm

        Volt Loudspeakers B2518 10'' Subwoofer 8 ohm

        €259,95

        4 In stock

        Volt Loudspeakers B2518 10'' Subwoofer 8 ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 214,83€ 259,95 4 In stock
        • -5% Purchase 4 for only € 246,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

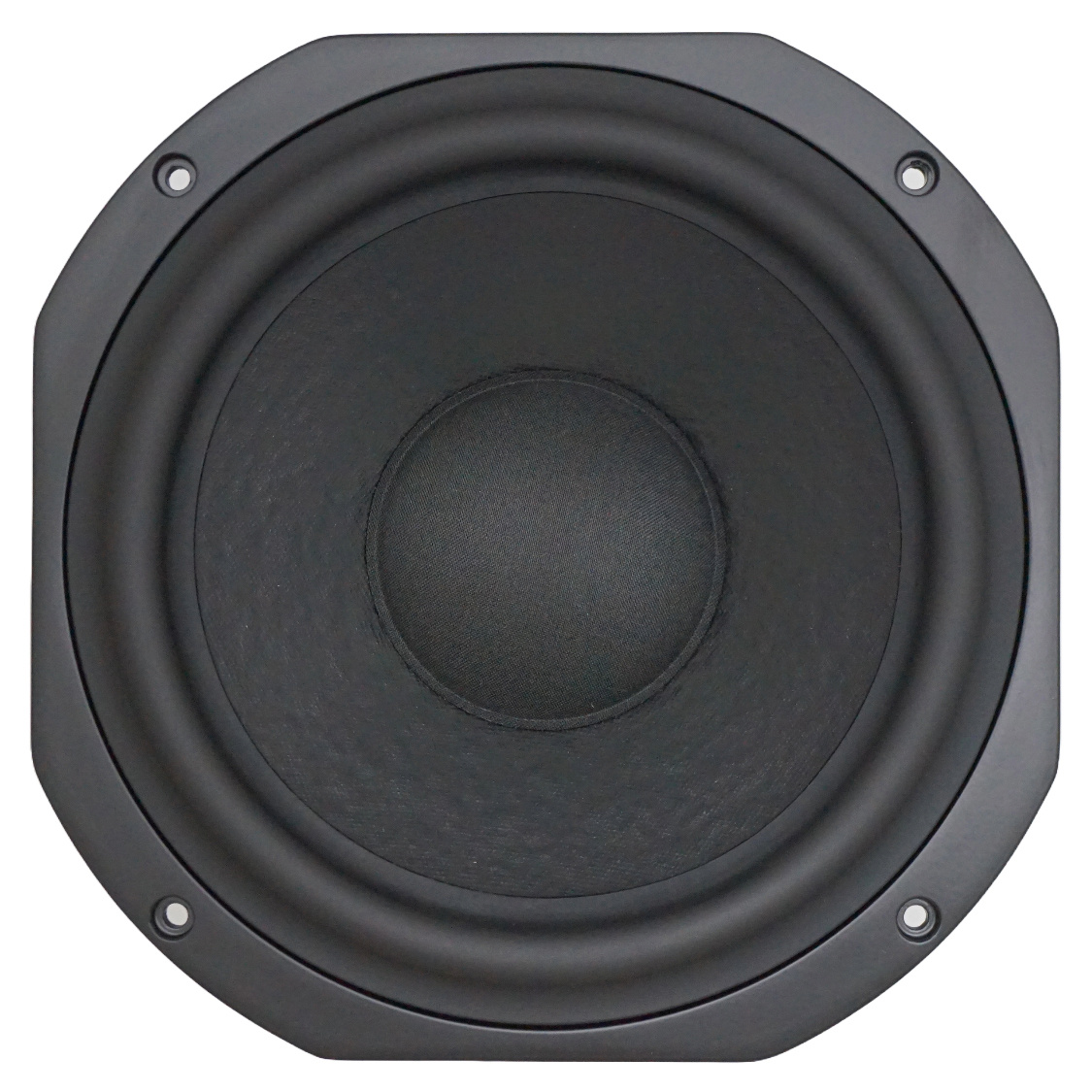

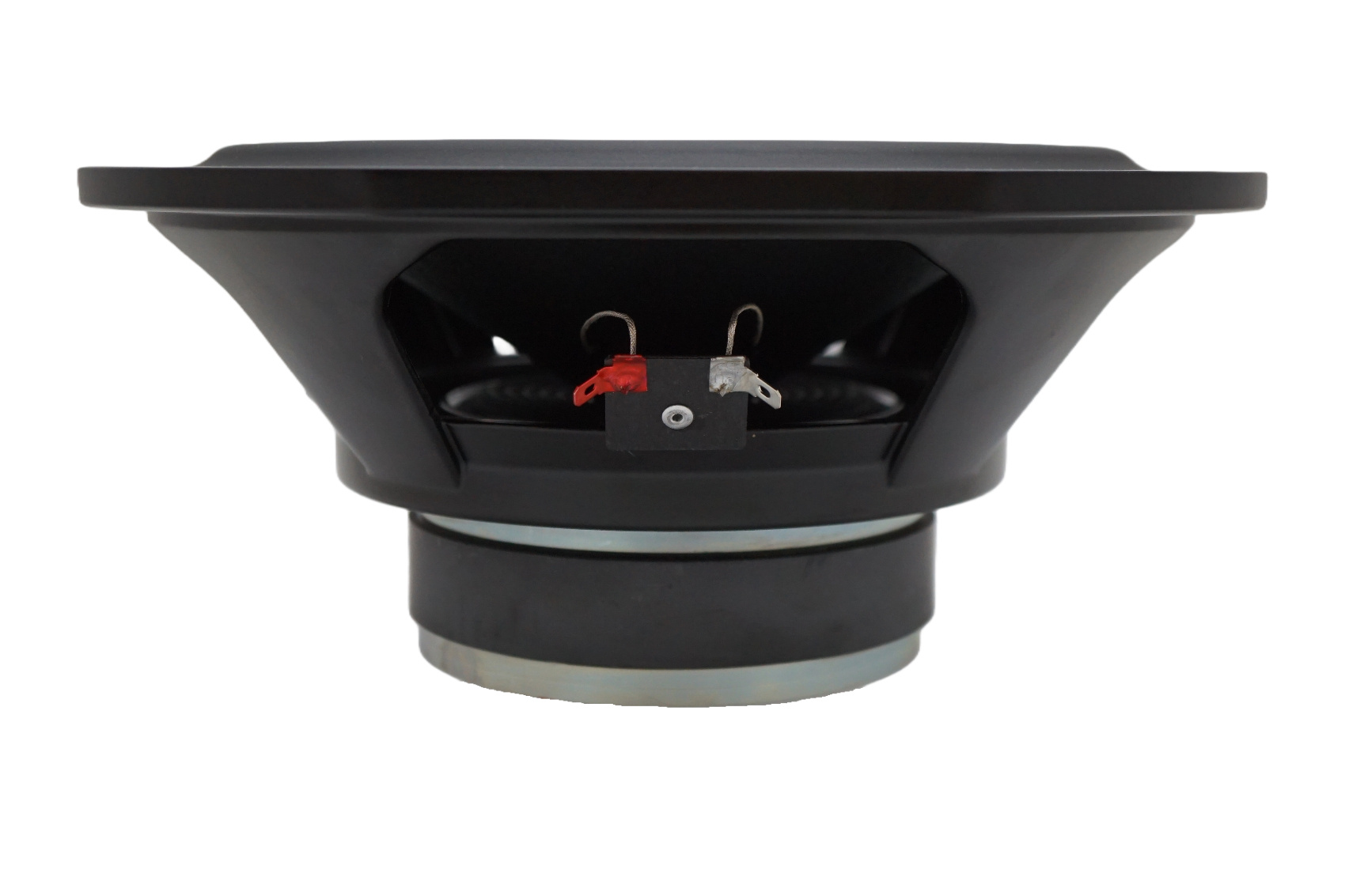

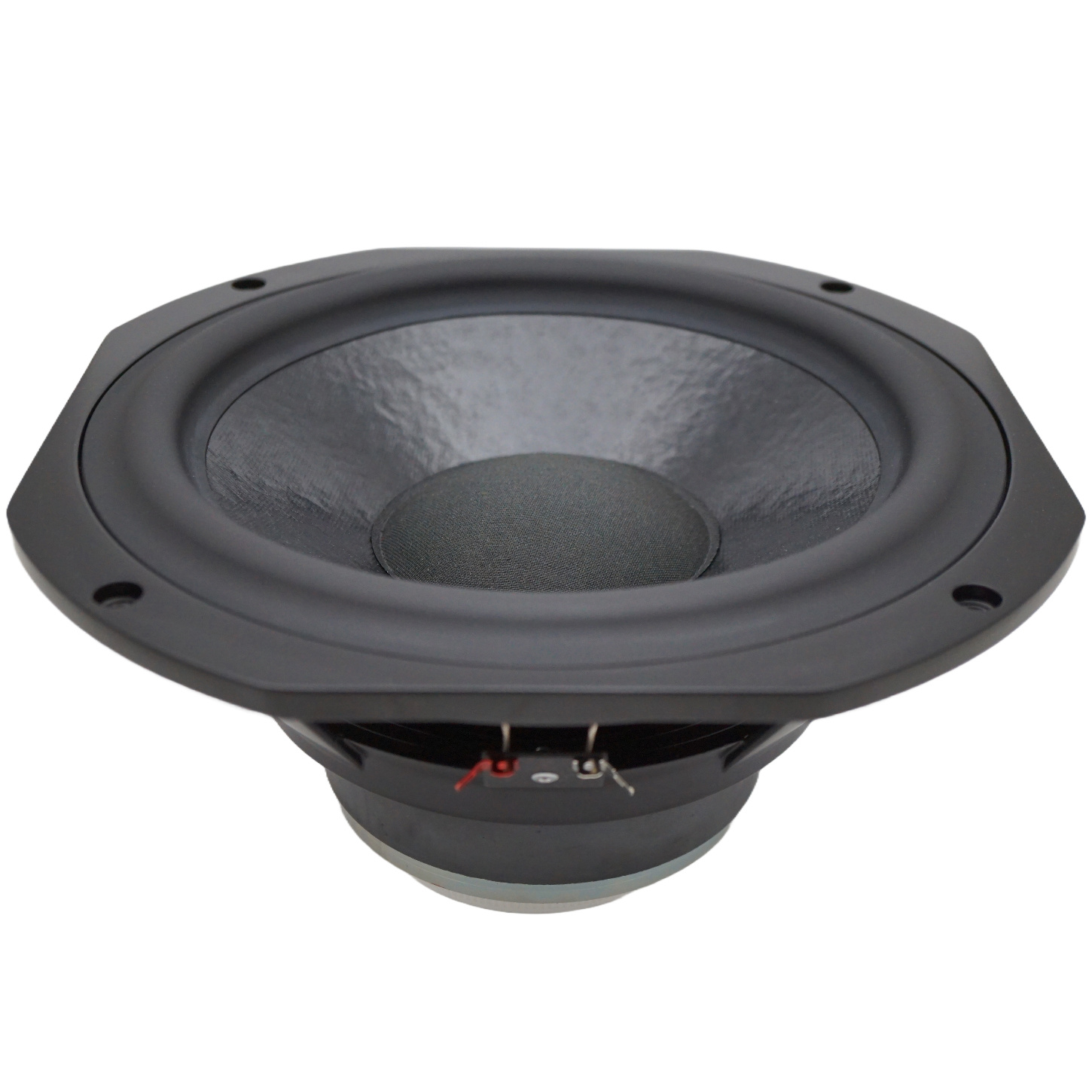

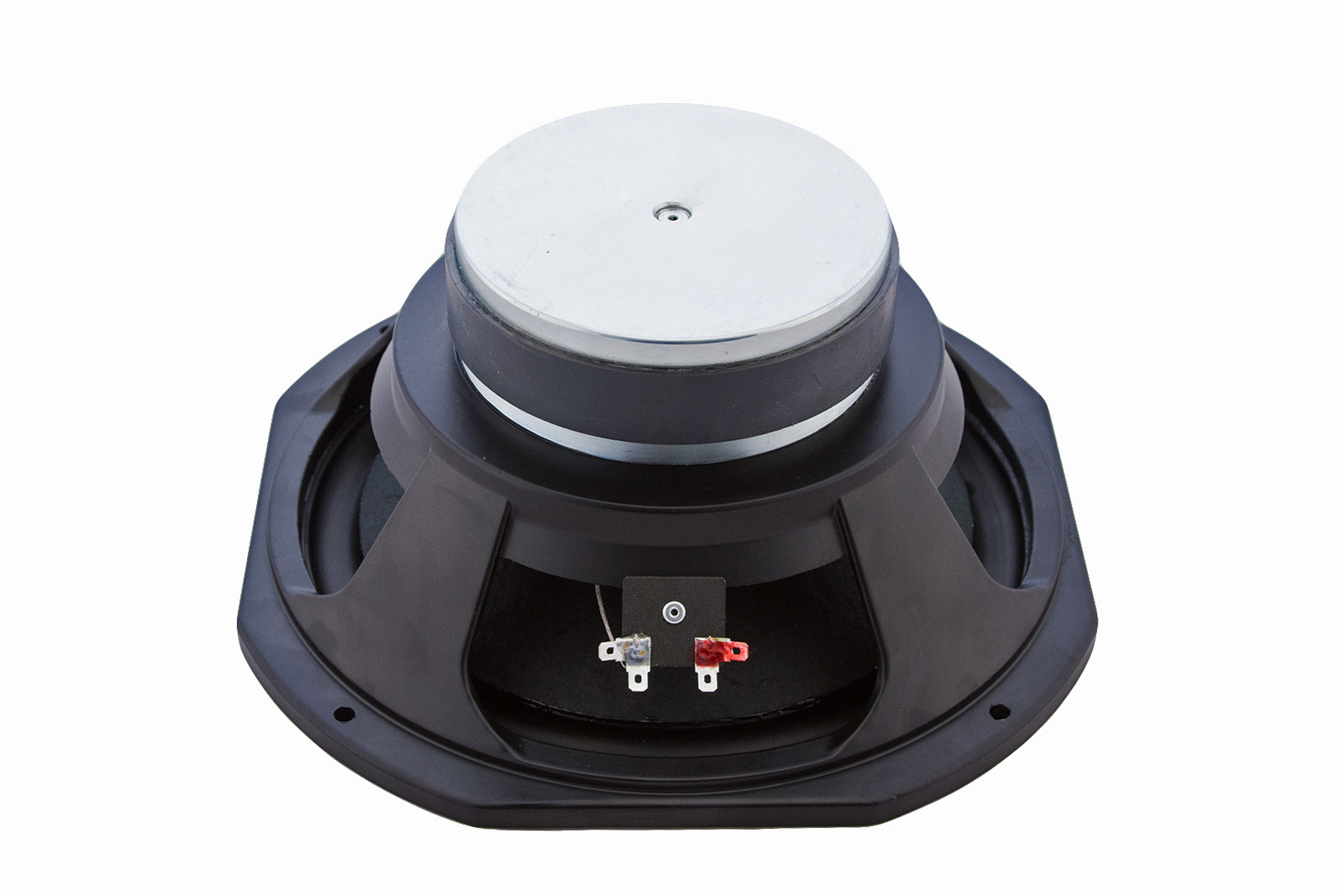

        Product description Volt Loudspeakers B2518 Subwoofer

        The Volt Loudspeakers B2518 is a 10" subwoofer designed to deliver powerful and low-distortion bass performance, optimized for extended bass response in high-end audio systems.



        Highlights of the Volt Loudspeakers B2518 Subwoofer

        • 10" paper cone for rigidity and minimal coloration
        • Symmetrical field magnet system for maximum linear excursion
        • Double rear suspensions for transient stability
        • Optimized for bass extension in various enclosures



        Product details of the Volt Loudspeakers B2518 Subwoofer

        Volt Loudspeakers B2518 Subwoofer



        The B2518 subwoofer features a 10" cone made of rigid paper to ensure true piston movement with minimal coloration. The symmetrical field magnet system, along with a long voice coil, enables large linear excursions essential for deep bass reproduction. The double rear suspensions ensure transient stability even at high power levels, making it suitable for demanding audio environments.



        Operating within a frequency range of 24 to 1000 Hz, the B2518 has a sensitivity of 90 dB/W/m and a power handling capacity of 150 watts AES. It is available in 4, 8, or 16 ohm versions, offering flexibility for different system configurations. The driver’s chassis is made of diecast aluminum, providing durability and reliability​​.

        Show more

        Specifications

        Article number
        B2518
        EAN
        9506911123346
        Woofer Type
        Bass Driver
        Nominal Diameter
        10 "
        Power Handling (RMS)
        150 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        90 dB
        Frequency Response
        24 - 1000 Hz
        Voice Coil Diameter
        38 mm
        DC Resistance (Re)
        5.8 Ω
        Voice Coil Inductance (Le)
        0.94 mH
        Resonant Frequency (Fs)
        31 Hz
        Mechanical Q (Qms)
        1.82
        Electromagnetic Q (Qes)
        0.45
        Total Q (Qts)
        0.36
        BL Product (BL)
        11.74 N/A
        Compliance Equivalent Volume (Vas)
        72.56 Litres
        Maximum Linear Excursion (Xmax)
        ± 5 mm
        Driver's Mechanical Losses (Rms)
        5.74 Ωm
        Basket / Frame Material
        Diecast Aluminium
        Overall Outside Diameter
        285 mm
        Overall Depth
        119 mm
        Baffle Cutout Diameter
        253 mm
        Bolt Circle Diameter
        268 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5.2 mm

        Show more
