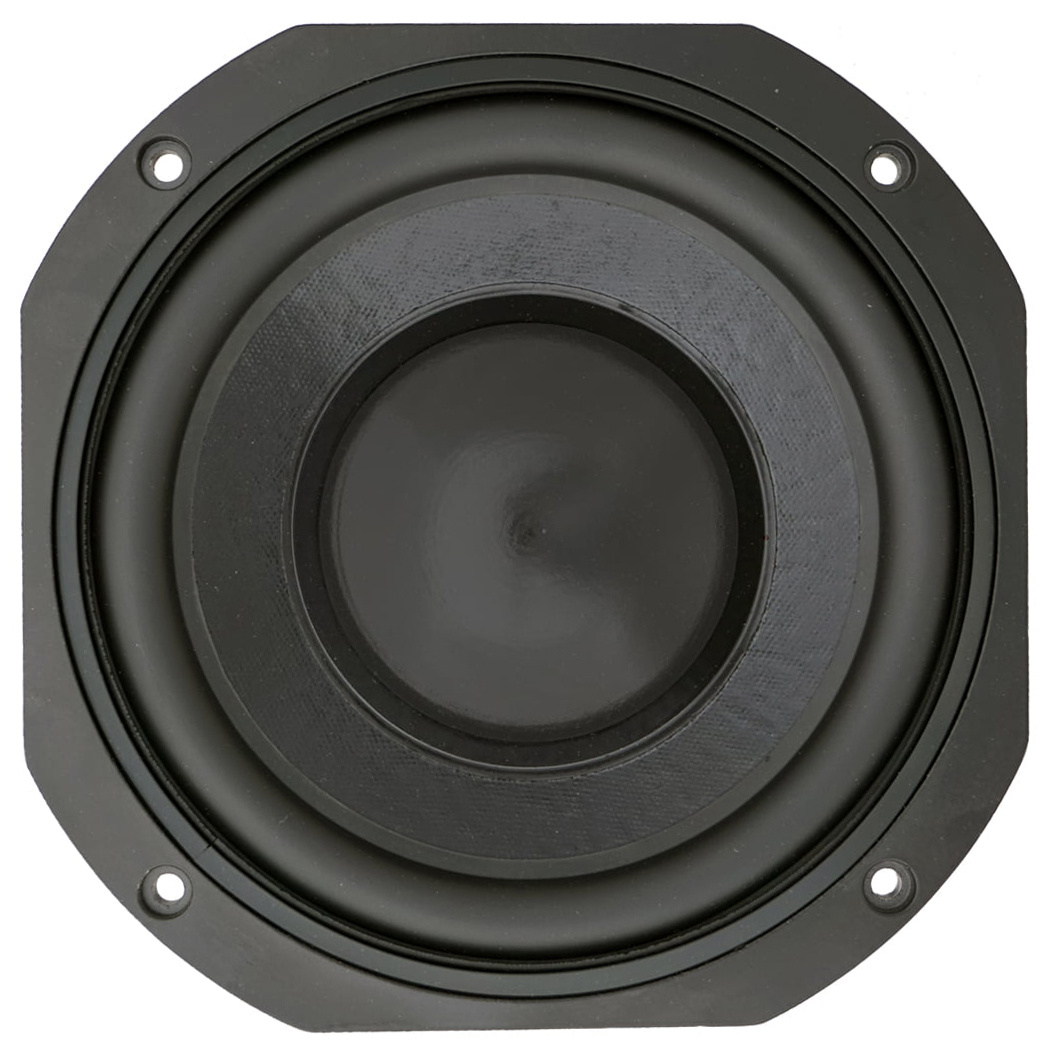

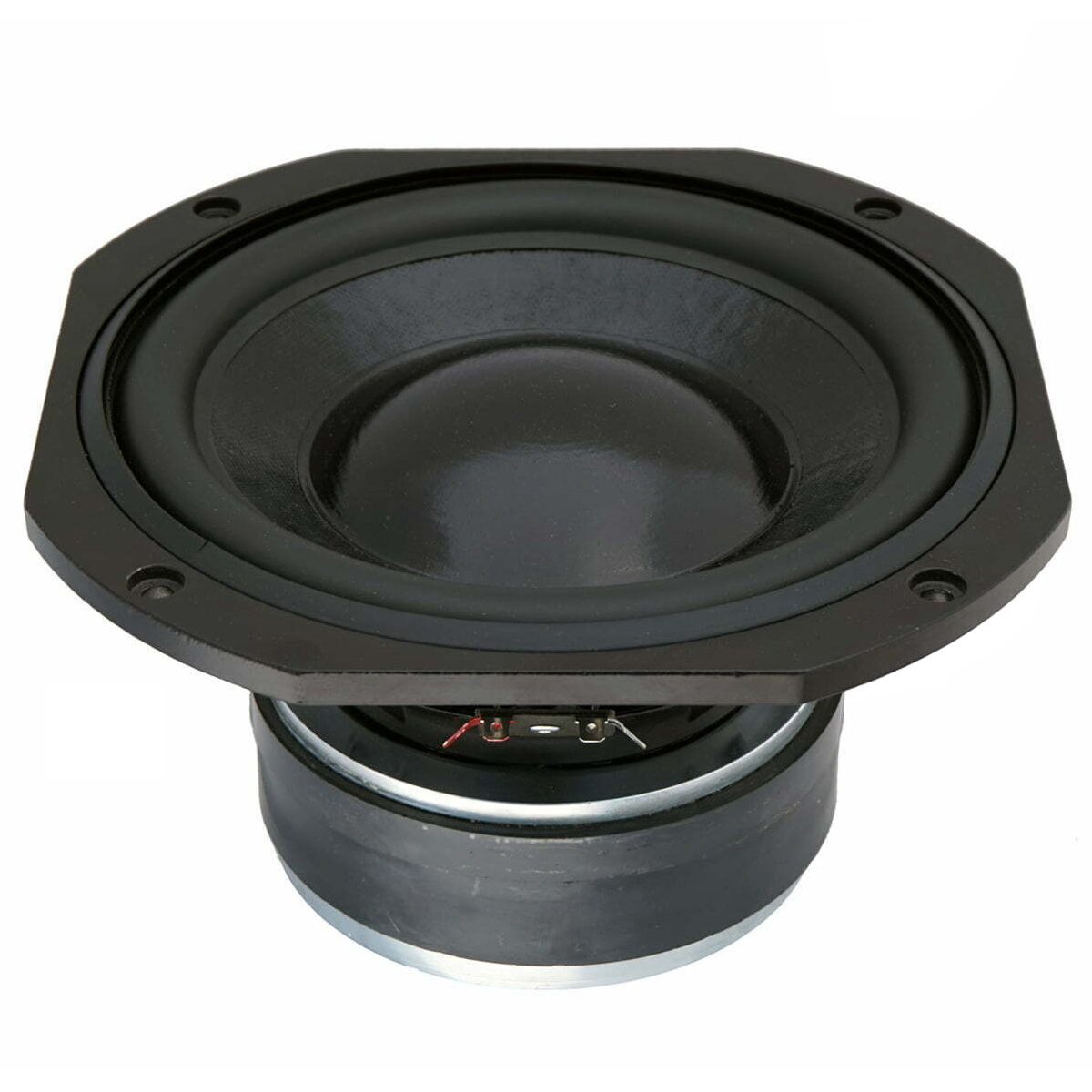

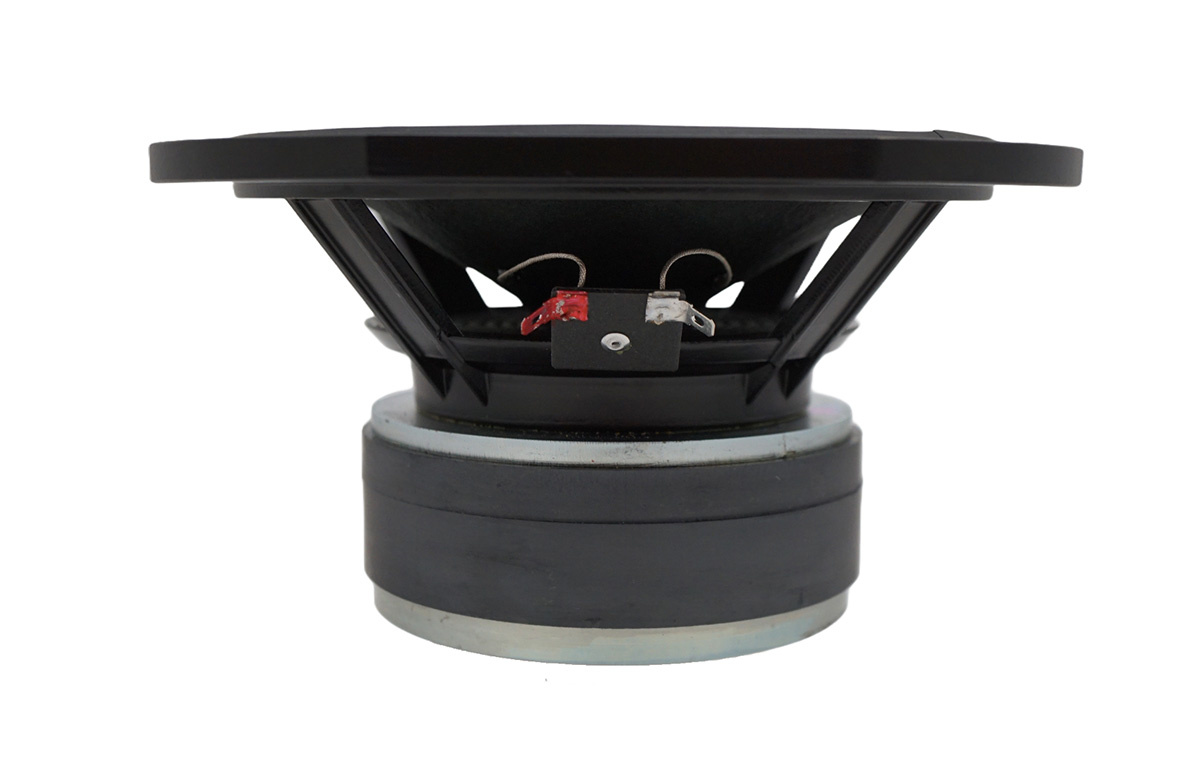

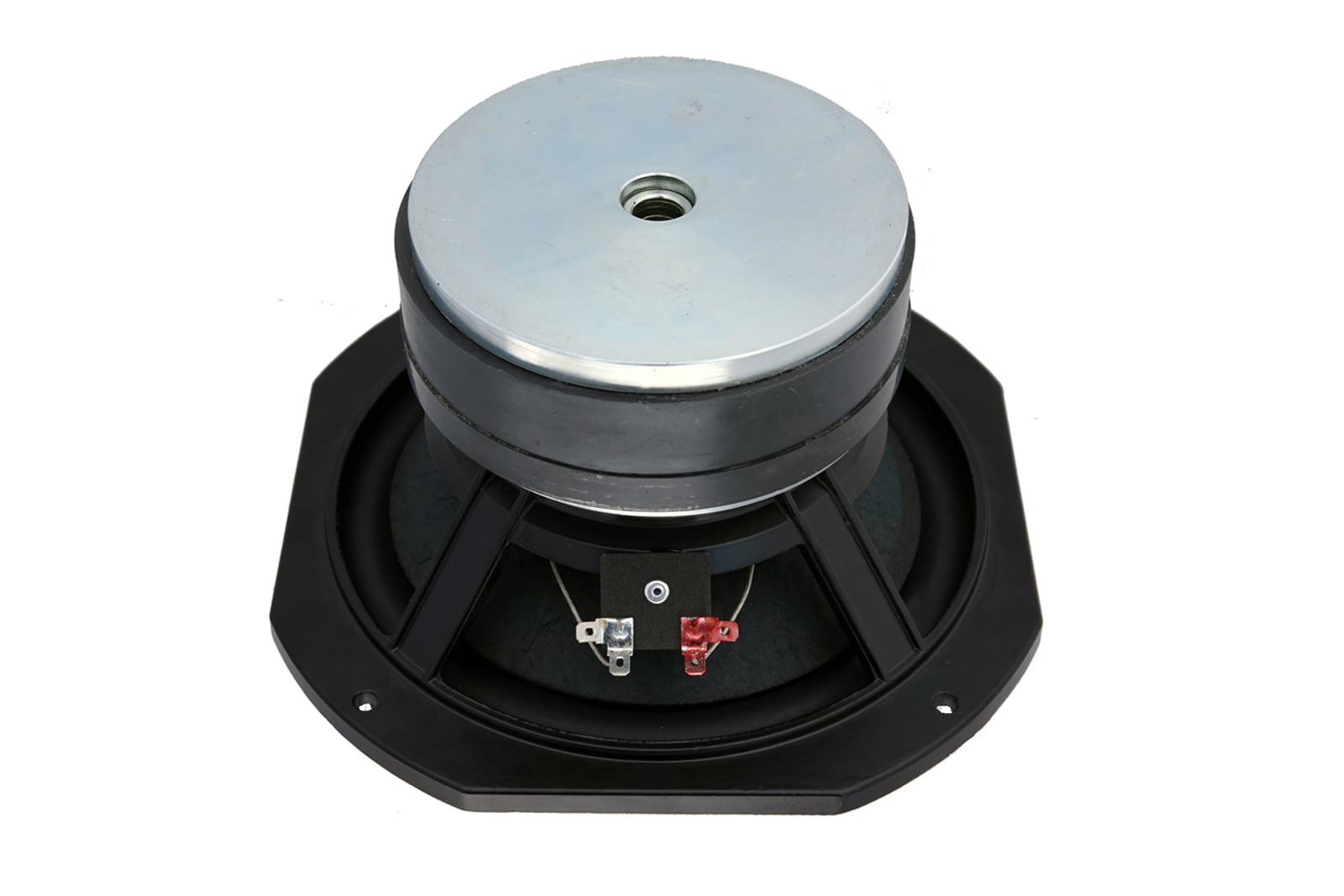

        SB2201 8'' Subwoofer 8 ohm

        Volt Loudspeakers SB2201 8'' Subwoofer 8 ohm

        €279,95

        6 In stock

        Add to cart

        Volt Loudspeakers SB2201 8'' Subwoofer 8 ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Volt Loudspeakers
        Show all Subwoofer
        8" | 8 Ω
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        € 231,36€ 279,95 6 In stock
        • -5% Purchase 4 for only € 265,95 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm
        SB2201 8'' Subwoofer 8 ohm

        Product description Volt Loudspeakers SB2201 Subwoofer

        The Volt Loudspeakers SB2201 is an 8" subwoofer designed for exceptional bass performance in compact enclosures. This sub-bass driver is optimized for use in small sealed, vented, or bandpass enclosures, making it a versatile choice for various audio setups.



        Highlights of the Volt Loudspeakers SB2201 Subwoofer

        • 8" paper cone for rigidity and minimal coloration
        • Symmetrical field magnet system with a long coil for large linear excursions
        • Double rear suspensions for excellent transient stability
        • Optimized for small sealed, vented, or bandpass enclosures



        Product details of the Volt Loudspeakers SB2201 Subwoofer

        Volt Loudspeakers SB2201 Subwoofer



        The SB2201 subwoofer features an 8" cone made of long-fiber pulp, providing rigidity and minimizing coloration. The symmetrical field magnet system and long voice coil allow for large linear excursions, essential for deep bass reproduction. The driver’s double rear suspensions ensure transient stability even at high drive levels. The Thiele-Small parameters are optimized for easy integration into small enclosures, offering extended bass performance in various configurations.



        Operating within a frequency range of 25 to 1000 Hz, the SB2201 has a sensitivity of 86 dB/W/m and a power handling capacity of 150W AES. Its 8 ohm impedance makes it compatible with most audio systems. The heavy-duty cast chassis adds to its durability and reliability, making it an excellent choice for demanding audio applications​​.

        Show more

        Specifications

        Article number
        SB2201
        EAN
        9503736273539
        Woofer Type
        Sub Bass Driver
        Nominal Diameter
        8 "
        Power Handling (RMS)
        150 Watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        86 dB
        Frequency Response
        25 - 1000 Hz
        Voice Coil Diameter
        38 mm
        DC Resistance (Re)
        5.1 Ω
        Voice Coil Inductance (Le)
        1.8 mH
        Resonant Frequency (Fs)
        39 Hz
        Mechanical Q (Qms)
        3.95
        Electromagnetic Q (Qes)
        0.61
        Total Q (Qts)
        0.53
        Surface Area of Cone (Sd)
        227 cm²
        Volume of Displacement (Vd)
        317 cm³
        BL Product (BL)
        9.5 N/A
        Compliance Equivalent Volume (Vas)
        27 Litres
        Maximum Linear Excursion (Xmax)
        ± 14 mm
        Basket / Frame Material
        Diecast Aluminium
        Overall Outside Diameter
        235 mm
        Overall Depth
        118 mm
        Baffle Cutout Diameter
        192 mm
        Bolt Circle Diameter
        218 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        5.2 mm
