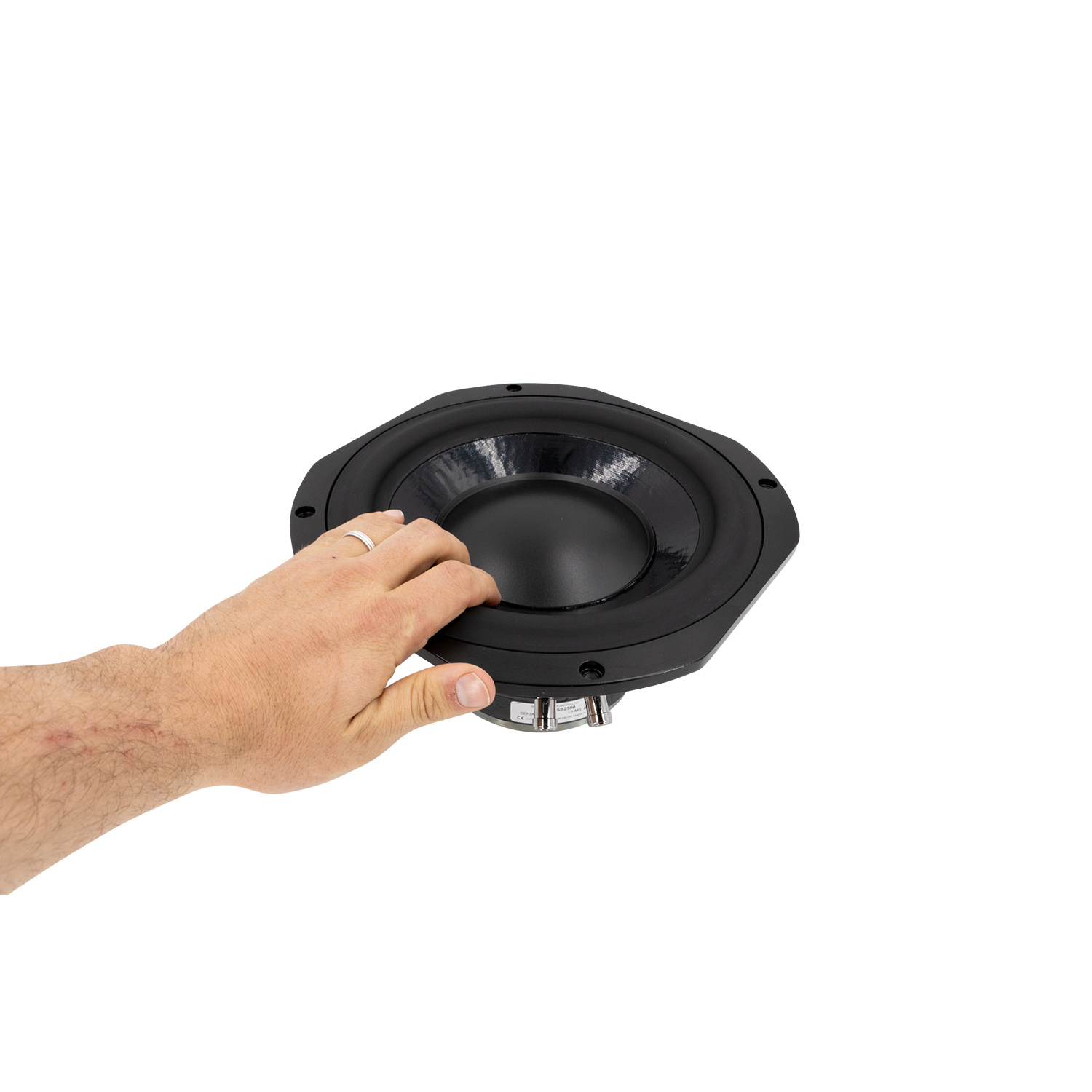

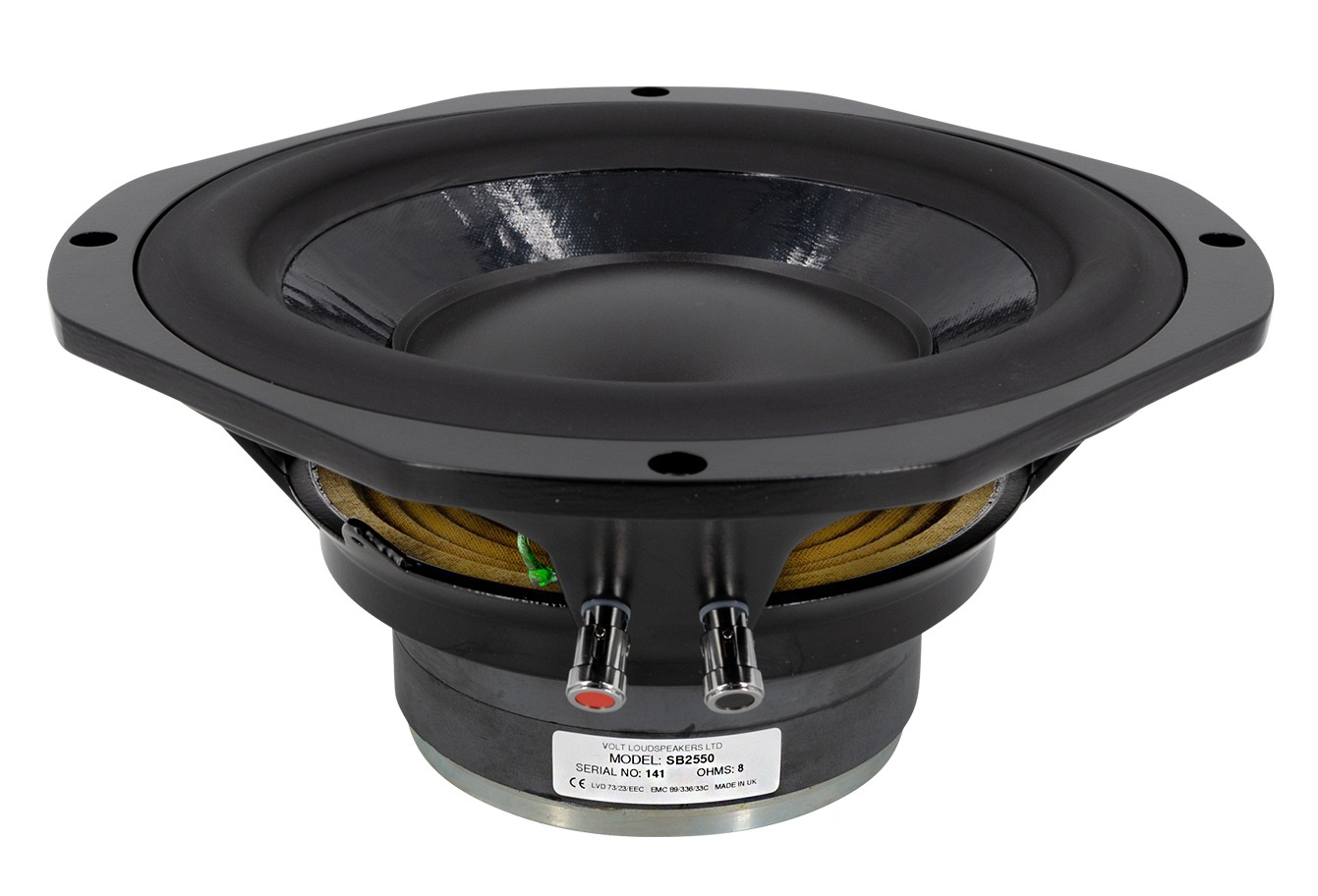

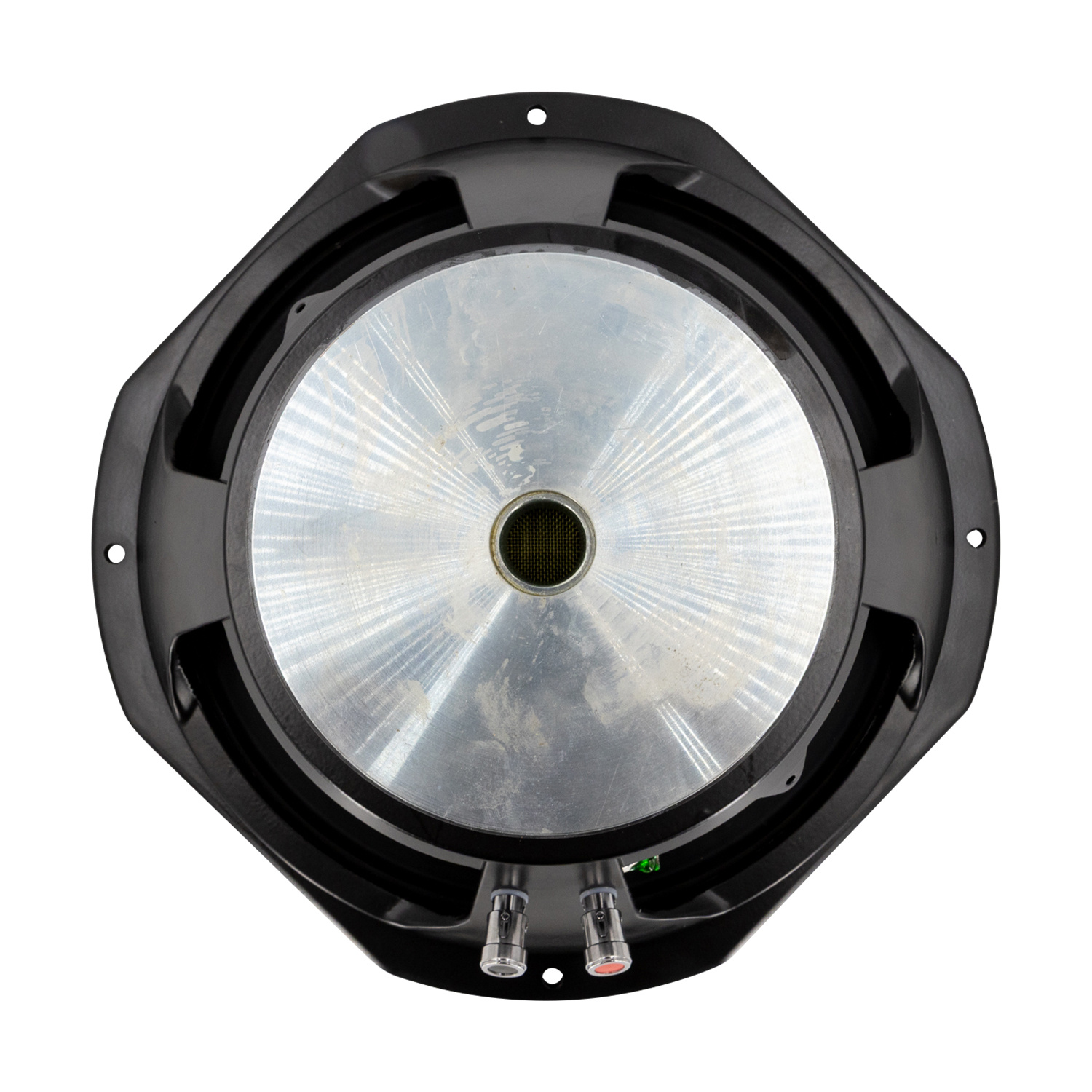

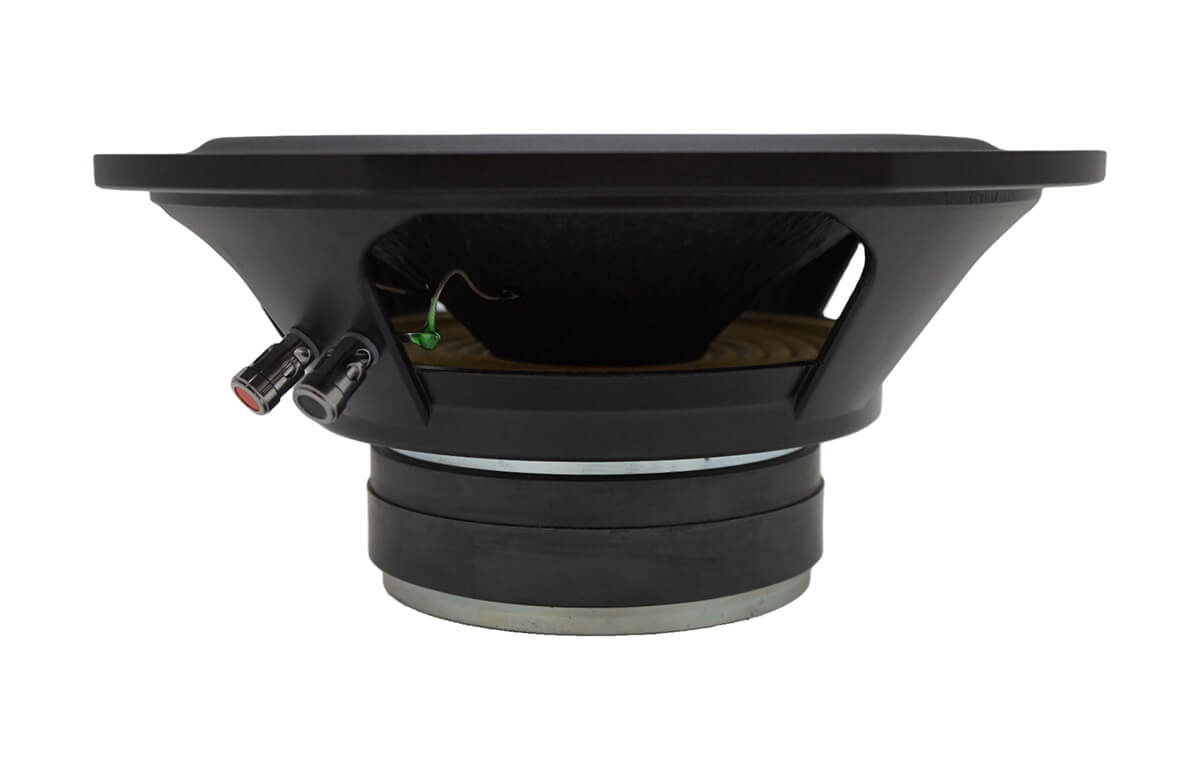

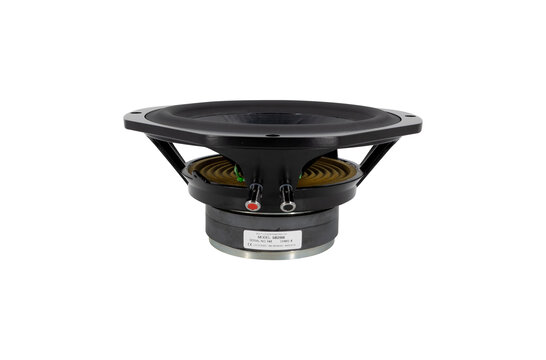

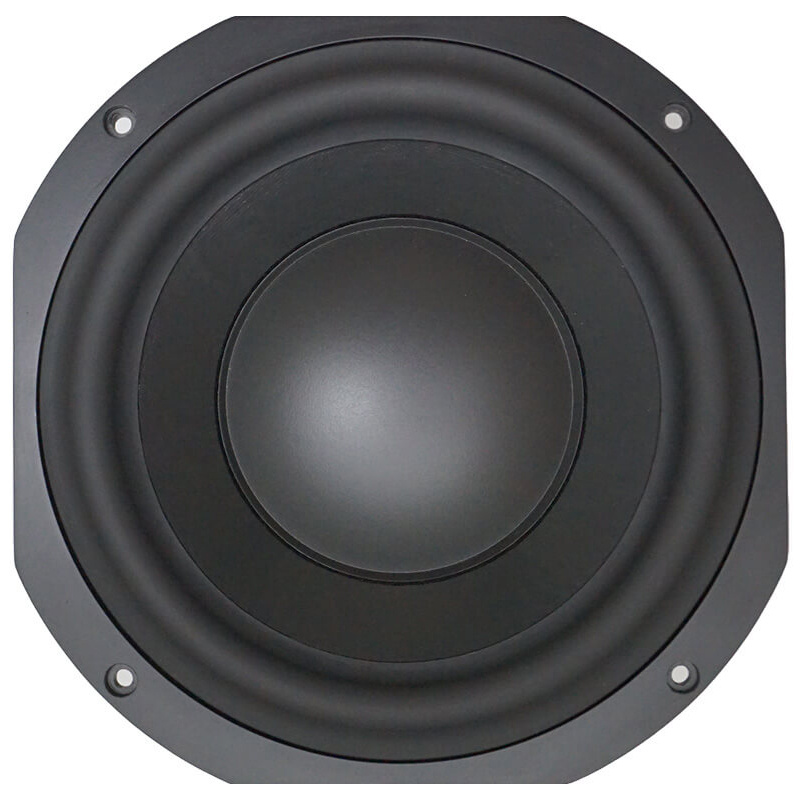

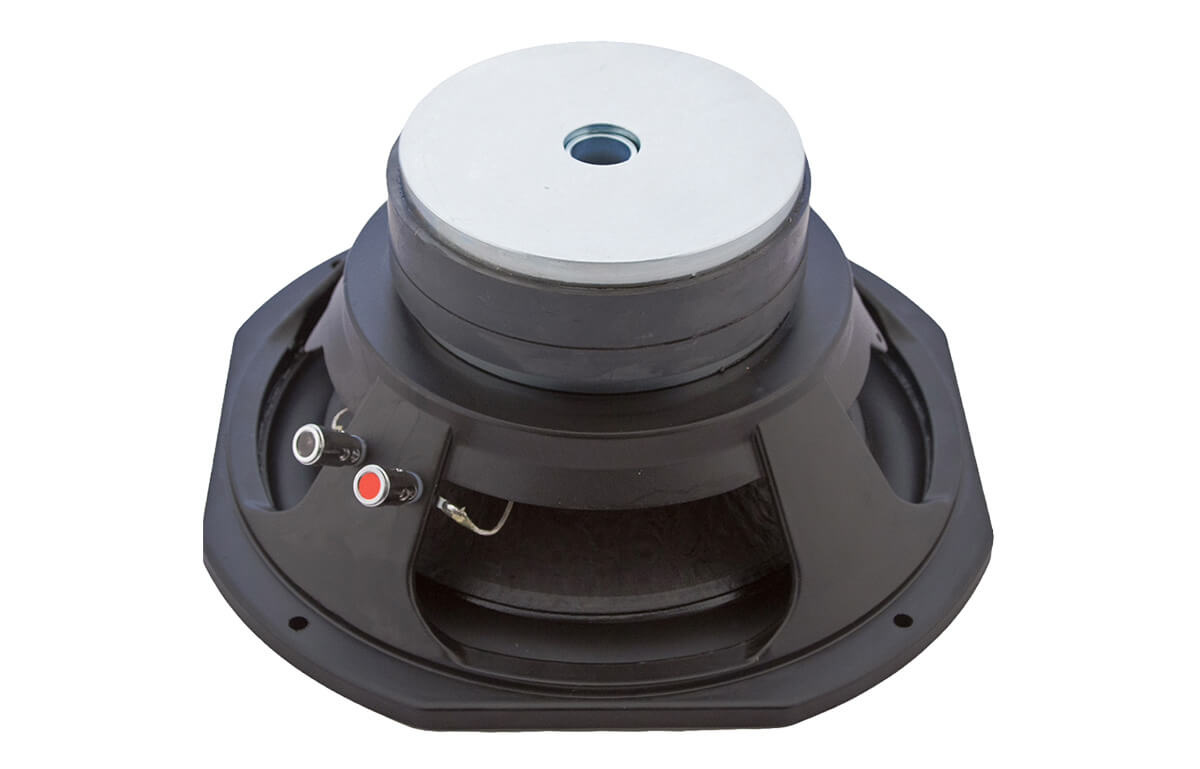

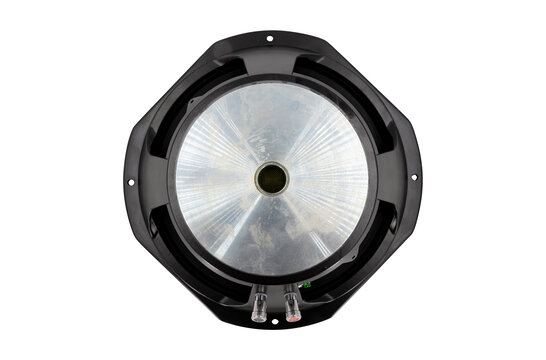

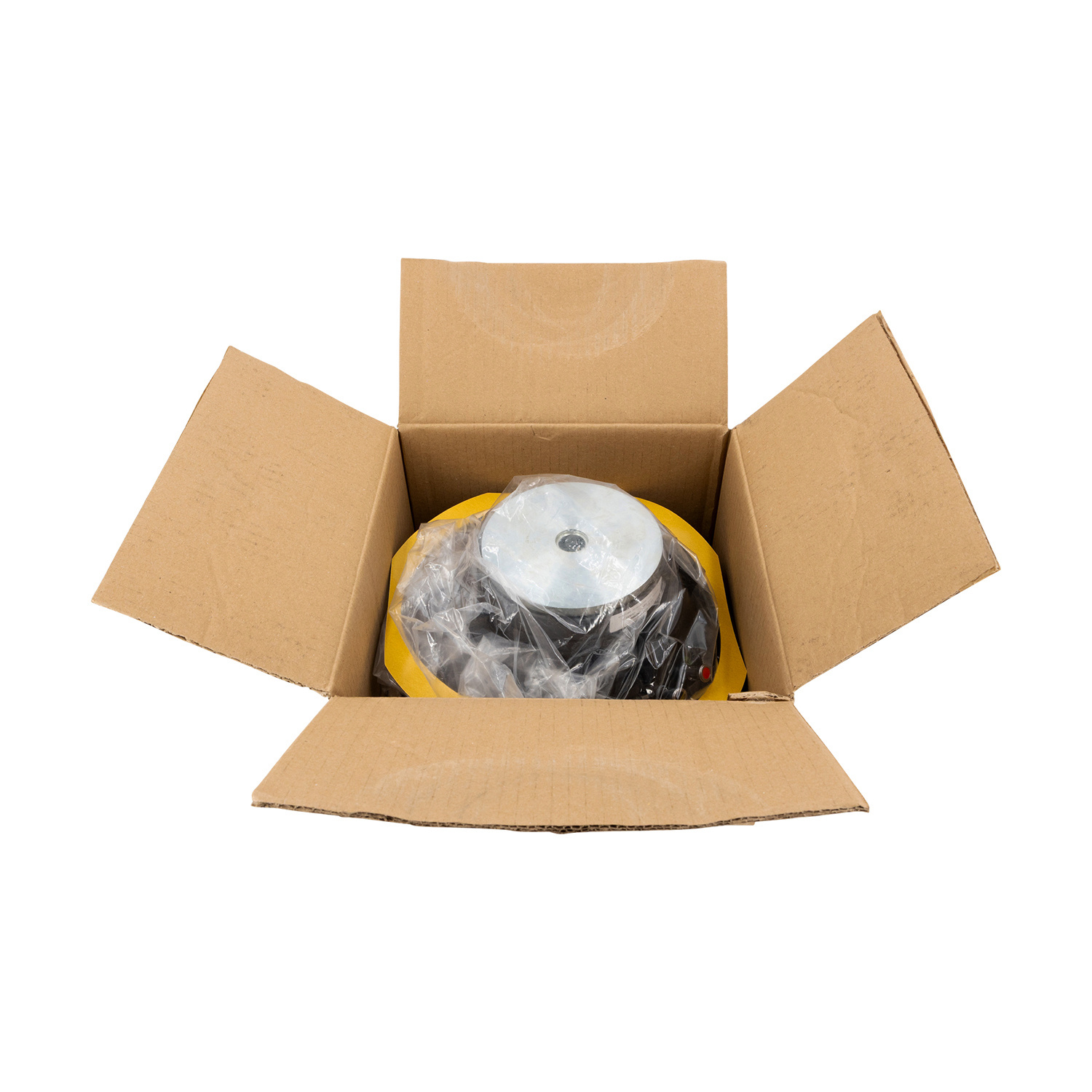

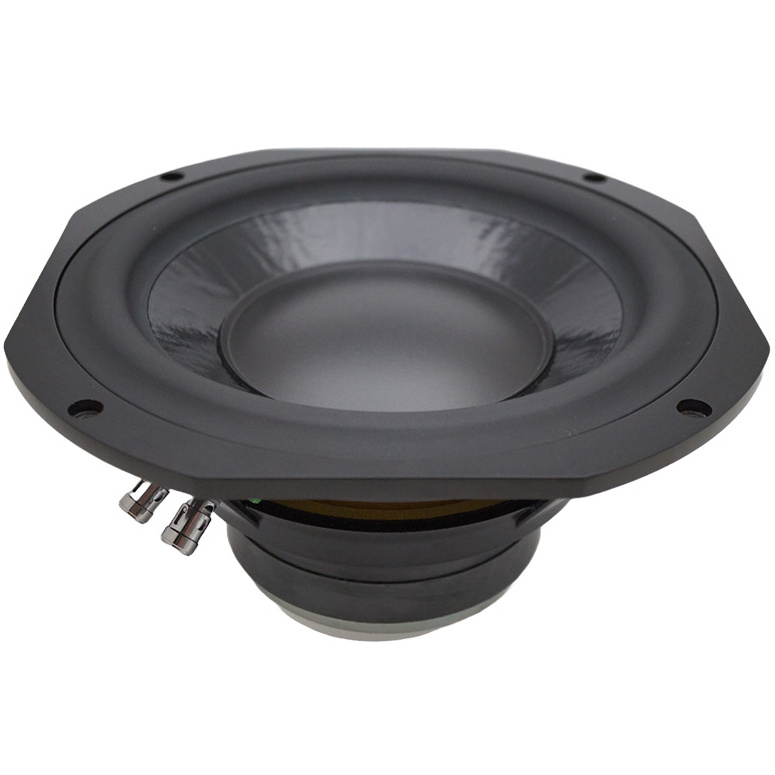

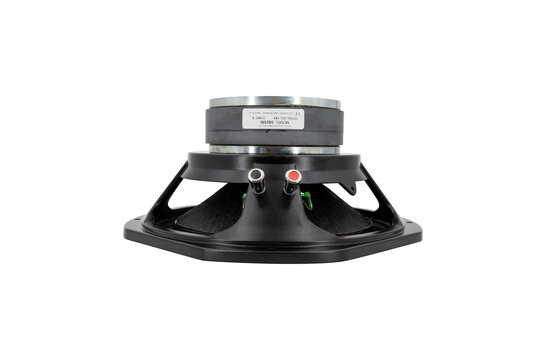

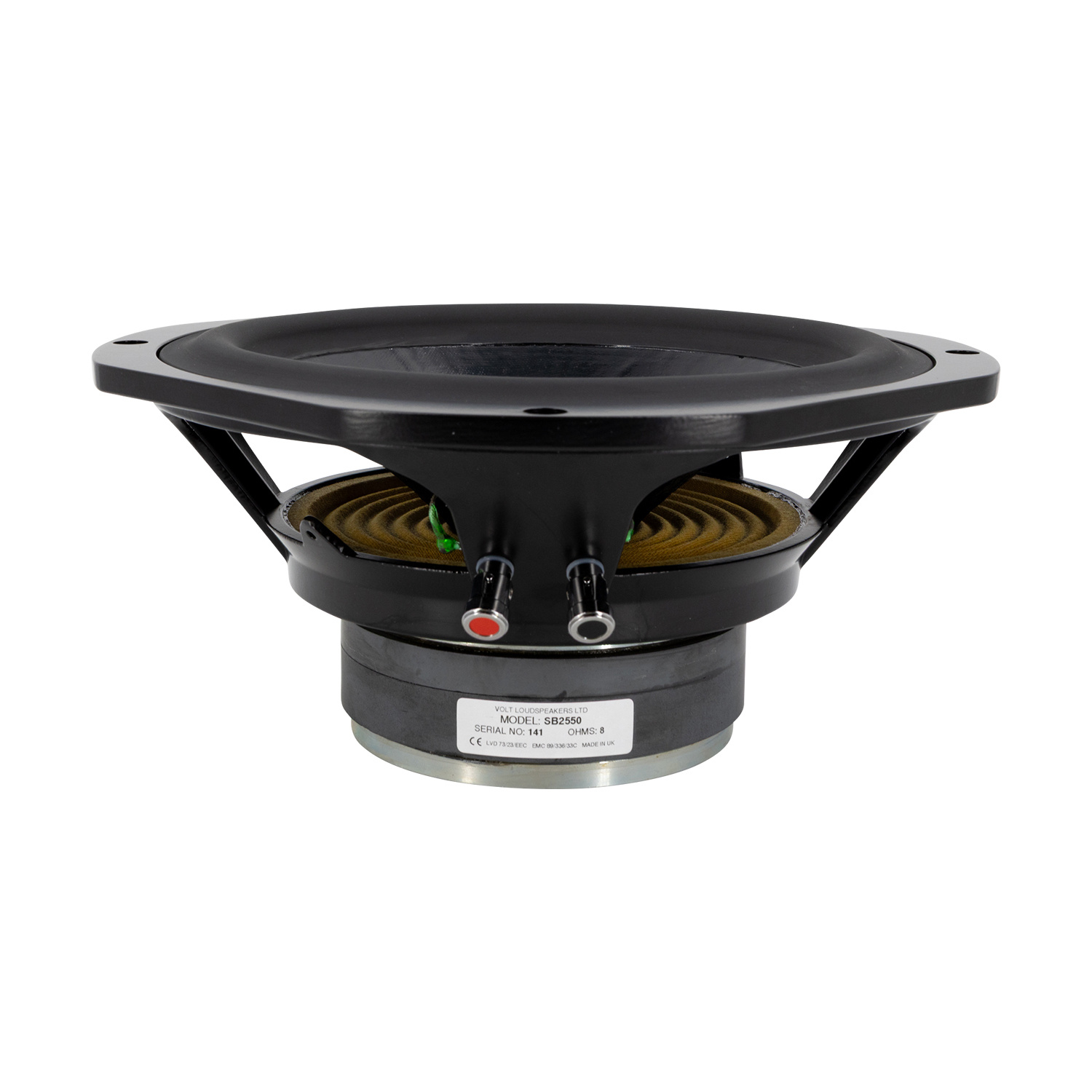

        SB2550 10'' Subwoofer 8 ohm

        Volt Loudspeakers SB2550 10'' Subwoofer 8 ohm

        €279,95

        8 In stock

        Volt Loudspeakers SB2550 10'' Subwoofer 8 ohm

        0 reviews
        0 from 5
        0 reviews
        5 stars
        0%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        € 231,36€ 279,95 8 In stock
        • -5% Purchase 4 for only € 265,95 per piece

        Buy now, pay later

        • We ship to
        • Ordered now, shipped tomorrow
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        Pros and cons

        According to our specialists
        • Exceptional Sub Bass Performance

        Product description Volt Loudspeakers SB2550 Subwoofer

        The Volt Loudspeakers SB2550 Subwoofer is a high-performance 10-inch subwoofer designed to deliver exceptional sub-bass reproduction with high linear excursion capabilities.



        Highlights of the Volt SB2550 Subwoofer

        • High excursion with true piston movement
        • Heavy, doped cone with large rubber surround
        • Rear-vented stacked magnet assembly for cooling
        • Exceptional peak-to-peak travel without bottoming out



        Product details Volt SB2550 Subwoofer

        Volt SB2550 Subwoofer High-Power Sub-Bass Driver



        The Volt SB2550 Subwoofer is a 10-inch high-power sub-bass driver that features a heavy doped cone, large rubber surround, and a rigid plastic dustcap capable of high excursions with true piston movement. The subwoofer’s stacked magnet assembly is designed for efficient cooling, allowing for exceptional peak-to-peak travel well in excess of its substantial linear capability without bottoming out. The SB2550 provides powerful and accurate sub-bass reproduction, making it ideal for high-end audio systems and professional applications.



        Technical Specifications

        • Nominal Diameter: 250 mm (10 inches)
        • Power Handling: 200W RMS, 400W Program Power
        • Sensitivity: 86 dB/W/m
        • Frequency Response: 18 Hz - 500 Hz
        • Impedance: 8 ohms
        • Voice Coil Diameter: 50 mm
        • Maximum Excursion: ±11 mm
        • Magnet Assembly Weight: 5.8 kg
        • Overall Diameter: 285 mm
        • Mounting Depth: 123 mm
        • Chassis: High-Pressure Diecast Aluminium



        The Volt SB2550 Subwoofer’s precise engineering and robust construction ensure reliable performance and longevity, making it a superior choice for audiophiles and professionals seeking high-fidelity low-frequency sound reproduction.

        Show more

        Specifications

        Article number
        SB2550
        EAN
        9506649546271
        Woofer Series
        Studio range
        Woofer Type
        Bass driver
        Nominal Diameter
        10 "
        Power Handling (RMS)
        200 watts
        Impedance (Z)
        8 Ω
        Sensitivity (SPL at 1m / 2.83V)
        88 dB
        Frequency Response
        18 - 500 Hz
        Voice Coil Diameter
        55 mm
        DC Resistance (Re)
        6.0 Ω
        Voice Coil Inductance (Le)
        1.46 mH
        Resonant Frequency (Fs)
        21 Hz
        Mechanical Q (Qms)
        1.90
        Electromagnetic Q (Qes)
        0.34
        Total Q (Qts)
        0.29
        Diaphragm Mass Inc. Airload (Mms)
        84.48 g
        Mechanical Compliance of Suspension (Cms)
        0.69 mm/N
        Surface Area of Cone (Sd)
        337 cm²
        Compliance Equivalent Volume (Vas)
        111.0 Litres
        Maximum Linear Excursion (Xmax)
        ± 11 mm
        Driver's Mechanical Losses (Rms)
        5.82 Ωm
        Basket / Frame Material
        Aluminum
        Overall Outside Diameter
        261 mm
        Overall Depth
        132 mm
        Baffle Cutout Diameter
        253 mm

        Show more
