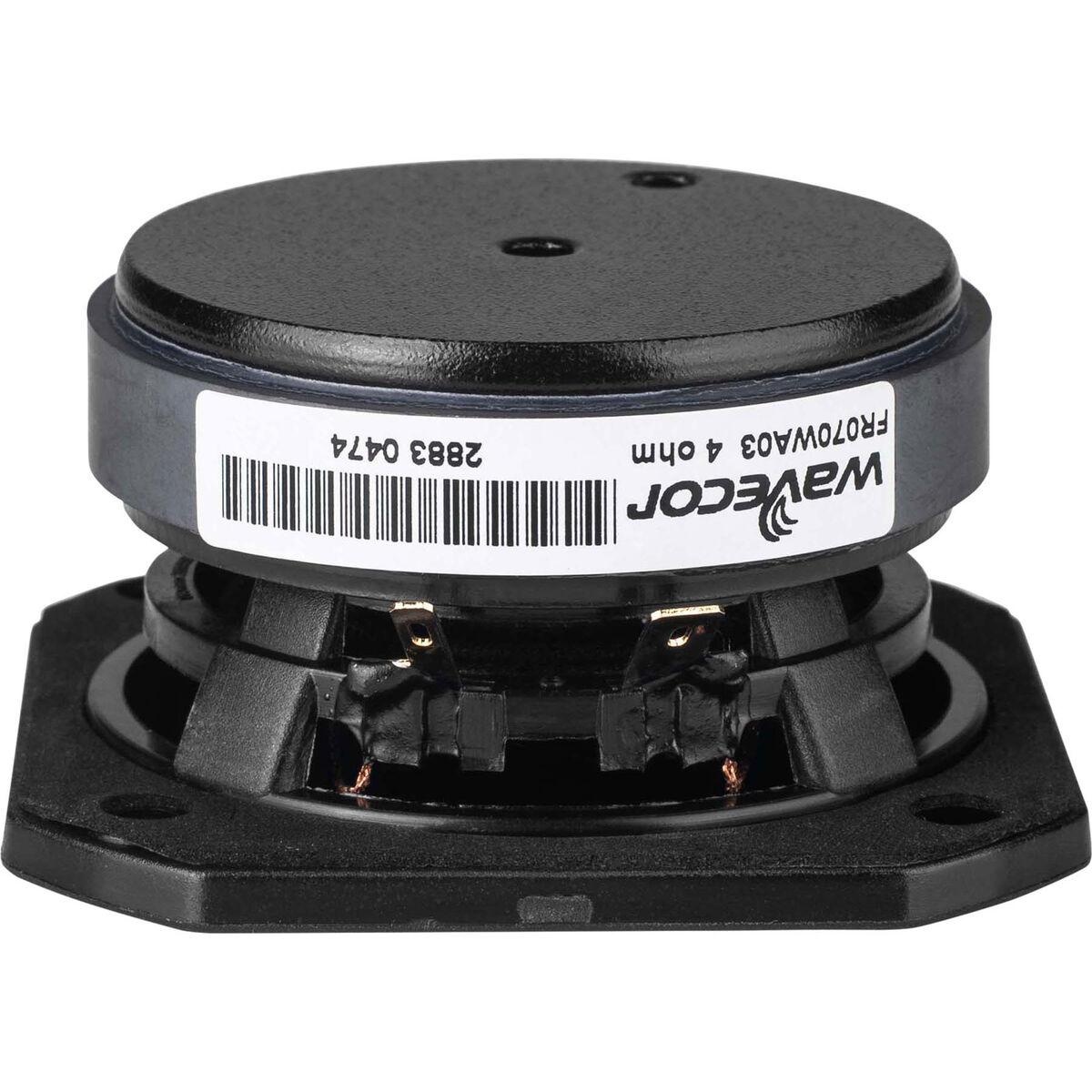

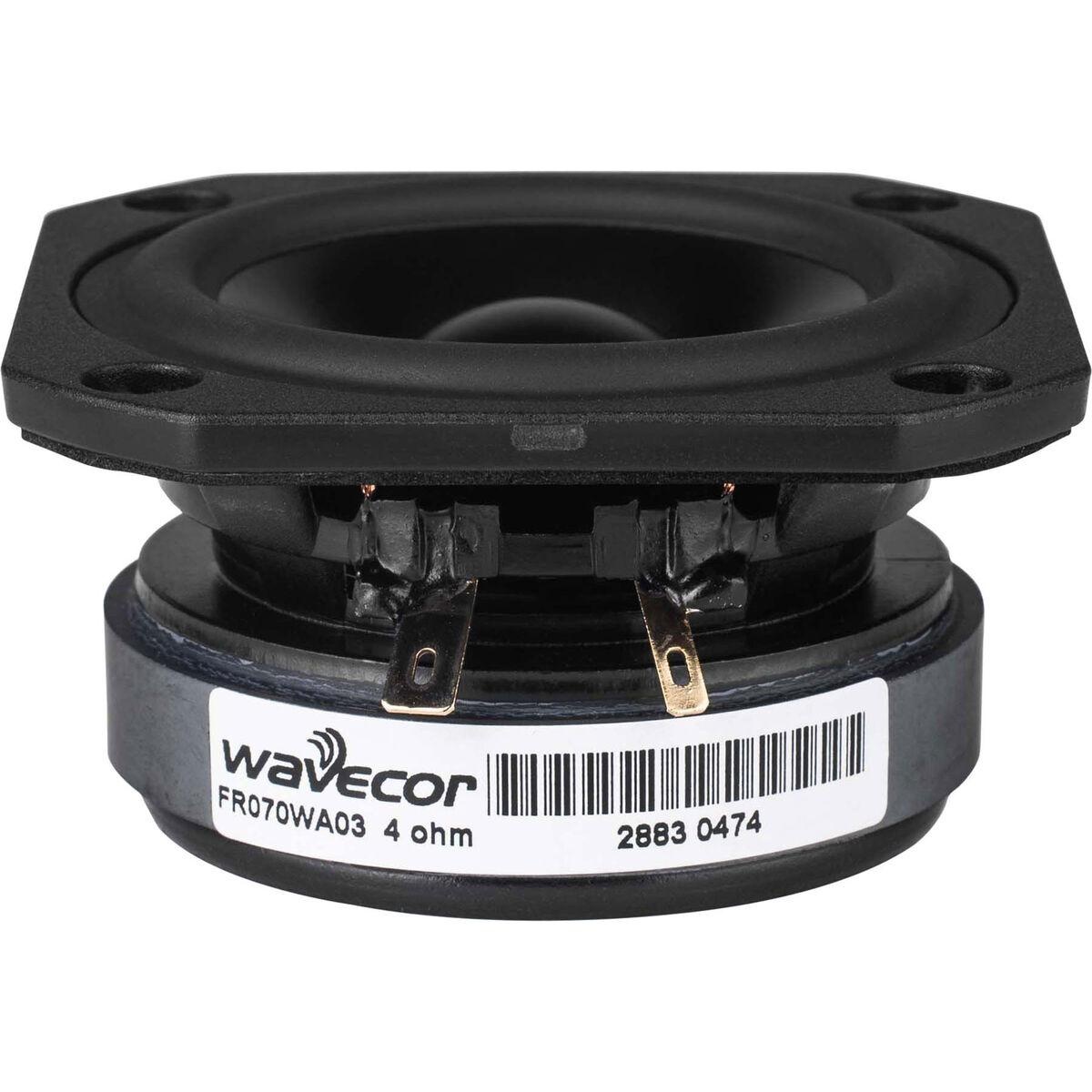

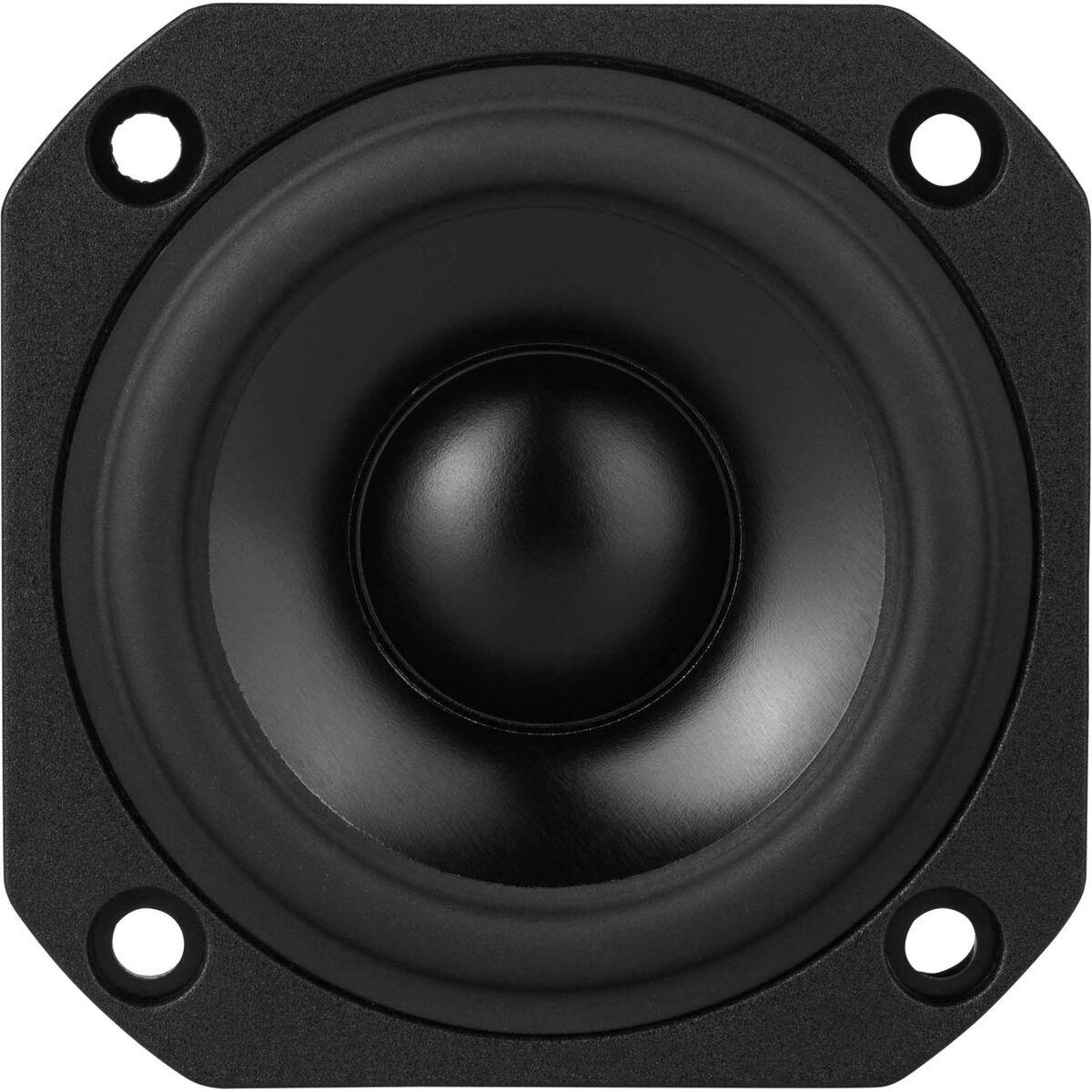

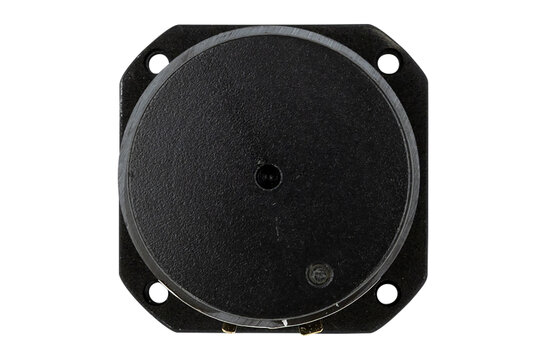

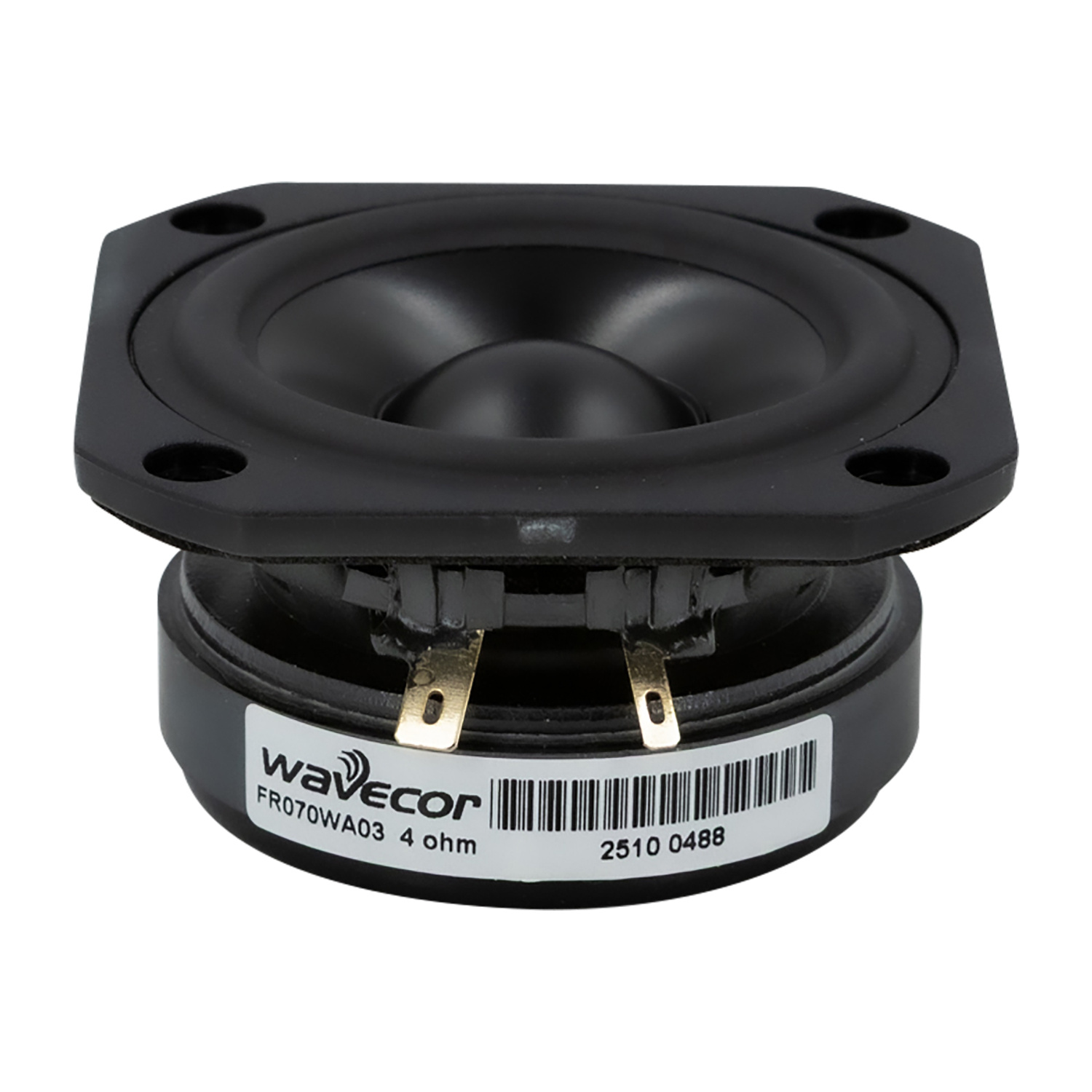

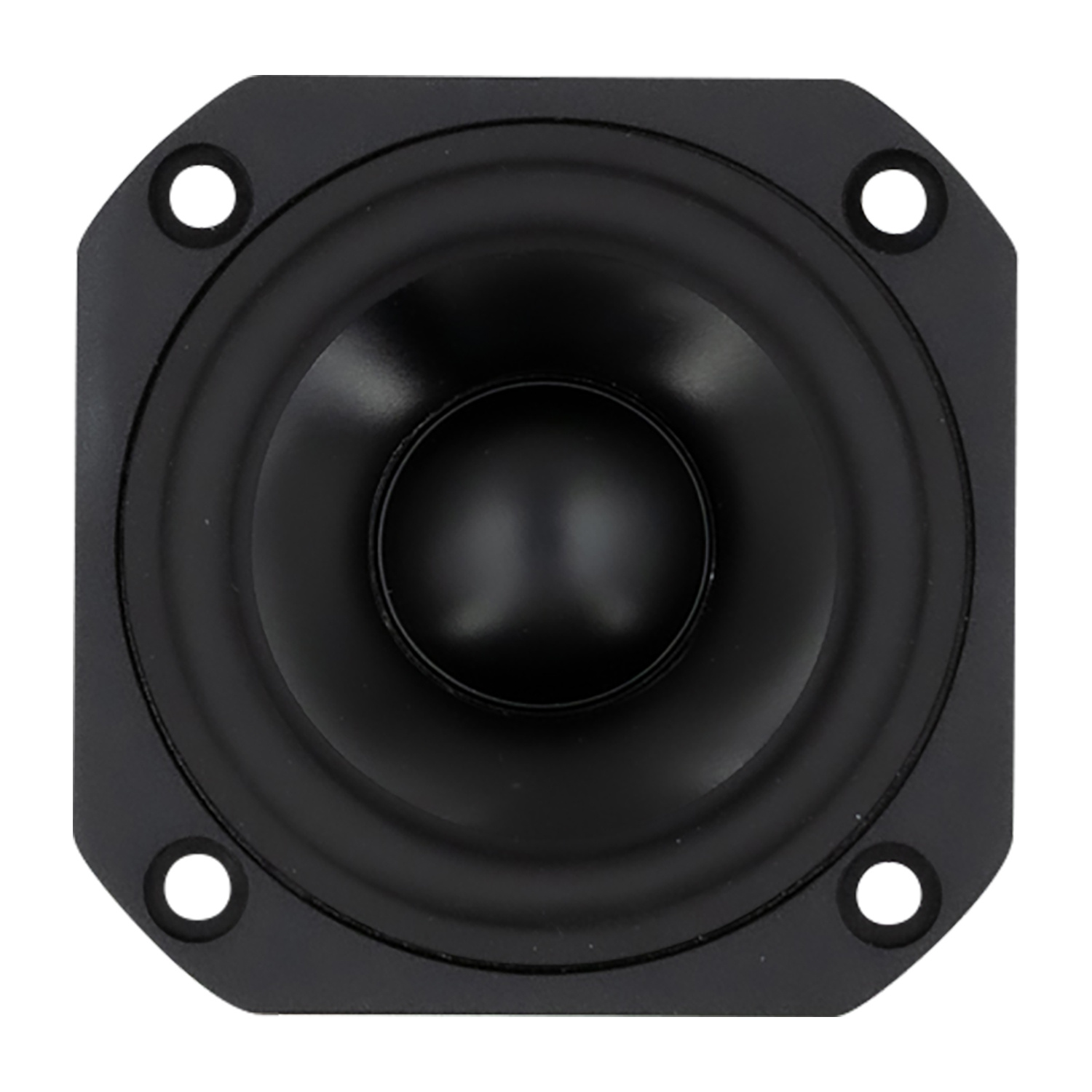

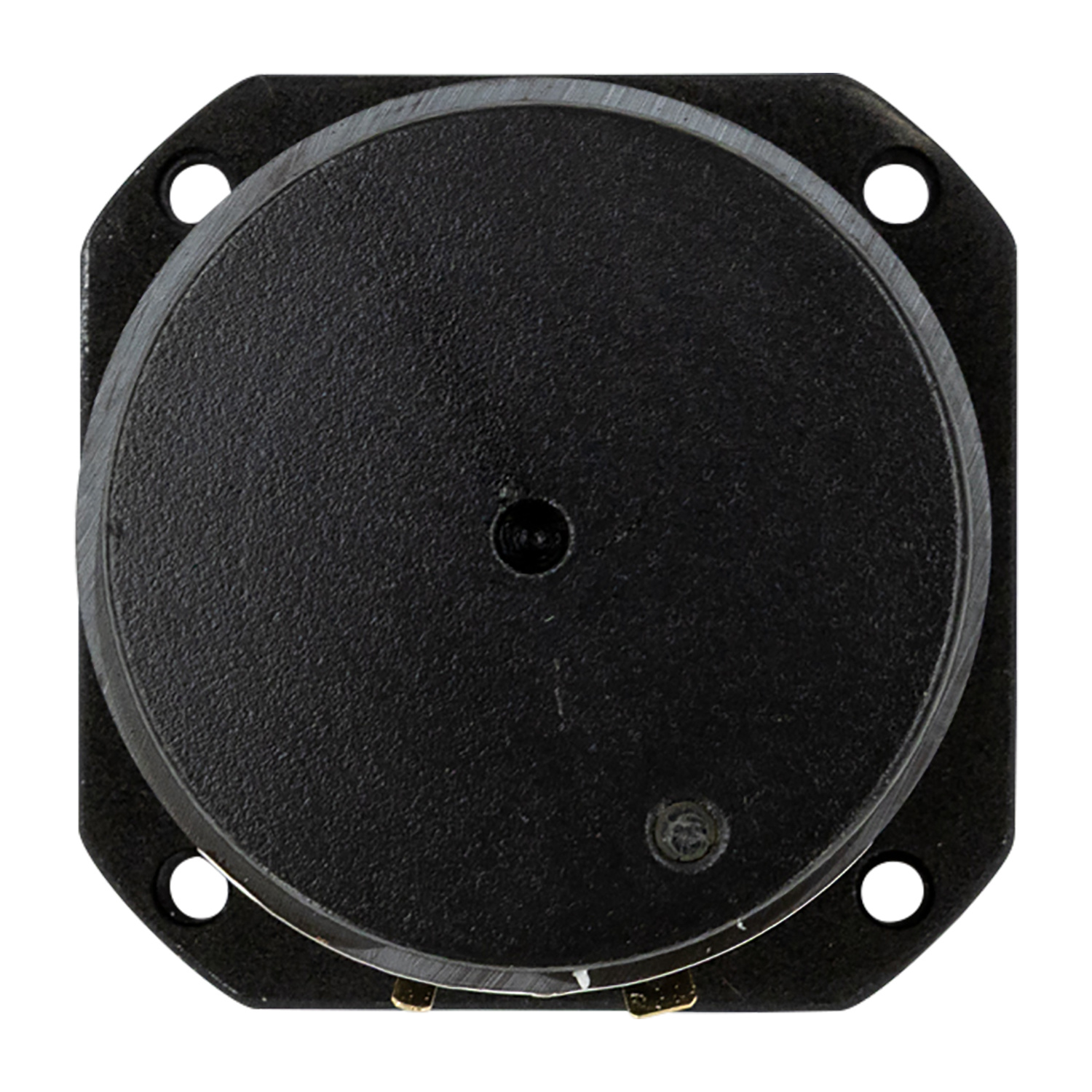

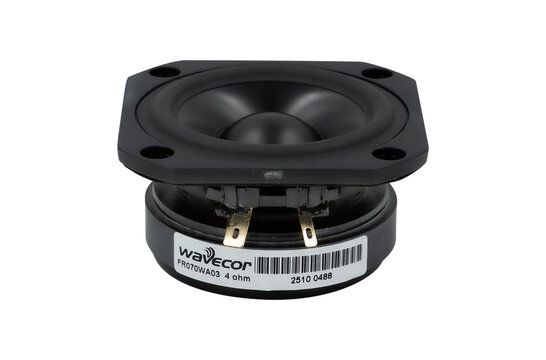

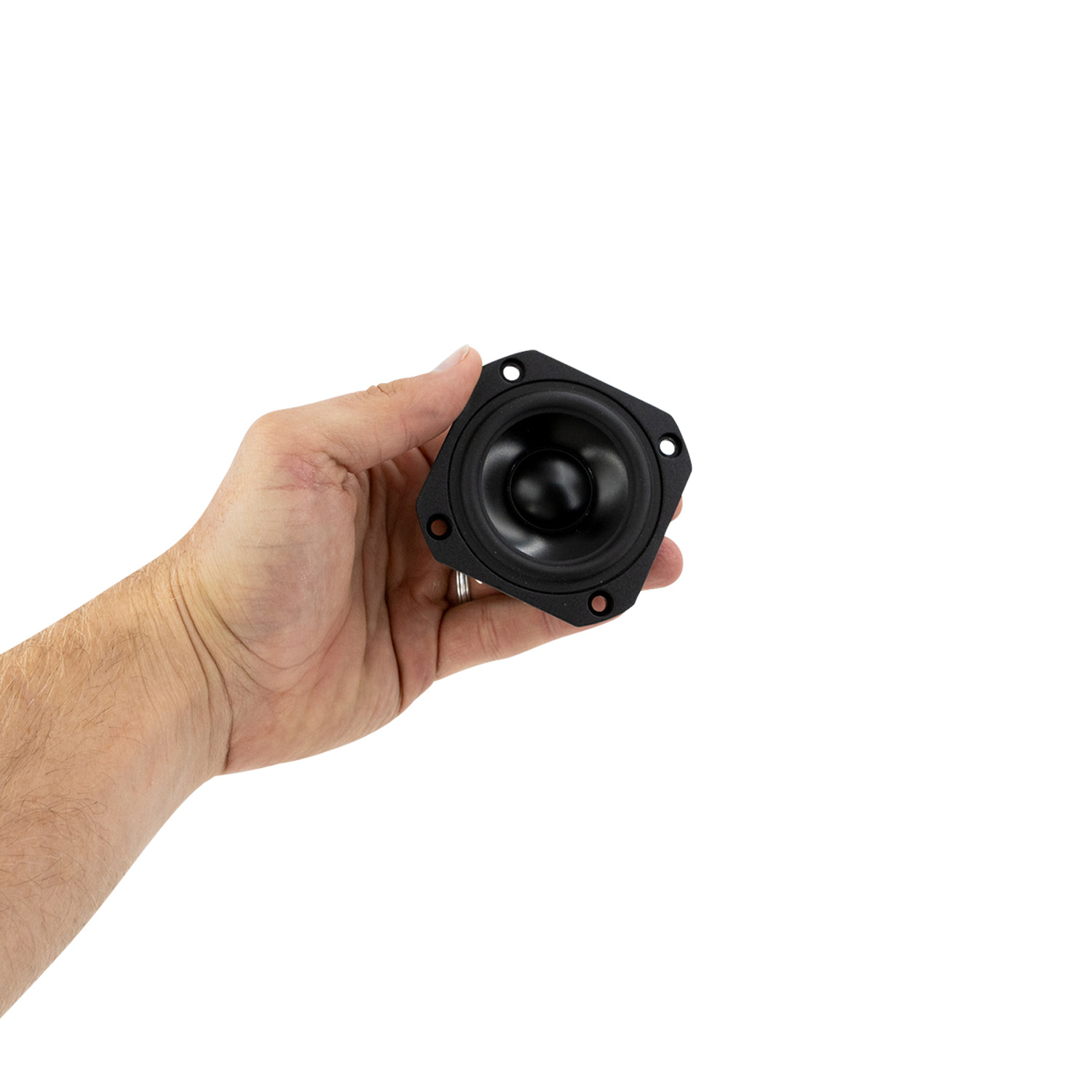

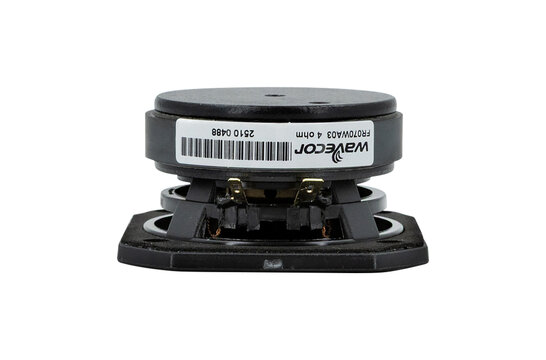

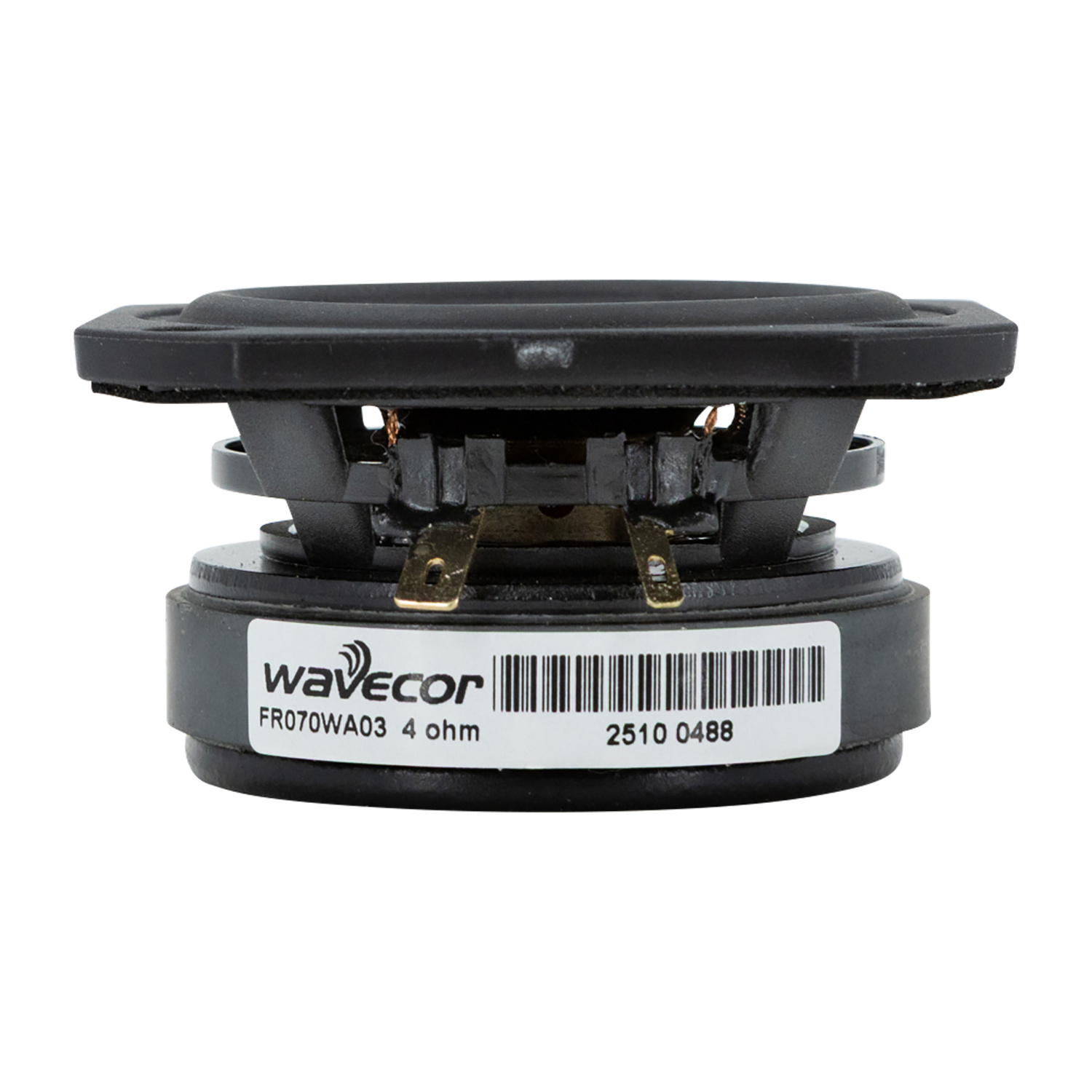

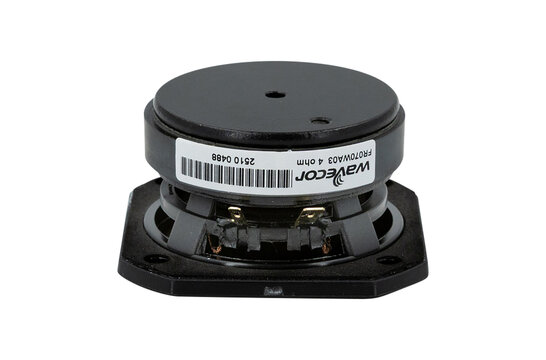

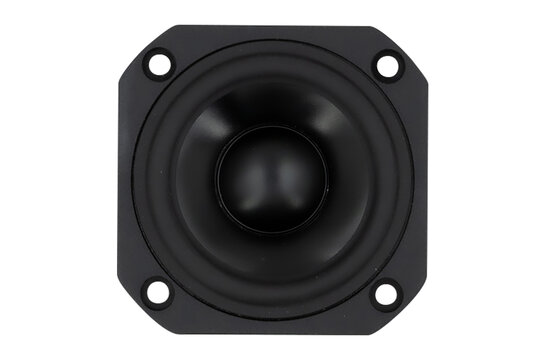

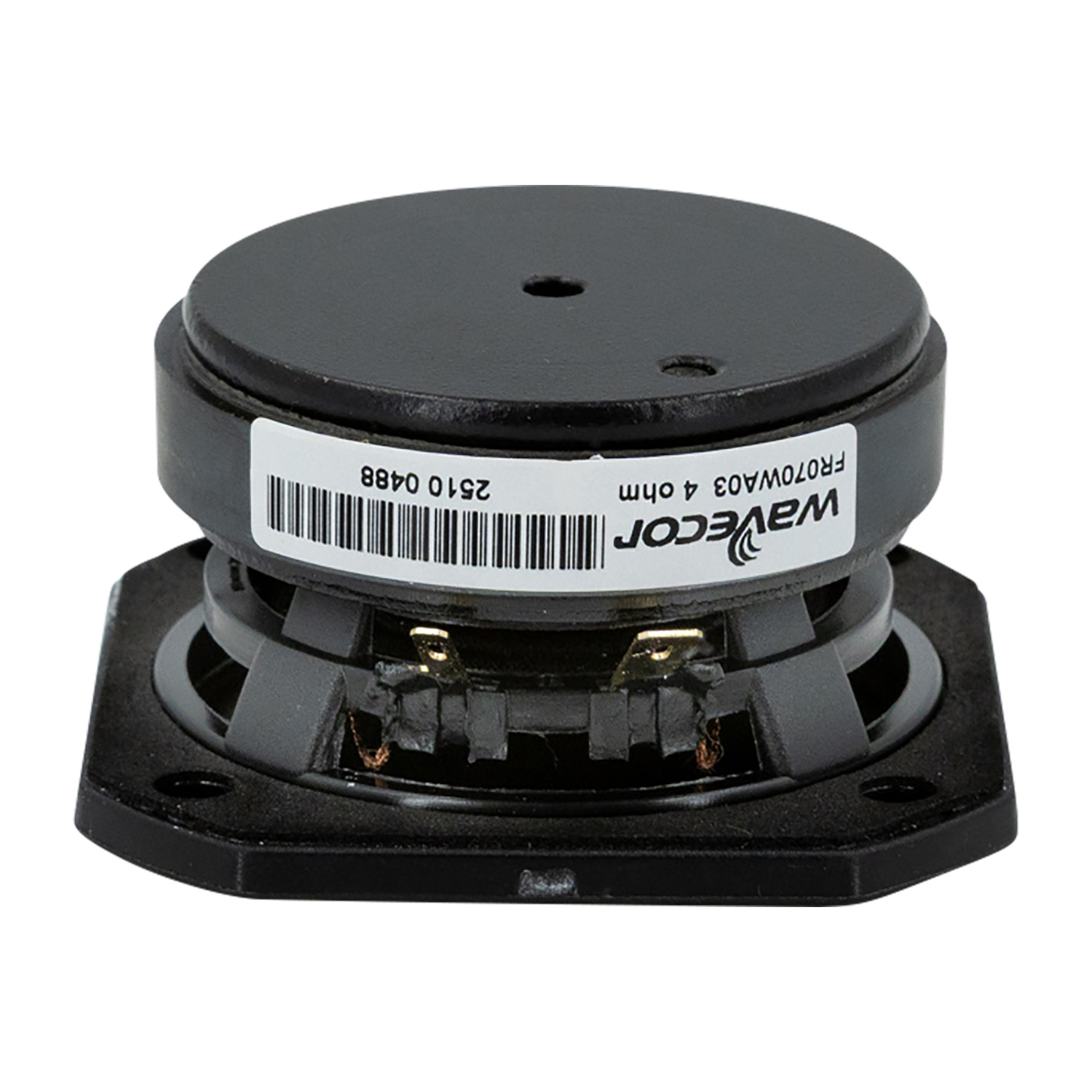

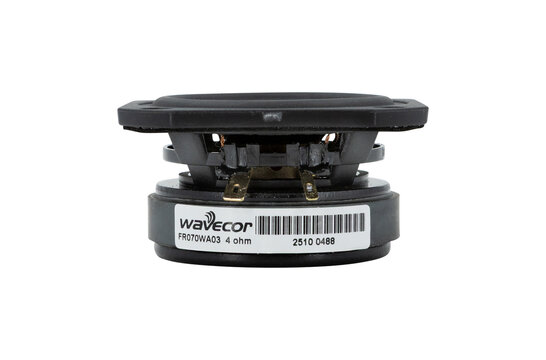

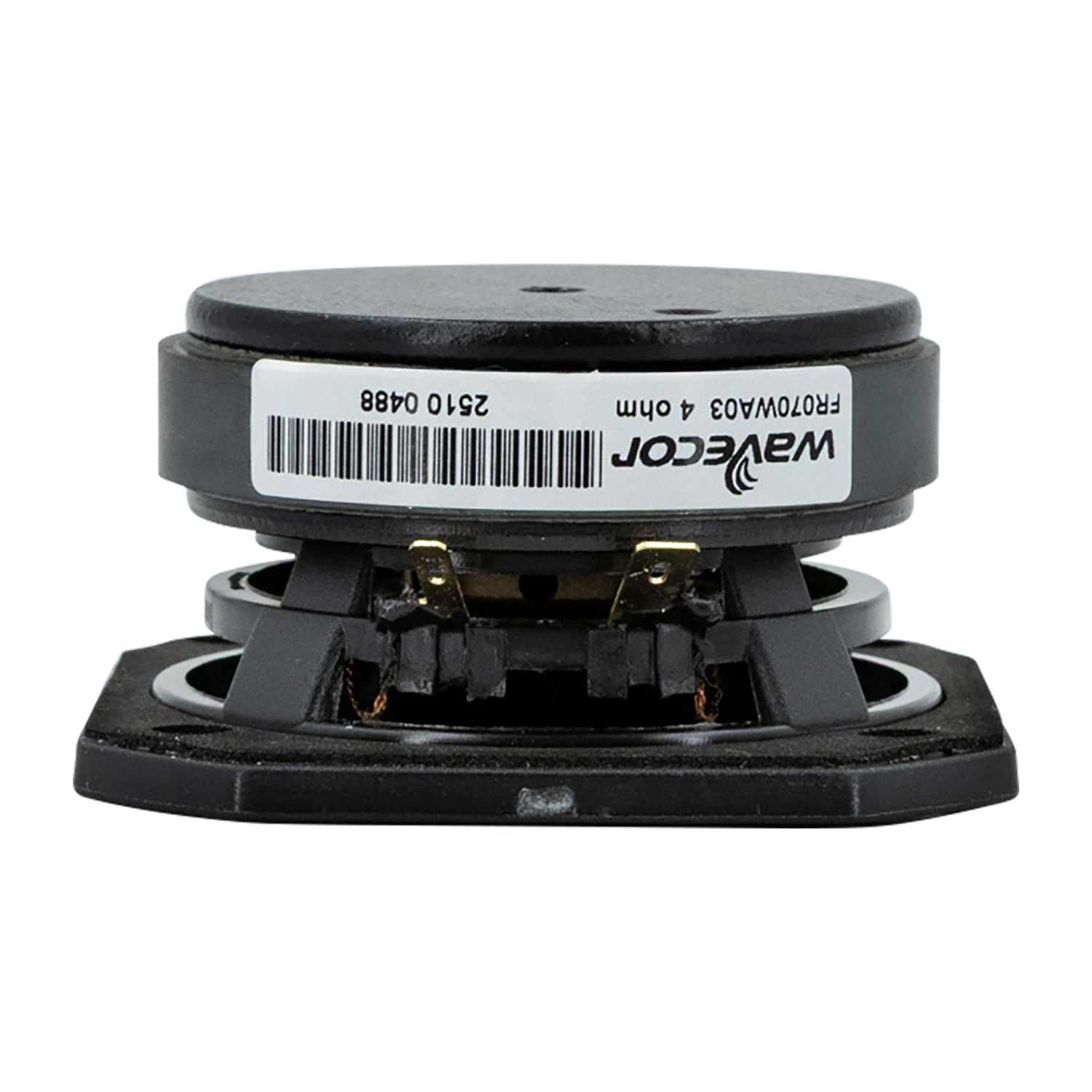

        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm

        Wavecor FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm

        €49,95 €59,95

        10+ In stock

        Add to cart

        Wavecor FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm

        1 reviews
        5 from 5
        1 reviews
        5 stars
        100%
        4 stars
        0%
        3 stars
        0%
        2 stars
        0%
        1 star
        0%
        View all reviews
        Brand: Wavecor
        Show all Full-range woofer
        2.75" | 4 Ω
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        € 49,55
        € 59,95
        € 41,28€ 49,95 10+ In stock
        • -5% Purchase 4 for only € 47,45 per piece
        • -10% Purchase 10 for only € 44,96 per piece
        +-
        Add to cart

        Buy now, pay later

        • We ship to
        • Ordered now, shipped on Monday
        • At least two years warranty
        • 45-day cooling-off period to return
        • Customer rating:
        Request quotation
        Do you have a question about this product?

        Do you have a question about this product?

        Our employee is happy to help you find the right product

        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm
        FR070WA03 2-3/4" Aluminum Cone Full-Range Woofer 4 Ohm

        Pros and cons

        According to our specialists
        • Copper cap on center pole to reduce voice coil inductance

        Product description Wavecor FR070WA03 Full-range Woofer

        The Wavecor FR070WA03 is a 2-3/4" aluminum cone fullrange that is designed for compact multimedia installations. The FR070WA03 is a very good choices for any project requiring fullrange audio in a compact space.



        Highlights

        • True full-range design with on-axis output to beyond 25,000 Hz
        • Gold plated terminals to ensure long-term trouble-free connection
        • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
        • Vented polymer chassis for lower air flow speed reducing audible distortion
        • Vented voice coil former for reduced distortion and compression
        • Low-loss suspension (high Qm) for better reproduction of details and dynamics
        • Conex spider for better durability under extreme conditions



        Product details

        Wavecor FR070WA03 Full-range Woofer 4 Ohm



        The Wavecor FR070WA03 is a 2-3/4" aluminum cone fullrange that is designed for compact multimedia installations. The FR070WA03 is a very good choices for any project requiring fullrange audio in a compact space.



        The large motor system with a 22 mm voice coil diameter offers better control, power handling, and efficiency. The optimized aluminum cone ensures an extremely wide bandwidth and low distortion. Distortion is further reduced by efficient venting of the chassis and voice coil former.

        Show more

        Specifications

        Article number
        FR070WA03
        EAN
        0848864054070
        Woofer Type
        Alu cone fullrange
        Nominal Diameter
        60 mm
        Power Handling (RMS)
        10 Watt
        Impedance (Z)
        4 Ohm
        Sensitivity (SPL at 1m / 2.83V)
        86 dB
        Frequency Response
        200 - 25.000 Hz
        Voice Coil Diameter
        22 mm
        DC Resistance (Re)
        3.45 Ohm
        Voice Coil Inductance (Le)
        71 μH
        Resonant Frequency (Fs)
        114 Hz
        Mechanical Q (Qms)
        13.1
        Electromagnetic Q (Qes)
        0.94
        Total Q (Qts)
        0.87
        Diaphragm Mass Inc. Airload (Mms)
        2.0 g
        Mechanical Compliance of Suspension (Cms)
        0.97 mm/N
        Surface Area of Cone (Sd)
        21 cm²
        Compliance Equivalent Volume (Vas)
        0.61 L
        Driver's Mechanical Losses (Rms)
        0.11 Ns/m
        Overall Outside Diameter
        70.3 mm
        Overall Depth
        37.5 mm
        Baffle Cutout Diameter
        62.5 mm
        # Mounting Holes
        4
        Mounting Hole Diameter
        4.5 mm

        Show more
