The X-in-one solution - Xtreme performance at an unbeatable price!
The XT32-4 stands out with its unique combination of large Xmax and low inductivity, ensuring panel vibrations with lowest distortions over the whole frequency range. At its core, the XT32-4 features a double magnet rare-earth neodymium motor, delivering xtreme power and precision. The XT32-4 is xtreme reliable - designed to avoid bottoming out combined with a heat-resistant and low loss yellow conex spider.

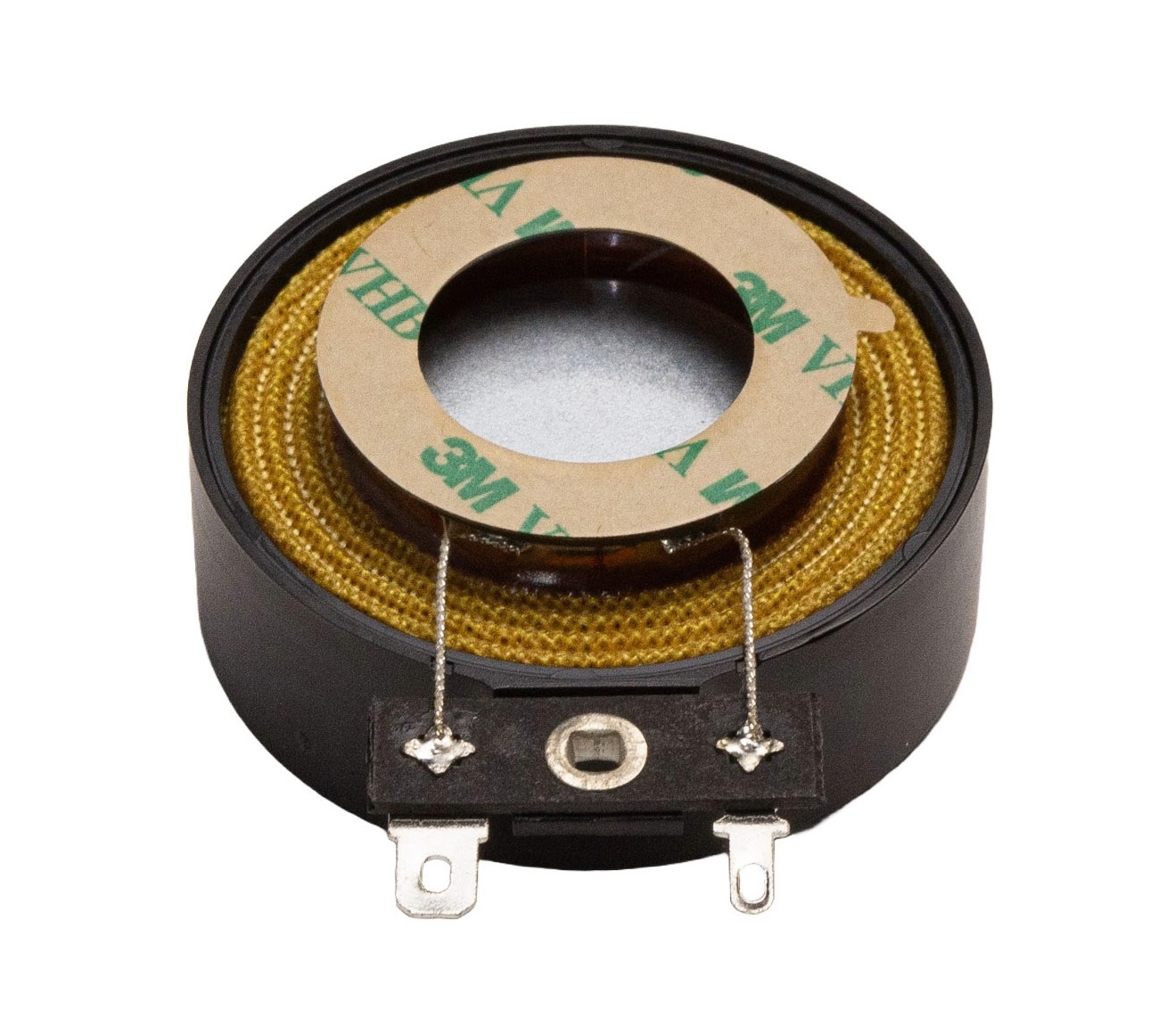

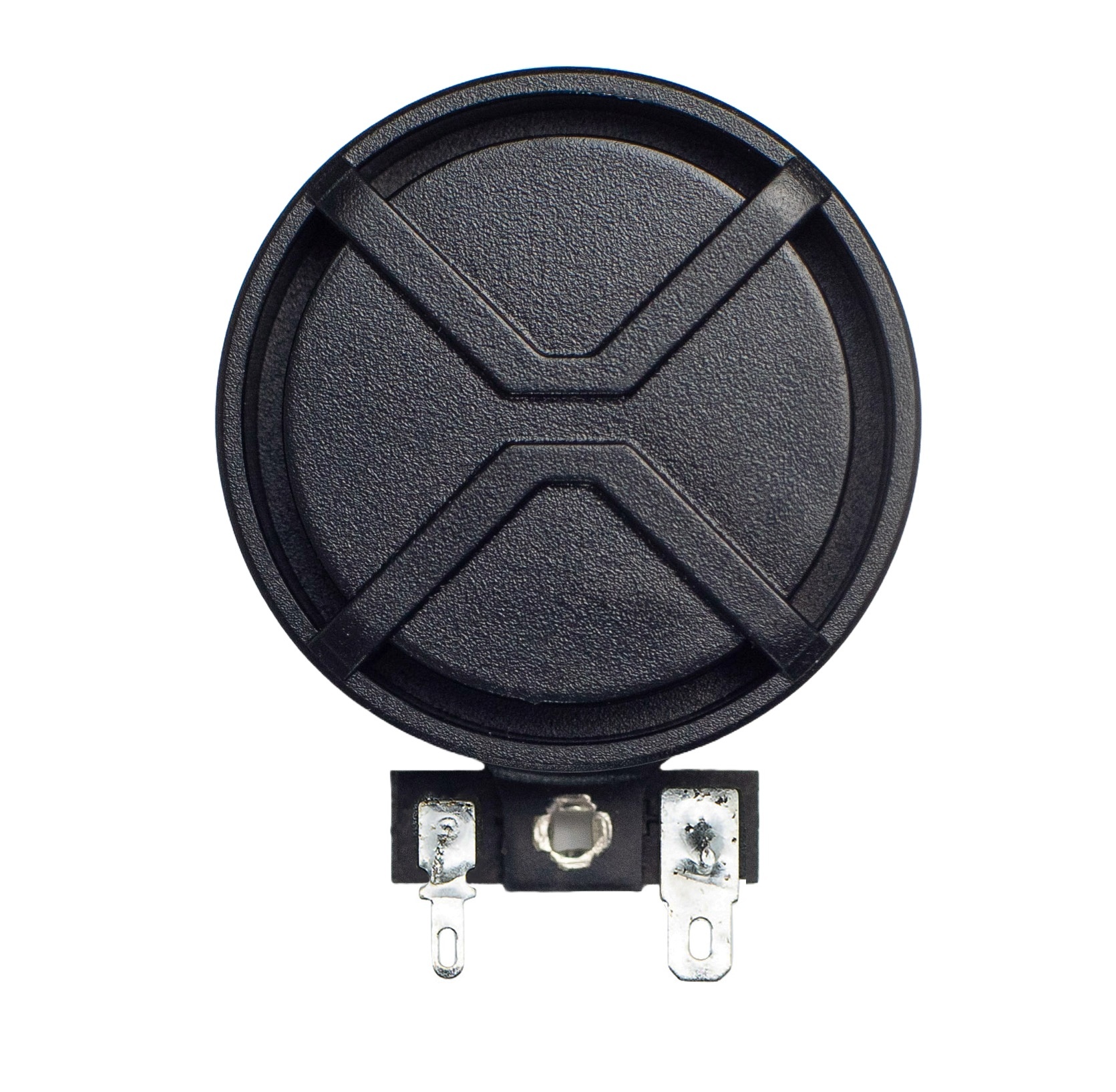

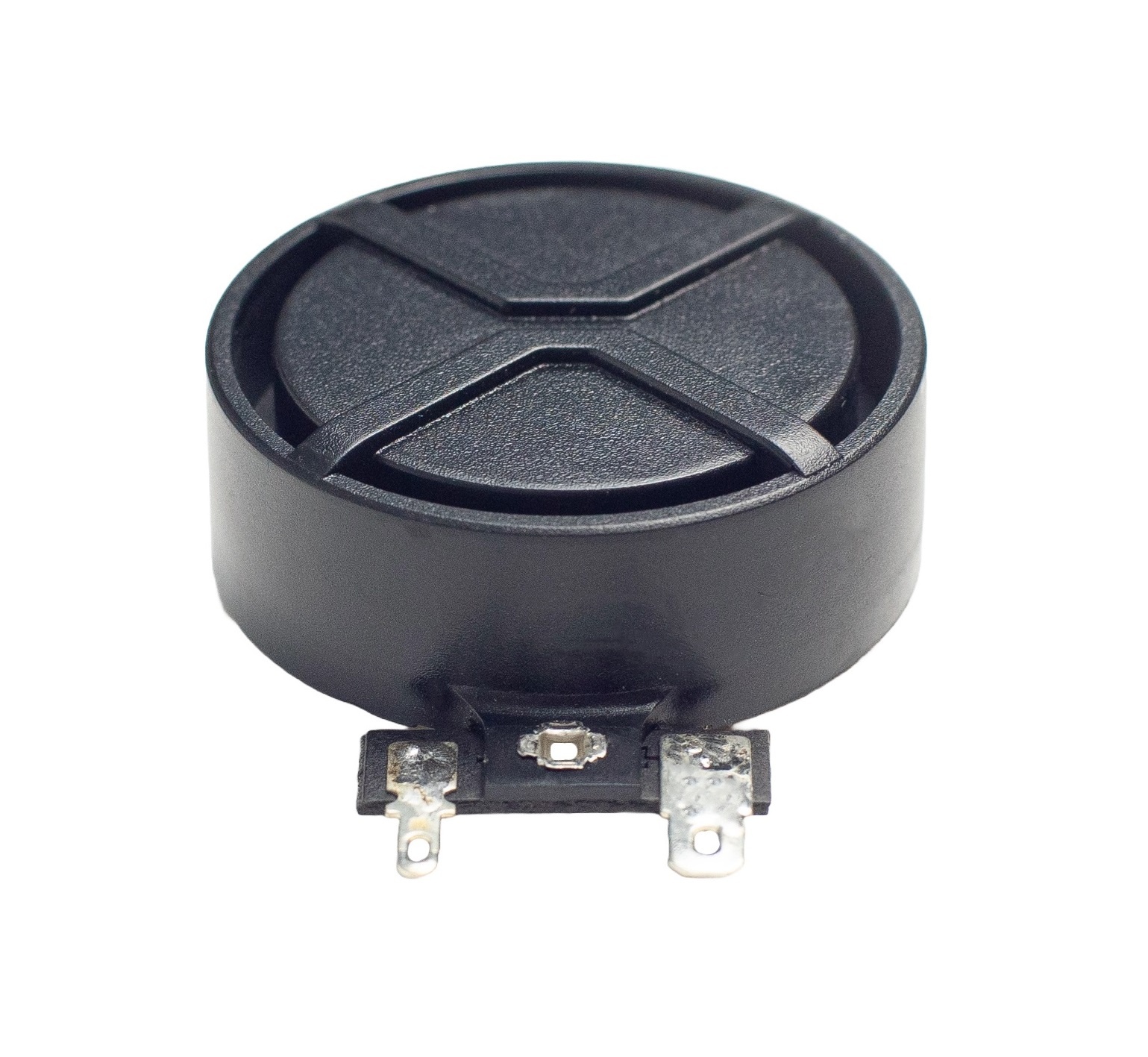

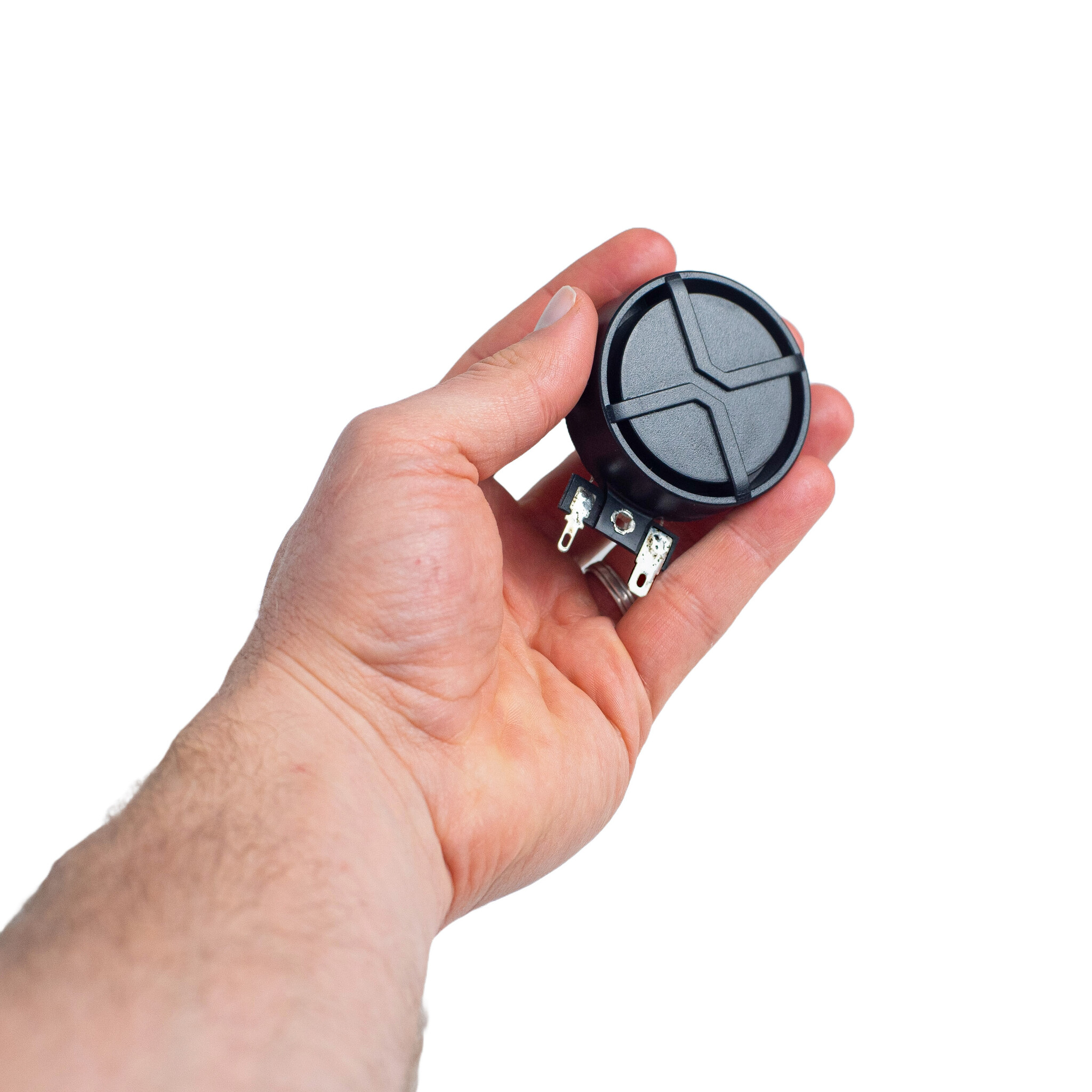

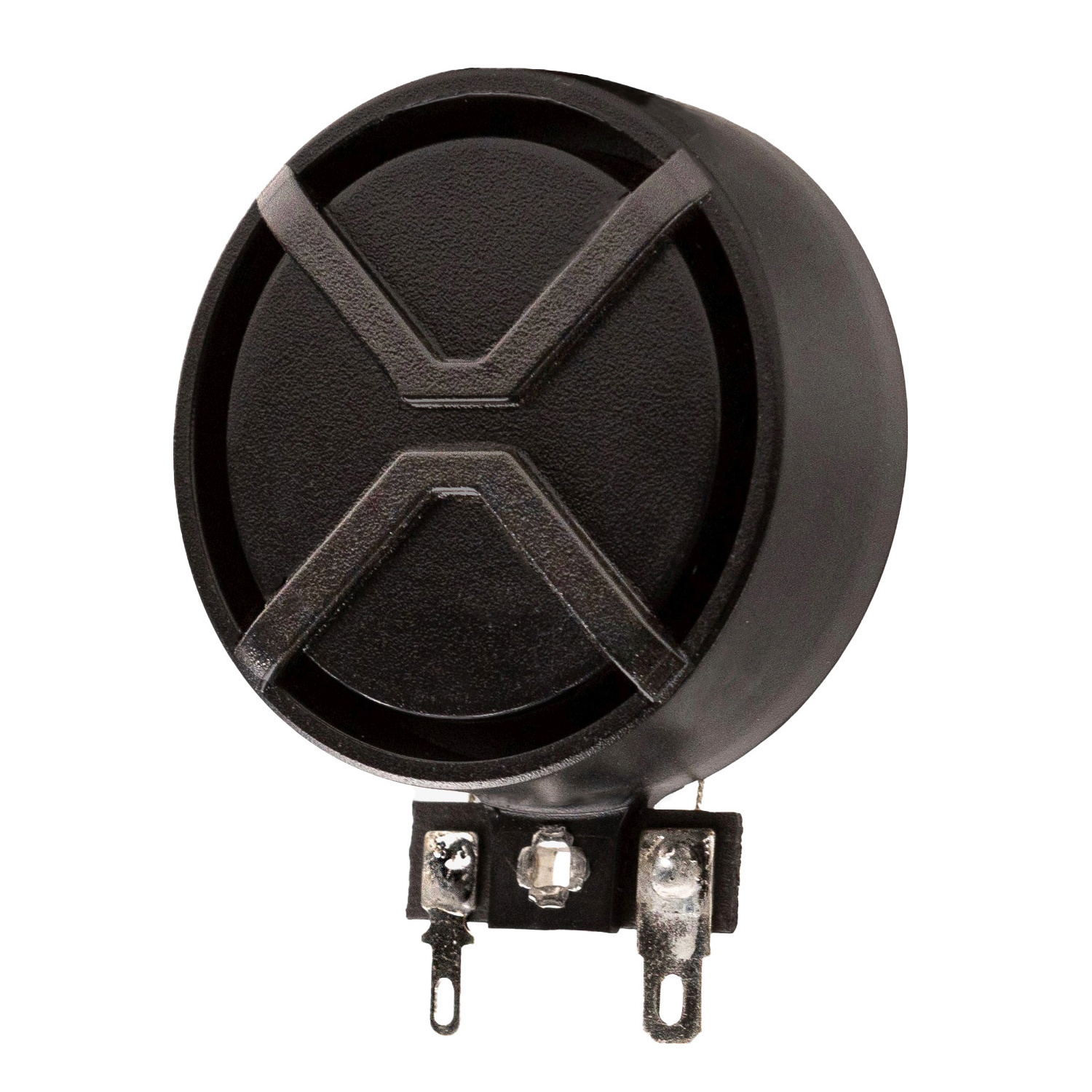

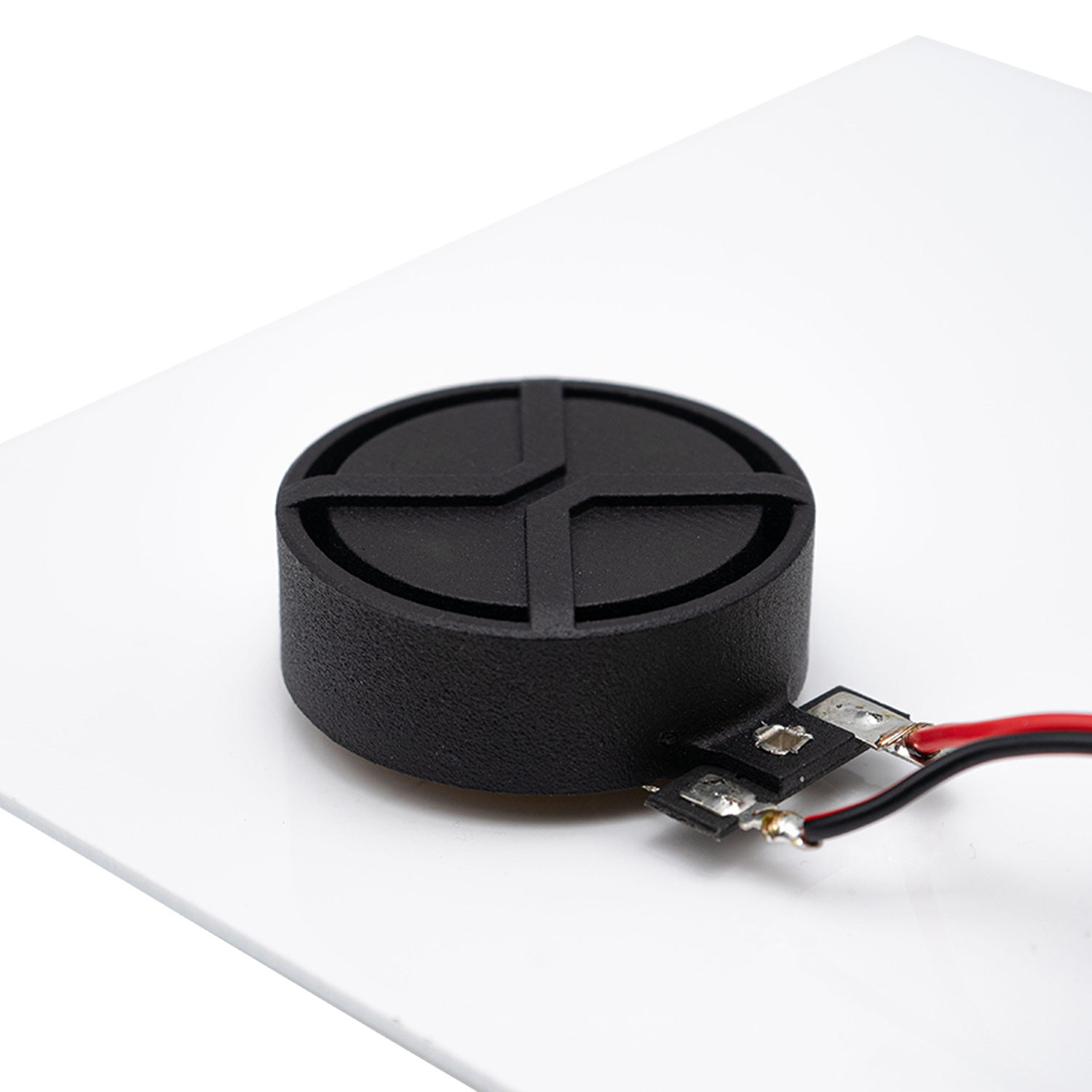

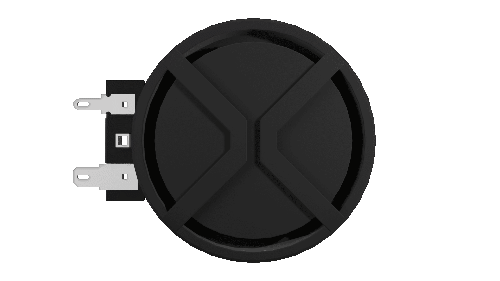

Xcite XT32-4 allround exciter
We believe that xceptional audio quality should be accessible to everyone. That’s why we packed the Xtreme Series with cutting-edge features at an unbeatable price.
Don’t limit yourself – discover the whole frequency range from a single Xciter. The XT32-4 covers 35Hz to 17kHz. Most exciters are limited by their larger inductivity or a significant voice coil break-up. Not the XT32-4. Its impressively low inductance of just 0.13 mH and optimized voice coil design guarantee a real high-frequency performance.
Xperience the power and precision of the XT32-4! Engineered with a symmetrical force factor and a high-flux design. The double magnet neodymium motor design ensures dynamic, distortion-free audio on any surface. The combination of a 4Ohm voice coil and powerful neodymium magnet increases sensitivity while economizing power, perfect for smaller and medium-sized amplifiers.
Designed for minimal distortion, the XT32-4 guarantees an authentic audio experience. By reducing Force Factor, Stiffness, and Inductivity variations, it limits harmonic and intermodulation distortions. Enjoy your favorite music, movies, and games with unparalleled precision and clarity. Need proof? Check out the reference plots in the transducer datasheet.

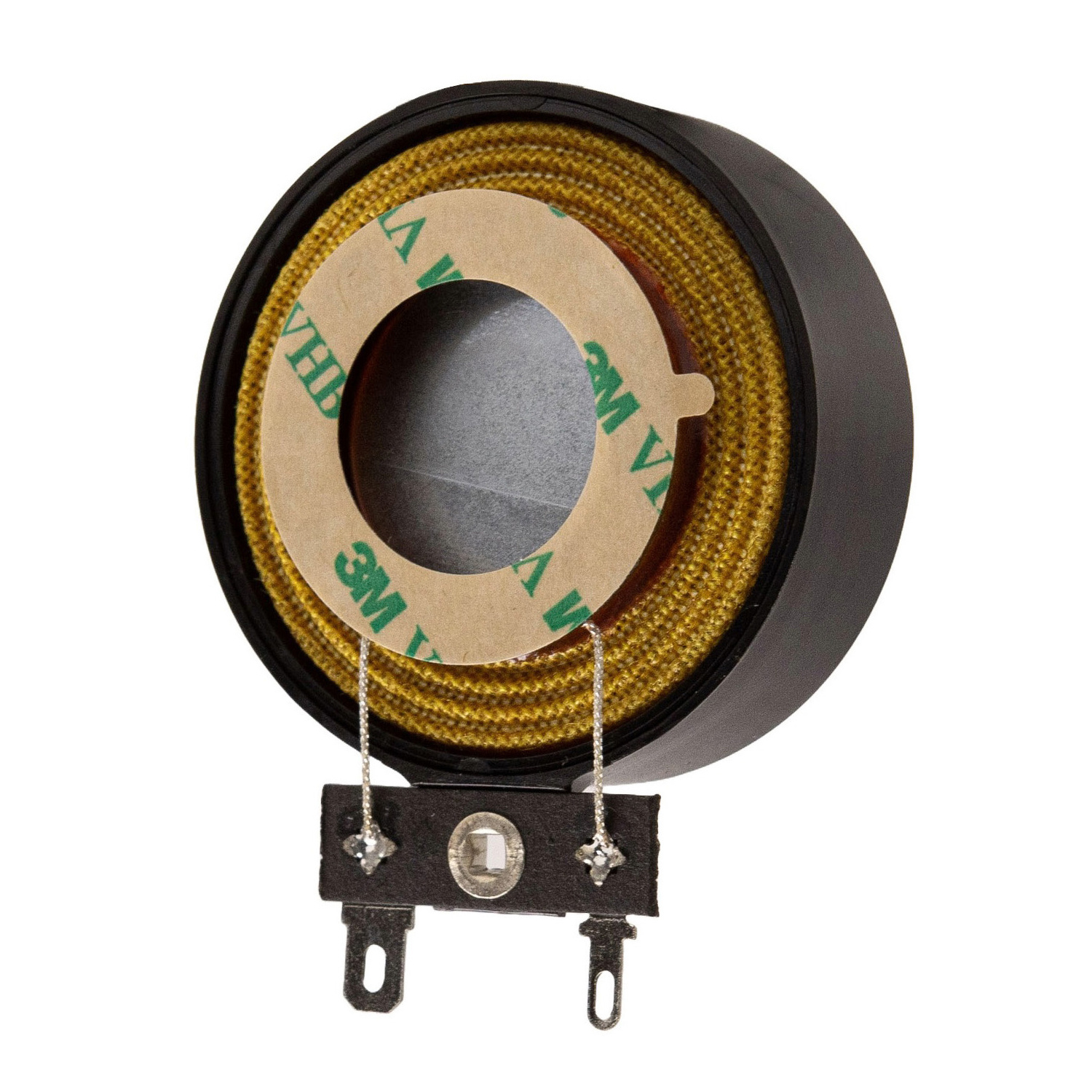

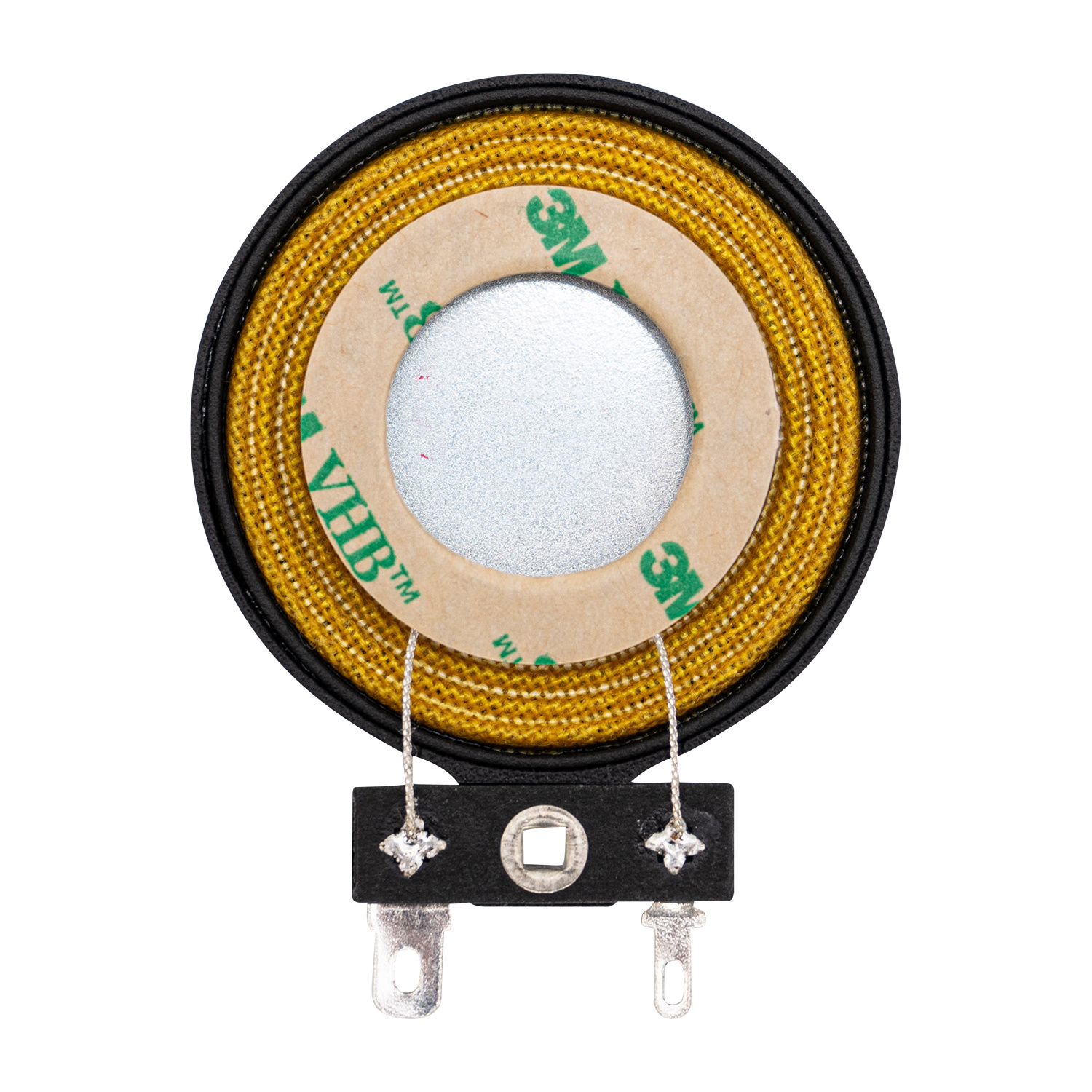

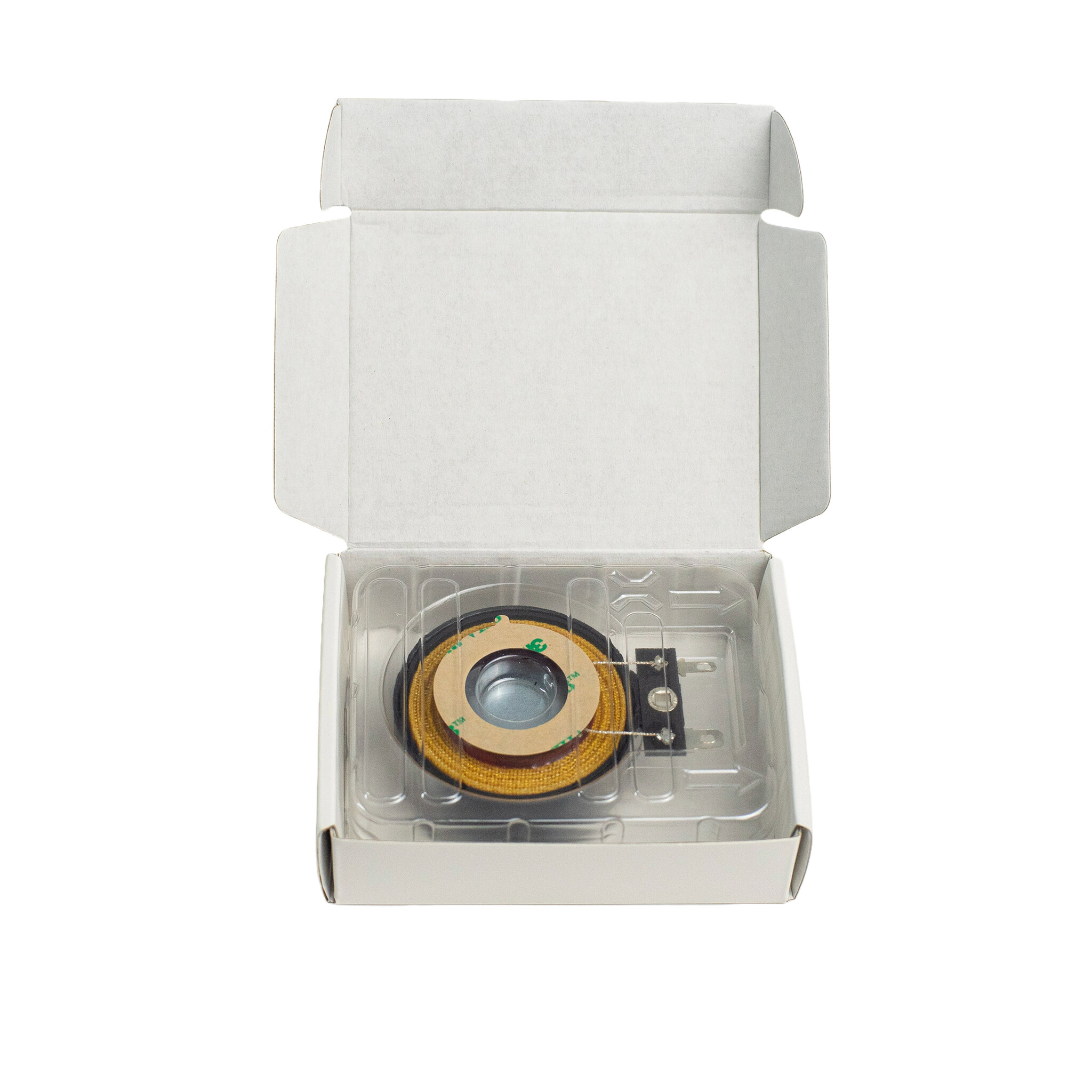

The XT32-4 will be your trusted audio companion for years to come. Featuring a high-quality, low-degradation conex spider and a design preventing displacements over 3.5mm, the XT32-4 is built to perform consistently under any condition. It comes with pre-applied 3M VHB adhesive for easy installation and includes two male spade quick-disconnect terminals for fast and secure electrical connection. No matter how intense your usage, the XT32-4 is designed to deliver consistent, reliable performance every single time.
Curious about how to create invisible sound with exciters? In this blog, Ben Zenker, an expert with more than 15 years of experience and 10 internationally reviewed publications, shares his in-depth knowledge on material selection, installation and optimising sound quality. An indispensable resource for the passionate DIY audio enthusiast.
Xcite offers both 4Ohm and 8Ohm exciters to suit various project needs. The choice depends on your setup. Usually, 4Ohm is preferred for the final configuration, such as using 1x 4Ohm, 2x 8Ohm in parallel, or 4x 4Ohm in a serial-parallel combination. If you need guidance, how to wire several exciters, check out the blog.
Looking in detail, 8Ohm exciters have a lighter voice coil due to a smaller winding diameter, which slightly enhances high frequencies although the inductivity is higher.
At higher volumes, all loudspeakers naturally produce distortion due to non-linearities in their voice coil, magnet, and stiffness design. The exciter design plays a crucial role in determining the level of distortion—a well-designed exciter minimizes it. For panel speakers, distortion is more complex than in traditional speakers, as the exciter is the primary source of distortion, while the panel and construction amplify it. Xcite units are engineered to produce low distortion, ensuring minimal distortion in the source of the final assembly.
Distortions in panel speakers arise from three sources: the exciter, the panel and assembly, with the exciter being the primary contributor. These distortions primarily include harmonic and intermodulation distortions caused by non-linearities in Bl(x) and Kms(x) of the exciter. By filtering the sound pressure using the inverse fundamental frequency response, the influence of the panel’s radiation can be removed, isolating all distortion at the system's input - the exciter. This technique, known as Equivalent Input Harmonic Distortion (EIHD), enables precise analysis of distortions at the exciter level. Xcite uses advanced simulations to identify and optimize the root causes of Bl(x) and Kms(x) non-linearities, minimizing distortion and delivering high-performance results. For detailed measurements, refer to our datasheets.
Motor efficiency factor β measures how efficiently the exciter converts electrical power into mechanical force. A higher value directly translates to greater sensitivity per Watt. Xcite represents this factor on a logarithmic scale to compare the performance of various products, including 4Ohm and 8Ohm exciters. Simply put, a 1dB higher motor efficiency factor means 1dB more in the passband.
Motor efficiency factor is determined by the motor design and influenced by factors such as coil winding layout, material resistivity, and magnetic field strength. Notably, it remains independent of the wire length and cross-sectional area of the wire, allowing for direct comparisons between 4Ohm and 8Ohm exciters. In our datasheets, we express the motor efficiency factor β logarithmically, highlighting differences in passband efficiency per Watt across exciters. This enables a clear evaluation of exciter performance in various configurations. For detailed insights, consult our measurement graphs with the corresponding motor efficiency factor for each product.
