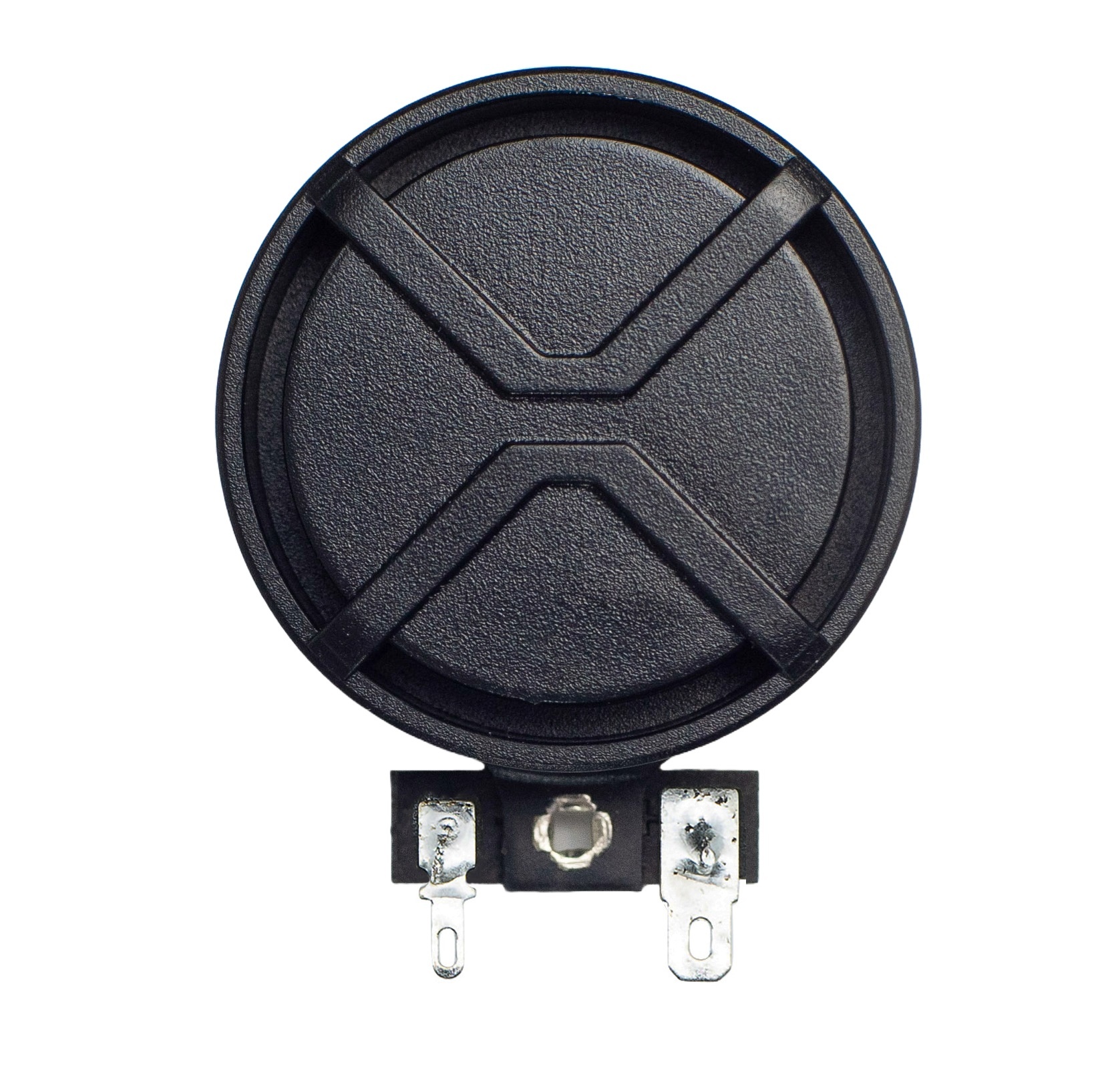

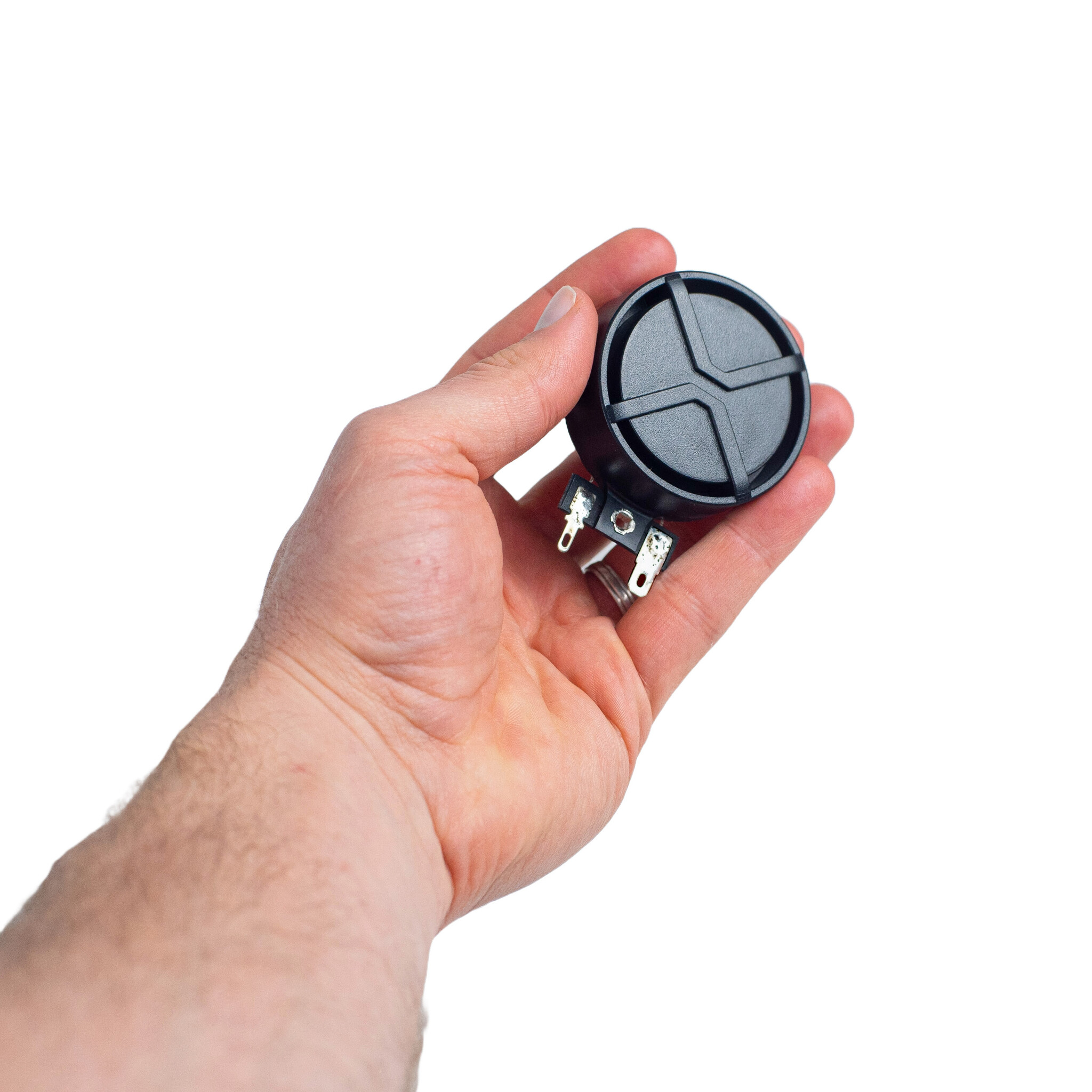

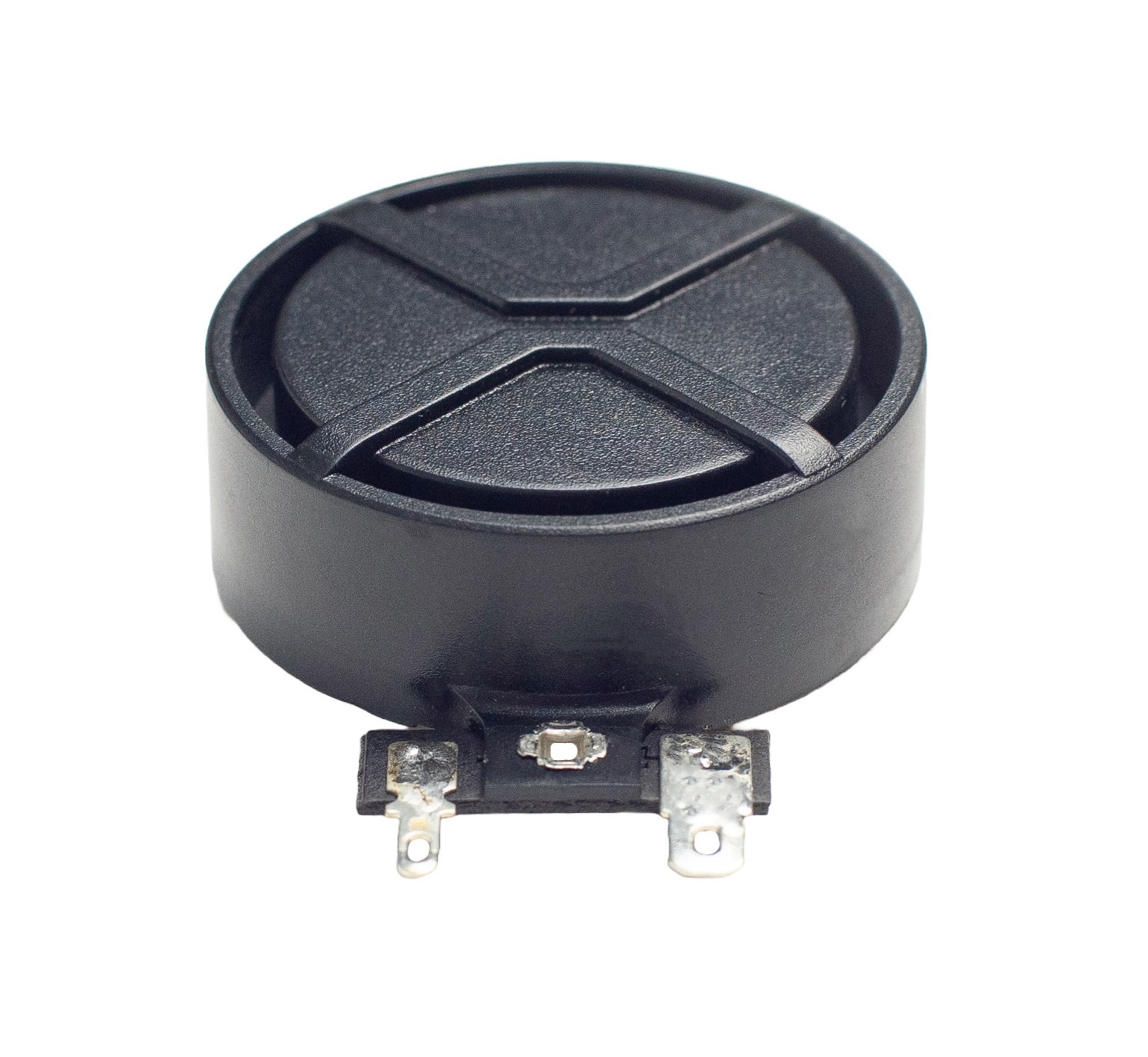

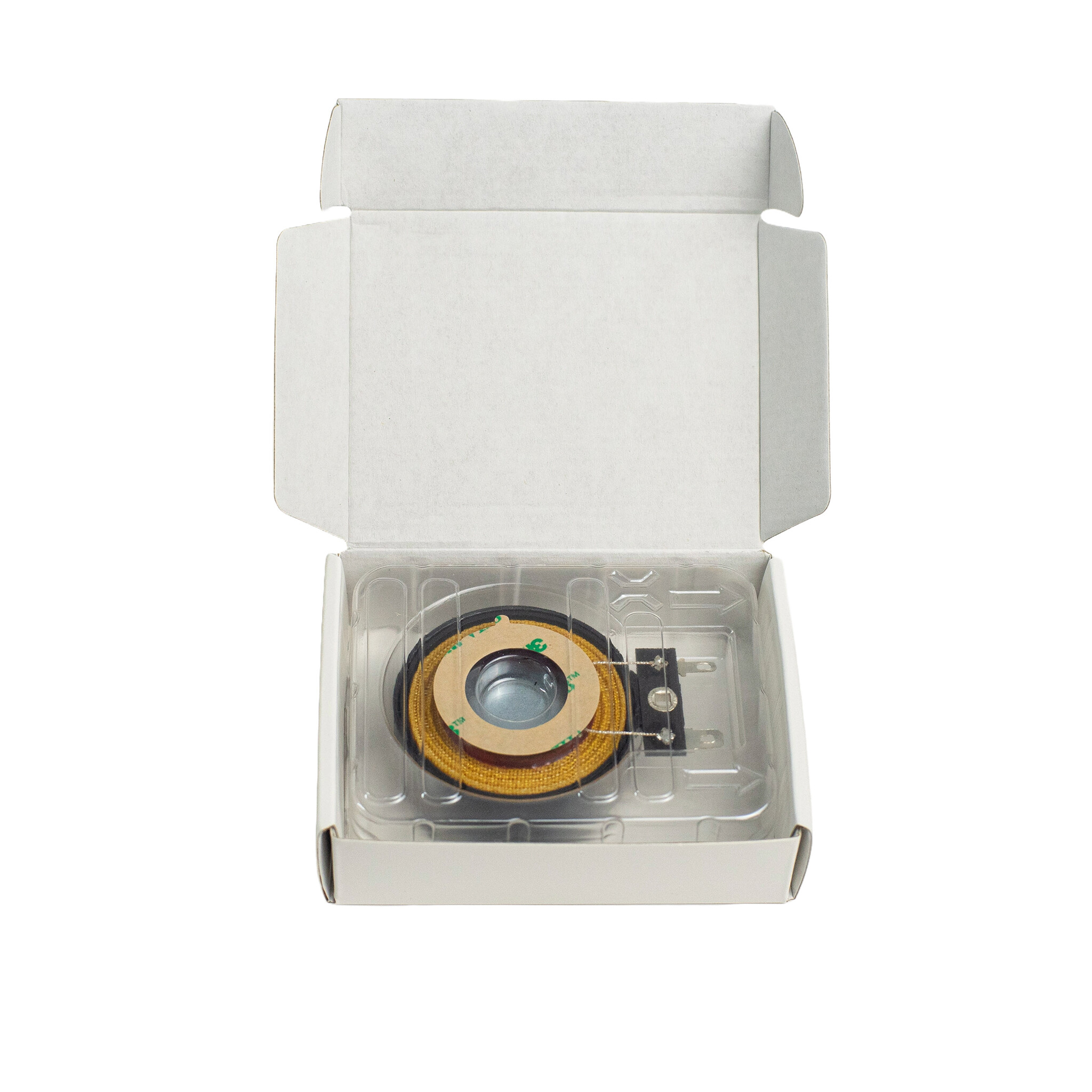

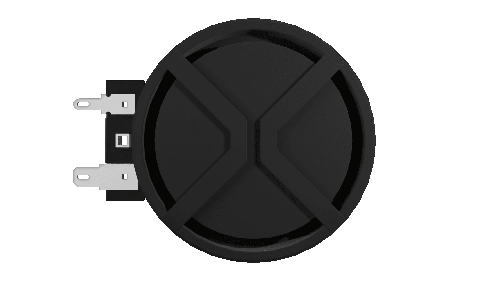

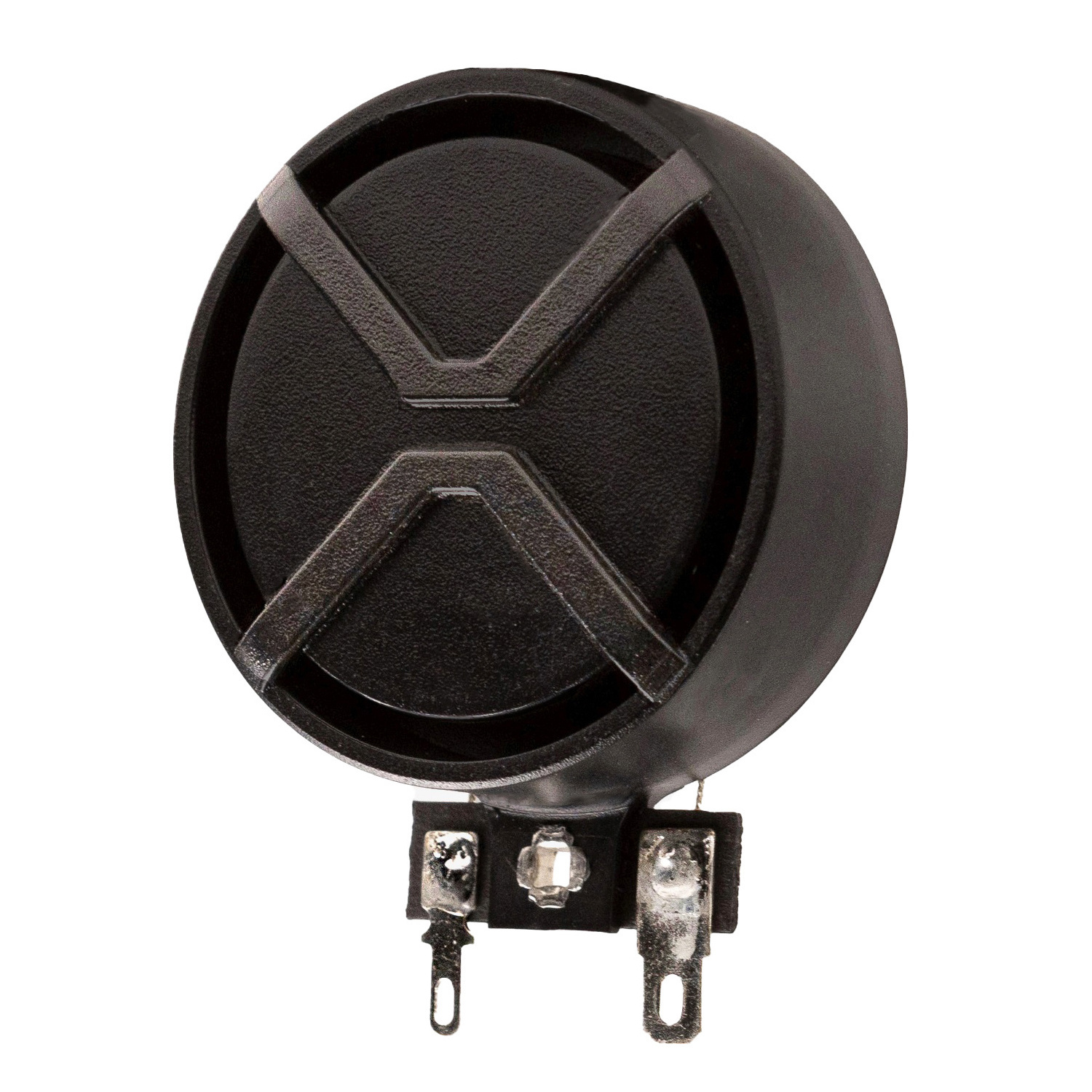

      Xtreme XT32-8 Allround Sound Exciter

      Xcite Xtreme XT32-8 Allround Sound Exciter

      €29,95

      10+ In stock

      Xcite Xtreme XT32-8 Allround Sound Exciter

      4 reviews
      5 from 5
      4 reviews
      5 stars
      100%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 star
      0%
      View all reviews
      Brand: Xcite
      € 29,95 10+ In stock
      • -5% Purchase 4 for only € 28,45 per piece
      • -10% Purchase 10 for only € 26,96 per piece
      • We ship to United States of America
      • Ordered now, shipped on Monday
      • Five-year warranty
      • 45-day cooling-off period to return
      • Customer rating:
      Request quotation

      Pros and cons

      According to our specialists
      • Extreme wide frequency response
      • Extreme low distortion
      • Also available in 4 ohms
      • Standard with 1x use of 3m tape

      Product description Xcite Xtreme XT32-8 Exciter

      The X-in-one solution - Xtreme performance at an unbeatable price!

      The XT32-8 stands out with its unique combination of large Xmax and low inductivity, ensuring panel vibrations with lowest distortions over the whole frequency range. At its core, the XT32-8 features a double magnet rare-earth neodymium motor, delivering xtreme power and precision. The XT32-8 is xtreme reliable - designed to avoid bottoming out combined with a heat-resistant and low loss yellow conex spider.


      Highlights of the Xcite XT32-8 exciter

      • Xtreme wide frequency response
      • Xtreme precise and powerful
      • Xtreme low distortion
      • Xtreme reliable
      • Xtreme affordable

      Product details

      Xcite XT32-8 allround exciter



      Xtreme Series – Xtreme audio performance at an unbeatable price!

      We believe that xceptional audio quality should be accessible to everyone. That’s why we packed the Xtreme Series with cutting-edge features at an unbeatable price.

      Xtreme wide frequency response

      Don’t limit yourself – discover the whole frequency range from a single Xciter. The XT32-8 covers 35Hz to 17kHz. Most exciters are limited by their larger inductivity or a significant voice coil break-up. Not the XT32-8. Its impressively low inductance of just 0.21 mH and optimized voice coil design guarantee a real high-frequency performance.

      Xtreme precise and powerful

      Xperience the power and precision of the XT32-8! Engineered with a symmetrical force factor and a high-flux design. The double magnet neodymium motor design ensures dynamic, distortion-free audio on any surface. The combination of a 8 Ohm voice coil and powerful neodymium magnet increases sensitivity while economizing power, perfect for smaller and medium-sized amplifiers.

      Xtreme low distortion

      Designed for minimal distortion, the XT32-8 guarantees an authentic audio experience. By reducing Force Factor, Stiffness, and Inductivity variations, it limits harmonic and intermodulation distortions. Enjoy your favorite music, movies, and games with unparalleled precision and clarity. Need proof? Check out the reference plots in the transducer datasheet.

      Xtreme reliable

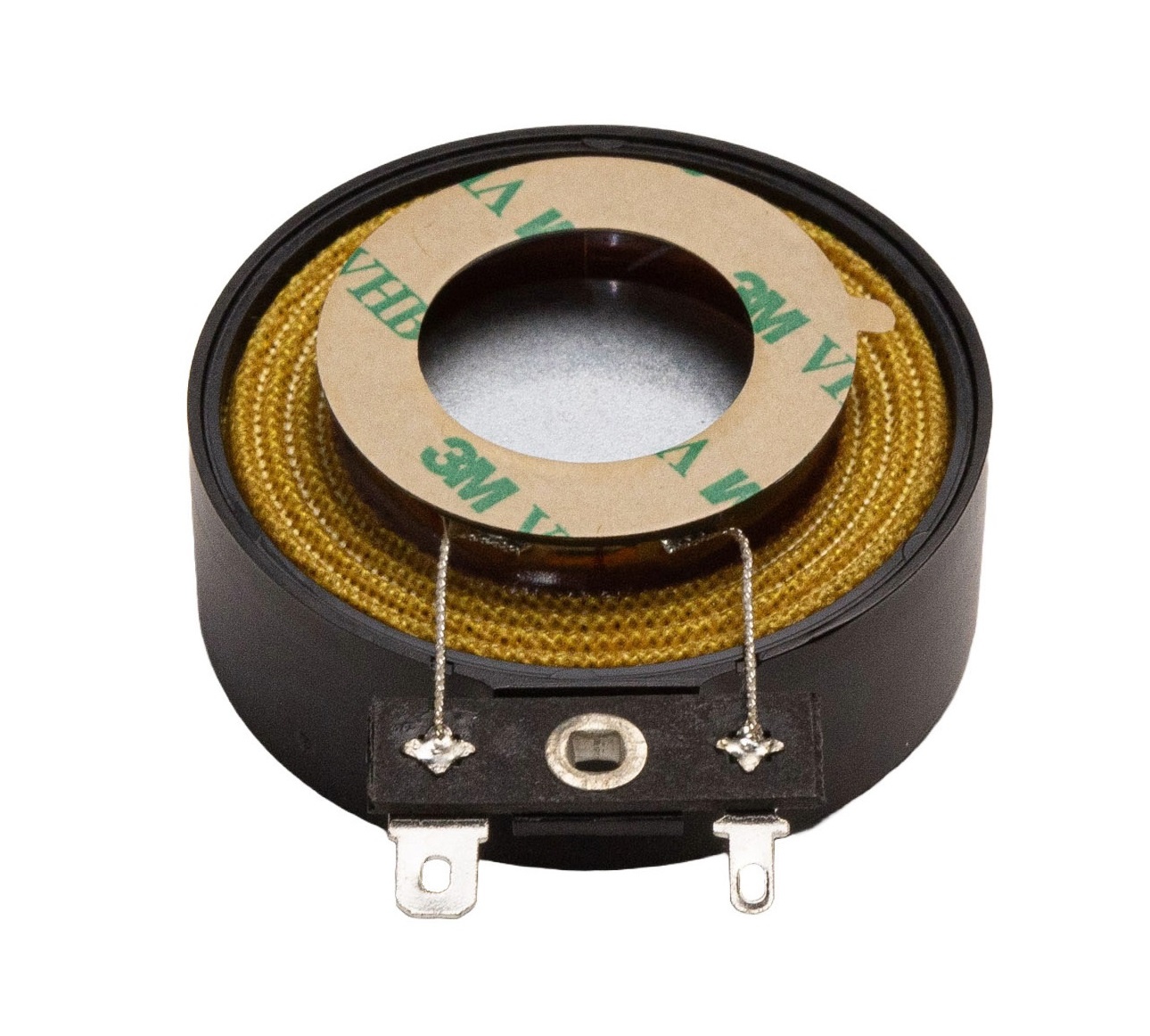

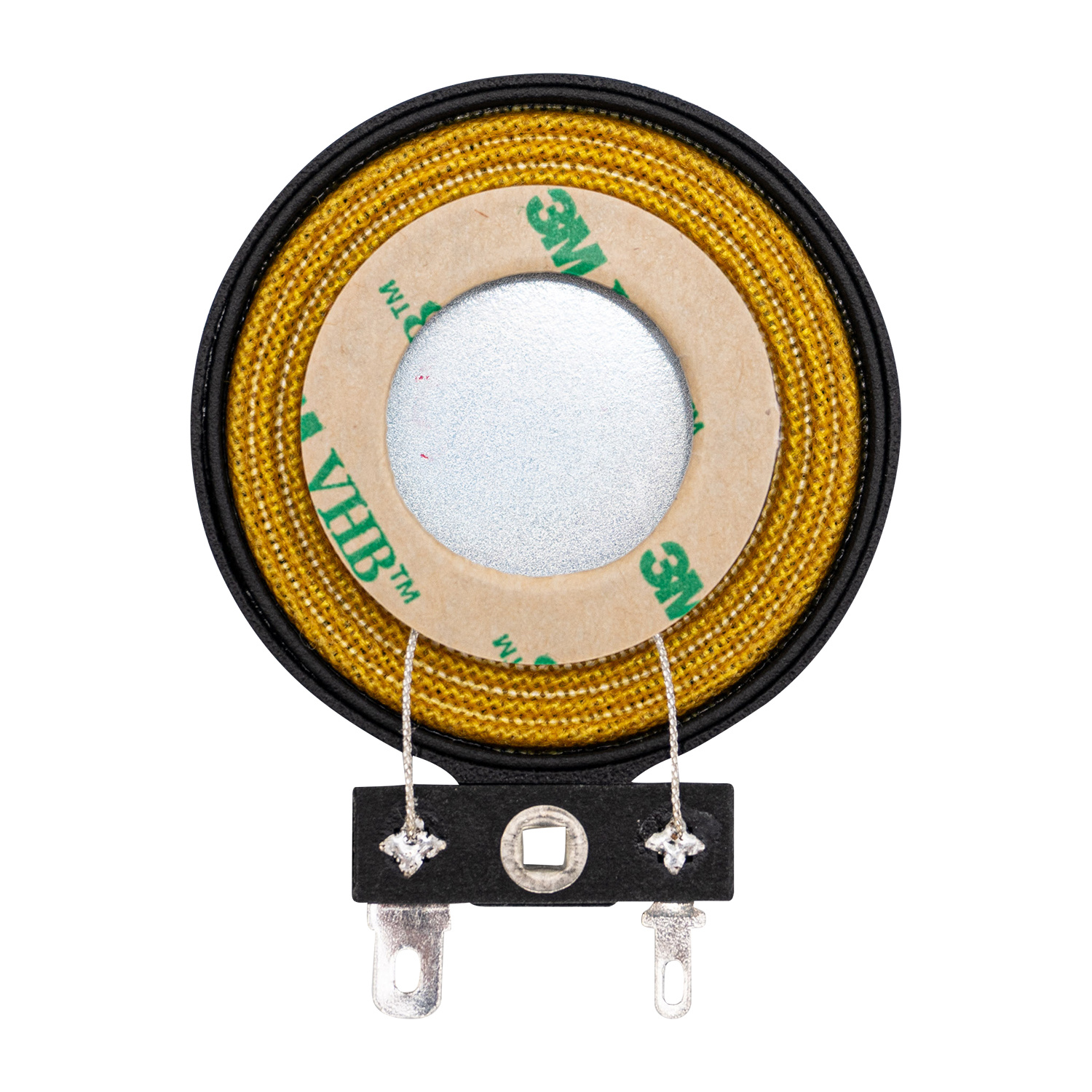

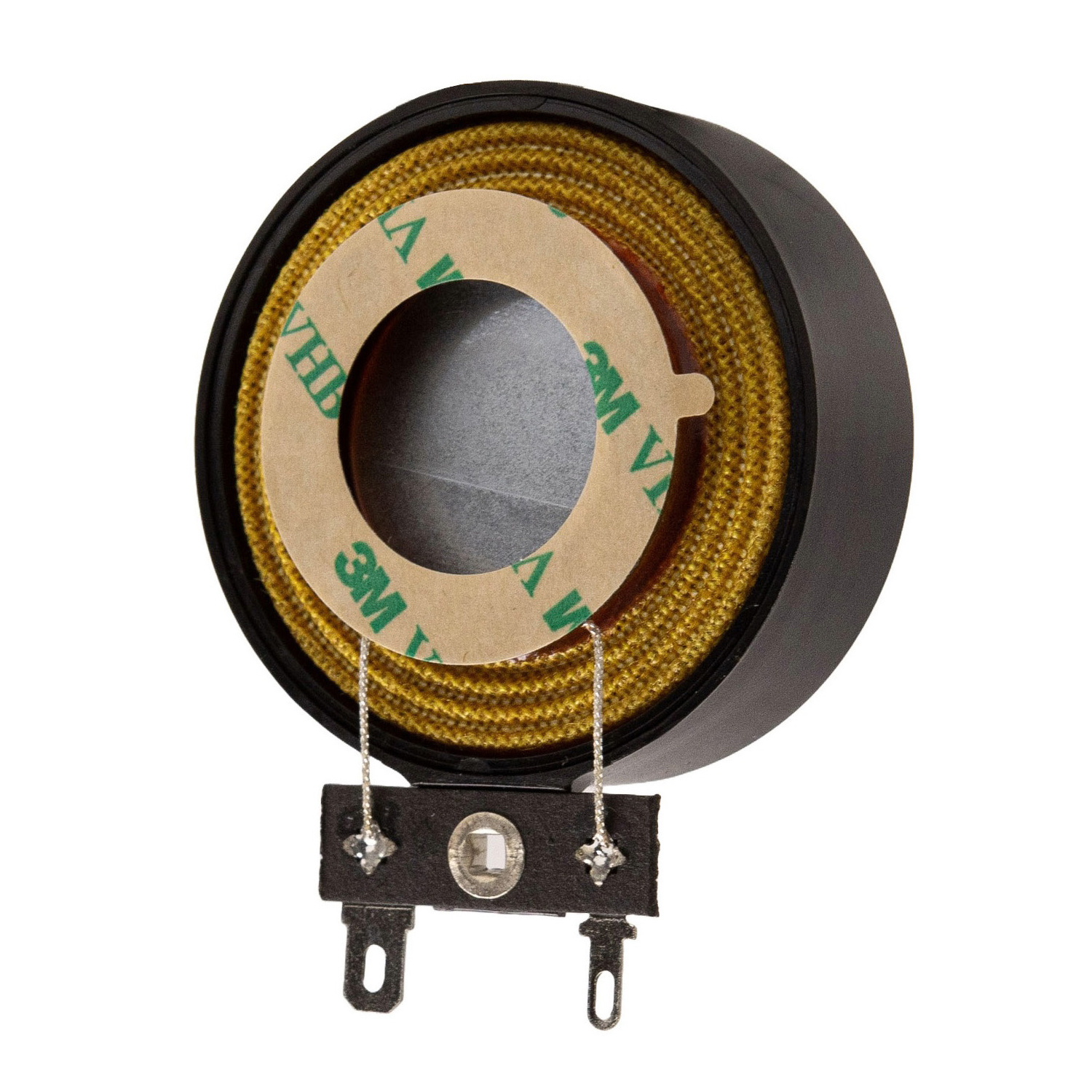

      The XT32-8 will be your trusted audio companion for years to come. Featuring a high-quality, low-degradation conex spider and a design preventing displacements over 3.5mm, the XT32-8 is built to perform consistently under any condition. It comes with pre-applied 3M VHB adhesive for easy installation and includes two male spade quick-disconnect terminals for fast and secure electrical connection. No matter how intense your usage, the XT32-8 is designed to deliver consistent, reliable performance every single time.



      A basic guide to creating invisible sound with exciters

      Curious about how to create invisible sound with exciters? In this blog, Ben Zenker, an expert with more than 15 years of experience and 10 internationally reviewed publications, shares his in-depth knowledge on material selection, installation and optimising sound quality. An indispensable resource for the passionate DIY audio enthusiast.



      FAQ about the Xcite XT32-8 exciter

      What distinguishes the Xcite XT32-8 from other exciters?

      The Xcite XT32-8 has a unique combination of a large Xmax and low inductance. The core of the exciter is a double neodymium magnet motor, which delivers extreme power and precision. For more information, please consult the manufacturer's website.



      How to mount the Xcite XT32-8 exciter?

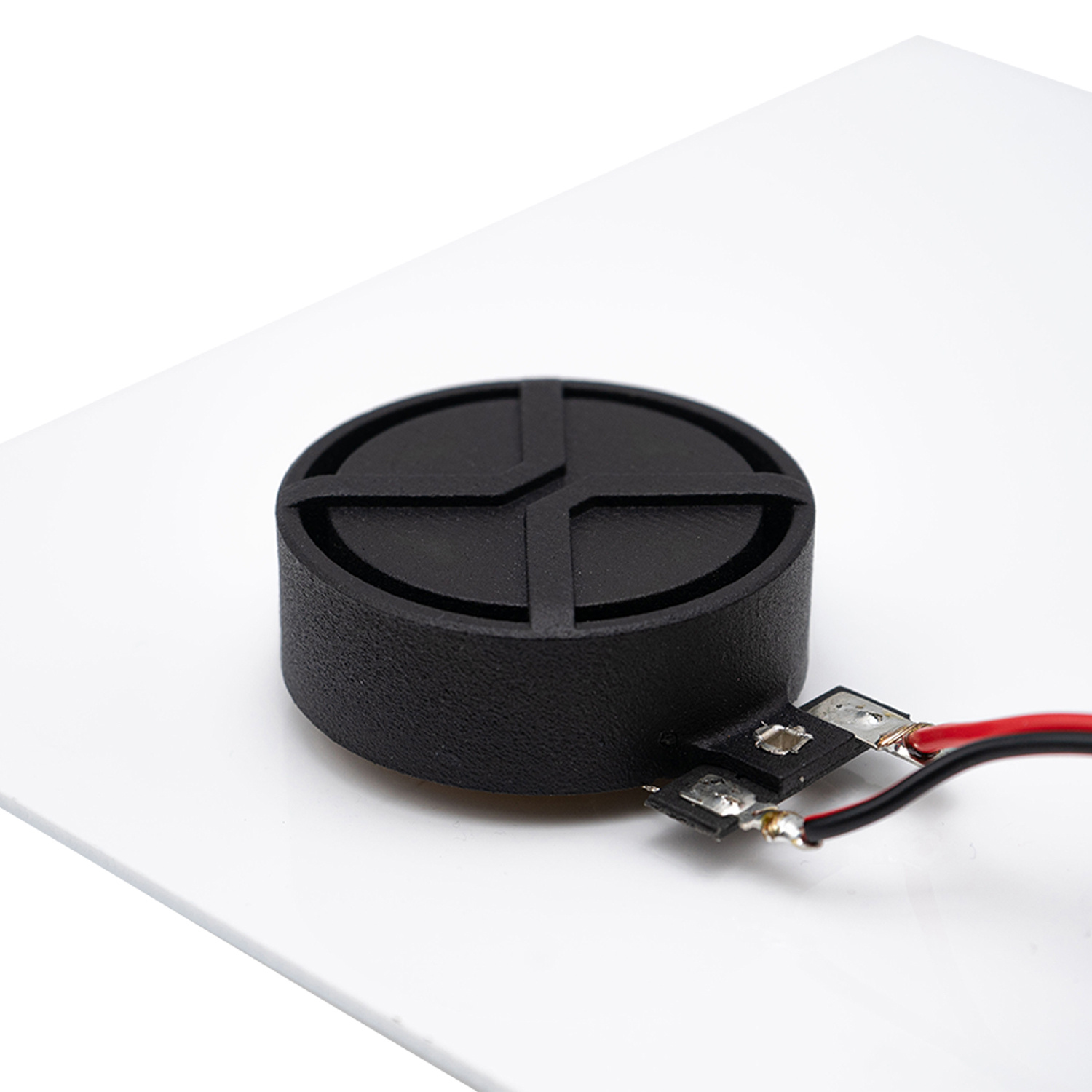

      There are two ways of mounting the XT32-8 to a surface. The first is to use the long lasting 3M tape to connect to a surface. Secondly you can use the Xcite XT32MR mounting ring to mount your Xcite exciters to your flat panel speakers.



      Why is a low distortion design important?

      Simple answer:

      At higher volumes, all loudspeakers naturally produce distortion due to non-linearities in their voice coil, magnet, and stiffness design. The exciter design plays a crucial role in determining the level of distortion—a well-designed exciter minimizes it. For panel speakers, distortion is more complex than in traditional speakers, as the exciter is the primary source of distortion, while the panel and construction amplify it. Xcite units are engineered to produce low distortion, ensuring minimal distortion in the source of the final assembly.



      Advanced answer:

      Distortions in panel speakers arise from three sources: the exciter, the panel and assembly, with the exciter being the primary contributor. These distortions primarily include harmonic and intermodulation distortions caused by non-linearities in Bl(x) and Kms(x) of the exciter. By filtering the sound pressure using the inverse fundamental frequency response, the influence of the panel’s radiation can be removed, isolating all distortion at the system's input - the exciter. This technique, known as Equivalent Input Harmonic Distortion (EIHD), enables precise analysis of distortions at the exciter level. Xcite uses advanced simulations to identify and optimize the root causes of Bl(x) and Kms(x) non-linearities, minimizing distortion and delivering high-performance results. For detailed measurements, refer to our datasheets.



      What is Motor Efficiency Factor β?

      Simple answer:

      Motor efficiency factor β measures how efficiently the exciter converts electrical power into mechanical force. A higher value directly translates to greater sensitivity per Watt. Xcite represents this factor on a logarithmic scale to compare the performance of various products, including 4Ohm and 8Ohm exciters. Simply put, a 1dB higher motor efficiency factor means 1dB more in the passband.



      Advanced answer:

      Motor efficiency factor is determined by the motor design and influenced by factors such as coil winding layout, material resistivity, and magnetic field strength. Notably, it remains independent of the wire length and cross-sectional area of the wire, allowing for direct comparisons between 4Ohm and 8Ohm exciters. In our datasheets, we express the motor efficiency factor β logarithmically, highlighting differences in passband efficiency per Watt across exciters. This enables a clear evaluation of exciter performance in various configurations. For detailed insights, consult our measurement graphs with the corresponding motor efficiency factor for each product.

      Show more

      Specifications

      Article number
      XT32-8
      EAN
      8785256860418
      Type
      Full-Range
      Power Handling (RMS)
      40 watts
      Impedance
      8 ohms
      Frequency Response
      35- 17.000 Hz
      Resonant Frequency (Fs)
      39.3 Hz

      Show more

      5 of 5
      -
      By Ivaylo on 16 December 2024
      5 of 5
      Wonderlijk goede geluidsweergave via twee dertiger jaren kastdeuren. Was een experiment maar deze weergevers blijken blijvertjes. Alleszins aanbevolen!!! https://www.youtube.com/watch?v=tbT1nH1Urtk
