Name: Dayton Audio Designer DSA135-PR Radiatore Passivo
Brand: Dayton Audio
SKU: DSA135-PR
Price: 24.45 EUR
Availability: InStock
Rating: 5 (3 reviews)

passive | 5"

€ 24,⁴⁵ 10+ In magazzino

Spedizione gratuita a partire da € 199
Ordinato ora, spedito lunedì
Minimo cinque anni di garanzia
Periodo di recesso di 45 giorni per i resi

Dicono di noi:

Confronta

Richiedi preventivo

Descrizione del prodotto Dayton Audio Designer DSA135-PR Radiatore Passivo

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. Built to be a perfect match for the Designer Series drivers, these passive radiators feature the same steel frame, rubber surround, and anodized aluminum cone making them visually identical.

Highlights

Perfect match for Dayton Audio's aluminum cone Designer Series drivers
Allows tuning small enclosures lower than using conventional ports
Rear mounted screw allows easy mass adjustment for custom tuning
Cosmetic frame edge looks great even when surface mounted

Product details

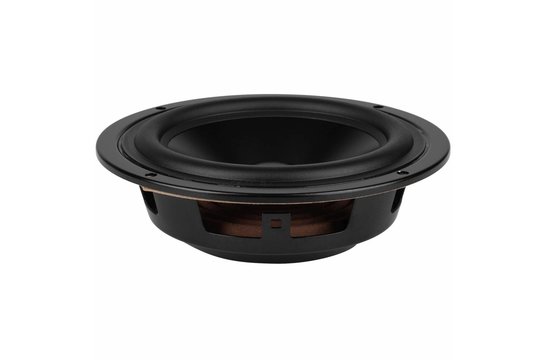

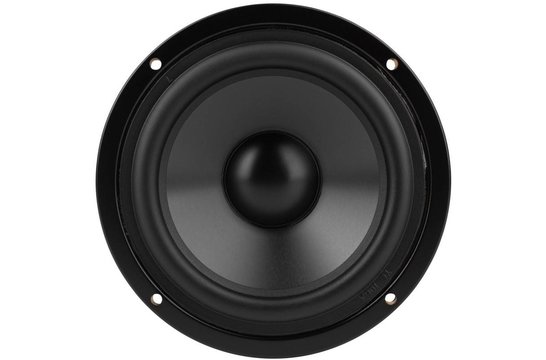

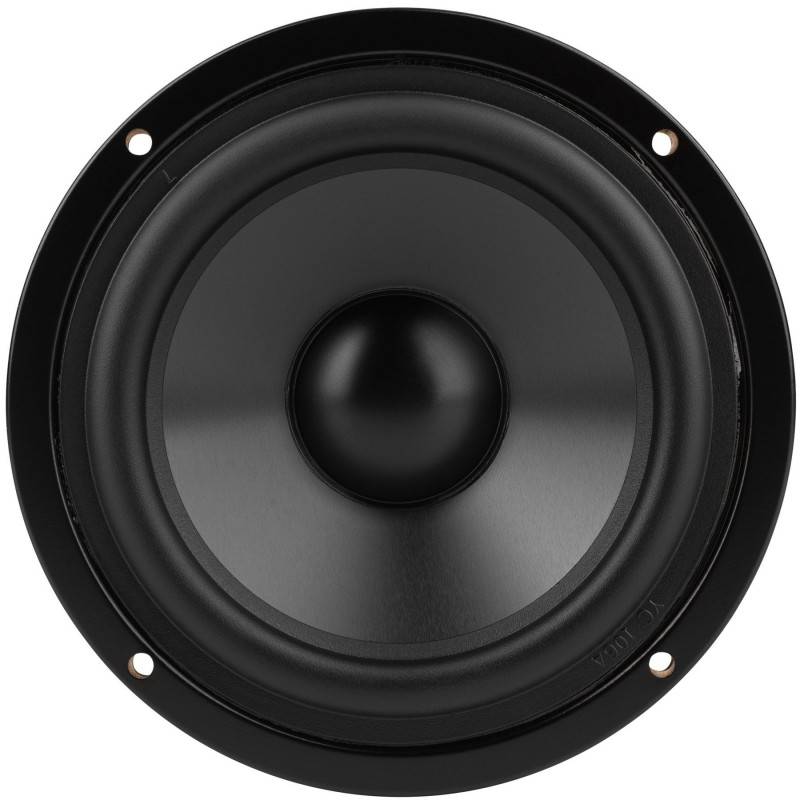

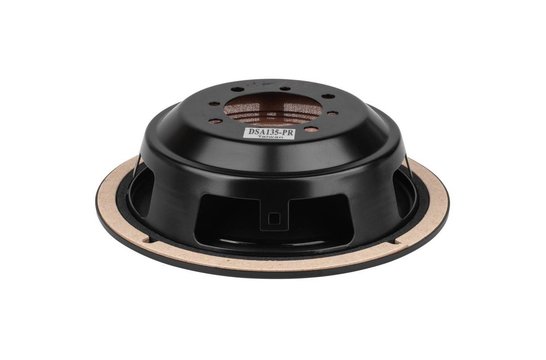

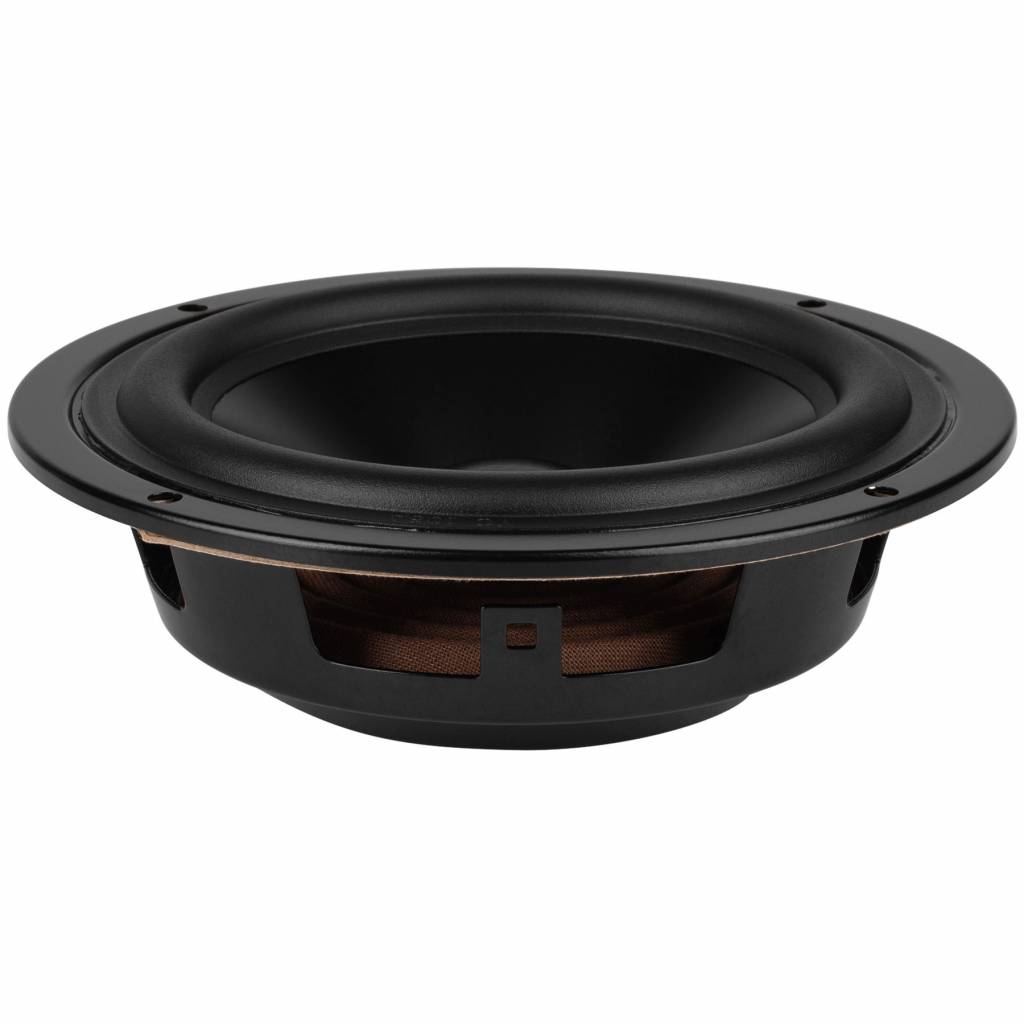

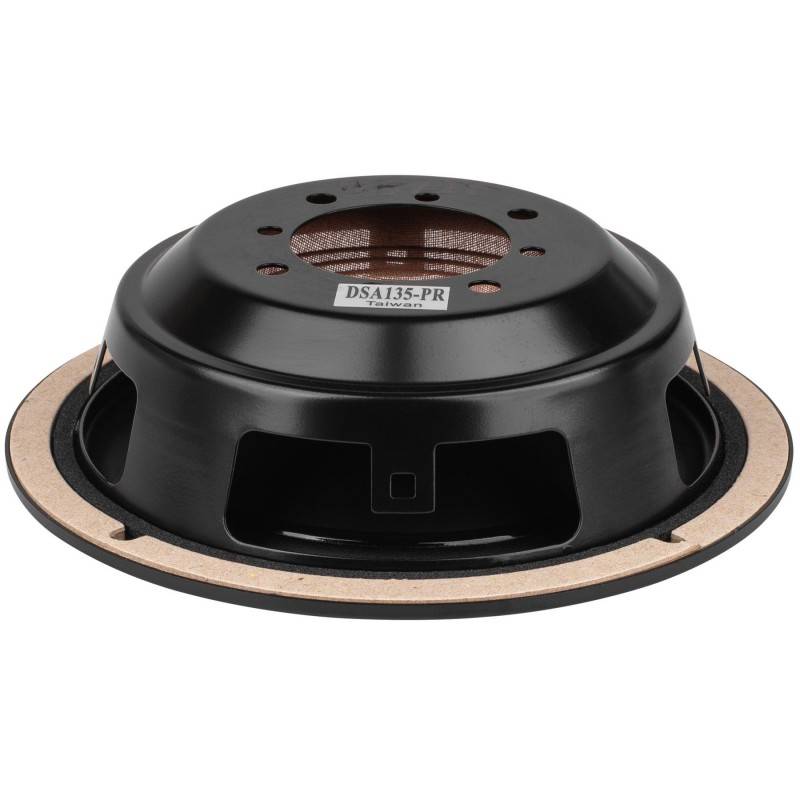

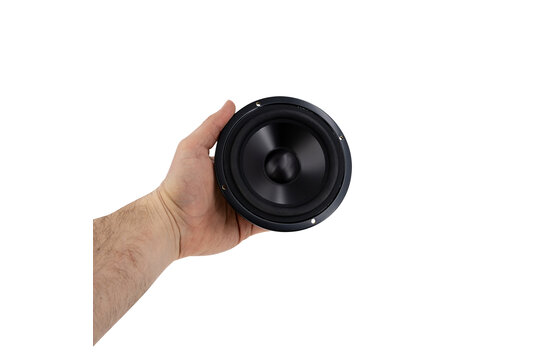

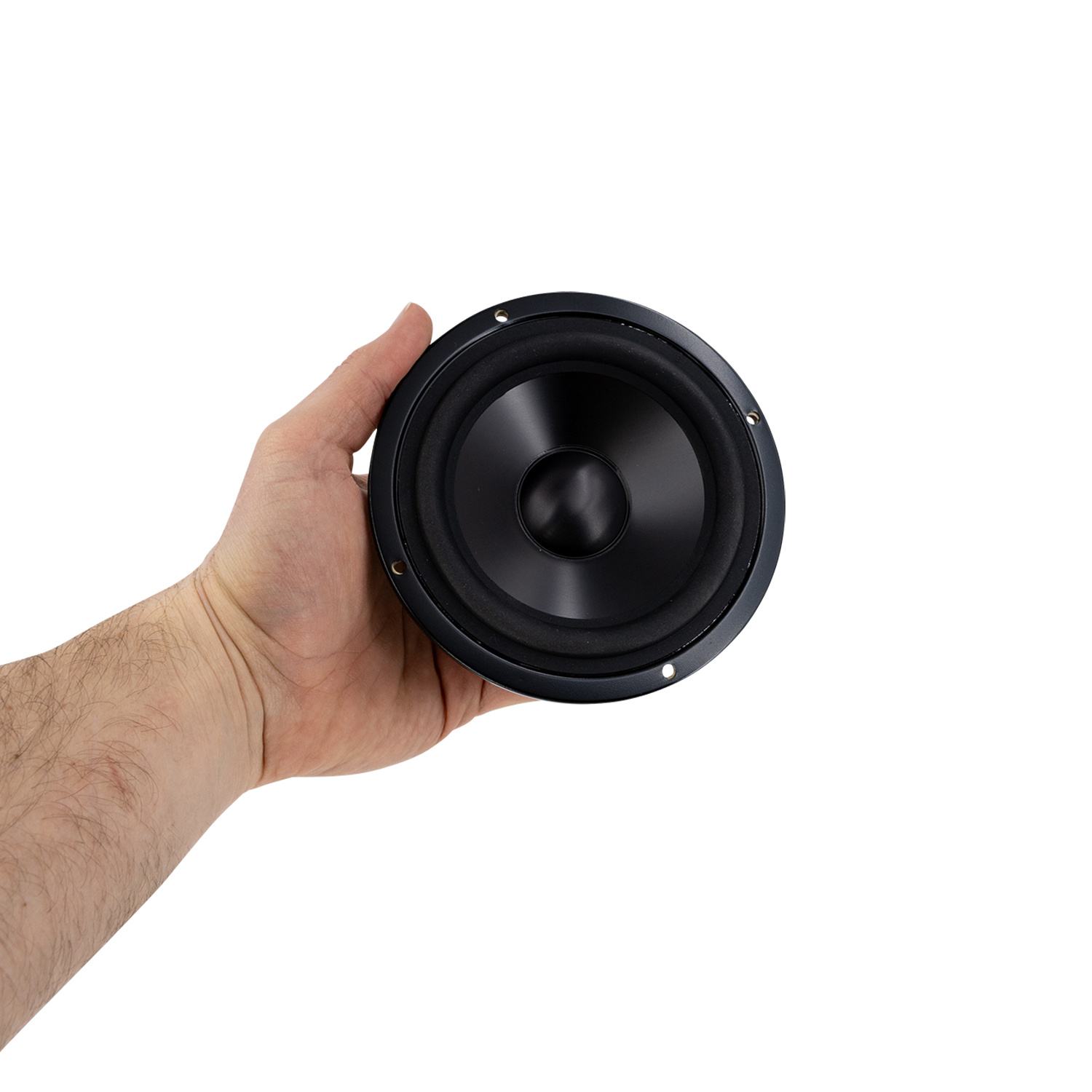

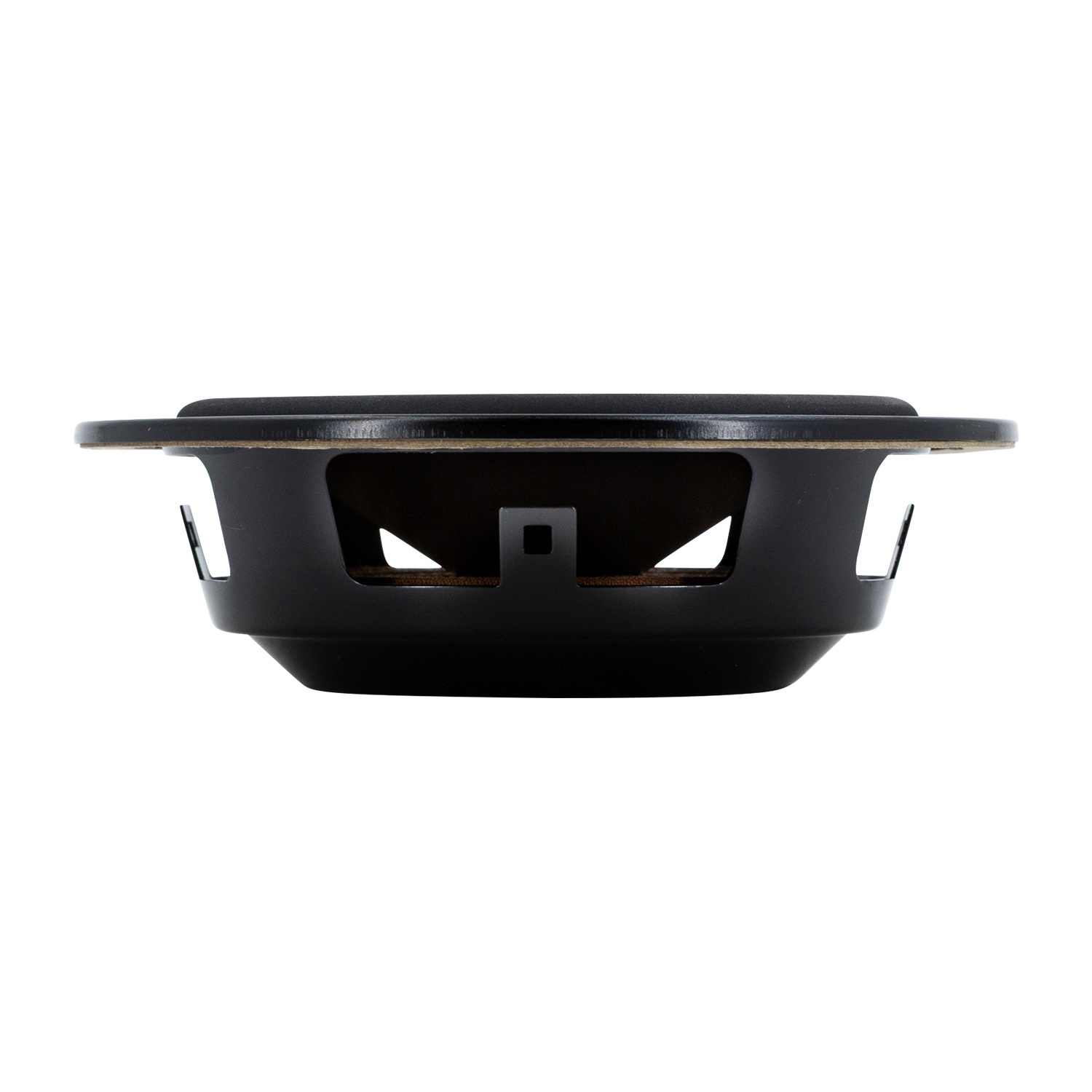

Dayton Audio DSA135-PR 5" Designer Series Aluminum Cone Passive Radiator

The Dayton Audio Designer Series passive radiators are excellent general-purpose passives suitable for replacement or for new construction. A built-in mass disc offers a good starting point for most designs, and a convenient M5 threaded hole (screw included) allows different types of weights to be added if desired. Cosmetically and mechanically, these passives match Dayton Audio's Designer Series drives, with a black anodized aluminum cone and medium-roll rubber surround for clean excursion and long life. The possibilities with these passives are endless, from stand mount two-ways to portable battery powered speaker systems.

Specifications: • Fs: 27.9 Hz • Vas: 0.43 cu. ft. • Qms: 3.7 • Cms: 1.51 mm/N • Rms: 1.0 kg/s • Mms: 21.5 g • Sd: 75.4 sq. cm. • Xmax: 8 mm • Dimensions: Overall diameter: 5.31", Cutout diameter: 4.40", Depth: 1.5".

Note: Adding mass to the passive radiator will decrease Fs and increase Qms.

Tip: As a general rule, the passive radiator(s) should have at least double the displacement of air (Vd) as the active woofer(s)/subwoofer(s) in the system.

To calculate Vd: Sd x Xmax = Vd
