      SPA250DSP Subwoofer Amplificatore a Piastra

      Dayton Audio SPA250DSP Subwoofer Amplificatore a Piastra

      €369,95

      3 In magazzino7 Arrivo previsto il 27-05-2025

      Aggiungi al carrello

      Dayton Audio SPA250DSP Subwoofer Amplificatore a Piastra

      8 reviews
      5 da 5
      8 reviews
      5 stars
      50%
      4 stars
      50%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Dayton Audio
      Mostra tutti Amplificatori a piastra
      1 x 250 W
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      € 369,95 3 In magazzino7 Arrivo previsto il 27-05-2025
      +-
      Aggiungi al carrello
      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito oggi
      • Minimo cinque anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra
      SPA250DSP Subwoofer Amplificatore a Piastra

      Descrizione del prodotto Dayton Audio SPA250DSP Sub Amplificatore a Piastra

      The Dayton Audio SPA250DSP digitally processed plate amplifier offers an elite level of control over your entire system (i.e. subwoofer and mains). This unique amplifier allows you to fine tune your system's low frequency performance, and at the same time high pass to your mains (or satellites) protecting them from damage due to over excursion.



      Highlights

      • DSP functions include: 7 PEQ bands, LPF, phase, subsonic filter, limiter, mains delay, and HPF

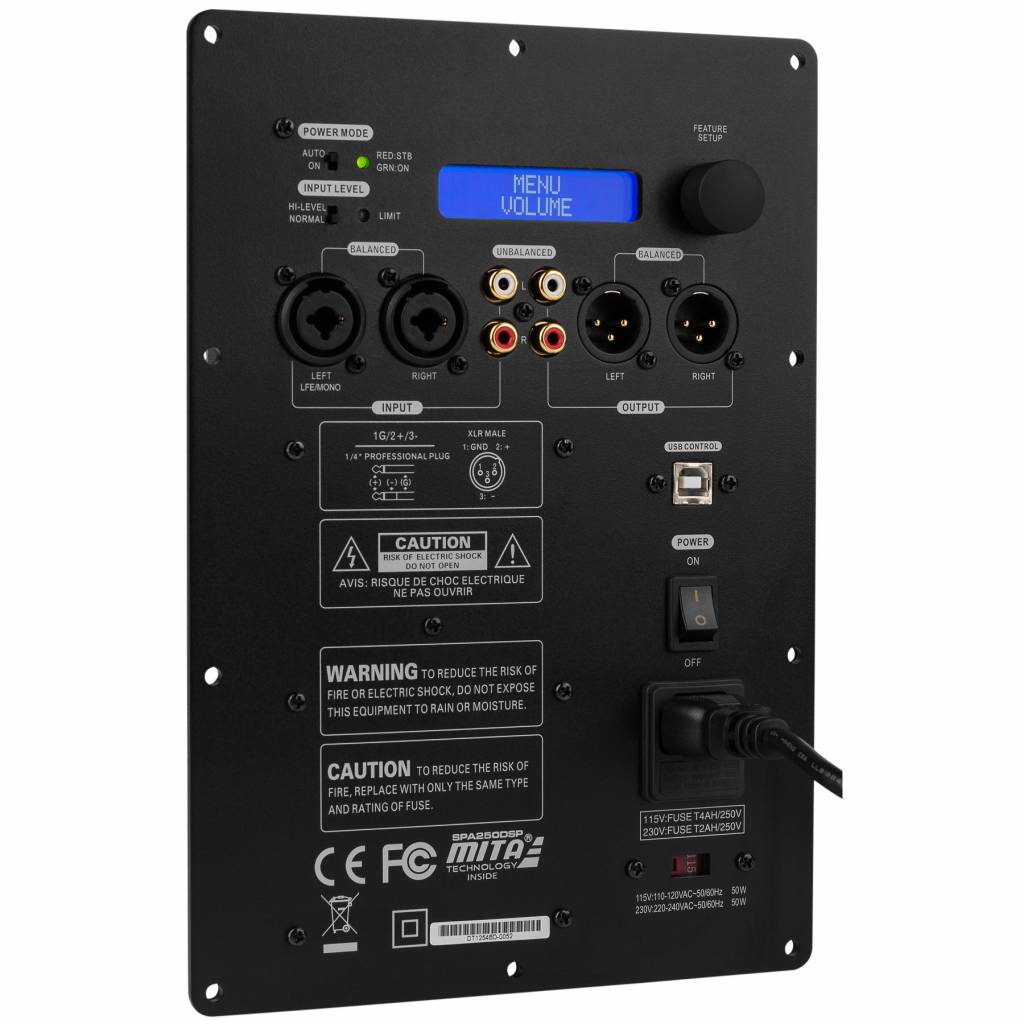

      • Single-knob control panel with high-contrast LCD display and status LEDs
      • Fast, intuitive PC-based GUI software enables full access to the DSP functions
      • Efficient Class D output topology ensures high-impact low frequency performance
      • Includes both balanced and unbalance line level inputs and outputs



      Product details



      Dayton Audio SPA250DSP 250W Subwoofer Plate Amplifier with DSP

      Dayton Audio's SPA250DSP true 250 watt digital switching plate amplifier features advanced signal processing control that every audio enthusiast wants. This power and flexibility is accessible via PC-GUI software and our innovative single-knob LCD control panel.



      1. Power Mode: Select the either energy-saving or “always-on” power mode

      • Auto: Amp goes into standby after no detected signal input for 20 minutes*
      • On: Amp is always on, regardless of input signal status.

      * Amp will automatically turn on typically in one second or less once audio signals are resumed.



      2. Analog input attenuation: Affects analog balanced and unbalanced inputs only.

      • Normal: No attenuation.
      • Hi: Attenuates input signal by -6dB.



      3. USB Control: Used for PC-GUI communication with custom PC software included with your amp.



      4. Feature Control: Single knob digital actuator with single/double-click enabled with rotary scrolling to navigate the amp’s extensive feature menu.



      5. Limiter LED: Lit when Limiter is active (Red).



      6. Standby/On LED:

      • Red when amp is in energy saving “stand by” state.
      • Green when amp is operating normally.





      DSP Processing Block Diagram

      DSP Processing Block Diagram

      Controlling your Subwoofer via PC GUI

      Volume/Phase

      width=

      • USB link indicator: When the communication via USB with amp is successful, the GUI’s LED indicator will light green. Otherwise, LED stays red.
      • Processing Selection: Navigate across the DSP menu to adjust various DSP parameters.
      • Sub in/out monitor: Monitor the input signal and sub output signal levels.
      • Tools Drop Down Menu: Utilities for amp DSP management.
      • Volume: Adjust the level (gain) of the subwoofer output.
      • Phase: Continuously adjustable phase from 0° to 180°.



      Low Pass and Subsonic Filters



      width=

      width=

      • Filter ON/OFF Button: Enable or disable the selected filter.
      • Slope: Select roll-off gradient of the selected filter: -12dB/-24dB per octave.
      • Frequency (Hz): Adjust cut-off frequency of the selected filter



      5-Band Parametric Equalizer





      width=

      • PEQ Window: Graphical trace is NRT editable. Bands can be shaped by cursor or direct input and/or sliders
      • 5 Band-digital PEQ adjustments:
        • Band On/Off: Bypass or enable by clicking the colorized 1~5 buttons
        • Center Frequency (CF): Adjust Center Frequency of each EQ band, 10~200Hz, steps: 1Hz.
        • Gain: Adjust the EQ gain (apparent volume), -12 ~ +6dB, steps: 0.1dB
        • Q (EQ width): Adjust the “Q” value, 0.4~16 , step: 0.1



      Dual-Band Limiter



      width=

      1. Threshold: Adjust the limiter threshold, 0~-12dB, step: 0.1dB
      2. Attack: Adjust limiter’s “attack time”. This controls the time taken to attenuate signals over the threshold to the specified threshold level. Range: 1/5/10/20/100ms
      3. Release: Adjust limiter's “release time”. When signal is below threshold level, this controls the time taken to restore back to original level. Range: 60/120/240/480/1000/2000ms
      4. Frequency: The crossover frequency point between the 2 bands: Band 1 (Low Frequency) & Band 2 (High Frequency).



       High Frequency Out



        width=

      • This block controls the DSP parameters for line level output only.
      • Delay: Adjust the time difference between High Frequency out and Subwoofer out.
      • HPF Control:
        • Filter ON/OFF: Bypass or Enable the selected filter.
        • Slope: Select roll-off gradient of the selected filter: -12dB/-24dB per octave.
        • Frequency: Adjust cut-off frequency of the selected filter.



      Dayton Audio SPA250DSP GUI Software



      Specifiche

      Numero dell'articolo:
      SPA250DSP
      EAN
      0848791004049
      Potenza di uscita nominale
      1 x 250 watts at 4 ohms
      Potenza di uscita nominale in ponte
      -
      Carico minimo
      4 ohms
      Rapporto segnale/rumore (SNR)
      97.9 dB
      Distorsione
      <1 % THD+N (10-20,000 Hz at rated power output)

      Show more

      Recensioni

      8 reviews
      Recensisci questo prodotto
      4 di 5
      A decent sub Amp. Software is very good and easy to use an works everytime. amp is not 250w though 190w is the most you get at 4ohm and also is very particular with its power and produces some audible electrical noise on the high frequencies.
      Da Dimitris Prapas on 21 Aprile 2023
      5 di 5
      -
      Da Lubos on 10 Marzo 2023
