      Revelator R2904/700005 Tweeter Ring Radiator

      Scan-Speak Revelator R2904/700005 Tweeter Ring Radiator

      €349,95

      4 In magazzino

      Aggiungi al carrello

      Scan-Speak Revelator R2904/700005 Tweeter Ring Radiator

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Scan-Speak
      Mostra tutti Tweeters Scan-Speak
      1" | 4 Ω
      Revelator R2904/700005 Tweeter Ring Radiator
      Revelator R2904/700005 Tweeter Ring Radiator
      Revelator R2904/700005 Tweeter Ring Radiator
      Revelator R2904/700005 Tweeter Ring Radiator
      Revelator R2904/700005 Tweeter Ring Radiator
      Revelator R2904/700005 Tweeter Ring Radiator
      € 349,95 4 In magazzino
      +-
      Aggiungi al carrello
      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito domani
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      Revelator R2904/700005 Tweeter Ring Radiator
      Revelator R2904/700005 Tweeter Ring Radiator
      Revelator R2904/700005 Tweeter Ring Radiator
      Revelator R2904/700005 Tweeter Ring Radiator
      Revelator R2904/700005 Tweeter Ring Radiator
      Revelator R2904/700005 Tweeter Ring Radiator

      Descrizione del prodotto Scan-Speak Revelator R2904/700005 Tweeter Ring Radiator

      Highlights

      • 1" Ring Dome Diaphragm
      • Patented Symmetrical Drive (SD-2) motor
      • Non Resonant Alu Rear Chamber
      • Patented Phase Plug Design
      • Large Ring Neo Magnet for High Output
      • Anodized Mashined Alu Face Plate



      Product details

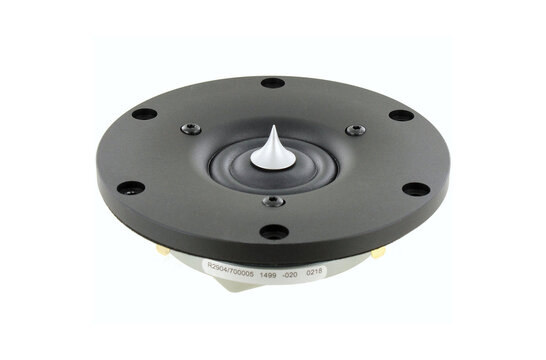

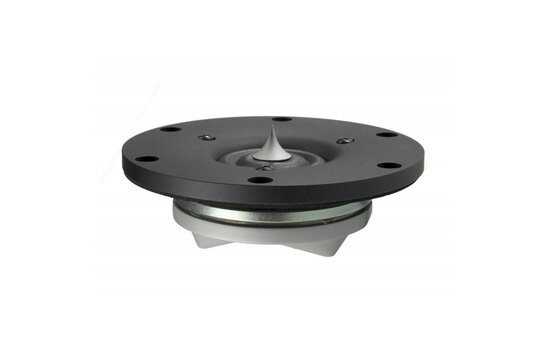

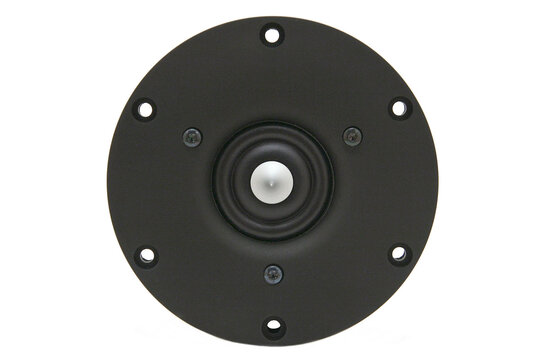

      Scan-Speak Revelator R2904/700005 1" Ring Radiator



      The Scan-speak R2904-700005 tweeter is the new flagship tweeter in the Scan-speak line. This tweeter incorporates many innovative design concepts. The first notable difference is the use of a phase plug. The dome is attached to the phase plug, so the radiating area is now concentrated around the voice coil.



      This offers more control and reduces distortion and loss that occur at the center of the dome on dome tweeters. The phase plug also acts as a wave guide, reducing high frequency cancellations. A specially designed venting system uses a needle to cut down on turbulence in the air cavity. Better dynamics are achieved by not using ferrofluid, voice coil cooling is performed by the venting system and conduction through copper rings. The new SD-2 neodymium magnet system improves transient response.



      Specifications: Compliance Equivalent Volume (Vas): 0.0003 ft.³ • BL Product (BL): 2.8 Tm • Mechanical Compliance of Suspension (Cms): 0.31 mm/N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.2 mm • Surface Area of Cone (Sd): 5.6 cm2

      Specifiche

      Numero dell'articolo:
      R2904/700005
      EAN
      696277268504
      Tipo di tweeter
      Ring Radiator
      Serie del tweeter
      Revelator
      Gestione della potenza (RMS)
      160 Watts
      Impedenza (Z)
      4 Ω
      Sensibilità (SPL a 1m / 2,83V)
      94.5 dB

      Show more
