      000-6225 | 4,7 mH | 0,07 Ω | 5% | 14 AWG | C-Induttore

      Jantzen Audio 000-6225 | 4,7 mH | 0,07 Ω | 5% | 14 AWG | C-Induttore

      €61,45

      5 In magazzino

      Aggiungi al carrello

      Jantzen Audio 000-6225 | 4,7 mH | 0,07 Ω | 5% | 14 AWG | C-Induttore

      0 reviews
      0 da 5
      0 reviews
      5 stars
      0%
      4 stars
      0%
      3 stars
      0%
      2 stars
      0%
      1 stella
      0%
      Leggi le recensioni
      Marchio: Jantzen Audio
      Mostra tutti Induttori toroidali
      000-6225 | 4,7 mH | 0,07 Ω | 5% | 14 AWG | C-Induttore
      € 61,45 5 In magazzino
      • -5% Acquista 4 per soli € 58,38 per pezzo
      +-
      Aggiungi al carrello
      • Spedizione gratuita a partire da € 199
      • Ordinato ora, spedito domani
      • Minimo due anni di garanzia
      • Periodo di recesso di 45 giorni per i resi
      • Dicono di noi:
      Richiedi preventivo
      000-6225 | 4,7 mH | 0,07 Ω | 5% | 14 AWG | C-Induttore

      Descrizione del prodotto Jantzen Audio 000-6225 | 4,7 mH | 0,07 Ω | 5% | 14 AWG

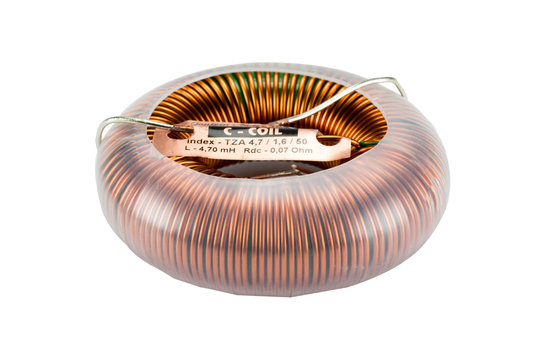

      The C-Coil is wound around a toroidal sandwich core, and it has extremely low resistance and can shift a large amount of power without getting over heated. If the stated maximum wattage is not exceeded the core will never saturate. The C-Coil is designed for the bass section of crossovers and for passive Sub-Woofers.



      Highlights

      • Wound with ETP (Electrolytic-Tough-Pitch) C11000 / IACS certified copper wire
      • Toroidal (sandwich) core made from epoxy laminated steel plates
      • All C-Coils are measured after being wound, using a professional CLIO system @ AC 1V 1kHz
      • Not suitable for crossovers with an XO point above 1.20 kHz



      Product details

      Jantzen Audio 000-6225 | 4,7 mH | 0,07 Ω | 5% | 14 AWG | C-Coil



      The C-Coil is an audio inductor, unique to Jantzen Audio. It is a toroidal core audio inductor with a very high-power handling and extremely low resistance (RDC). The extremely high-power handling makes it the ultimate inductor for the bass section for certain crossover design. Wound on a toroidal sandwiched steel core and using shrink foil to reduce microphonic effect. The C-Coil is specifically designed for the bass section for crossovers and is not recommended for the mid-range or tweeter section.



      All Jantzen Audio inductors, both wire and foil based are made with copper that is in accordance with ETP (Electrolytic-Tough-Pitch) C11000 and an IACS certification of a minimum of 100% conductivity. C11000 copper has a guaranteed purity of 99.9% or higher. The copper purity will often be higher, but 99.9% is the margin which our suppliers of copper wire and copper foil will guarantee as a minimum. The oxygen content of ETP C11000 certified copper is between 0.02 and 0.04%.



      Specifications: Power handling: 1500 Watt RMS • Inductance tolerance: +/- 5% • Resistance (RDC) tolerance: +/- 10%.

      Specifiche

      Numero dell'articolo:
      000-6225
      EAN
      8785256839162
      Tipo di avvolgimento
      Toroidal coil
      Induttanza
      4.7 mH
      Resistenza DC (DCR)
      0.07 ohms
      Tolleranza
      5%
      Diametro del filo
      14 AWG
