SPST NO Momentary 16mm Stainless Steel Tamper/Waterproof Raised Push Button Switch

€ 6,98€ 8,45 3 Op voorraad

Gratis verzending vanaf € 99
Nu besteld, morgen bezorgd
Ten minste twee jaar garantie
45 dagen bedenktijd voor retourneren

Klantbeoordeling:

Vergelijk

Zakelijke offerteaanvraag

Heeft u vragen over dit product?

Onze klantenservice helpt u graag verder!

Productomschrijving SPST N.O. 16mm Waterproof Raised Push Button Switch

Use this heavy duty, Stainless steel, anti-vandal, raised push button momentary switch for outdoor and other extreme condition applications. It has a built-in blue power/ring light for multiple applications.

Highlights

Popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications
Stainless steel body and IP67 rating for extreme conditions
Built-in 3 VDC blue ring illumination for low lit areas and connection identification
RoHS certified
Includes rubber washer for IP67 rating
Easily mounts in 1/2" hole with included shaft nut
+ and - symbols on the switch body for polarity identification for the built-in LED

Product Details

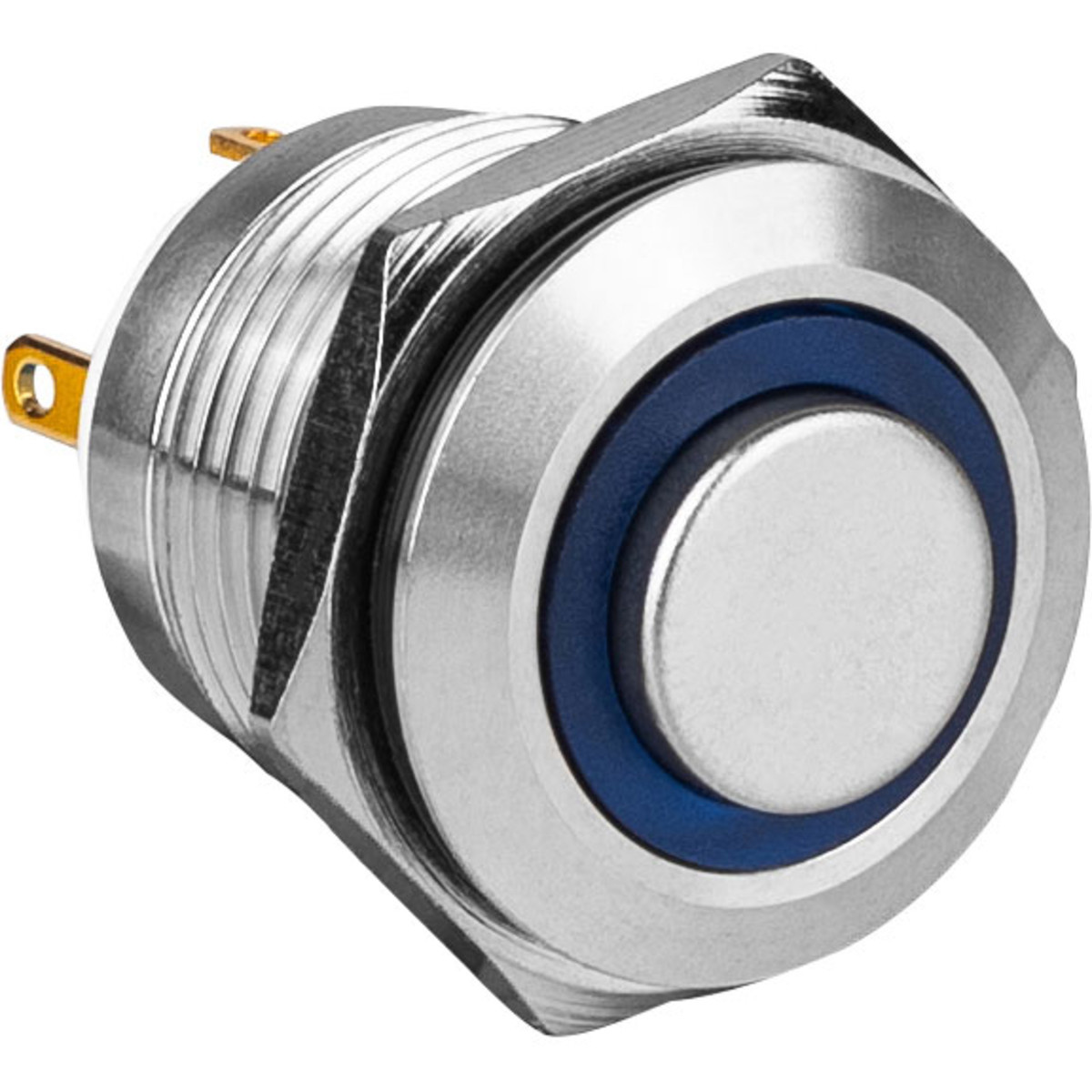

SPST NO Momentary 16mm Stainless Steel Tamper/Waterproof Raised Push Button Switch with Blue Ring

This anti-vandal pushbutton switch is popular for use in kiosk applications, ticket dispensers and industrial-type applications. The stainless steel body and button stay looking great even with heavy duty use. The switch has an IP67 waterproof rating for extreme conditions indoors or outdoors when used with included rubber washer. This switch has a built-in 3V blue LED light for locating in low lit areas. Add a 390 ohm resistor for 12V or 5.6K resistor for 120V applications.

Specifications: Contact: SPST N.O. momentary • Current rating: 3mA~5A • Switch voltage: 1.5V~250 VAC/DC • Blue LED voltage: 3V without any resitor • Switch total size with button raised without terminals: 0..75" L x 0.7" Dia. • Metal thread dimensions: 0.62" Dia. x 0.4" L • Button size: 0.35" Dia. • 4 terminals dimensions: 0.08" W x 0.17" L x 0.02" D.
