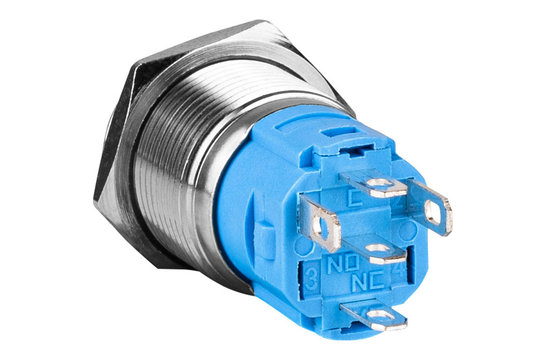

Productomschrijving SPDT 16mm Waterproof Raised Push Button Switch

Use this heavy duty, Stainless steel, anti-vandal push button latching (push on/push off) switch for outdoor and other extreme condition applications. It has a built-in blue light ring for 3 VDC applications.

Highlights

Popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications
Stainless steel body and IP67 rating for extreme conditions
Built-in 3 VDC blue ring illumination for low lit areas and connection identification
RoHS certified
Includes rubber washer for IP67 rating
Easily mounts in 0.64" (16 mm) hole with included shaft nut
Mounts in panels up to 0.4" thick

Product Details

This anti-vandal pushbutton switch is popular for use in kiosk applications, ticket dispensers, automotive, and industrial-type applications. The stainless steel body and push on/push off button stay looking great even with heavy duty use. The switch has an IP67 waterproof rating for extreme conditions indoors or outdoors when used with included rubber washer. This switch has a built-in 3 VDC blue light for locating in low lit areas and connection identification. Use appropriate resistor for voltages higher than 3V.

Specifications: Light rating: 3 VDC • Switch rating: 1.5~250V AC/DC up to 5A • Switch total size without terminals: 1.11" L x 0.7" Dia. • Metal thread length: 0.4" • Button size: 0.43" Dia. x 0.06 H • Terminal size: 0.112" W x 0.25" L x 0.02" D.
