The Accuton C158-8-085 is a 6.25-inch speaker component for small bookshelf or slim floorstanding speakers. It has a small, lightweight voice coil with a 25mm titanium former, which improves midrange resolution. Its long excursion design also allows for high SPL capabilities.

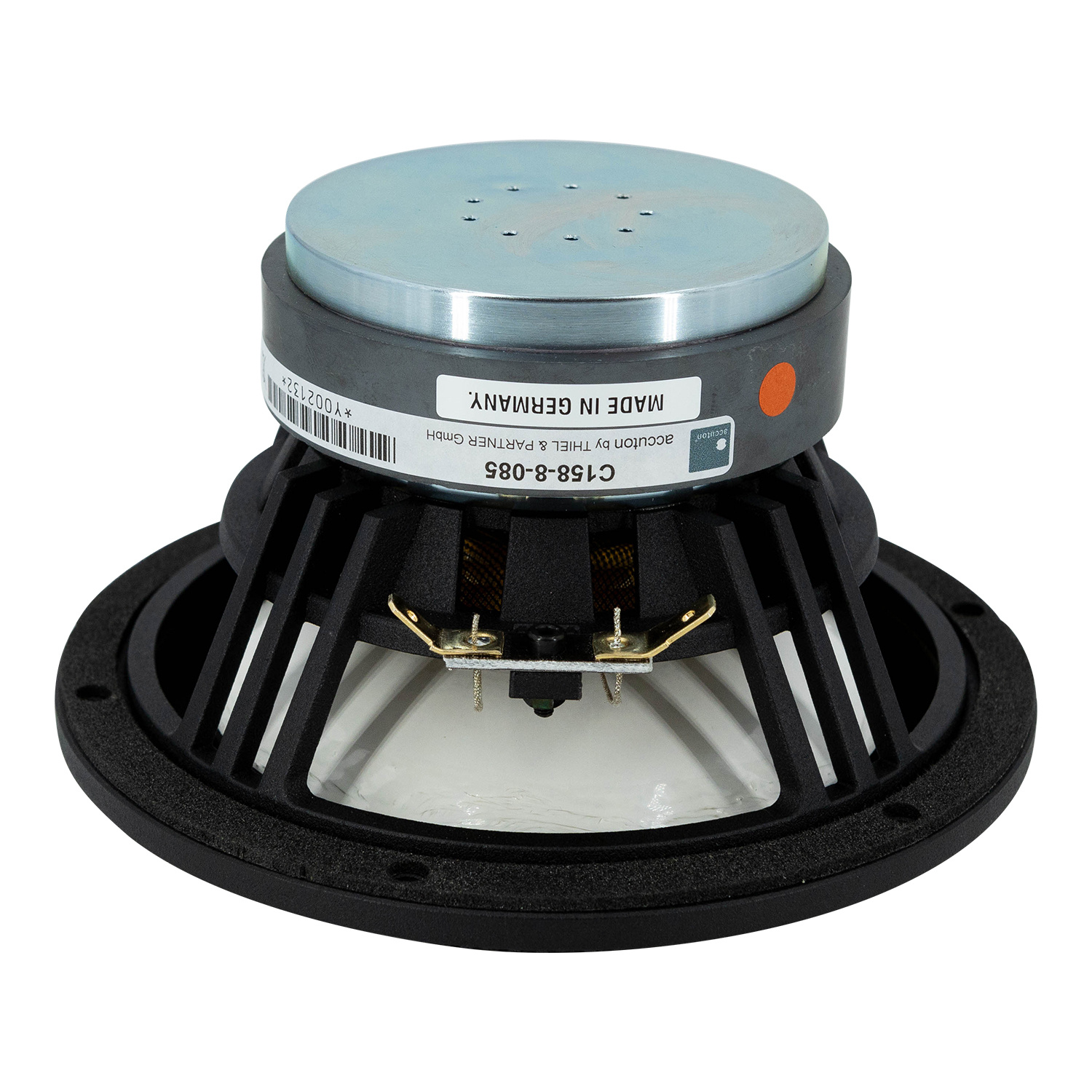

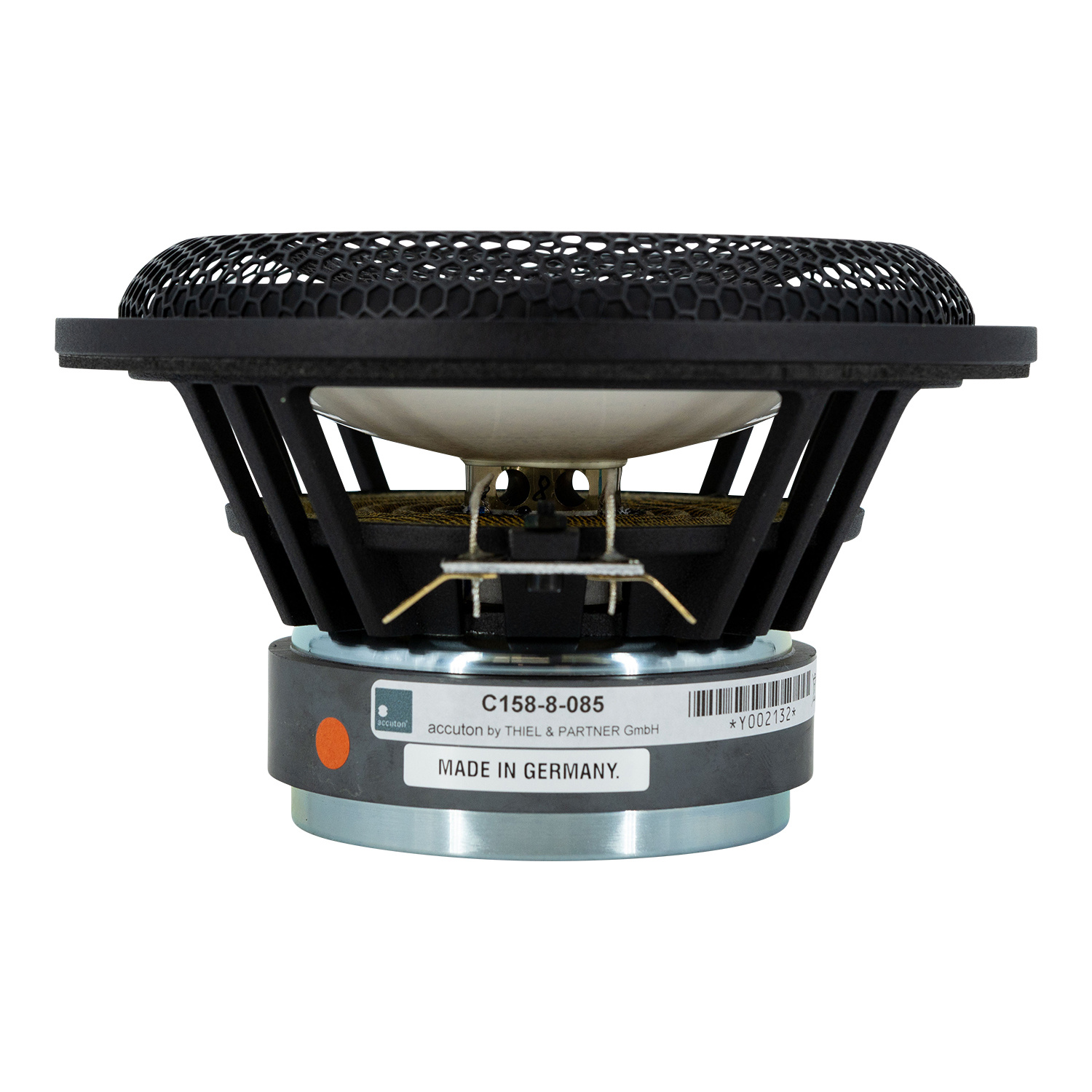

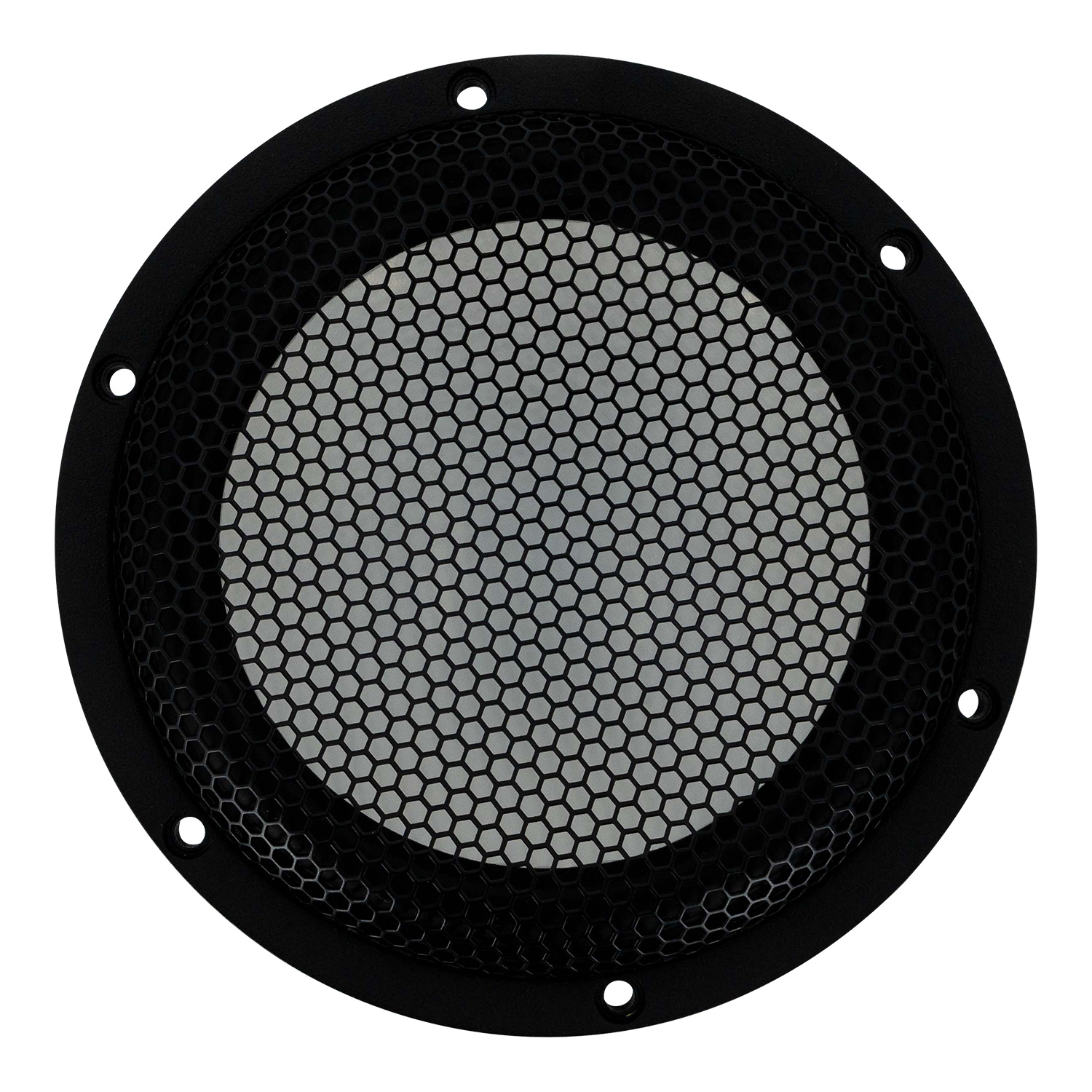

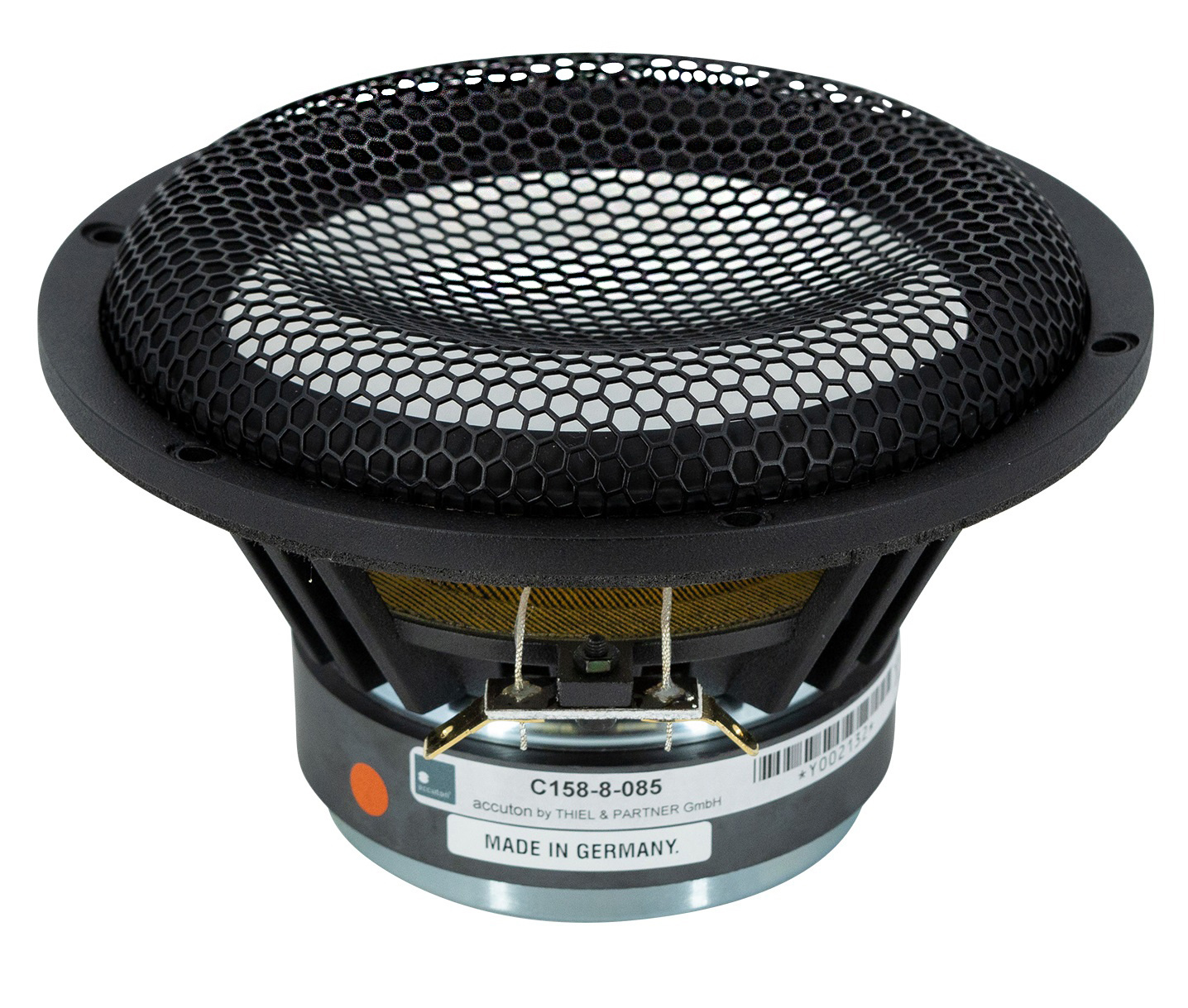

Accuton C158-8-085 Ceramic 6.25'' Bass-midwoofer
The Accuton C158-8-085 is a ceramic bass-midrange driver with a 6.25-inch diameter, designed for use in small bookshelf monitors or slim floorstanding speakers. It features a small and lightweight voice coil with a 25mm titanium former, which provides high resolution in the midrange frequencies. The long excursion design of the driver ensures high SPL capabilities.
In terms of technical specifications, the C158-8-085 has a sensitivity of 87.5 dB, a DC resistance of 8.1 Ohm, and a resonance frequency of 37 Hz. Its equivalent volume of air is 27.3 liters, and it has a mechanical Q of 4.91, an electrical Q of 0.39, and a total Q of 0.36. The effective piston area is 113 cm2, and the moving mass is 12.1 g.
The driver also features an overhung motor design, a soft rubber surround, and vented voice coil, pole piece, and spider. It has a power handling capacity of 100 W and a linear excursion of +/-5 mm. The voice coil diameter is 25 mm and is made of copper, with a voice coil inductance of 0.54 mH.
Overall, the Accuton C158-8-085 is a high-quality bass-midrange driver that offers excellent performance in terms of midrange resolution and SPL capabilities.
Toon meer
Er zijn nog geen reviews geschreven over dit product..
