      Up2Stream Mini V3 Wi-Fi &  Bluetooth Audio Receiver Module with I2S

      Arylic Up2Stream Mini V3 Wi-Fi & Bluetooth Audio Receiver Module with I2S

      €39,95

      86 Op voorraad

      Arylic Up2Stream Mini V3 Wi-Fi & Bluetooth Audio Receiver Module with I2S

      9 reviews
      4 van 5
      9 reviews
      5 sterren
      56%
      4 sterren
      22%
      3 sterren
      11%
      2 sterren
      11%
      1 ster
      0%
      Bekijk alle reviews
      Merk: Arylic
      € 39,95 86 Op voorraad
      • Gratis verzending vanaf € 99
      • Nu besteld, dinsdag bezorgd
      • Ten minste twee jaar garantie
      • 45 dagen bedenktijd voor retourneren
      • Klantbeoordeling:
      Zakelijke offerteaanvraag

      Productomschrijving Arylic Up2Stream Mini V3 | BT 5.0 | Wi-Fi | DAC | I2S | Receiver Module

      With the Up2Stream Mini V3 Wi-Fi &  Bluetooth Audio Receiver Module, you can stream your audio wirelessly to your speakers. With its five streaming possibilities and all of its other features, it is the most complete and simplest way to enjoy music wireless.



      Highlights

      • Five streaming possibilities
      • Doubles as a USB DAC
      • Extremely small form factor



      Product details

      Arylic Up2Stream Mini V3 Wi-Fi Bluetooth Audio Receiver Module



      With the Up2Stream Mini V3 Wi-Fi &  Bluetooth Audio Receiver Module, you can stream your audio wirelessly to your speakers using Wi-Fi, Bluetooth 5.0, Airplay, DLNA & UPnP. It is the most complete and simplest way to enjoy music wirelessly.



      The compact design of the receiver will leave you with more space for your wild & creative ideas, so you can design with more freedom and add components to further improve your speaker system.



      Up2stream Mini V3 wifi audio receiver has huge upgrades from the previous version. Now with Bluetooth 5.0, 7-Pin connector for SPDIF output, ADC Key (for external button board), and 2x I/O for external controls such as volume knobs. It can double as a USB DAC, able to connect to a PC and stream PC audio digitally. Thanks to the upgraded CPU, you can now also change the device name for WiFi SSID and Bluetooth using the mobile app.



      If you are a DIY rookie and like to keep things simple, don't worry we got you covered! On the Up2Stream receiver, all ports and the mobile app are extremely user friendly. You can even use the remote control for conveniently satisfying your music streaming needs.

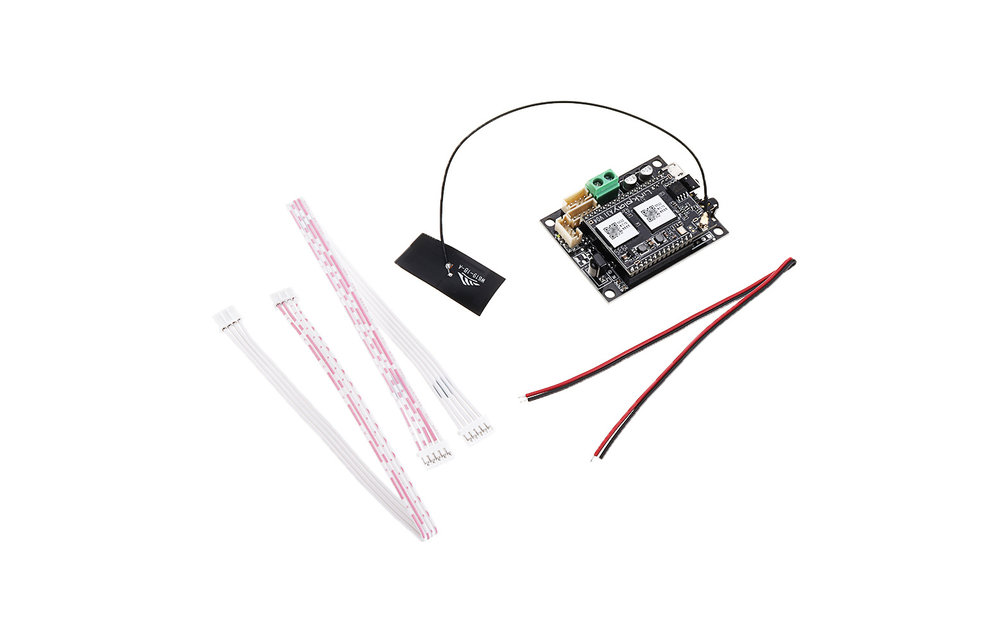

      What’s in the box?

      • Up2Stream Mini
      • 7-pin cable for SPDIF output
      • 4-pin cable for analog input
      • 2-pin cable for 5V 1A input
      • Wi-Fi Antenna
      • User manual



      Warning: Up2Stream Mini must use 5V-1A DC input, higher voltage power supply may damage the board.

      Specificaties

      Artikelnummer
      Up2Stream Mini V3
      EAN
      0691046949394
      Vermogen (RMS)
      -
      Vermogen gebrugd (RMS)
      -
      Minimale belasting
      -
      Signaal-ruisverhouding (SNR)
      100 dB
      Vervorming
      0.03% at 1 KHz, 0dBFS
      Vervorming gebrugd
      -
      Efficiëntie
      -
      Frequentierespons
      20 Hz -20,000 Hz
      Ingangsimpedantie
      -
      Ingangsgevoeligheid
      -
      Inschakelgevoeligheid
      -
      DSP
      -
      DAC
      USB-DAC
      Maximale sample rate
      Up to 24bit/192kHz
      Versterkertopologie
      -
      Versterkerklasse
      -
      Uitgangskanalen
      -
      Subwoofer uitgangskanaal
      -
      Analoog in / uit
      -/2
      S/PDIF in / uit
      1/0
      Coaxial in / uit
      -/-
      RCA in / uit
      -/-
      AUX in / uit
      -/1
      Bus in / uit
      -/-
      USB
      USB DAC
      Geheugenkaartslot
      -
      Netwerkverbinding
      Wi-Fi
      Koptelefoonaansluiting
      -
      Subwoofer pre-out
      -
      Bluetooth
      Bluetooth 5.0
      NFC
      -
      Wi-Fi
      IEEE802.11 b/g/n 2.4G
      Compatibel met banaanstekker
      -
      Afstandsbediening
      (not included)
      App-bediening
      Check 4Stream
      Auto aan / uit
      -
      Ondersteunde bestandsformaten
      FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
      EQ-correctie
      in-app equalizer adjustment
      EQ-profielen
      -
      Multi zone / kamer
      App supports Multi-Room playback
      Instelbare kantelfrequentie
      -
      Brugbaar
      -
      Voedingsvereisten
      5 VDC, 1 A
      Voedingsaansluiting
      Micro USB or screw-terminal
      Stroomverbruik
      -
      Standby stroomverbruik
      -
      Afmetingen (D x B x H)
      55 x 42 x 12mm
      Behuizingsmateriaal
      -

      Toon meer

      4 van 5
      hij werkt en is precies zoals staat omschreven. Vergeleken bij een chromecast of andere streamer is hij minder mooi
      Door Berry on 24 Juni 2024
      5 van 5
      Geïnstalleerd in combinatie met de 'Arylic DAC Expansion Board' en de 'Mean Well IRM-10-5 Switched Mode Power Supply'. Het werkt super, geen ruis o.i.d. Na installatie een uurtje naar geluisterd via verschillende streamingdiensten en via bluetooth. En ik ben tot nu toe erg enthousiast!
      Door S.Zuidema on 15 Februari 2024
